GSX50L-AEZQBA (2020)

Toyota Avalon

Production Aug 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )GSX50..XSE

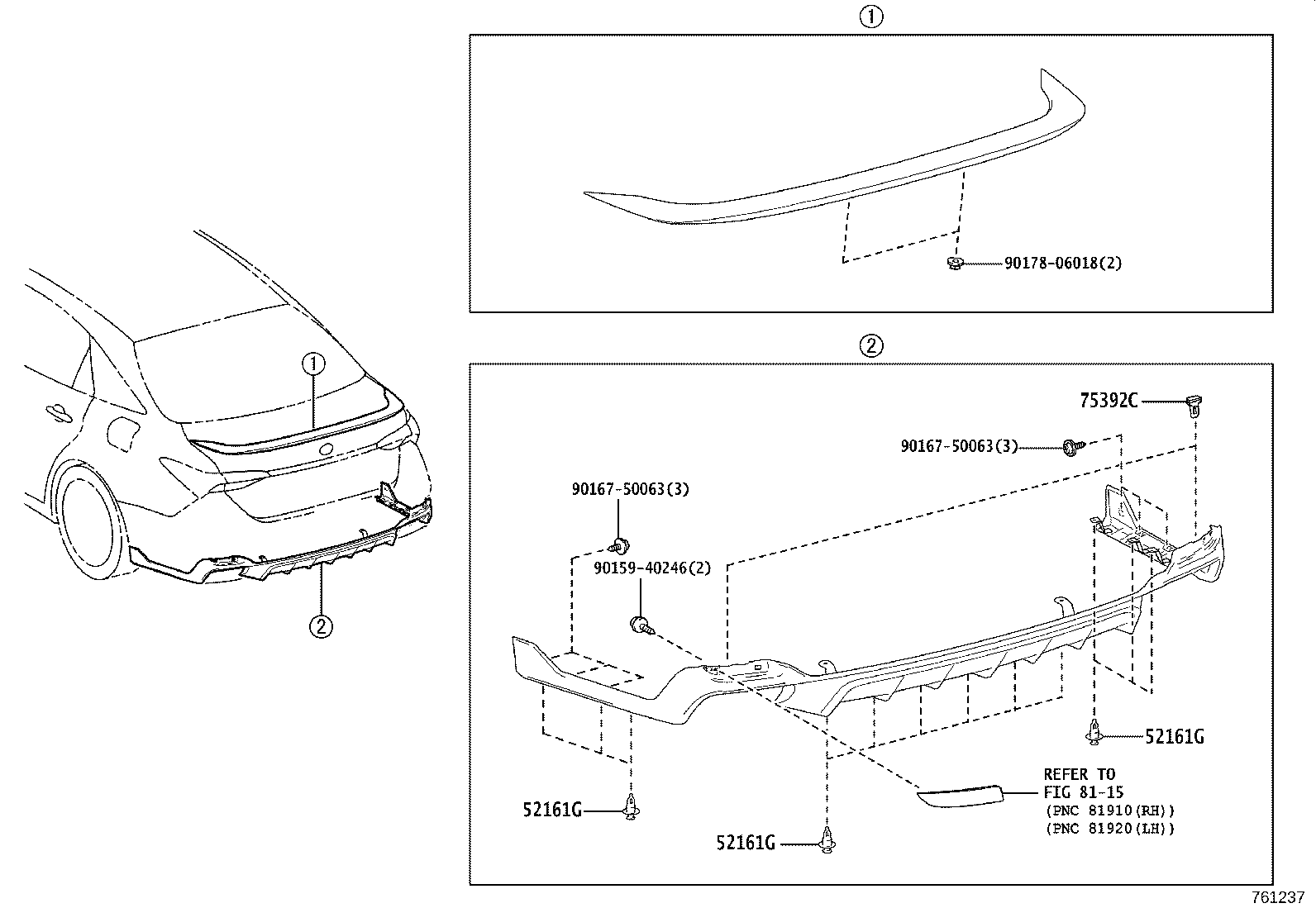

Click highlighted areas on diagram

TRD PACKAGE

diagram 52161G 52161G 52161G 75392C 8115 9015940246 9016750063 9016750063 9017806018
Part # Description Qty Price
52161G - PIECE, REAR BUMPER
52161-02020

GSX50..XSE

TRD PACKAGE

 12
52161G - PIECE, REAR BUMPER
52161-02020

GSX50..XSE

TRD PACKAGE

 12
52161G - PIECE, REAR BUMPER
52161-02020

GSX50..XSE

TRD PACKAGE

 12
75392C - RETAINER, OUTSIDE MOULDING
75392-35200

GSX50..XSE

TRD PACKAGE

 2
Common parts
90159-40246
90167-50063
90178-06018
Linked diagrams
8115
