GSX50L-AEZQBA (2018)
Toyota Avalon
Production
Apr 2018
-
Aug 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1804-2008)GSX50

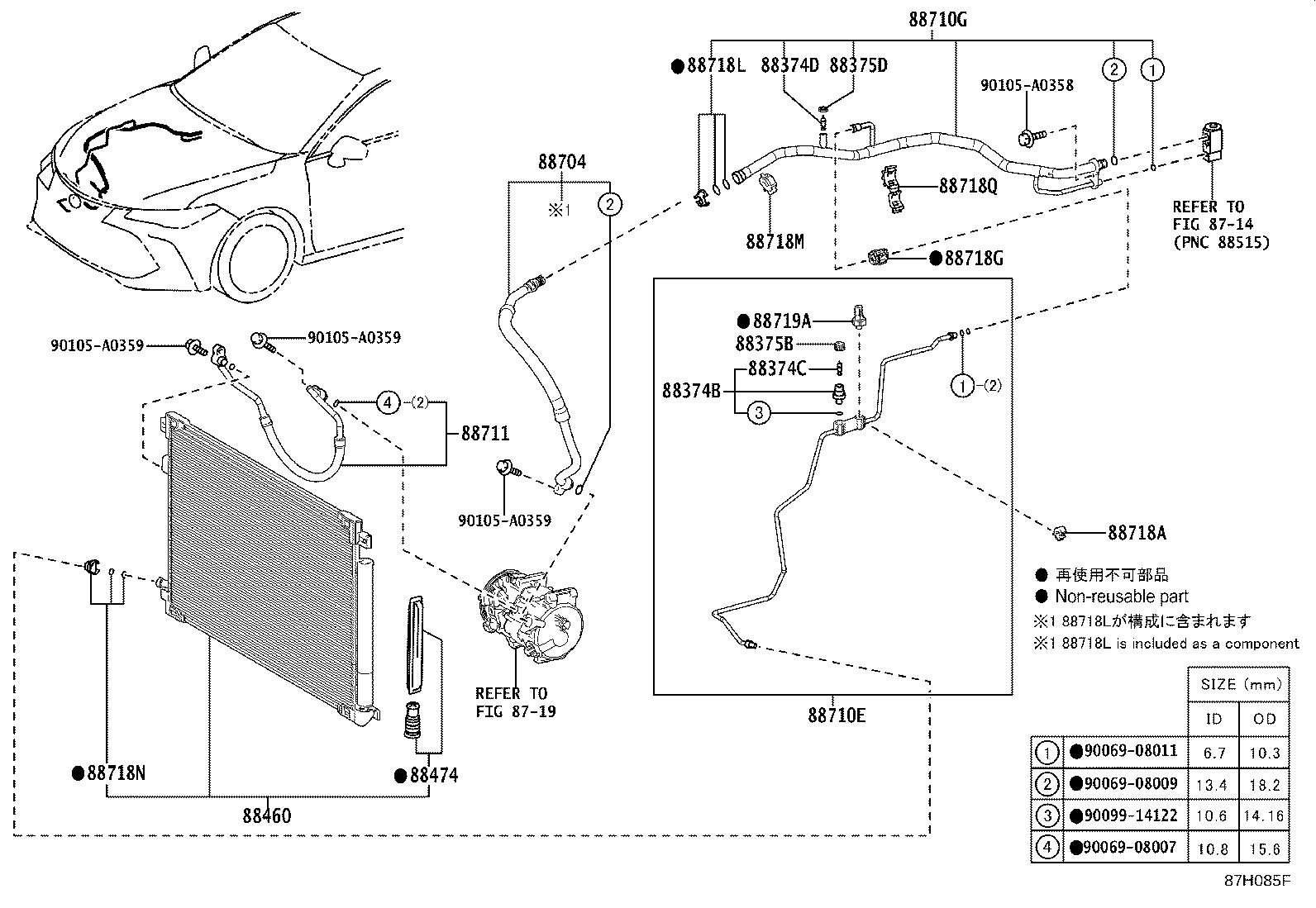

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30020 |
GSX50 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
AXXH50,GSX50 |
1 | ||
| 88374D - VALVE, SERVICE NO.3 | ||||
| 88374-30010 |
GSX50 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30320 |
AXXH50,GSX50 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30310 |
AXXH50,GSX50 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 884A0-06020 |
GSX50 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-06020 |
AXXH50,GSX50 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-06230 |
GSX50 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-06490 |
GSX50 |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-06540 |
GSX50 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-06390 |
GSX50 |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-58050 |
AXXH50,GSX50 |
1 | ||
| 88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-2D150 |
GSX50 |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
AXXH50,GSX50 |
1 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-42110 |
GSX50 |
1 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-1E150 |
AXXH50,GSX50 |
1 | ||
| 88718Q - CLAMP, PIPING | ||||
| 88718-33530 |
GSX50 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
AXXH50,GSX50 |
1 | ||
| Common parts | ||||
| 90069-08007 | ||||
| 90069-08009 | ||||
| 90069-08011 | ||||
| 90099-14122 | ||||
| 90105-A0358 | ||||
| 90105-A0359 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
