GSX50L-AEZQBA (2018)
Toyota Avalon
Production
Apr 2018
-
Aug 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1804-2008)GSX50 ; (2008- )GSX50

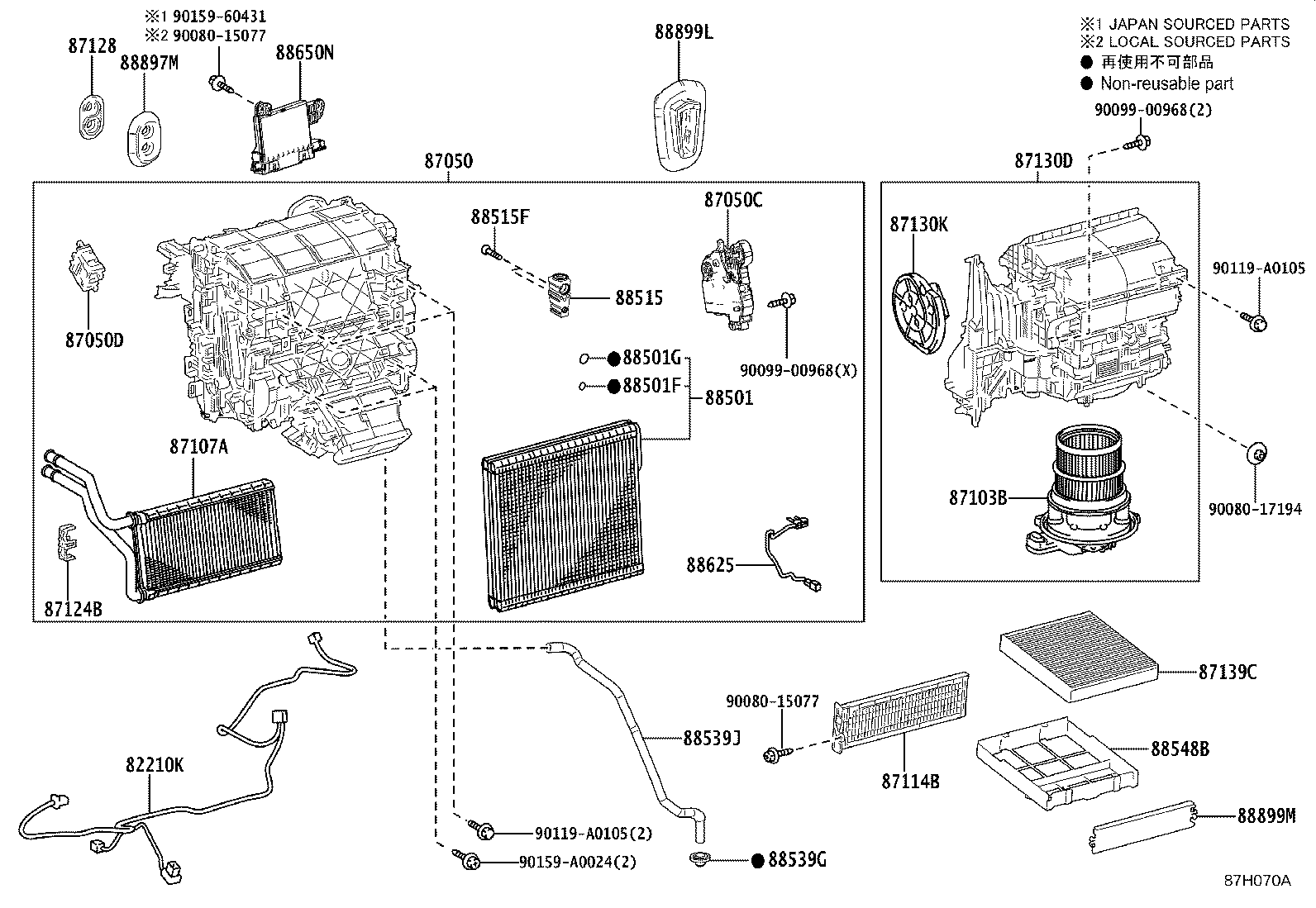

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-06200 |
GSX50 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-06870 |
GSX50 |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-06420 |
AXXH50,GSX50 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-0E120 |
AXXH50,GSX50 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0E090 |
AXXH50,GSX50 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-06100 |
AXXH50,GSX50 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-06090 |
GSX50 |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-07030 |
AXXH50,GSX50 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
AXXH50,GSX50 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-06410 |
AXXH50,GSX50 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0E130 |
AXXH50,GSX50 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0E040 |
AXXH50,GSX50 DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-06410 |
GSX50 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90069-08007 |
GSX50 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90069-08009 |
GSX50 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-06160 |
GSX50 |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
AXXH50,GSX50 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-06020 |
AXXH50,GSX50 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-06130 |
AXXH50,GSX50 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-0E030 |
AXXH50,GSX50 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0E050 |
GSX50 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-07290 |
AXXH50,GSX50 |
1 | ||
| 88650-07230 |
AXXH50,GSX50 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-06010 |
AXXH50,GSX50 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-06280 |
GSX50 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-06310 |
AXXH50,GSX50 |
1 | ||
| Common parts | ||||
| 90080-15077 | ||||
| 90080-17194 | ||||
| 90099-00968 | ||||
| 90119-A0105 | ||||
| 90159-60431 | ||||
| 90159-A0024 | ||||
