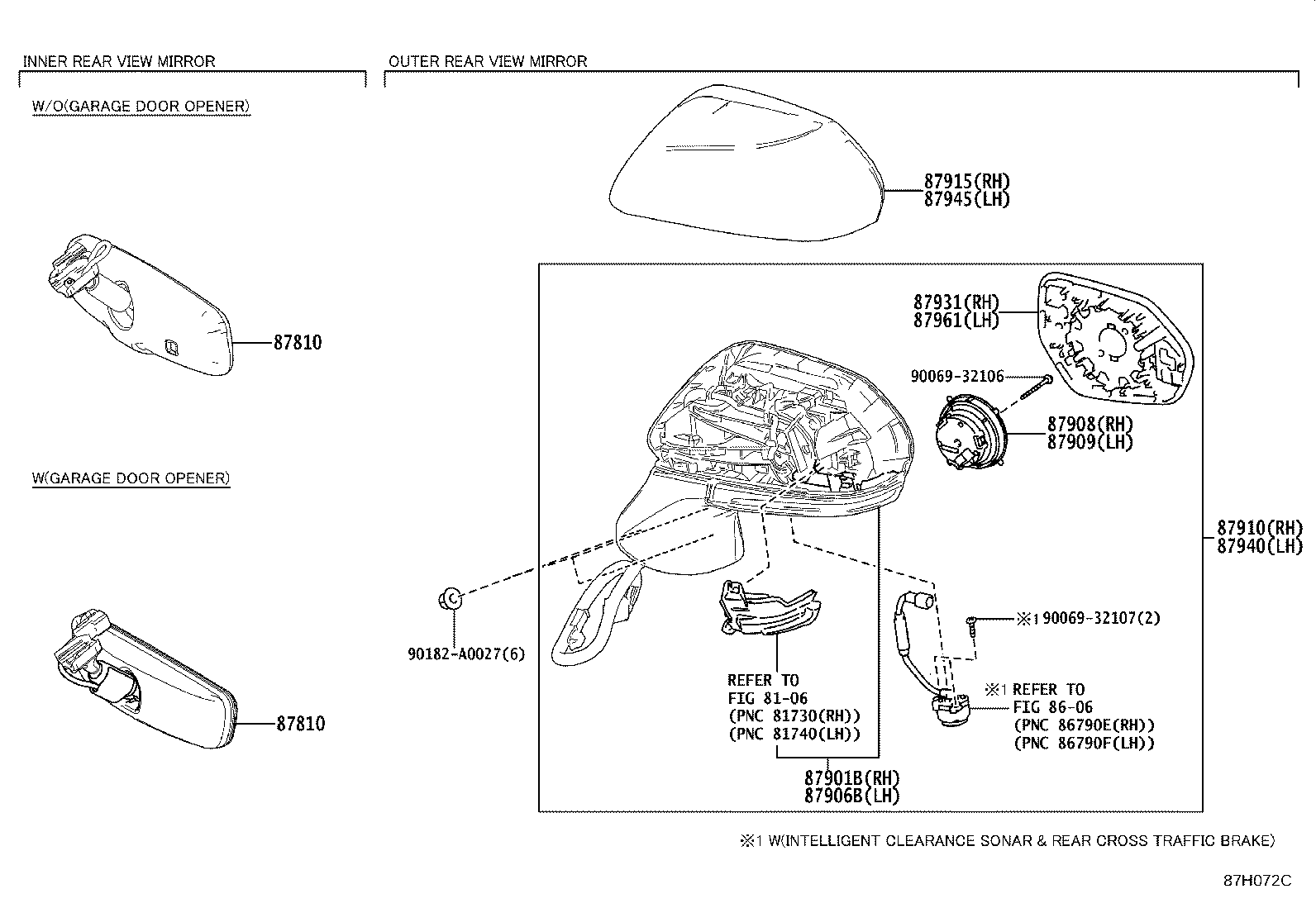

GSX50L-AEZQBA (2018)
Toyota Avalon
(1804-1903)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-07140 |
AXXH50,GSX50..XSE |
1 | ||
| 87810-07170 |
AXXH50,GSX50..XSE |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-07140 |
AXXH50,GSX50..XSE |
1 | ||
| 87810-07170 |
AXXH50,GSX50..XSE |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-07090 |
AXXH50,GSX50..XLE,XSE NO PAINT REQ. |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87906-07120 |
AXXH50,GSX50..XLE,XSE NO PAINT REQ. |
1 | ||
| 87908 - ACTUATOR ASSY, OUTER MIRROR, RH | ||||
| 87925-07190 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 87909 - ACTUATOR ASSY, OUTER MIRROR, LH | ||||
| 87985-07190 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-07190 |
AXXH50,GSX50..XLE,XSE NO PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-06330C2 |
GSX50..XSE BLACK,089 ,1J9 ,1K4 ,218 ,3T3 ,3T7 ,3U5 ,4X7 ,8W6 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87902-07070 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-07190 |
AXXH50,GSX50..XLE,XSE NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-06330C2 |
GSX50..XSE BLACK,089 ,1J9 ,1K4 ,218 ,3T3 ,3T7 ,3U5 ,4X7 ,8W6 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87907-07060 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| Common parts | ||||
| 90069-32106 | ||||
| 90069-32107 | ||||
| 90182-A0027 | ||||
| Linked diagrams | ||||
| 8106 | ||||
| 8606 | ||||

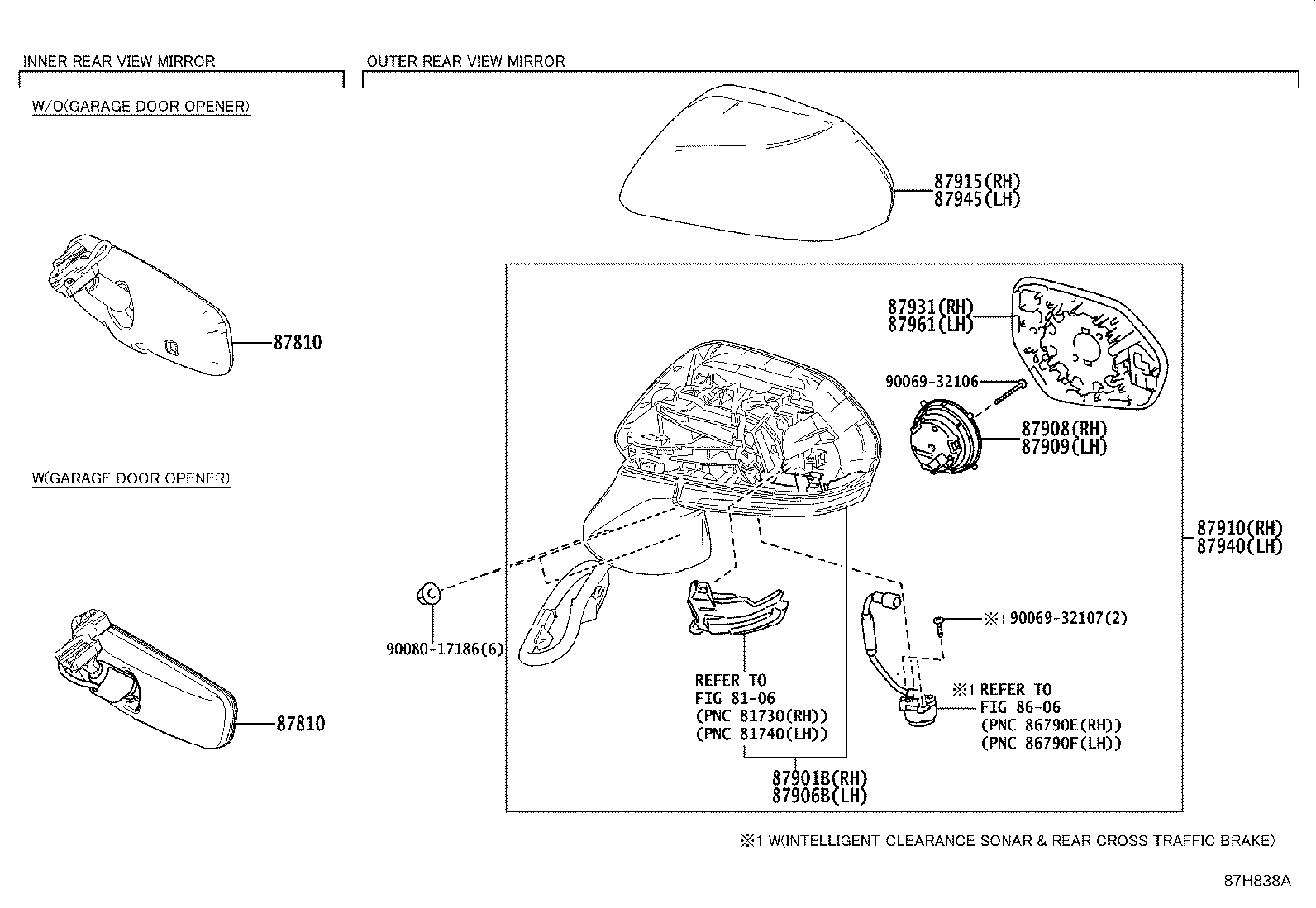

(1903-2008) ; (2008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-07140 |
AXXH50,GSX50..XSE |
1 | ||
| 87810-07170 |
AXXH50,GSX50..XSE |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-07140 |
AXXH50,GSX50..XSE |
1 | ||
| 87810-07170 |
AXXH50,GSX50..XSE |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-07090 |
AXXH50,GSX50..XLE,XSE NO PAINT REQ. |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87906-07120 |
AXXH50,GSX50..XLE,XSE NO PAINT REQ. |
1 | ||
| 87908 - ACTUATOR ASSY, OUTER MIRROR, RH | ||||
| 87925-07190 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 87909 - ACTUATOR ASSY, OUTER MIRROR, LH | ||||
| 87985-07190 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-07190 |
AXXH50,GSX50..XLE,XSE NO PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-06330C2 |
GSX50..XSE BLACK,089 ,1J9 ,1K4 ,218 ,3T3 ,3T7 ,3U5 ,4X7 ,8W6 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87902-07070 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-07190 |
AXXH50,GSX50..XLE,XSE NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-06330C2 |
GSX50..XSE BLACK,089 ,1J9 ,1K4 ,218 ,3T3 ,3T7 ,3U5 ,4X7 ,8W6 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87907-07060 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| Common parts | ||||
| 90069-32106 | ||||
| 90069-32107 | ||||
| 90080-17186 | ||||
| Linked diagrams | ||||
| 8106 | ||||
| 8606 | ||||
