GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1804-2008)

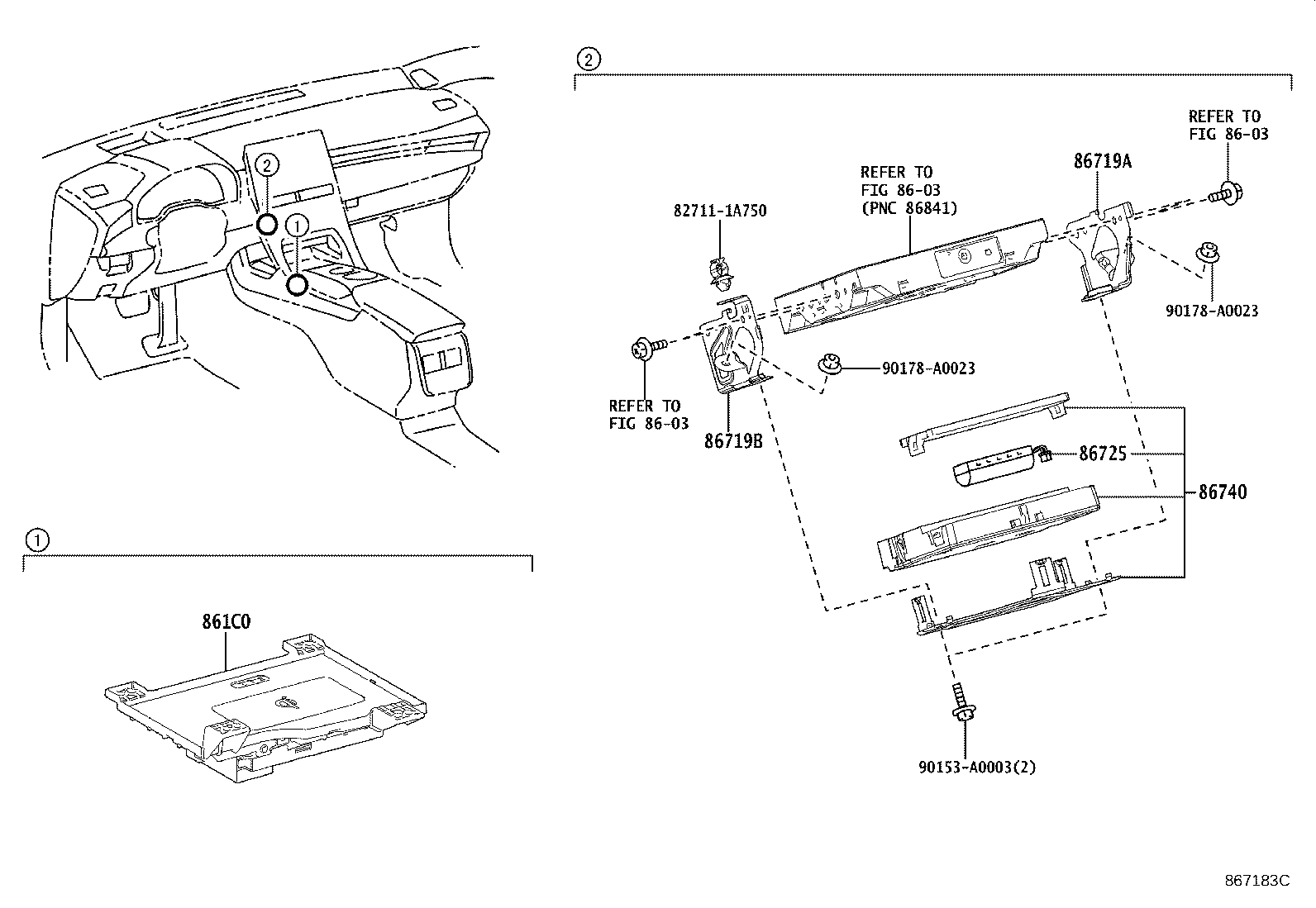

Click highlighted areas on diagram

diagram 827111A750 8603 8603 8603 861C0 86719A 86719B 86725 86740 90153A0003 90178A0023 90178A0023
Part # Description Qty Price
861C0 - CRADLE ASSY, MOBILE WIRELESS CHARGER
861C0-07030

AXXH50,GSX50

WIRELESS CHARGER-WITH

 1
86719A - BRACKET, TELEPHONE NO.1
86719-07020

AXXH50,GSX50

 1
86719-07020

GSX50..XLE,XSE

USA POSSESSION SPEC

 1
86719B - BRACKET, TELEPHONE NO.2
86719-07030

AXXH50,GSX50

 1
86719-07030

GSX50..XLE,XSE

USA POSSESSION SPEC

 1
86725 - BATTERY, MOBILEPHONE
86725-08010

AXXH50,GSX50

 1
86725-08010

GSX50..LIMD,XLE,XSE

USA POSSESSION SPEC

 1
86740 - TRANSCEIVER ASSY, TELEPHONE
86740-07011

AXXH50,GSX50

 1
86740-07011

GSX50..LIMD,XLE,XSE

USA POSSESSION SPEC

 1
Common parts
82711-1A750
90153-A0003
90178-A0023
Linked diagrams
8603
