GSX50L-AEZQBA (2018)
Toyota Avalon
Production
Apr 2018
-
Aug 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1804-2008) ; (2008- )

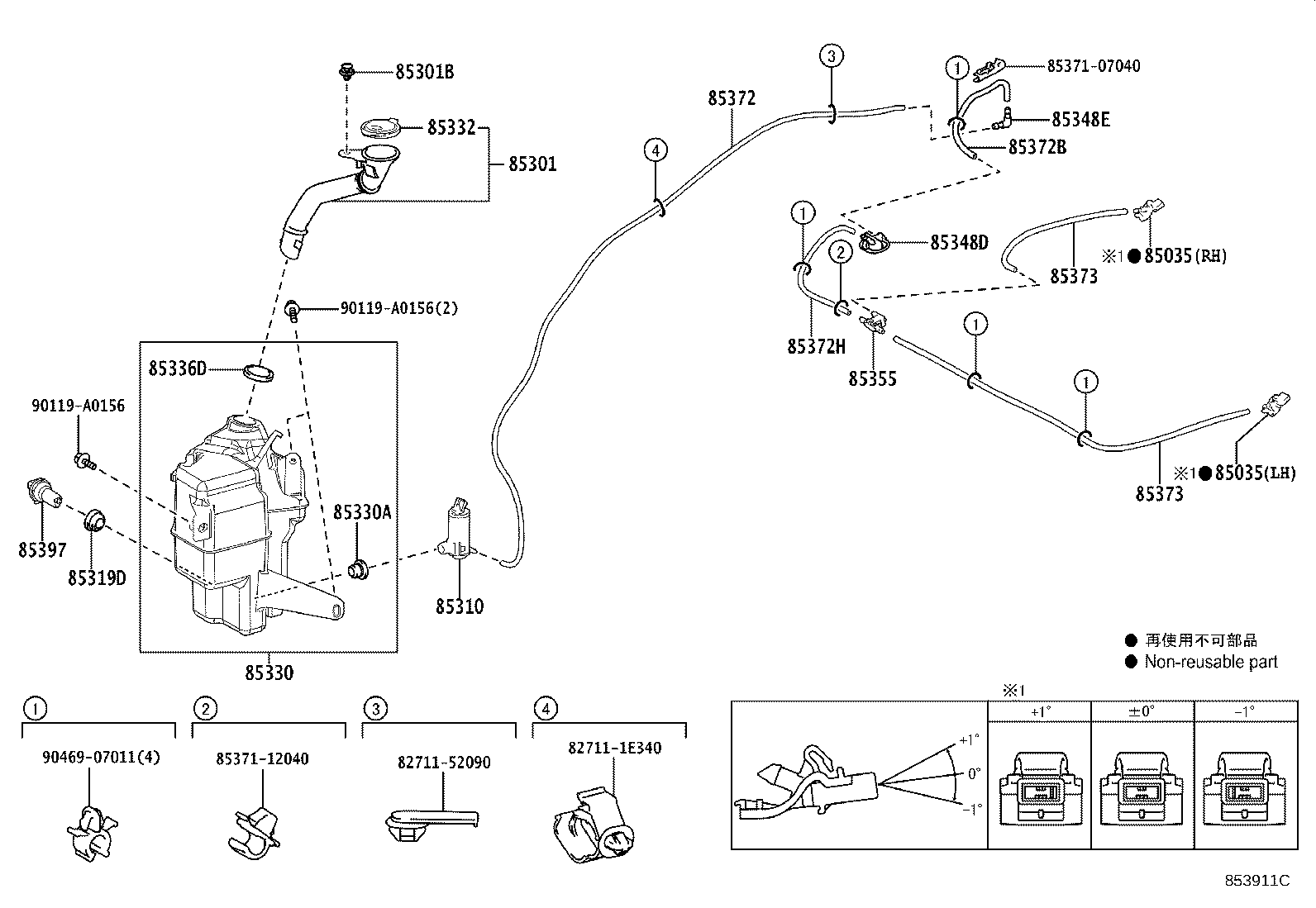

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-0T010 |
AXXH50,GSX50 ANGLE 0 |
1 | ||
| 85381-0T020 |
AXXH50,GSX50 ANGLE +1 |
1 | ||
| 85381-0T030 |
AXXH50,GSX50 ANGLE -1 |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-0T010 |
AXXH50,GSX50 ANGLE 0 |
1 | ||
| 85381-0T020 |
AXXH50,GSX50 ANGLE +1 |
1 | ||
| 85381-0T030 |
AXXH50,GSX50 ANGLE -1 |
1 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-06010 |
AXXH50,GSX50 |
1 | ||
| 85301B - CLIP, WASHER | ||||
| 90467-A0037 |
AXXH50,GSX50 (L) |
1 | ||
| 90467-07214 |
AXXH50,GSX50 (J) |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-04011 |
AXXH50,GSX50 |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-AA020 |
AXXH50,GSX50 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-06230 |
AXXH50,GSX50 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AXXH50,GSX50 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-24130 |
AXXH50,GSX50 |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-30160 |
AXXH50,GSX50 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85373-33030 |
AXXH50,GSX50 |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85375-02260 |
AXXH50,GSX50 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
AXXH50,GSX50 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33224 |
AXXH50,GSX50 L=1200 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-33011 |
AXXH50,GSX50 *H,L=340 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90068-45008 |
AXXH50,GSX50 L=460 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90069-46091 |
AXXH50,GSX50 L=625 |
1 | ||
| 90069-46090 |
AXXH50,GSX50 L=290 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90069-46091 |
AXXH50,GSX50 L=625 |
1 | ||
| 90069-46090 |
AXXH50,GSX50 L=290 |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-AA040 |
AXXH50,GSX50 |
1 | ||
| Common parts | ||||
| 82711-1E340 | ||||
| 82711-52090 | ||||
| 85371-07040 | ||||
| 85371-12040 | ||||
| 90119-A0156 | ||||
| 90469-07011 | ||||
