GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )AXXH5#,GSX50

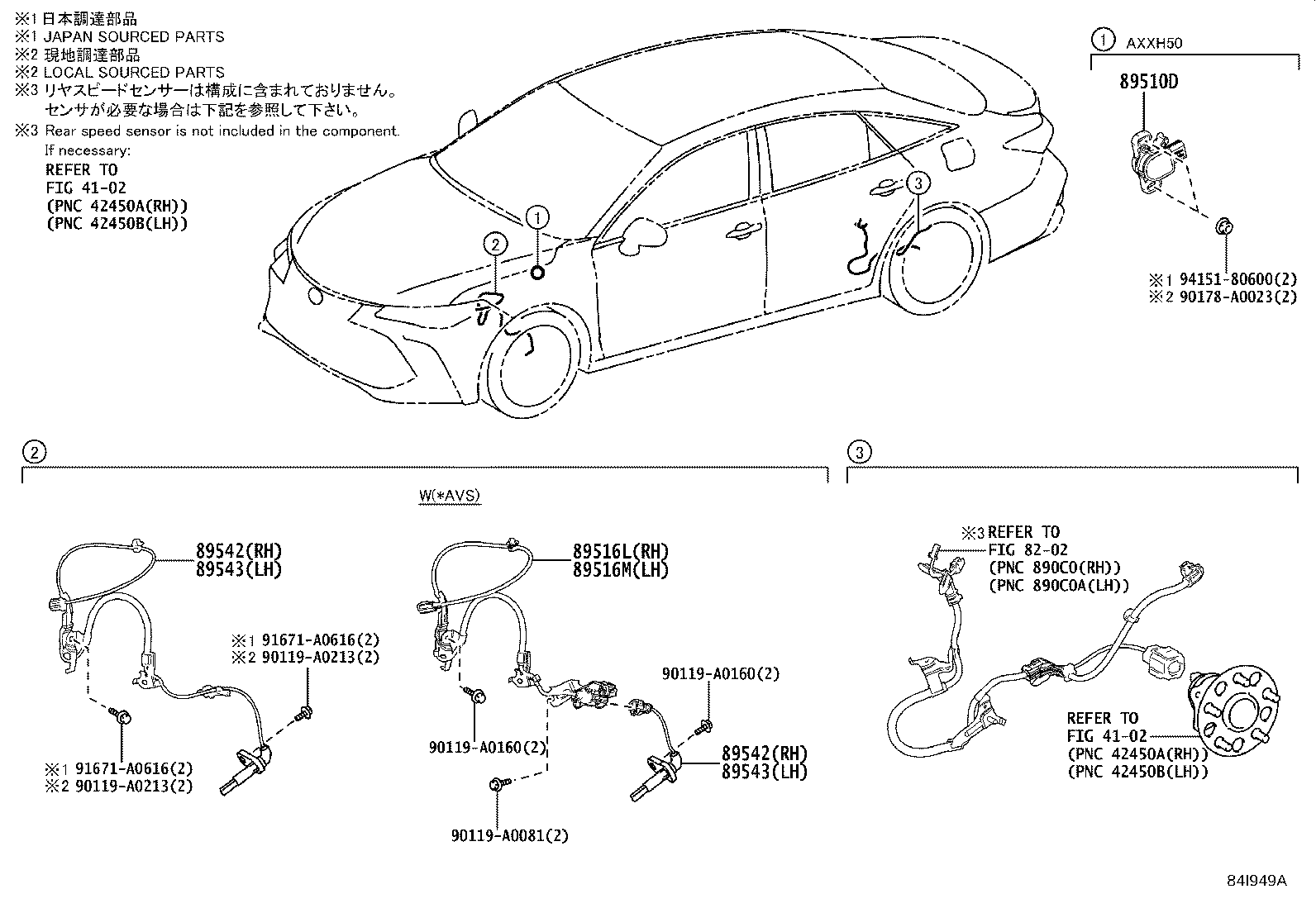

Click highlighted areas on diagram

diagram 4102 4102 8202 89510D 89516L 89516M 89542 89542 89543 89543 90119A0081 90119A0160 90119A0160 90119A0213 90119A0213 90178A0023 91671A0616 91671A0616 9415180600
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-06081

AXXH50,GSX50..LIMD,XLE,XSE

 1
89542 - SENSOR, SPEED, FRONT RH
89542-06081

AXXH50,GSX50..LIMD,XLE,XSE

 1
89543 - SENSOR, SPEED, FRONT LH
89543-06081

AXXH50,GSX50..LIMD,XLE,XSE

 1
89543 - SENSOR, SPEED, FRONT LH
89543-06081

AXXH50,GSX50..LIMD,XLE,XSE

 1
Common parts
90119-A0081
90119-A0160
90119-A0213
90178-A0023
91671-A0616
94151-80600
Linked diagrams
4102
8202
