GSX50L-AEZQBA (2018)
Toyota Avalon

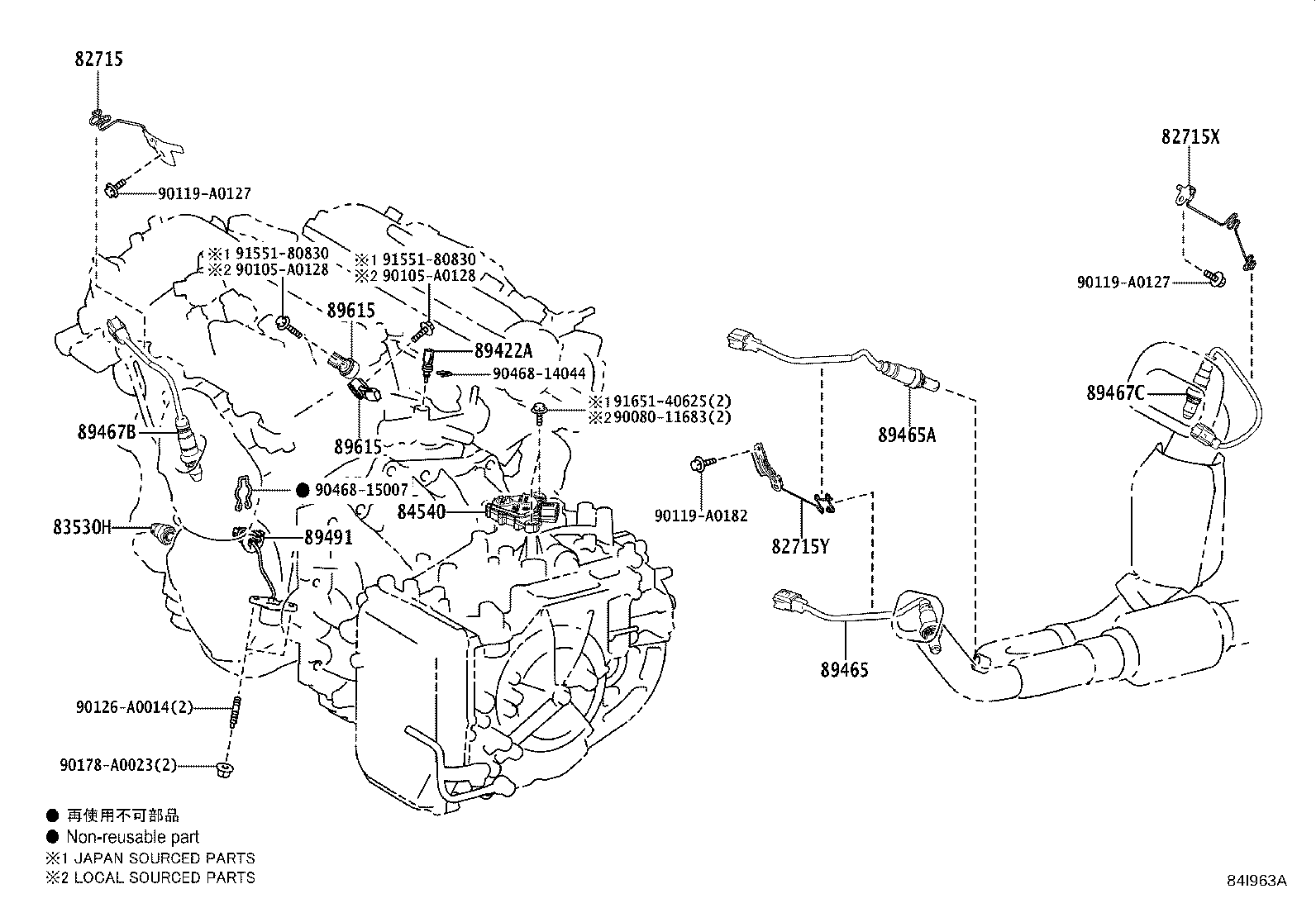

ILLUST NO. 1 OF 7(1804- )GSX50
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-33J90 |
GSX50 |
1 | ||
| 82715X - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 82715-33T50 |
GSX50 |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82715-33K00 |
GSX50 |
1 | ||
| 83530H - SWITCH ASSY, OIL PRESSURE | ||||
| 83530-60020 |
GSX50 YAZAKI |
1 | ||
| 83530-28020 |
GSX50 (J),DENSO |
1 | ||
| 83530-0E010 |
GSX50 (L),DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-33020 |
GSX50 (J) |
1 | ||
| 84540-06020 |
GSX50 (L) |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-47010 |
GSX50 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-06370 |
GSX50 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-06380 |
GSX50 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-06230 |
GSX50 LH BANK |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-0E250 |
GSX50 RH BANK |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-48020 |
GSX50 |
1 | ||
| 89491-48021 |
GSX50 |
1 | ||
| 89491-48040 |
GSX50 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSX50 (J) |
2 | ||
| 89615-06010 |
GSX50 (L) |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSX50 (J) |
2 | ||
| 89615-06010 |
GSX50 (L) |
2 | ||
| Common parts | ||||
| 90080-11683 | ||||
| 90105-A0128 | ||||
| 90119-A0127 | ||||
| 90119-A0182 | ||||
| 90126-A0014 | ||||
| 90178-A0023 | ||||
| 90468-14044 | ||||
| 90468-15007 | ||||
| 91551-80830 | ||||
| 91651-40625 | ||||

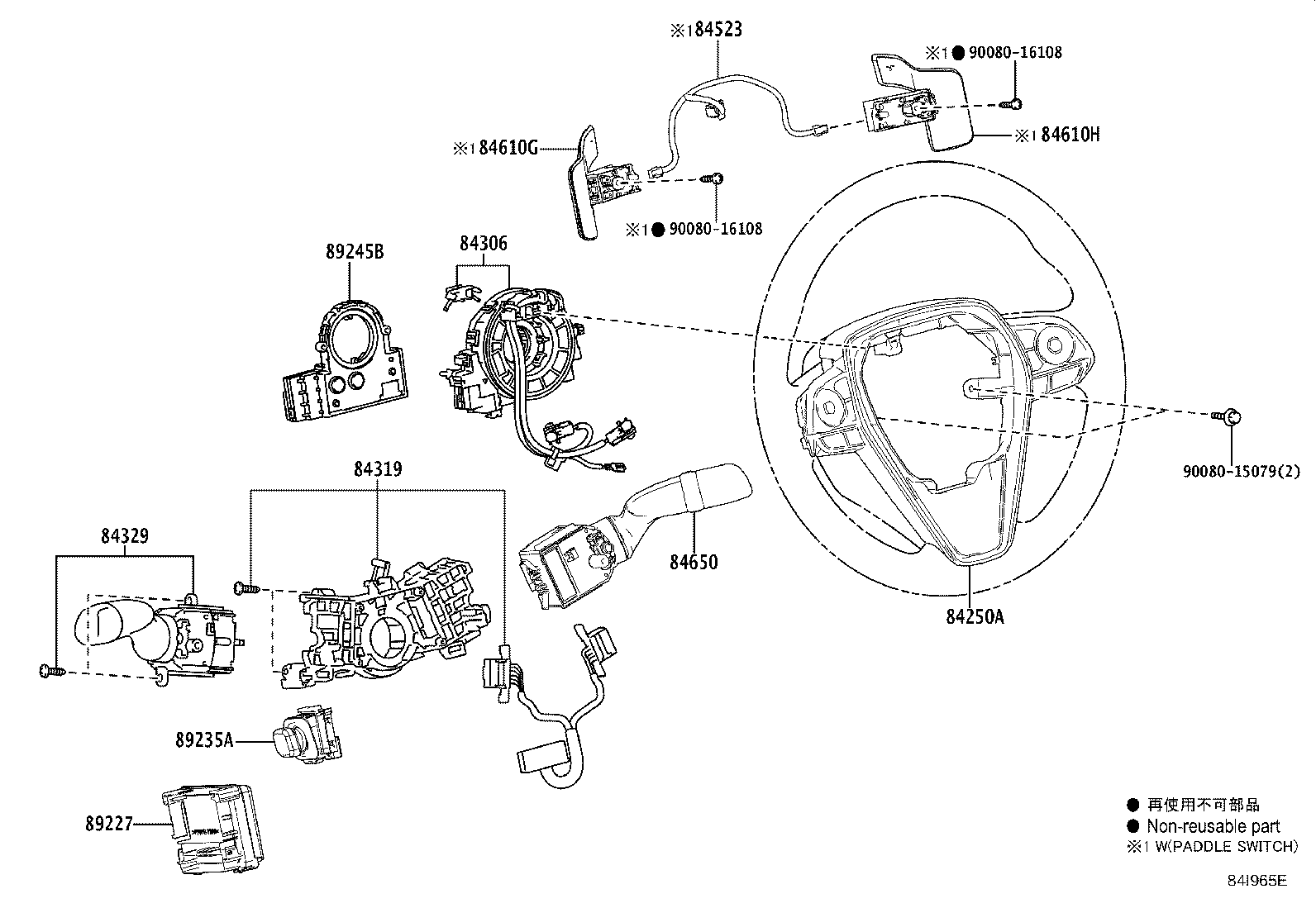

ILLUST NO. 5 OF 7(1804- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-06850B0 |
AXXH50,GSX50..TOU,XSE SATIN CHROM,TRIM1#,2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-06040 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-11010 |
GSX50..LIMD,XSE CANADA SPEC |
1 | ||
| 84319-06010 |
AXXH50,GSX50 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-33120 |
GSX50..LIMD,XSE CANADA SPEC |
1 | ||
| 84329-06010 |
AXXH50,GSX50 |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-11010 |
AXXH50,GSX50..TOU,XSE |
1 | ||
| 84610G - SWITCH ASSY, TRANSMISSION SHIFT, NO.1 | ||||
| 84610-33011 |
AXXH50,GSX50..TOU,XSE SHIFT DOWN |
1 | ||
| 84610-33010 |
AXXH50,GSX50..TOU,XSE SHIFT DOWN |
1 | ||
| 84610H - SWITCH ASSY, TRANSMISSION SHIFT, NO.2 | ||||
| 84610-33021 |
AXXH50,GSX50..TOU,XSE SHIFT UP |
1 | ||
| 84610-33020 |
AXXH50,GSX50..TOU,XSE SHIFT UP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-06410 |
GSX50..LIMD,XSE CANADA SPEC |
1 | ||
| 84652-06400 |
AXXH50,GSX50 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-06040 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| Common parts | ||||
| 90080-15079 | ||||
| 90080-16108 | ||||

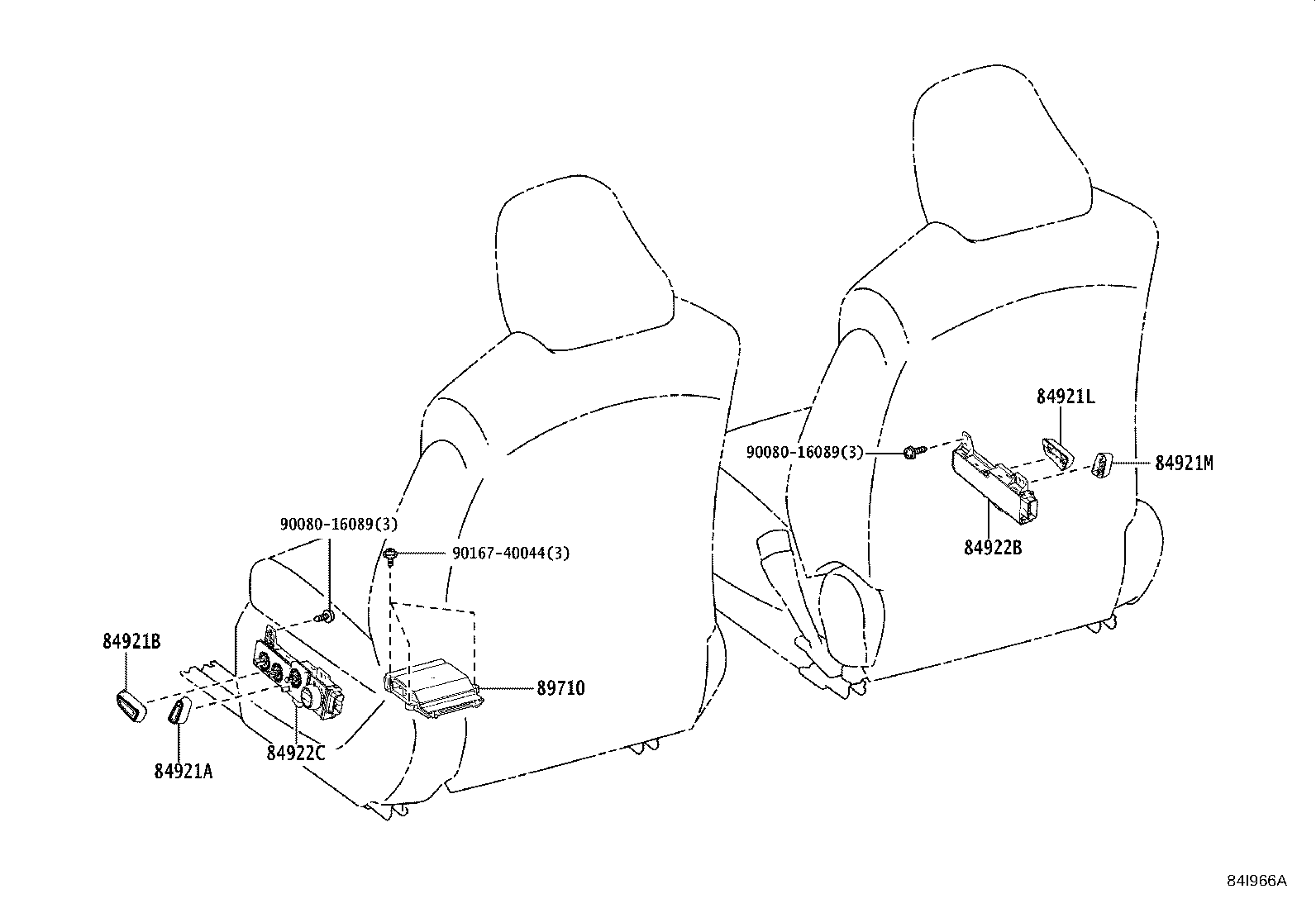

ILLUST NO. 6 OF 7(1804- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-06190C0 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-06100C0 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
1 | ||
| 84921L - KNOB, POWER SEAT SWITCH(FOR SLIDE & VERTICAL), NO.2 | ||||
| 84921-06200C0 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
1 | ||
| 84921M - KNOB, POWER SEAT SWITCH(FOR RECLINING), NO.2 | ||||
| 84921-06210C0 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-06190 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-06180C0 |
AXXH50,GSX50..XSE BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90080-16089 | ||||
| 90167-40044 | ||||

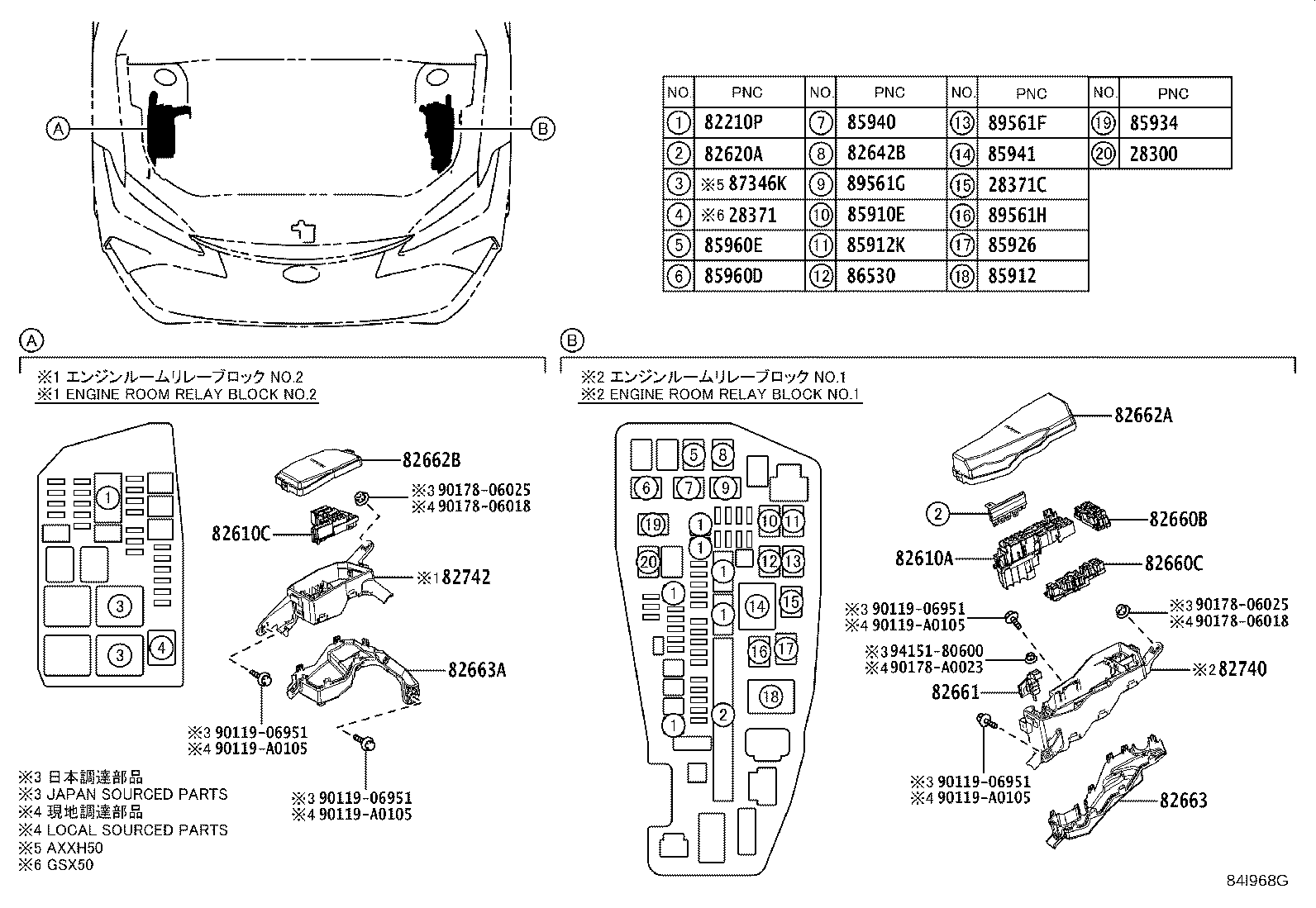

ILLUST NO. 2 OF 7(1804- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0A011 |
2GRFKS..GSX50 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90080-87026 |
A25AFXS,2GRFKS..AXXH50,GSX50 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08302 |
GSX50 50A-30A-50A,FEMALE |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-33130 |
GSX50 |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-33150 |
GSX50..XLE,XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82610-33150 |
AXXH50,GSX50..XLE,XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33130 |
GSX50..XLE,XSE |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-02027 |
AXXH50,GSX50..XLE,XSE MARK 90987-02027 |
1 | ||
| 90080-87026 |
AXXH50,GSX50..XLE,XSE MARK 90080-87026 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-33100 |
AXXH50,GSX50 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-33110 |
AXXH50,GSX50 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-33050 |
AXXH50,GSX50 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-07200 |
GSX50..XLE,XSE |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-07220 |
GSX50..XLE,XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82662-07220 |
AXXH50,GSX50..XLE,XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-33210 |
GSX50 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-33220 |
AXXH50,GSX50..XLE,XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82663-33220 |
GSX50..XLE,XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-33080 |
GSX50 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-33050 |
AXXH50,GSX50..XLE,XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82742-33050 |
GSX50..XLE,XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90080-87026 |
AXXH50,GSX50 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87025 |
AXXH50,GSX50 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87026 |
AXXH50,GSX50..XLE,XSE MARK 90080-87026 |
1 | ||
| 90987-02027 |
AXXH50,GSX50..XLE,XSE MARK 90987-02027 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90080-87026 |
GSX50 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 90987-02027 |
AXXH50,GSX50 (J) |
1 | ||
| 90080-87026 |
AXXH50,GSX50 (L) |
1 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 90080-87024 |
AXXH50,GSX50 |
1 | ||
| 85960D - RELAY, HEADLAMP, RH | ||||
| 90080-87026 |
AXXH50,GSX50 (L) |
1 | ||
| 90987-02027 |
AXXH50,GSX50 (J) |
1 | ||
| 85960E - RELAY, HEADLAMP, LH | ||||
| 90080-87026 |
AXXH50,GSX50 (L) |
1 | ||
| 90987-02027 |
AXXH50,GSX50 (J) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87026 |
AXXH50,GSX50 |
1 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90080-87026 |
AXXH50,GSX50 |
1 | ||
| 89561G - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | ||||
| 90080-87026 |
AXXH50,GSX50 |
1 | ||
| 89561H - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | ||||
| 90080-87026 |
AXXH50,GSX50 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-A0105 | ||||
| 90178-06018 | ||||
| 90178-06025 | ||||
| 90178-A0023 | ||||
| 94151-80600 | ||||

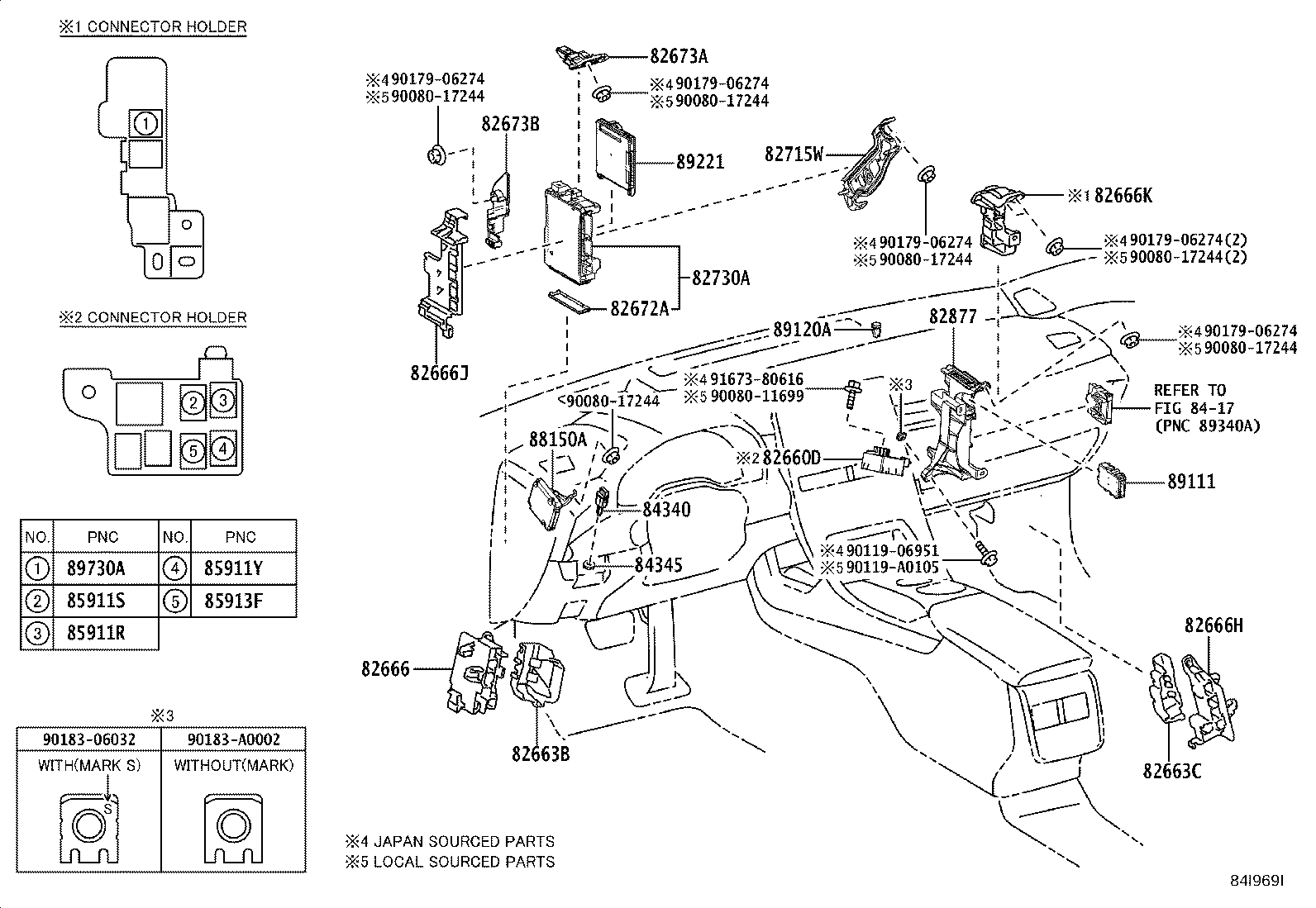

ILLUST NO. 3 OF 7(1804- )AXXA55,GSX50
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-33060 |
AXXH50,GSX50 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-33240 |
AXXH50,GSX50 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-33250 |
AXXH50,GSX50 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-33570 |
AXXH50,GSX50 |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-33580 |
AXXH50,GSX50 |
1 | ||
| 82666J - HOLDER, CONNECTOR, NO.3 | ||||
| 82666-33630 |
AXXH50,GSX50 |
1 | ||
| 82666K - HOLDER, CONNECTOR, NO.4 | ||||
| 82666-33640 |
AXXH50,GSX50 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-06260 |
AXXH50,GSX50 |
1 | ||
| 82672-07240 |
AXXH50,GSX50 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-06070 |
AXXH50,GSX50 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-06080 |
AXXH50,GSX50 |
1 | ||
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-33Q20 |
GSX50 (J) |
1 | ||
| 82715-06P40 |
GSX50 (L) |
1 | ||
| 82715-06P40 |
GSX50 |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-06A80 |
AXXH50,GSX50 |
1 | ||
| 82730-07160 |
AXXH50,GSX50 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-06030 |
AXXH50,GSX50 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09291 |
AXXH50,GSX50 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-08010 |
AXXH50,GSX50 |
1 | ||
| 85911Y - RELAY, FRONT SEAT HEATER | ||||
| 90080-87026 |
AXXH50,GSX50 |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-07030 |
GSX50 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-06071 |
GSX50 |
1 | ||
| 89111-06070 |
GSX50 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-0E060 |
AXXH50,GSX50 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-07160 |
AXXH50,GSX50..XLE,XSE PUERTO RICO SPEC |
1 | ||
| 89220-07180 |
GSX50..XSE CANADA SPEC |
1 | ||
| 89220-07680 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 89220-07640 |
AXXH50,GSX50..XLE,XSE HAWAII SPEC |
1 | ||
| 89220-07670 |
GSX50..XLE,XSE USA POSSESSION SPEC |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90080-87026 |
AXXH50,GSX50 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-17244 | ||||
| 90119-06951 | ||||
| 90119-A0105 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 90183-A0002 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8417 | ||||

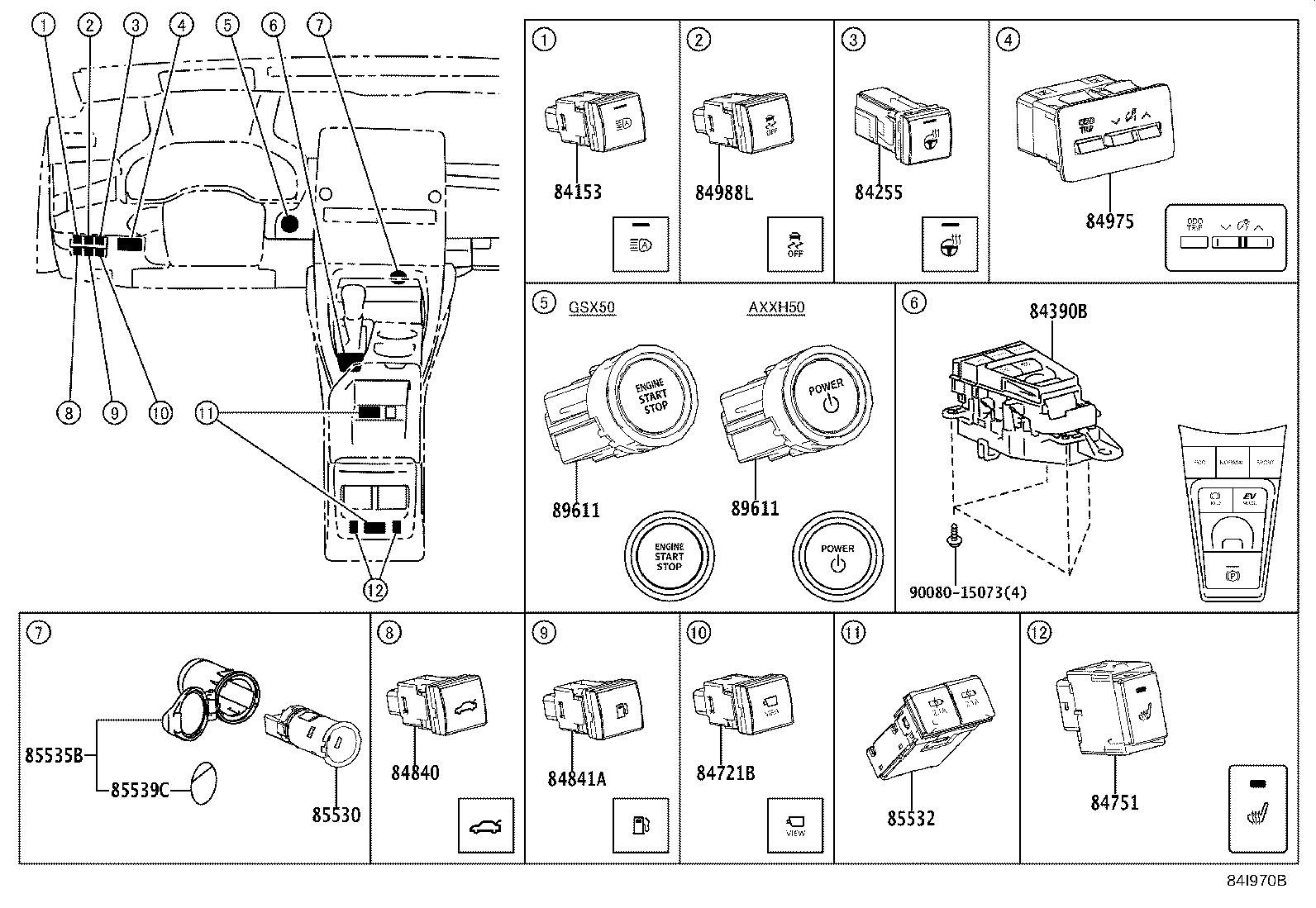

ILLUST NO. 4 OF 7(1804-2008)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-06010 |
AXXH50,GSX50 |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-07020 |
GSX50..LIMD,XLE,XSE |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-06020 |
AXXH50,GSX50 |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-06020 |
AXXH50,GSX50 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-41010 |
AXXH50,GSX50 |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-06090 |
AXXH50,GSX50 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-06030 |
AXXH50,GSX50 |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-06010 |
AXXH50,GSX50 |
2 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0C020C1 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
1 | ||
| 85539C - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
AXXH50,GSX50 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0R022 |
GSX50 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0R022 |
GSX50 |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||

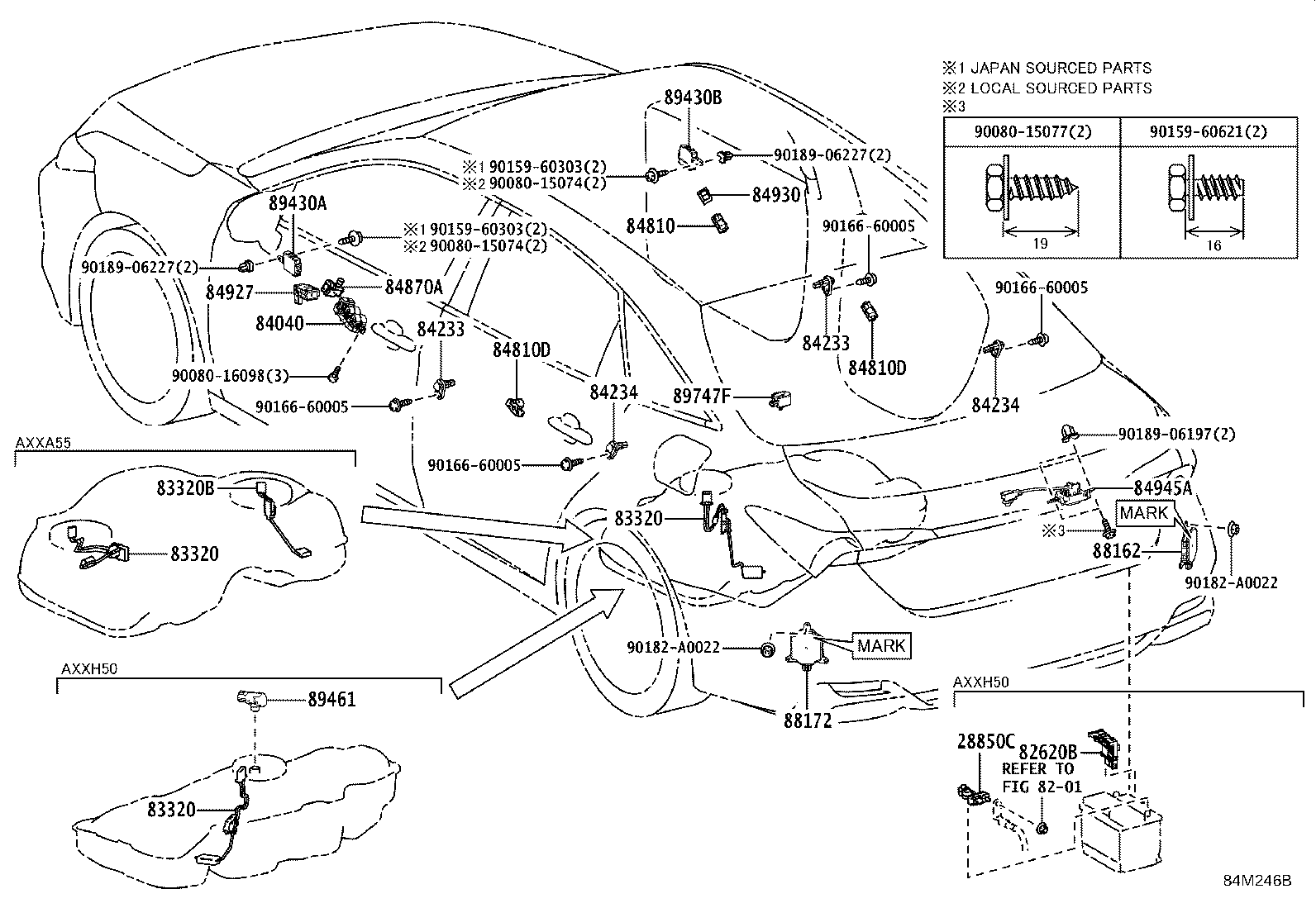

ILLUST NO. 7 OF 7(1804-1908)
DOOR, FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-06140 |
GSX50..LIMD,TOU,XSE |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-06140 |
GSX50..LIMD,TOU,XSE |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-06080 |
AXXH50,GSX50 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
AXXH50,GSX50 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
AXXH50,GSX50 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-08030 |
AXXH50,GSX50 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-08030 |
AXXH50,GSX50 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0E060 |
AXXH50,GSX50 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0E060 |
AXXH50,GSX50 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0E060 |
AXXH50,GSX50 |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0E020 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-0E160 |
AXXH50,GSX50 |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-06020 |
AXXH50,GSX50 |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-07020 |
AXXH50,GSX50 |
1 | ||
| 88162-07030 |
AXXH50,GSX50 MARK=88162-07030 |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-07020 |
AXXH50,GSX50 |
1 | ||
| 88162-07030 |
AXXH50,GSX50 MARK=88162-07030 |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-02010 |
AXXH50,GSX50 |
1 | ||
| 89747-52010 |
AXXH50,GSX50 |
1 | ||
| Common parts | ||||
| 90080-15074 | ||||
| 90080-15077 | ||||
| 90080-16098 | ||||
| 90159-60303 | ||||
| 90159-60621 | ||||
| 90166-60005 | ||||
| 90182-A0022 | ||||
| 90189-06197 | ||||
| 90189-06227 | ||||
| Linked diagrams | ||||
| 8201 | ||||

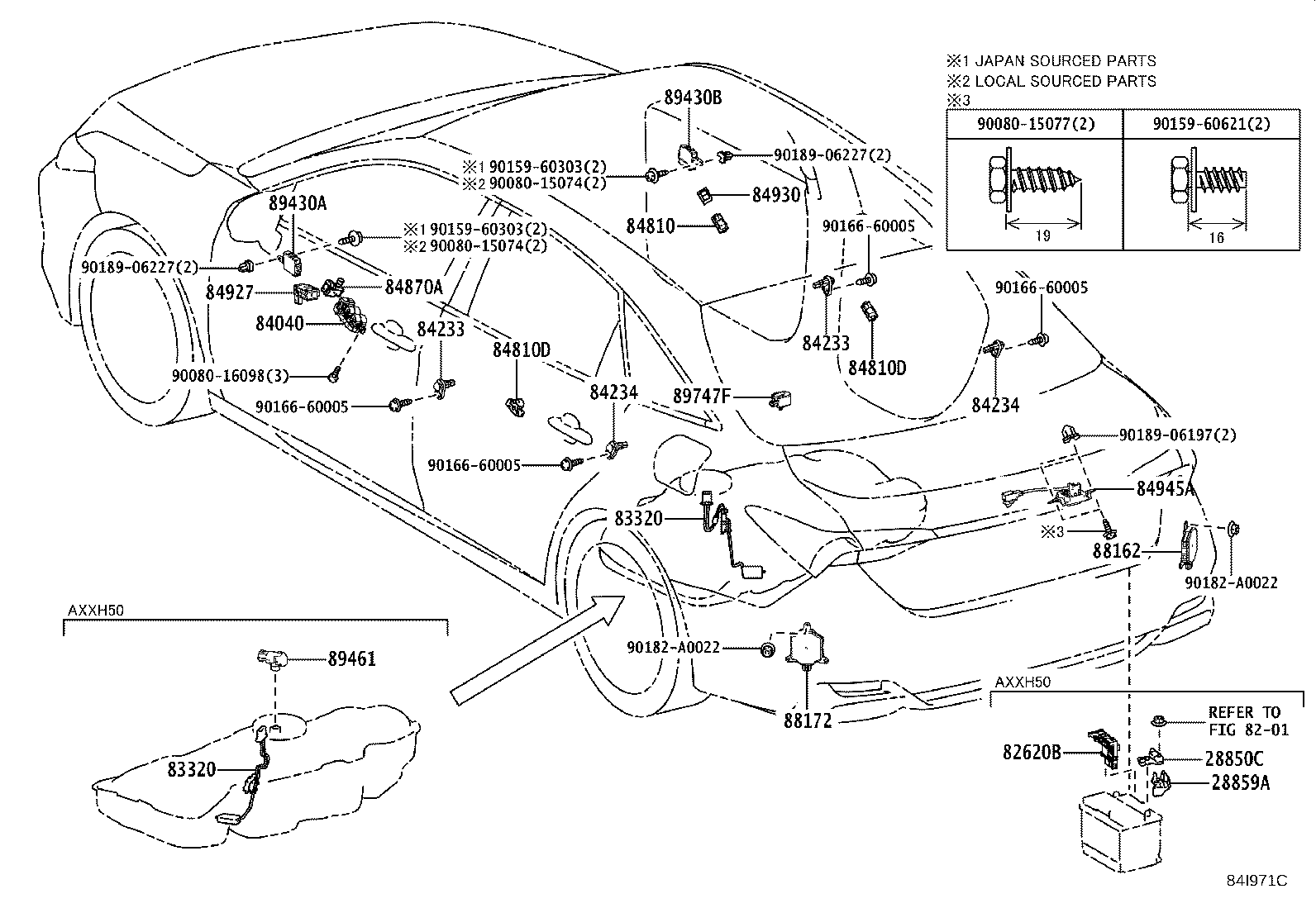

ILLUST NO. 7 OF 7(1908- )
DOOR, FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-06140 |
GSX50..LIMD,TOU,XSE |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-06140 |
GSX50..LIMD,TOU,XSE |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-06140 |
GSX50..LIMD,TOU,XSE |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-06080 |
AXXH50,GSX50 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
AXXH50,GSX50 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
AXXH50,GSX50 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-08030 |
AXXH50,GSX50 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-08030 |
AXXH50,GSX50 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0E060 |
AXXH50,GSX50 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0E060 |
AXXH50,GSX50 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0E060 |
AXXH50,GSX50 |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0E020 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-0E160 |
AXXH50,GSX50 |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-06020 |
AXXH50,GSX50 |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-07020 |
AXXH50,GSX50 |
1 | ||
| 88162-07030 |
AXXH50,GSX50 MARK=88162-07030 |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-07020 |
AXXH50,GSX50 |
1 | ||
| 88162-07030 |
AXXH50,GSX50 MARK=88162-07030 |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-02010 |
AXXH50,GSX50 |
1 | ||
| 89747-52010 |
AXXH50,GSX50 |
1 | ||
| Common parts | ||||
| 90080-15074 | ||||
| 90080-15077 | ||||
| 90080-16098 | ||||
| 90159-60303 | ||||
| 90159-60621 | ||||
| 90166-60005 | ||||
| 90182-A0022 | ||||
| 90189-06197 | ||||
| 90189-06227 | ||||
| Linked diagrams | ||||
| 8201 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
