GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )

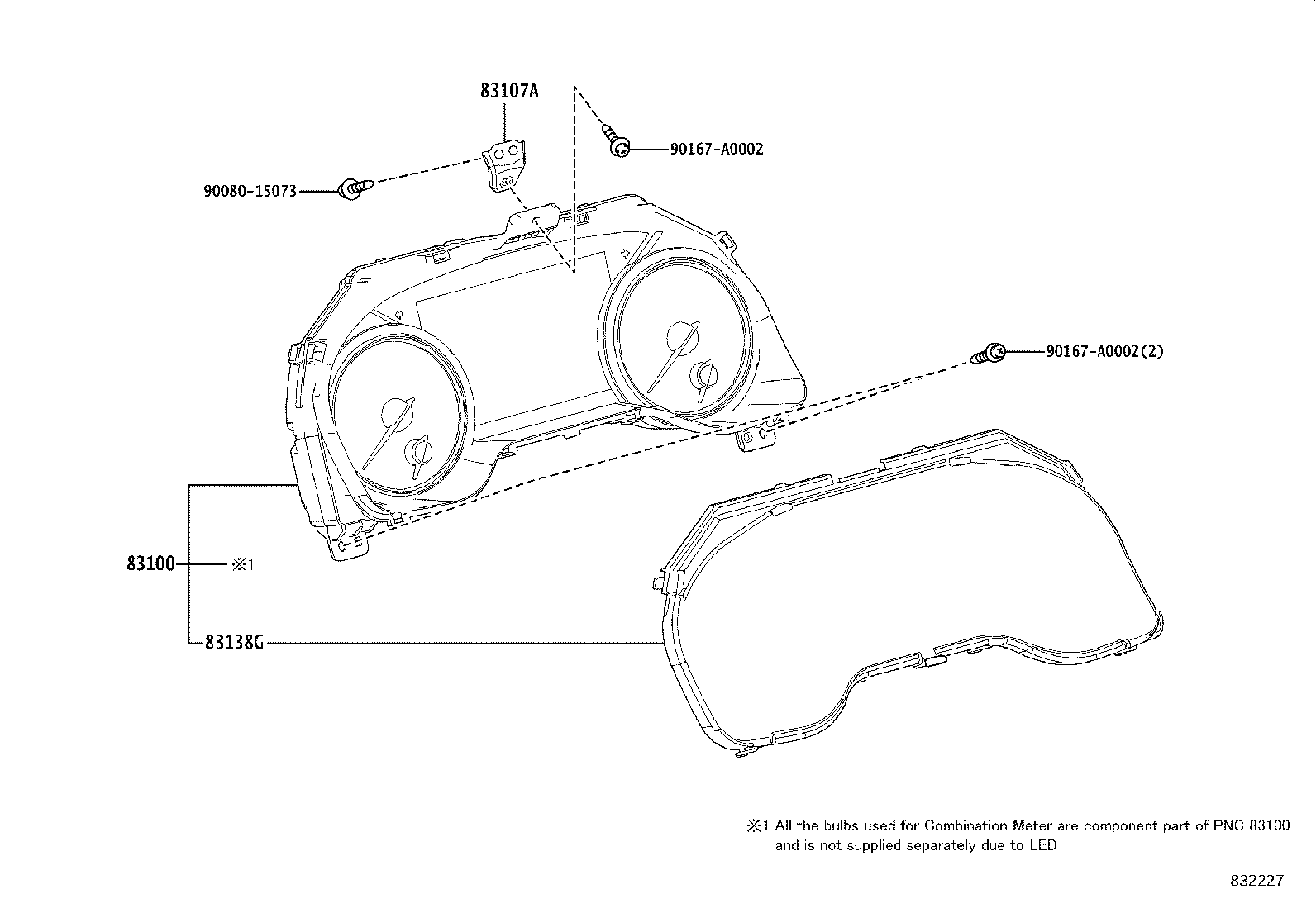

Click highlighted areas on diagram

COMBINATION METER

diagram 83100 83107A 83138G 9008015073 90167A0002 90167A0002
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-07630

GSX50..LIMD,XSE

DENSO,CANADA SPEC

 1
83800-07631

GSX50..LIMD,XSE

DENSO,CANADA SPEC

 1
83800-07620

GSX50..LIMD,TOU,XSE

DENSO

 1
83800-07621

GSX50..LIMD,TOU,XSE

DENSO

 1
83107A - BRACKET SUB-ASSY, METER, NO.1
83107-33010

AXXH50,GSX50

 1
83138G - GLASS, COMBINATION METER
83852-07620

AXXH50,GSX50

 1
Common parts
90080-15073
90167-A0002
