GSX50L-AEZQBA (2018)
Toyota Avalon
(1804- )AXXA55,GSX50

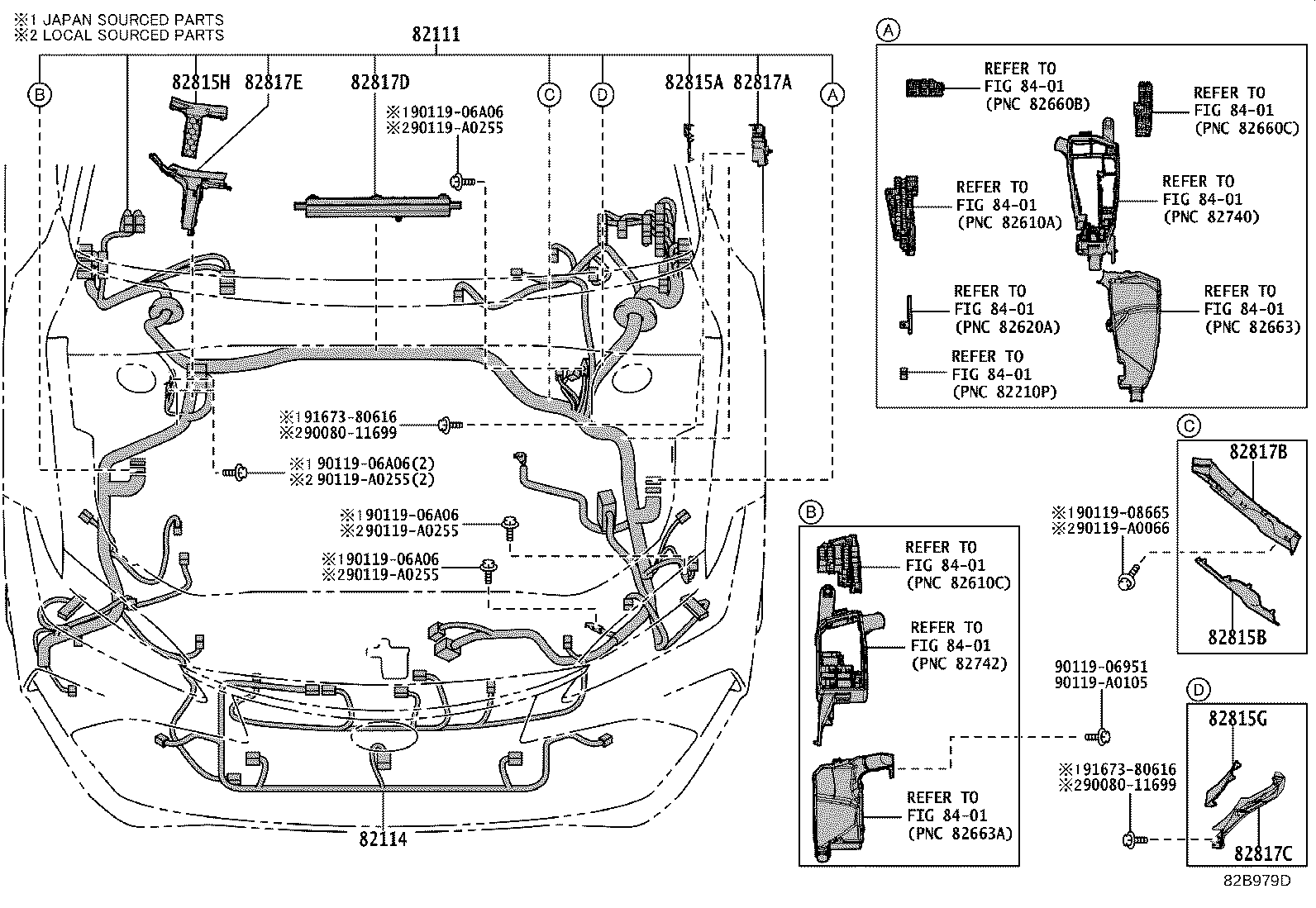

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-07F30 |
GSX50..XLE,XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82111-07F20 |
GSX50..XSE |
1 | ||
| 82111-07F21 |
GSX50..XSE |
1 | ||
| 82111-07F31 |
GSX50..XLE,XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-33E00 |
GSX50 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-33E10 |
GSX50 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-33E20 |
GSX50 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-33K50 |
AXXH50,GSX50 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-33N30 |
GSX50 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-33N40 |
GSX50 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33N60 |
GSX50 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-33Y20 |
AXXH50,GSX50 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-33Y30 |
AXXH50,GSX50 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90119-06951 | ||||
| 90119-06A06 | ||||
| 90119-08665 | ||||
| 90119-A0066 | ||||
| 90119-A0105 | ||||
| 90119-A0255 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1804- )GSX50

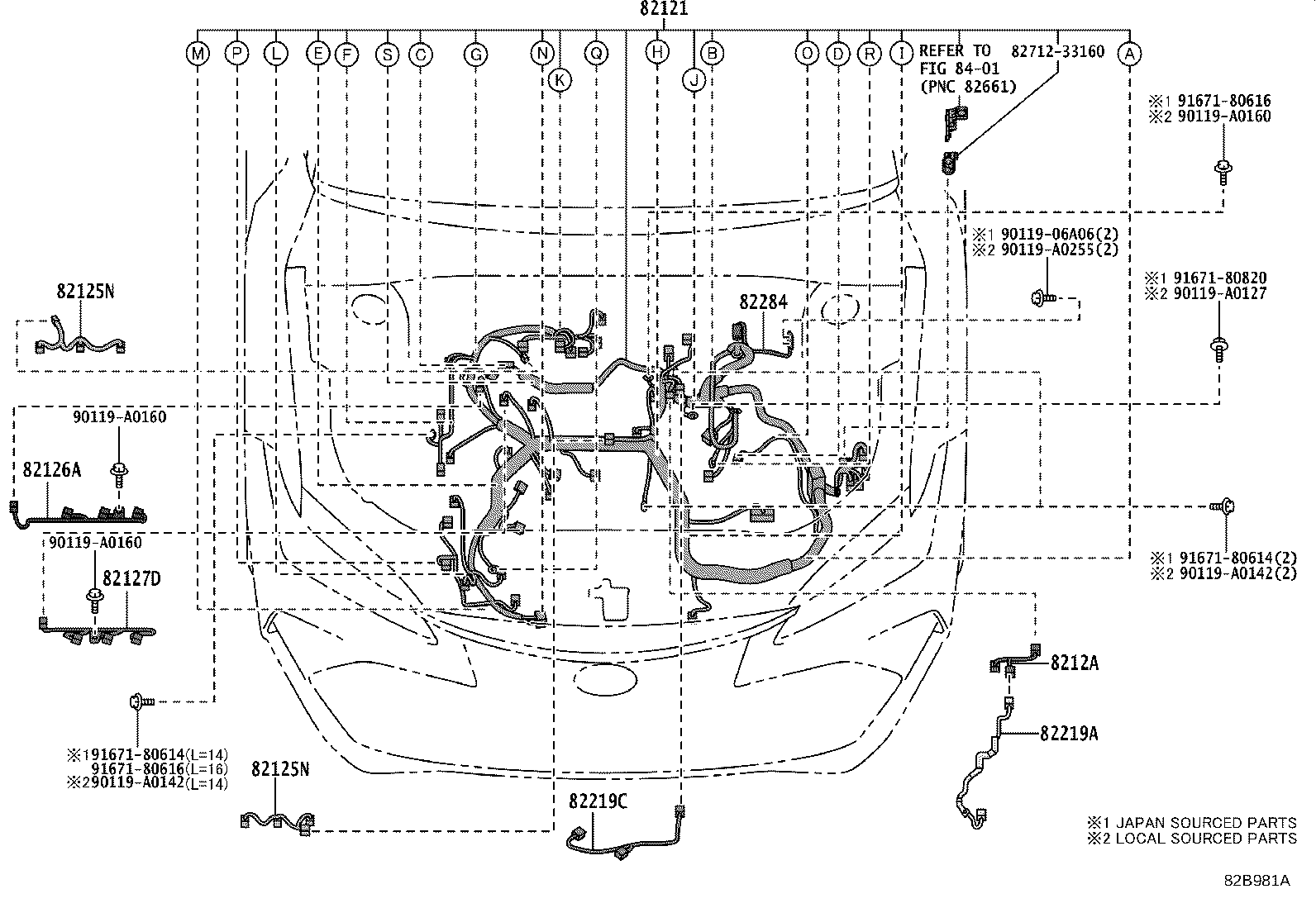

ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-06L61 |
GSX50..XLE,XSE |
1 | ||
| 82121-06L60 |
GSX50..XLE,XSE |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-0E020 |
GSX50 |
2 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-0E020 |
GSX50 |
2 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-08021 |
GSX50 |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-08021 |
GSX50 |
1 | ||
| 8212A - WIRE, ENGINE, NO.9 | ||||
| 8212A-06010 |
GSX50 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-0E060 |
GSX50 |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-0E050 |
GSX50 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-06260 |
GSX50 |
1 | ||
| Common parts | ||||
| 82712-33160 | ||||
| 90119-06A06 | ||||
| 90119-A0127 | ||||
| 90119-A0142 | ||||
| 90119-A0160 | ||||
| 90119-A0255 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1804- )GSX50
ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-33C70 |
GSX50 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-33A00 |
GSX50 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-33A10 |
GSX50 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-33A20 |
GSX50 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-33A30 |
GSX50 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-33N00 |
GSX50 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-33A40 |
GSX50 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-33E80 |
GSX50 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82817-33X40 |
GSX50 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-33A50 |
GSX50 |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-33B50 |
GSX50 |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-33C10 |
GSX50 |
1 | ||
| 82816C - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-33C20 |
GSX50 |
1 | ||
| 82816D - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-33L50 |
GSX50 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-33X10 |
GSX50 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-33Q10 |
GSX50 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-33Q20 |
GSX50 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-33Q30 |
GSX50 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-33Q40 |
GSX50 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-33Q50 |
GSX50 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-33Q60 |
GSX50 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-33V60 |
GSX50 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-48A10 |
GSX50 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-33W30 |
GSX50 |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33W40 |
GSX50 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-33Z50 |
GSX50 |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-33V70 |
GSX50 |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-33V80 |
GSX50 |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-3T250 |
GSX50 |
1 | ||
| 82819G - PROTECTOR, WIRING HARNESS, NO.23 | ||||
| 82817-33Z10 |
GSX50 |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-33460 |
AXXH50,GSX50 |
1 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-33690 |
GSX50 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-0E010 |
GSX50 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-0C010 |
GSX50 |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-A0160 | ||||
| 90119-A0183 | ||||
| 90119-A0296 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
(1804- )

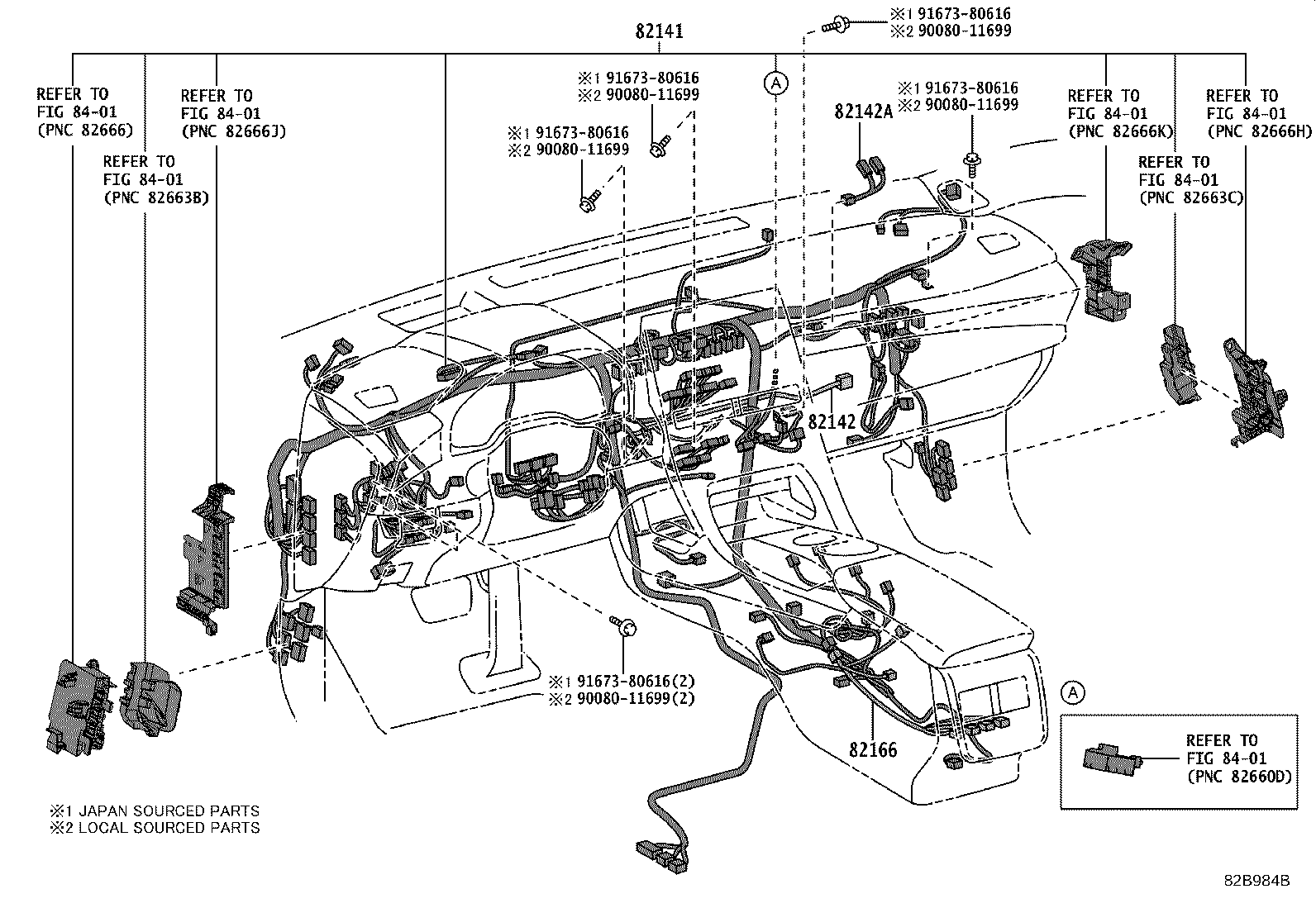

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-07E40 |
GSX50..XSE |
1 | ||
| 82141-07E60 |
GSX50..XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82141-07E10 |
GSX50..XLE,XSE USA POSSESSION SPEC |
1 | ||
| 82141-07E41 |
GSX50..XSE |
1 | ||
| 82141-07E11 |
GSX50..XLE,XSE USA POSSESSION SPEC |
1 | ||
| 82141-07E61 |
GSX50..XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82141-07J91 |
GSX50..XSE TRD PACKAGE&AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-07020 |
AXXH50,GSX50 |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-07040 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1804- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-07410 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 82151-07411 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-07411 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 82152-07410 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-07111 |
AXXH50,GSX50 |
1 | ||
| 82153-07110 |
AXXH50,GSX50 |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-07110 |
AXXH50,GSX50 |
1 | ||
| 82154-07111 |
AXXH50,GSX50 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-07320 |
GSX50 |
1 | ||
| Common parts | ||||
| 81269-52010 | ||||
| 90080-11699 | ||||
| 90119-06A06 | ||||
| 90119-A0255 | ||||
| 91673-80616 | ||||
(1804- )

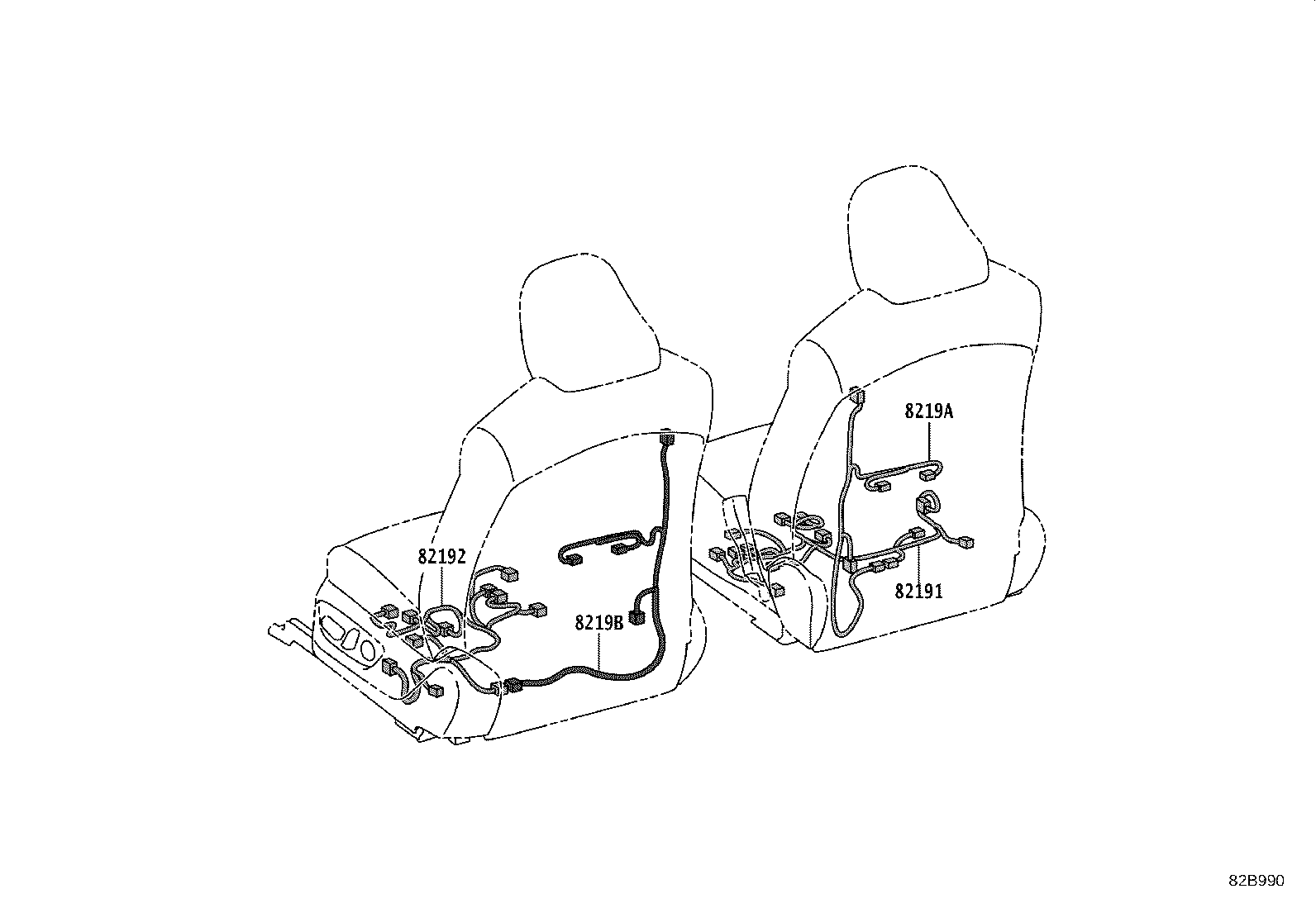

SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-06700 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-06630 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 82191-06710 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 82192-06620 |
AXXH50,GSX50..XLE,XSE |
1 | ||
(1804- )AXXA55,GSX50
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-AA020 | ||||
| 82715-06P70 | ||||
| 82715-06Q90 | ||||
| 82715-06R30 | ||||
| 82715-06V40 | ||||
| 82715-06V70 | ||||
| 82715-06W10 | ||||
| 82715-06W20 | ||||
| 82715-06W30 | ||||
| 82715-06W50 | ||||
| 82715-06W60 | ||||
| 82715-06W90 | ||||
| 82715-06X00 | ||||
| 82715-06X70 | ||||
| 82715-06Z00 | ||||
| 82715-0EC90 | ||||
| 82715-0R420 | ||||
| 82715-33K40 | ||||
| 82715-33K50 | ||||
| 82715-33L30 | ||||
| 82715-33L40 | ||||
| 82715-33P70 | ||||
| 82715-33Q10 | ||||
| 82715-33Q70 | ||||
| 82715-33Q90 | ||||
| 82715-33R00 | ||||
| 82715-33S80 | ||||
| 82715-33T40 | ||||
| 82715-48770 | ||||
| 82715-48L90 | ||||
| 82716-48010 | ||||
| 82717-48010 | ||||
| 90080-11699 | ||||
| 90119-06951 | ||||
| 90119-06A12 | ||||
| 90119-A0105 | ||||
| 90119-A0127 | ||||
| 90119-A0142 | ||||
| 90119-A0160 | ||||
| 90119-A0183 | ||||
| 90119-A0416 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80616 | ||||
(1804- )

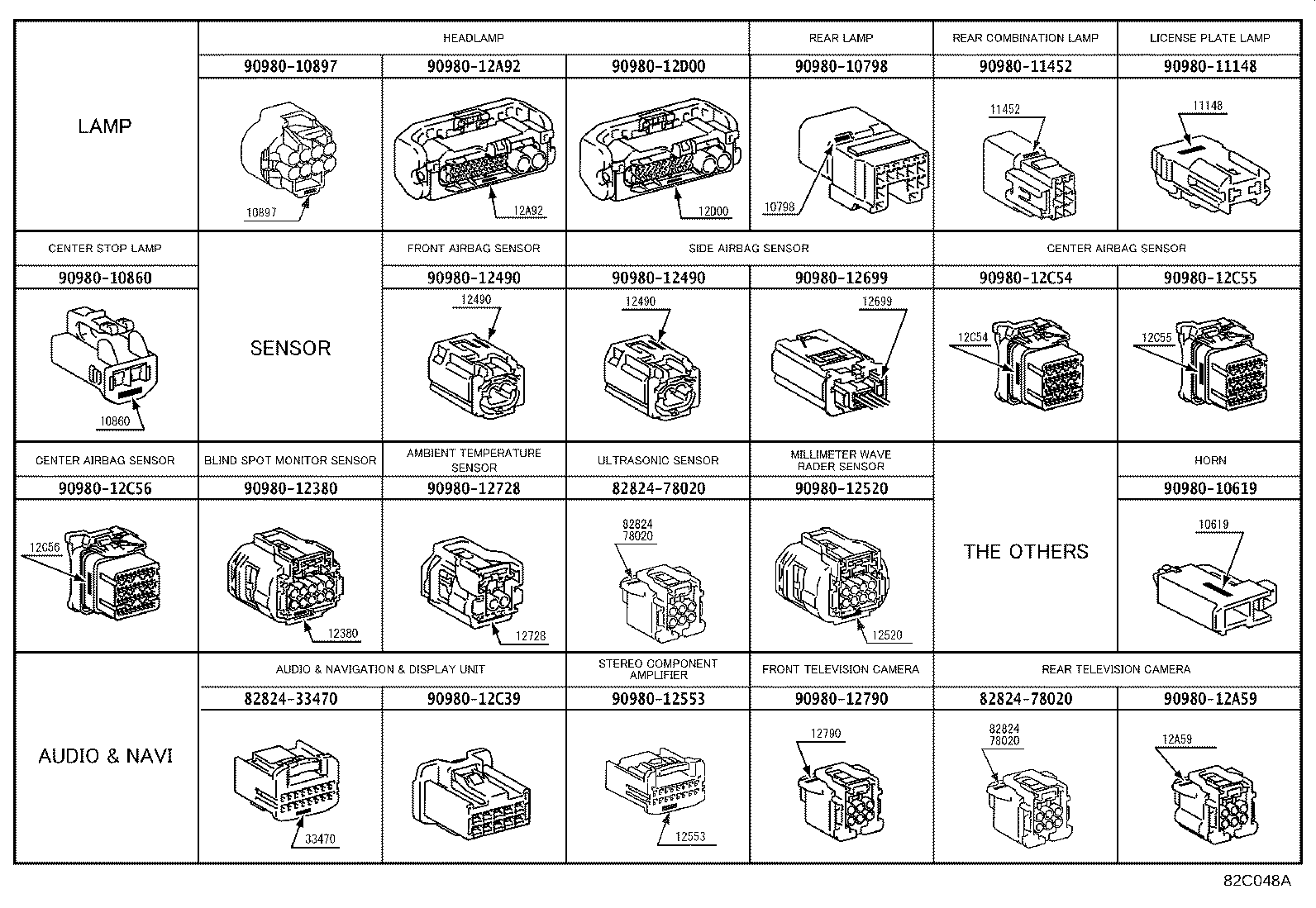

CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-33470 | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10798 | ||||
| 90980-10860 | ||||
| 90980-10897 | ||||
| 90980-11148 | ||||
| 90980-11452 | ||||
| 90980-12380 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12553 | ||||
| 90980-12699 | ||||
| 90980-12728 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12A92 | ||||
| 90980-12C39 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
| 90980-12D00 | ||||
(1804- )AXXA55,GSX50

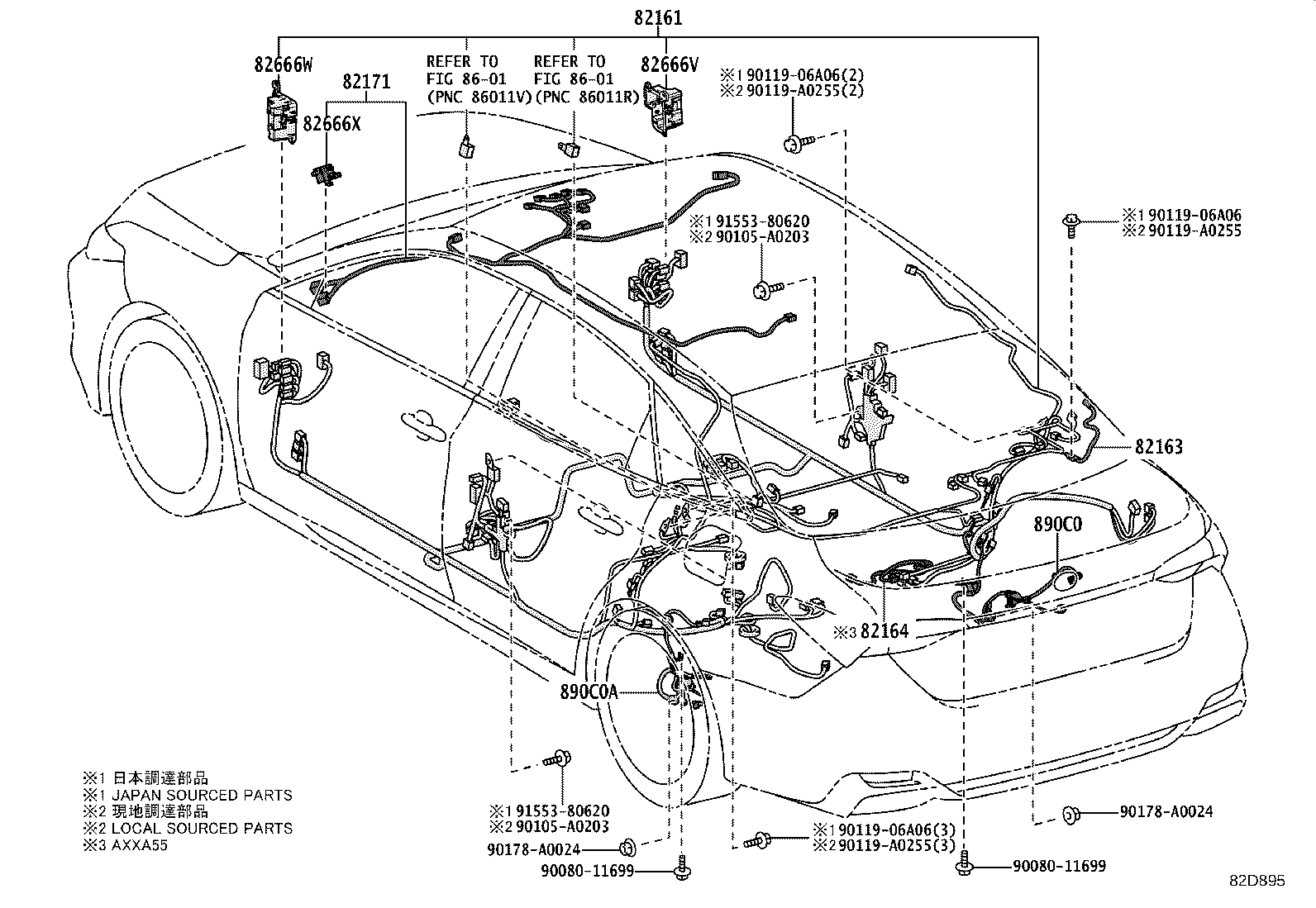

FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-07A70 |
GSX50..XLE,XSE USA POSSESSION SPEC |
1 | ||
| 82161-07A70 |
GSX50..XLE,XSE PUERTO RICO SPEC |
1 | ||
| 82161-07A70 |
GSX50..XLE,XSE HAWAII SPEC |
1 | ||
| 82161-07B00 |
GSX50..XLE,XSE PUERTO RICO SPEC&AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82161-07A60 |
GSX50..XLE,XSE |
1 | ||
| 82161-07B00 |
GSX50..XLE,XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82161-07B01 |
GSX50..XLE,XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82161-07B00 |
GSX50..XLE,XSE HAWAII SPEC&AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82161-07A61 |
GSX50..XLE,XSE |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-07060 |
AXXH50,GSX50 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-07660 |
GSX50..XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82171-07670 |
GSX50..XSE USA POSSESSION SPEC |
1 | ||
| 82171-07650 |
GSX50..XLE,XSE |
1 | ||
| 82171-07660 |
GSX50..XSE AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82171-07650 |
GSX50..XSE TRD PACKAGE&AUDIO-9INCH DISPLAY & 14SPEAKER |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-33650 |
AXXH50,GSX50 |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-33660 |
AXXH50,GSX50 |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-33500 |
AXXH50,GSX50 |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-06011 |
AXXH50,GSX50..LIMD,XLE,XSE |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-06021 |
AXXH50,GSX50..LIMD,XLE,XSE |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90105-A0203 | ||||
| 90119-06A06 | ||||
| 90119-A0255 | ||||
| 90178-A0024 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
