GSX50L-AEZQBA (2018)
Toyota Avalon
Production
Apr 2018
-
Aug 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1804-2008)

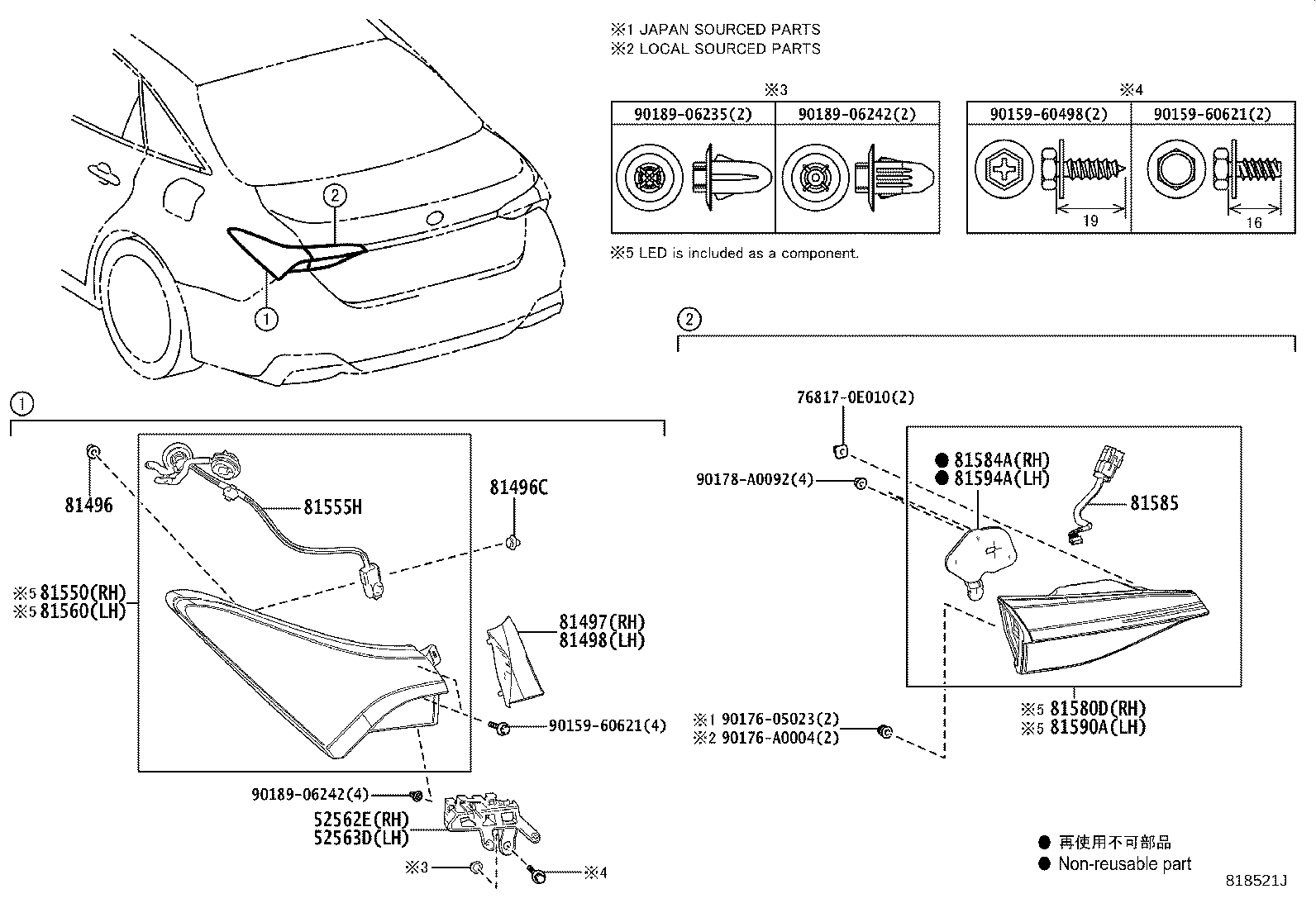

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52562E - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-07010 |
AXXH50,GSX50 |
1 | ||
| 52563D - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-07010 |
AXXH50,GSX50 |
1 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-0E020 |
AXXH50,GSX50 |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-60010 |
AXXH50,GSX50 |
2 | ||
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-07010 |
AXXH50,GSX50 |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81498-07010 |
AXXH50,GSX50 |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-07090 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 81550-07091 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 81550-07090 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 81555H - SOCKET & WIRE, REAR COMBINATION LAMP | ||||
| 81555-07090 |
AXXH50,GSX50..XLE,XSE |
2 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-07090 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 81560-07091 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 81560-07090 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-07090 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 81580-07091 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 81580-07090 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-07100 |
AXXH50,GSX50 |
1 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-07090 |
AXXH50,GSX50..XLE,XSE |
2 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-07090 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 81590-07091 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 81590-07090 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81584-07100 |
AXXH50,GSX50 |
1 | ||
| Common parts | ||||
| 76817-0E010 | ||||
| 90159-60498 | ||||
| 90159-60621 | ||||
| 90176-05023 | ||||
| 90176-A0004 | ||||
| 90178-A0092 | ||||
| 90189-06235 | ||||
| 90189-06242 | ||||
