GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )

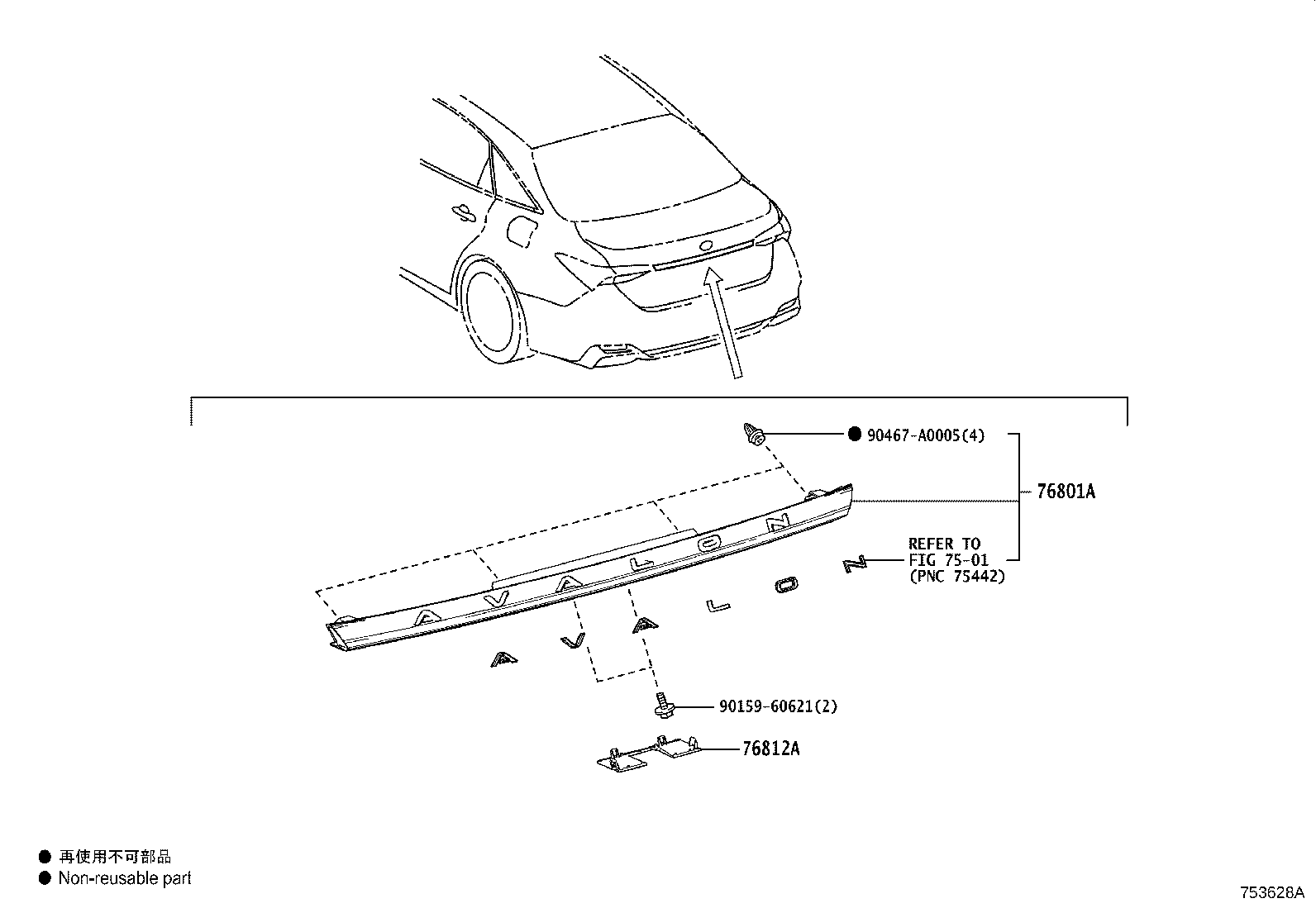

Click highlighted areas on diagram

diagram 7501 76801A 76812A 9015960621 90467A0005
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-07090

AXXH50,GSX50..XSE

PLATED

 1
76812A - GARNISH, BACK DOOR, OUTSIDE NO.2
76812-07010

AXXH50,GSX50

 1
Common parts
90159-60621
90467-A0005
Linked diagrams
7501
