GSX50L-AEZQBA (2018)
Toyota Avalon

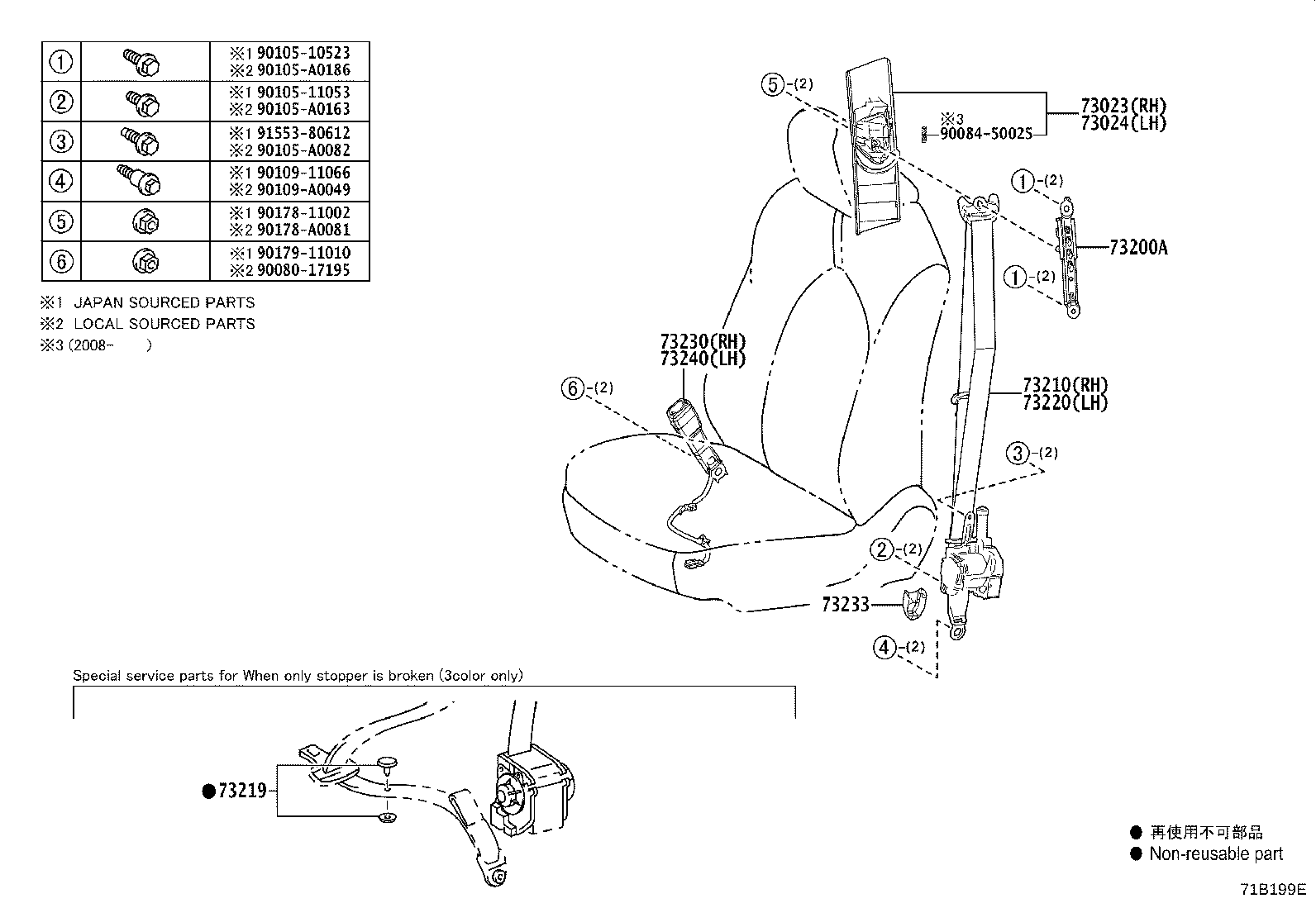

ILLUST NO. 1 OF 2(1804- )
FRONT SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-04040B1 |
AXXH50,GSX50..TOU,XLE,XSE NEUTRAL WARM GRAY,TRIM1#,2# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-04040B1 |
AXXH50,GSX50..TOU,XLE,XSE NEUTRAL WARM GRAY,TRIM1#,2# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0C020 |
AXXH50,GSX50 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-06420C3 |
AXXH50,GSX50..TOU,XLE,XSE BLACK/GRAY,TRIM1#,2# |
1 | ||
| 73210-06330C1 |
GSX50..XSE TRD PACKAGE,BLACK/RED,TRIM2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02010 |
AXXH50,GSX50 BLACK |
1 | ||
| 73219-02020 |
AXXH50,GSX50 GRAY |
1 | ||
| 73219-02030 |
AXXH50,GSX50 BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-06390C4 |
AXXH50,GSX50..TOU,XLE,XSE BLACK/GRAY,TRIM1#,2# |
1 | ||
| 73220-06360C1 |
GSX50..XSE TRD PACKAGE,BLACK/RED,TRIM2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-06B20C0 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-0C010C1 |
GSX50..XSE TRD PACKAGE,BLACK,TRIM2# |
2 | ||
| 73233-0C010C1 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-06760C0 |
AXXH50,GSX50..XSE BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90080-17195 | ||||
| 90084-50025 | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90105-A0082 | ||||
| 90105-A0163 | ||||
| 90105-A0186 | ||||
| 90109-11066 | ||||
| 90109-A0049 | ||||
| 90178-11002 | ||||
| 90178-A0081 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||

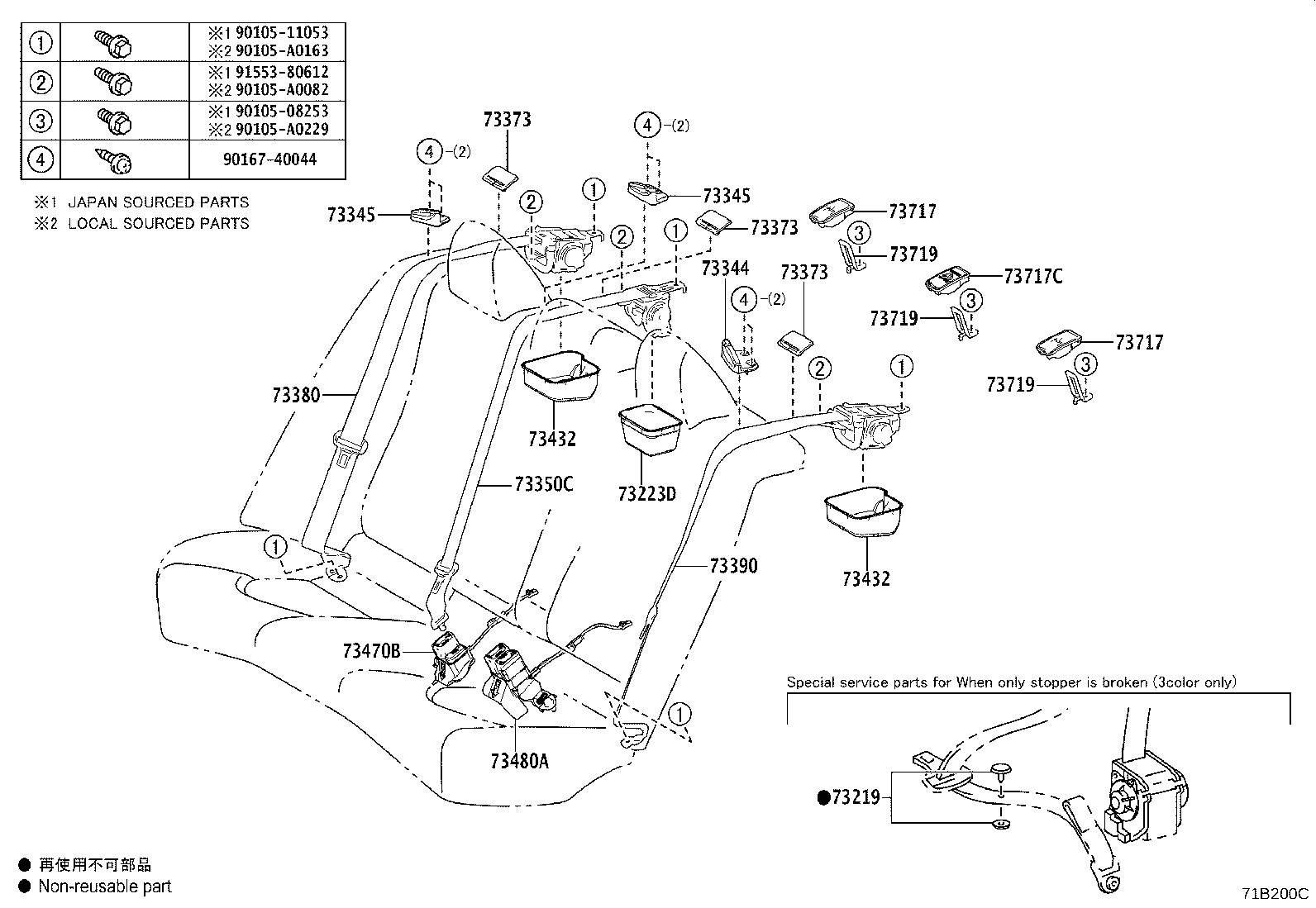

ILLUST NO. 2 OF 2(1804- )AXXA55,GSX50
REAR SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02010 |
AXXH50,GSX50 BLACK |
1 | ||
| 73219-02020 |
AXXH50,GSX50 GRAY |
1 | ||
| 73219-02030 |
AXXH50,GSX50 BEIGE |
1 | ||
| 73223D - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-07010 |
AXXH50,GSX50 |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-33020C1 |
AXXH50,GSX50..TOU,XLE,XSE BLACK,TRIM2# |
1 | ||
| 73344-33020B4 |
AXXH50,GSX50 GRAY,TRIM1# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73343-33020B4 |
AXXH50,GSX50 GRAY,TRIM1# |
2 | ||
| 73343-33020C1 |
AXXH50,GSX50..TOU,XLE,XSE BLACK,TRIM2# |
2 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73343-33020B4 |
AXXH50,GSX50 GRAY,TRIM1# |
2 | ||
| 73343-33020C1 |
AXXH50,GSX50..TOU,XLE,XSE BLACK,TRIM2# |
2 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-07010C2 |
AXXH50,GSX50..TOU,XLE,XSE BLACK/BLACK,TRIM1#,2# |
1 | ||
| 73350-07030D1 |
GSX50..XSE TRD PACKAGE,RED/BLACK,TRIM2# |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-33030C1 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
3 | ||
| 73373-33030C1 |
GSX50..XSE TRD PACKAGE,BLACK,TRIM2# |
3 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-33030C1 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
3 | ||
| 73373-33030C1 |
GSX50..XSE TRD PACKAGE,BLACK,TRIM2# |
3 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-33030C1 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
3 | ||
| 73373-33030C1 |
GSX50..XSE TRD PACKAGE,BLACK,TRIM2# |
3 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73360-07060C1 |
AXXH50,GSX50..TOU,XLE,XSE BLACK/BLACK,TRIM1#,2# |
1 | ||
| 73360-07080C1 |
GSX50..XSE TRD PACKAGE,RED/BLACK,TRIM2# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73370-07030C1 |
GSX50..XSE TRD PACKAGE,RED/BLACK,TRIM2# |
1 | ||
| 73370-07010C1 |
AXXH50,GSX50..TOU,XLE,XSE BLACK/BLACK,TRIM1#,2# |
1 | ||
| 73432 - COVER, REAR SEAT BELT RETRACTOR, LH | ||||
| 73431-07010 |
AXXH50,GSX50 |
2 | ||
| 73432 - COVER, REAR SEAT BELT RETRACTOR, LH | ||||
| 73431-07010 |
AXXH50,GSX50 |
2 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-07060C0 |
GSX50..TOU,XSE BLACK,TRIM1#,2# |
1 | ||
| 73480A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73480-07040C0 |
GSX50..TOU,XSE BLACK,TRIM1#,2# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-06090C0 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
2 | ||
| 73717-02740C0 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-06090C0 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
2 | ||
| 73717-02740C0 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
2 | ||
| 73717C - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR, CENTER | ||||
| 73717-06130C0 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
1 | ||
| 73717-06270C0 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM1#,2# |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-06040 |
AXXH50,GSX50 |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-06040 |
AXXH50,GSX50 |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-06040 |
AXXH50,GSX50 |
3 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 90105-11053 | ||||
| 90105-A0082 | ||||
| 90105-A0163 | ||||
| 90105-A0229 | ||||
| 90167-40044 | ||||
| 91553-80612 | ||||
