GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1804- )

Click highlighted areas on diagram

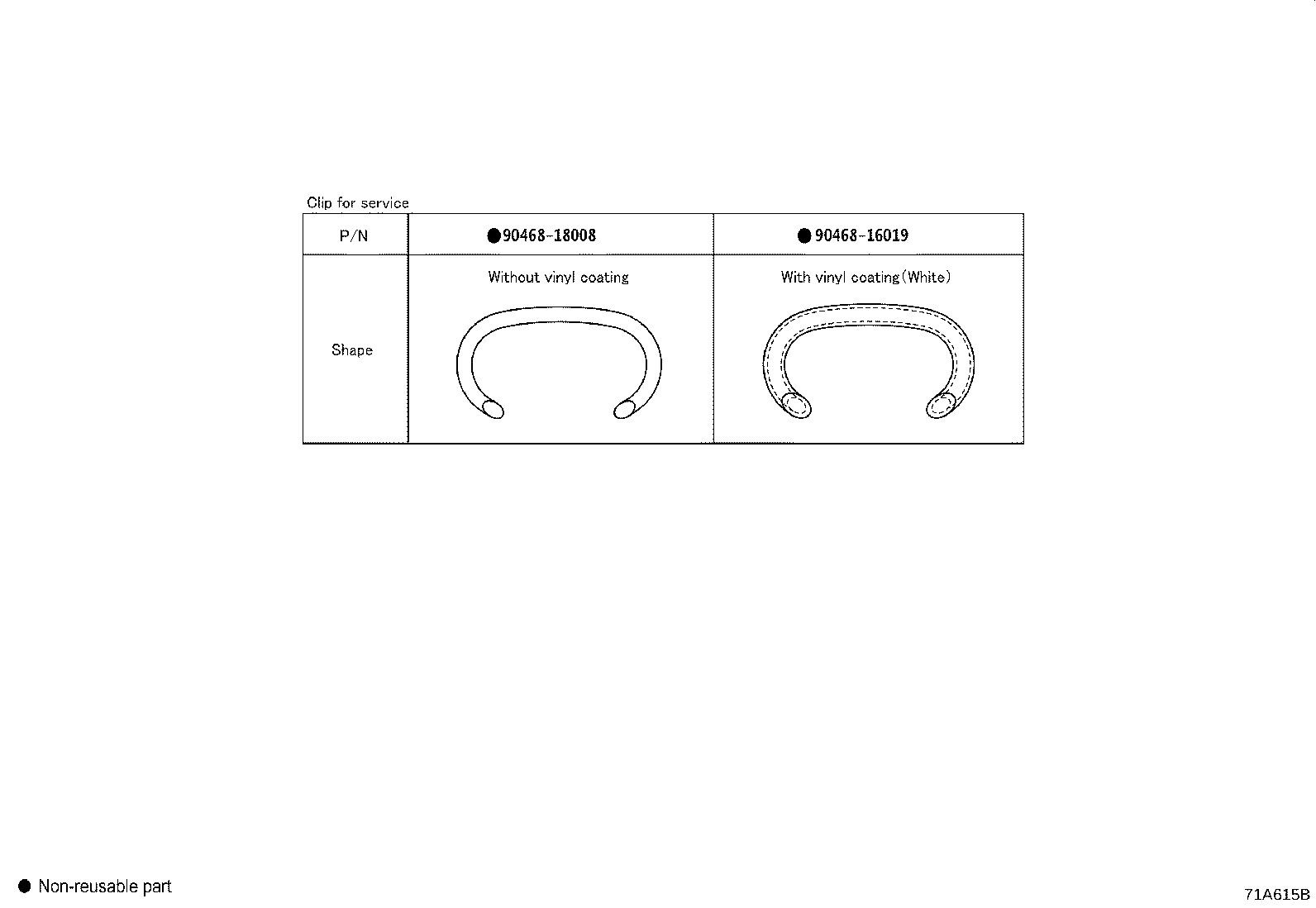

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008

ILLUST NO. 2 OF 3(1804- )AXXA55,GSX50

Click highlighted areas on diagram

SEAT CUSHION

diagram 71075B 71503A 7247606020 72693 72693 73705 73705 73706 73706 73731 73733 87510P 87510P 90119A0127 90119A0127 90119A0127 90119A0127
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-07190B3

GSX50..XSE

MD. GRAY,TRIM1#

 1
71075-07190C3

GSX50..XSE

BLACK,TRIM2#

 1
71075-07191C3

GSX50..XSE

BLACK,TRIM2#

 1
71075-07191C3

GSX50..XSE

BLACK,TRIM20

 1
71075-07191B3

GSX50..XSE

MD. GRAY,TRIM1#

 1
71075-07191C4

GSX50..XSE

BLACK/RED,TRIM21

 1
71503A - PAD SUB-ASSY, REAR SEAT CUSHION
71503-07051

GSX50

 1
71503-07050

GSX50

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-06030

AXXH50,GSX50

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-06030

AXXH50,GSX50

 2
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-06110

GSX50..XLE,XSE

 1
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-06110

GSX50..XLE,XSE

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-06110

GSX50..XLE,XSE

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-06110

GSX50..XLE,XSE

 1
73731 - COVER, CHILD RESTRAINT SEAT
73731-06060B2

AXXH50,GSX50

GRAY,TRIM1#

 4
73731-06060C0

AXXH50,GSX50..TOU,XLE,XSE

BLACK,TRIM2#

 4
73733 - COVER, CHILD RESTRAINT SEAT BASE
73733-06060C0

AXXH50,GSX50..TOU,XLE,XSE

BLACK,TRIM2#

 4
73733-06040B2

AXXH50,GSX50

GRAY,TRIM1#

 4
73733-06040C0

AXXH50,GSX50..TOU,XLE,XSE

BLACK,TRIM2#

 4
73733-06060B2

AXXH50,GSX50

GRAY,TRIM1#

 4
Common parts
72476-06020
90119-A0127

ILLUST NO. 1 OF 3(1804- )

Click highlighted areas on diagram

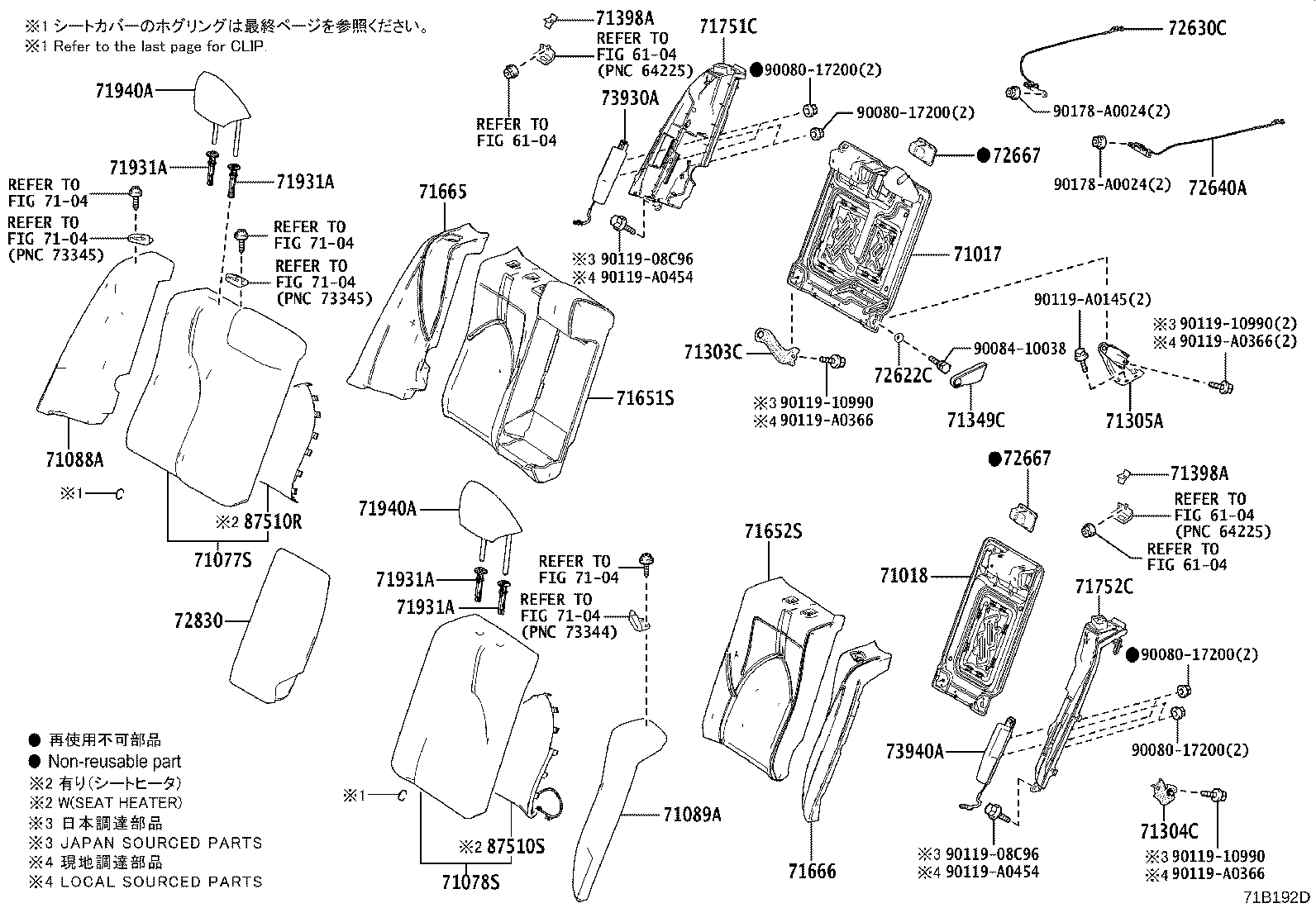

SEAT BACK

diagram 6104 6104 6104 6104 71017 71018 7104 7104 7104 7104 7104 7104 71077S 71078S 71088A 71089A 71303C 71304C 71305A 71349C 71398A 71398A 71651S 71652S 71665 71666 71751C 71752C 71931A 71931A 71931A 71931A 71940A 71940A 72622C 72630C 72640A 72667 72667 72830 73930A 73940A 87510R 87510S 9008017200 9008017200 9008017200 9008017200 9008410038 9011908C96 9011908C96 9011910990 9011910990 9011910990 90119A0145 90119A0366 90119A0366 90119A0366 90119A0454 90119A0454 90178A0024 90178A0024
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-06210

AXXH50,GSX50

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-06110

AXXH50,GSX50

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-07180B1

AXXH50,GSX50..XSE

MD. GRAY,TRIM1#

 1
71077-07180C1

AXXH50,GSX50..XSE

BLACK,TRIM2#

 1
71077-07181B1

AXXH50,GSX50..XSE

MD. GRAY,TRIM1#

 1
71077-07181C1

AXXH50,GSX50..XSE

BLACK,TRIM2#

 1
71077-07251C1

GSX50..XSE

TRD PACKAGE,BLACK,TRIM2#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-07050C1

AXXH50,GSX50..XSE

BLACK,TRIM2#

 1
71078-07050B1

AXXH50,GSX50..XSE

MD. GRAY,TRIM1#

 1
71078-07111C1

GSX50..XSE

TRD PACKAGE,BLACK,TRIM2#

 1
71078-07051B1

AXXH50,GSX50..XSE

MD. GRAY,TRIM1#

 1
71078-07051C1

AXXH50,GSX50..XSE

BLACK,TRIM2#

 1
71088A - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH
71088-07020C2

GSX50..XSE

BLACK,TRIM2#

 1
71088-07020B2

AXXH50,GSX50..TOU,XSE

MD. GRAY,TRIM1#

 1
71088-07020C2

GSX50..XSE

BLACK,TRIM20

 1
71088-07020C3

GSX50..XSE

BLACK/RED,TRIM21

 1
71089A - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH
71089-07020C2

GSX50..XSE

BLACK,TRIM2#

 1
71089-07020C2

GSX50..XSE

BLACK,TRIM20

 1
71089-07020B2

AXXH50,GSX50..TOU,XSE

MD. GRAY,TRIM1#

 1
71089-07020C3

GSX50..XSE

BLACK/RED,TRIM21

 1
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71303-06030

AXXH50,GSX50

 1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71304-06020

AXXH50,GSX50

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-06070

AXXH50,GSX50

 1
71349C - COVER, REAR SEAT BACK HINGE
71349-06040C0

AXXH50,GSX50..TOU,XLE,XSE

BLACK,TRIM2#

 1
71349-06040B2

AXXH50,GSX50

GRAY,TRIM1#

 1
71398A - HOLDER, REAR SEAT BACK
71398-AC010

AXXH50,GSX50

 2
71398A - HOLDER, REAR SEAT BACK
71398-AC010

AXXH50,GSX50

 2
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-06470

AXXH50,GSX50

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-06250

AXXH50,GSX50

 1
71665 - PAD, REAR SEAT BACK SIDE, RH
71665-07030

AXXH50,GSX50

 1
71666 - PAD, REAR SEAT BACK SIDE, LH
71666-07030

AXXH50,GSX50

 1
71751C - FRAME, REAR SIDE SEAT BACK, RH
71751-06070

AXXH50,GSX50

 1
71752C - FRAME, REAR SIDE SEAT BACK, LH
71752-06060

AXXH50,GSX50

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-06060B3

AXXH50,GSX50

W(LOCK),GRAY,TRIM1#

 2
71931-06050C0

AXXH50,GSX50..TOU,XLE,XSE

W/O(LOCK),BLACK,TRIM2#

 2
71930-06060C0

AXXH50,GSX50..TOU,XLE,XSE

W(LOCK),BLACK,TRIM2#

 2
71931-06050B3

AXXH50,GSX50

W/O(LOCK),GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-06060B3

AXXH50,GSX50

W(LOCK),GRAY,TRIM1#

 2
71931-06050C0

AXXH50,GSX50..TOU,XLE,XSE

W/O(LOCK),BLACK,TRIM2#

 2
71930-06060C0

AXXH50,GSX50..TOU,XLE,XSE

W(LOCK),BLACK,TRIM2#

 2
71931-06050B3

AXXH50,GSX50

W/O(LOCK),GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-06060B3

AXXH50,GSX50

W(LOCK),GRAY,TRIM1#

 2
71931-06050C0

AXXH50,GSX50..TOU,XLE,XSE

W/O(LOCK),BLACK,TRIM2#

 2
71930-06060C0

AXXH50,GSX50..TOU,XLE,XSE

W(LOCK),BLACK,TRIM2#

 2
71931-06050B3

AXXH50,GSX50

W/O(LOCK),GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-06060B3

AXXH50,GSX50

W(LOCK),GRAY,TRIM1#

 2
71931-06050C0

AXXH50,GSX50..TOU,XLE,XSE

W/O(LOCK),BLACK,TRIM2#

 2
71930-06060C0

AXXH50,GSX50..TOU,XLE,XSE

W(LOCK),BLACK,TRIM2#

 2
71931-06050B3

AXXH50,GSX50

W/O(LOCK),GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-07100B0

AXXH50,GSX50..TOU,XLE,XSE

GRAY,TRIM1#

 2
71940-07101C0

AXXH50,GSX50..TOU,XLE,XSE

BLACK,TRIM2#

 2
71940-07101B0

AXXH50,GSX50..TOU,XLE,XSE

GRAY,TRIM1#

 2
71940-07100C0

AXXH50,GSX50..TOU,XLE,XSE

BLACK,TRIM2#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-07100B0

AXXH50,GSX50..TOU,XLE,XSE

GRAY,TRIM1#

 2
71940-07101C0

AXXH50,GSX50..TOU,XLE,XSE

BLACK,TRIM2#

 2
71940-07101B0

AXXH50,GSX50..TOU,XLE,XSE

GRAY,TRIM1#

 2
71940-07100C0

AXXH50,GSX50..TOU,XLE,XSE

BLACK,TRIM2#

 2
72622C - BUSH, REAR SEAT BACK PROTECTOR SHAFT
72622-0T020

AXXH50,GSX50

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-07010

AXXH50,GSX50

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-07010

AXXH50,GSX50

 1
72667 - BEZEL, REAR SEAT BACK LOCK, UPPER
72667-06060C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 2
72667 - BEZEL, REAR SEAT BACK LOCK, UPPER
72667-06060C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-07110C0

AXXH50,GSX50..TOU,XLE,XSE

BLACK,TRIM2#

 1
72830-07110B0

AXXH50,GSX50..TOU,XLE,XSE

GRAY,TRIM1#

 1
72830-07111C0

AXXH50,GSX50..TOU,XLE,XSE

BLACK,TRIM2#

 1
72830-07111B0

AXXH50,GSX50..TOU,XLE,XSE

GRAY,TRIM1#

 1
73930A - AIR BAG ASSY, REAR SEAT, RH
73930-06110

AXXH50,GSX50

 1
73940A - AIR BAG ASSY, REAR SEAT, LH
73940-06110

AXXH50,GSX50

 1
Common parts
90080-17200
90084-10038
90119-08C96
90119-10990
90119-A0145
90119-A0366
90119-A0454
90178-A0024
