GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1804- )

Click highlighted areas on diagram

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008

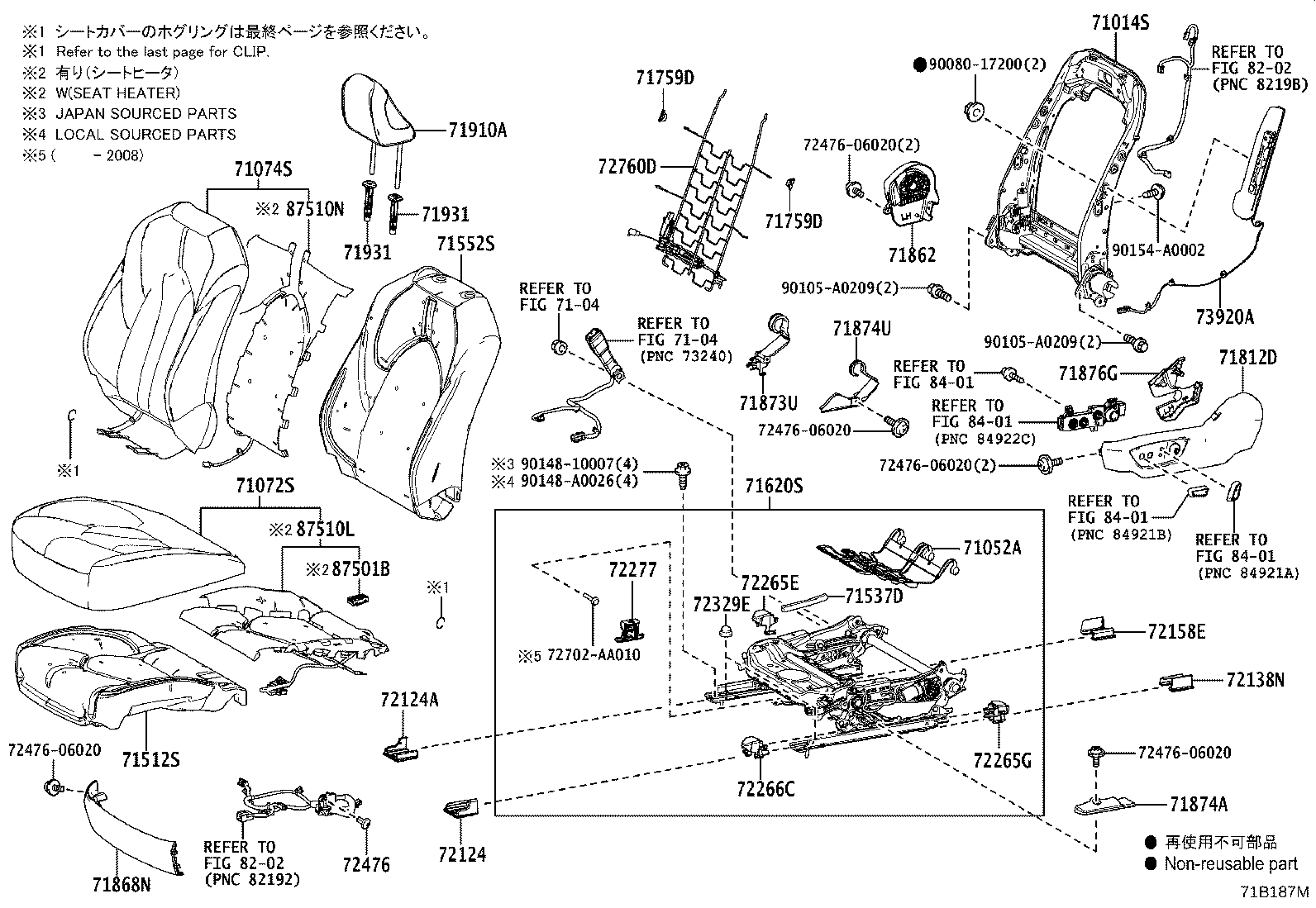

ILLUST NO. 1 OF 3(1804- )XLE,XSE

Click highlighted areas on diagram

DRIVER

diagram 71014S 7104 7104 71052A 71072S 71074S 71512S 71537D 71552S 71620S 71759D 71759D 71812D 71862 71868N 71873U 71874A 71874U 71876G 71910A 71931 71931 72124 72124A 72138N 72158E 72265E 72265G 72266C 72277 72329E 72476 7247606020 7247606020 7247606020 7247606020 7247606020 72702AA010 72760D 73920A 8202 8202 8401 8401 8401 8401 87501B 87510L 87510N 9008017200 90105A0209 90105A0209 9014810007 90148A0026 90154A0002
Part # Description Qty Price
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-06460

AXXH50,GSX50..XLE,XSE

 1
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-06030

AXXH50,GSX50

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-07210B1

AXXH50,GSX50..TOU,XSE

MD. GRAY,TRIM1#

 1
71072-07211B2

AXXH50,GSX50..TOU,XSE

MD. GRAY,TRIM1#

 1
71072-07210C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM2#

 1
71072-07211C4

GSX50..XSE

BLACK/RANGE BROWN,TRIM20

 1
71072-07211C3

GSX50..XSE

BLACK/RED,TRIM21

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-07370C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM2#

 1
71074-07370B1

AXXH50,GSX50..TOU,XSE

MD. GRAY,TRIM1#

 1
71074-07371C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM2#

 1
71074-07371B1

AXXH50,GSX50..TOU,XSE

MD. GRAY,TRIM1#

 1
71074-07431C1

GSX50..XSE

TRD PACKAGE,BLACK/RED,TRIM2#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-07040

AXXH50,GSX50..XLE,XSE

 1
71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH
71537-06210

AXXH50,GSX50

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-07130

AXXH50,GSX50..XLE,XSE

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-06580

AXXH50,GSX50..XLE,XSE

 1
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-06050

AXXH50,GSX50..XLE,XSE

 2
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-06050

AXXH50,GSX50..XLE,XSE

 2
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-06560C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-06420C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
71868N - SHIELD, FRONT SEAT CUSHION, FRONT LH
71868-06170C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06610C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-06690

AXXH50,GSX50

 1
71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-06630C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-06640C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-07190B1

AXXH50,GSX50..TOU,XSE

GRAY,TRIM1#

 2
71910-07111C0

GSX50..XSE

TRD PACKAGE,BLACK/RED,TRIM2#

 2
71910-07190C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM2#

 2
71910-07191B1

AXXH50,GSX50..TOU,XSE

GRAY,TRIM1#

 2
71910-07191C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-06060C0

AXXH50,GSX50..TOU,XLE,XSE

W(LOCK),BLACK,TRIM2#

 2
71930-06060B3

AXXH50,GSX50

W(LOCK),GRAY,TRIM1#

 2
71931-06050B3

AXXH50,GSX50

W/O(LOCK),GRAY,TRIM1#

 2
71931-06050C0

AXXH50,GSX50..TOU,XLE,XSE

W/O(LOCK),BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-06060C0

AXXH50,GSX50..TOU,XLE,XSE

W(LOCK),BLACK,TRIM2#

 2
71930-06060B3

AXXH50,GSX50

W(LOCK),GRAY,TRIM1#

 2
71931-06050B3

AXXH50,GSX50

W/O(LOCK),GRAY,TRIM1#

 2
71931-06050C0

AXXH50,GSX50..TOU,XLE,XSE

W/O(LOCK),BLACK,TRIM2#

 2
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72123-06100

AXXH50,GSX50

 1
72124A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72127-06100

AXXH50,GSX50

 1
72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH
72138-06110

AXXH50,GSX50

 1
72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH
72158-06190

AXXH50,GSX50

 1
72265E - COVER, SEAT TRACK UPPER RAIL, RH
72265-06010

GSX50..XSE

TRD PACKAGE

 2
72265-06010

AXXH50,GSX50

 1
72265G - COVER, SEAT TRACK UPPER RAIL, LH(FOR LH SEAT)
72265-06010

AXXH50,GSX50

 1
72266C - COVER, SEAT TRACK UPPER RAIL, LH
72266-06010

AXXH50,GSX50

 1
72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR,
72277-06030

AXXH50,GSX50

 1
72329E - COVER, SEAT ADJUSTER BOLT, LH
72329-06010

AXXH50,GSX50

 2
72476 - SCREW, HORIZONTAL JACK, INNER
72476-06020

AXXH50,GSX50

 2
72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH
72760-06190

AXXH50,GSX50..XLE,XSE

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-06200

AXXH50,GSX50

 1
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-06110

AXXH50,GSX50..TOU,XLE,XSE

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87530-06060

AXXH50,GSX50

 1
Common parts
72476-06020
72702-AA010
90080-17200
90105-A0209
90148-10007
90148-A0026
90154-A0002
Linked diagrams
7104
8202
8401

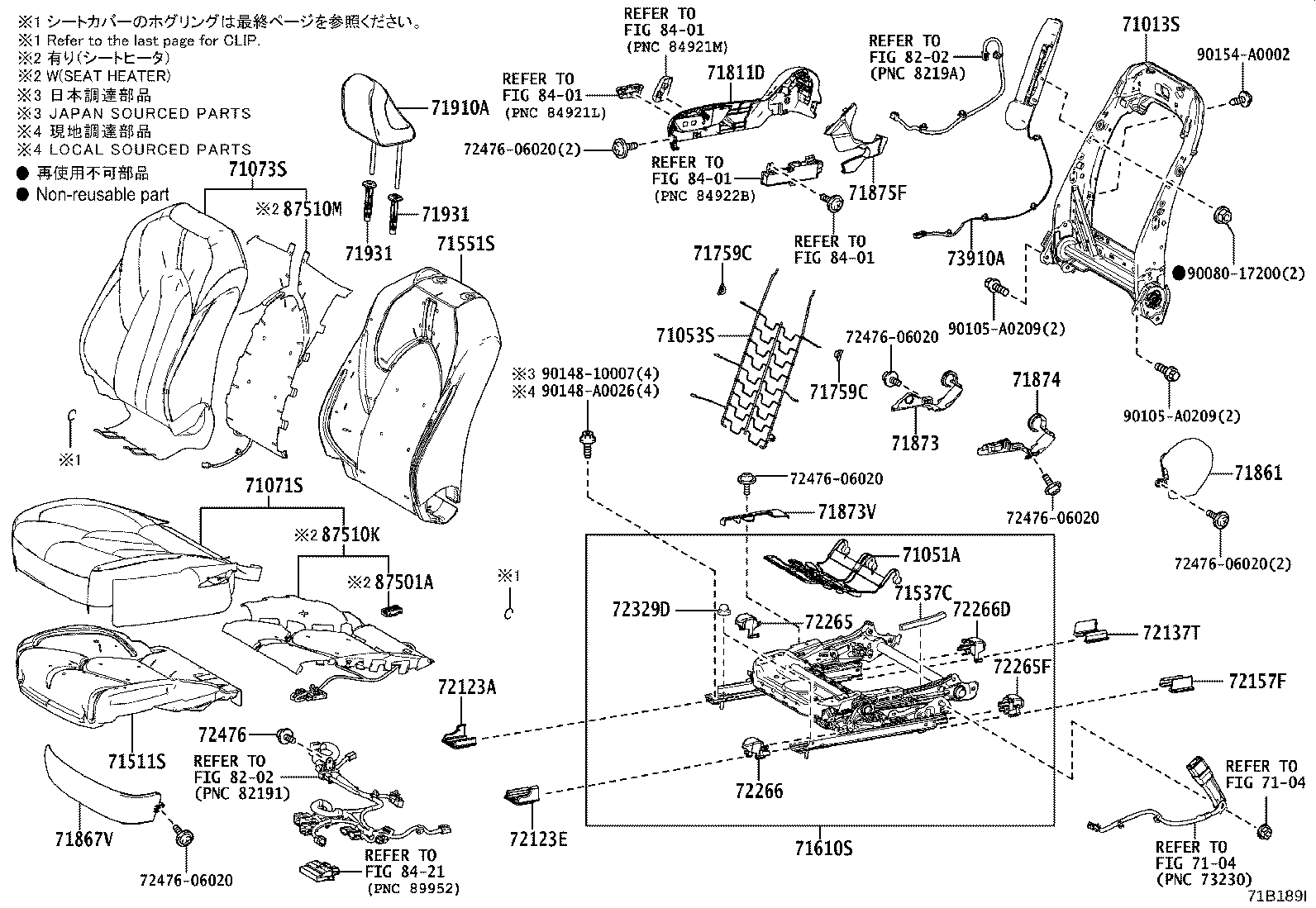

ILLUST NO. 2 OF 3(1804- )XLE,XSE

Click highlighted areas on diagram

PASSENGER

diagram 71013S 7104 7104 71051A 71053S 71071S 71073S 71511S 71537C 71551S 71610S 71759C 71759C 71811D 71861 71867V 71873 71873V 71874 71875F 71910A 71931 71931 72123A 72123E 72137T 72157F 72265 72265F 72266 72266D 72329D 72476 7247606020 7247606020 7247606020 7247606020 7247606020 7247606020 73910A 8202 8202 8401 8401 8401 8401 8421 87501A 87510K 87510M 9008017200 90105A0209 90105A0209 9014810007 90148A0026 90154A0002
Part # Description Qty Price
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-06530

AXXH50,GSX50

 1
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-06030

AXXH50,GSX50

 1
71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH
71053-06080

AXXH50,GSX50..XLE,XSE

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-07160B1

AXXH50,GSX50..TOU,XSE

MD. GRAY,TRIM1#

 1
71071-07161C3

GSX50..XSE

BLACK/RED,TRIM21

 1
71071-07161B2

AXXH50,GSX50..TOU,XSE

MD. GRAY,TRIM1#

 1
71071-07161C4

GSX50..XSE

BLACK/ORANGE BROWN,TRIM20

 1
71071-07160C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-07370C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM2#

 1
71073-07370B1

AXXH50,GSX50..TOU,XSE

MD. GRAY,TRIM1#

 1
71073-07371B1

AXXH50,GSX50..TOU,XSE

MD. GRAY,TRIM1#

 1
71073-07431C1

GSX50..XSE

TRD PACKAGE,BLACK/RED,TRIM2#

 1
71073-07371C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-07060

AXXH50,GSX50..XLE,XSE

 1
71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH
71537-06210

AXXH50,GSX50

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-07090

AXXH50,GSX50..XLE,XSE

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-06630

AXXH50,GSX50..XLE,XSE

 1
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-06050

AXXH50,GSX50..XLE,XSE

 2
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-06050

AXXH50,GSX50..XLE,XSE

 2
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-06560C0

AXXH50,GSX50..XSE

BLACK,TRIM1#,2#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-06430C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
71867V - SHIELD, FRONT SEAT CUSHION, FRONT RH
71867-06220C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06600C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06660

AXXH50,GSX50

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-06620C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-06610C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-07190B1

AXXH50,GSX50..TOU,XSE

GRAY,TRIM1#

 2
71910-07111C0

GSX50..XSE

TRD PACKAGE,BLACK/RED,TRIM2#

 2
71910-07190C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM2#

 2
71910-07191B1

AXXH50,GSX50..TOU,XSE

GRAY,TRIM1#

 2
71910-07191C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-06060C0

AXXH50,GSX50..TOU,XLE,XSE

W(LOCK),BLACK,TRIM2#

 2
71930-06060B3

AXXH50,GSX50

W(LOCK),GRAY,TRIM1#

 2
71931-06050B3

AXXH50,GSX50

W/O(LOCK),GRAY,TRIM1#

 2
71931-06050C0

AXXH50,GSX50..TOU,XLE,XSE

W/O(LOCK),BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-06060C0

AXXH50,GSX50..TOU,XLE,XSE

W(LOCK),BLACK,TRIM2#

 2
71930-06060B3

AXXH50,GSX50

W(LOCK),GRAY,TRIM1#

 2
71931-06050B3

AXXH50,GSX50

W/O(LOCK),GRAY,TRIM1#

 2
71931-06050C0

AXXH50,GSX50..TOU,XLE,XSE

W/O(LOCK),BLACK,TRIM2#

 2
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72127-06100

AXXH50,GSX50

 1
72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72123-06100

AXXH50,GSX50

 1
72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH
72137-06120

AXXH50,GSX50

 1
72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH
72157-06190

AXXH50,GSX50

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-06010

GSX50..XSE

TRD PACKAGE

 2
72265-06010

AXXH50,GSX50

 1
72265F - COVER, SEAT TRACK UPPER RAIL, LH(FOR RH SEAT)
72265-06010

AXXH50,GSX50

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72266-06010

AXXH50,GSX50

 1
72266-06010

GSX50..XSE

TRD PACKAGE

 2
72266D - COVER, SEAT TRACK UPPER RAIL, RH(FOR RH SEAT)
72266-06010

AXXH50,GSX50

 1
72329D - COVER, SEAT ADJUSTER BOLT, RH
72329-06010

AXXH50,GSX50

 2
72476 - SCREW, HORIZONTAL JACK, INNER
72476-06020

AXXH50,GSX50

 2
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-06190

AXXH50,GSX50

 1
87510K - HEATER ASSY, FRONT SEAT CUSHION, RH
87510-06110

AXXH50,GSX50

 1
87510M - HEATER ASSY, FRONT SEAT BACK, RH
87530-06060

AXXH50,GSX50

 1
Common parts
72476-06020
90080-17200
90105-A0209
90148-10007
90148-A0026
90154-A0002
Linked diagrams
7104
8202
8401
8421
