GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )

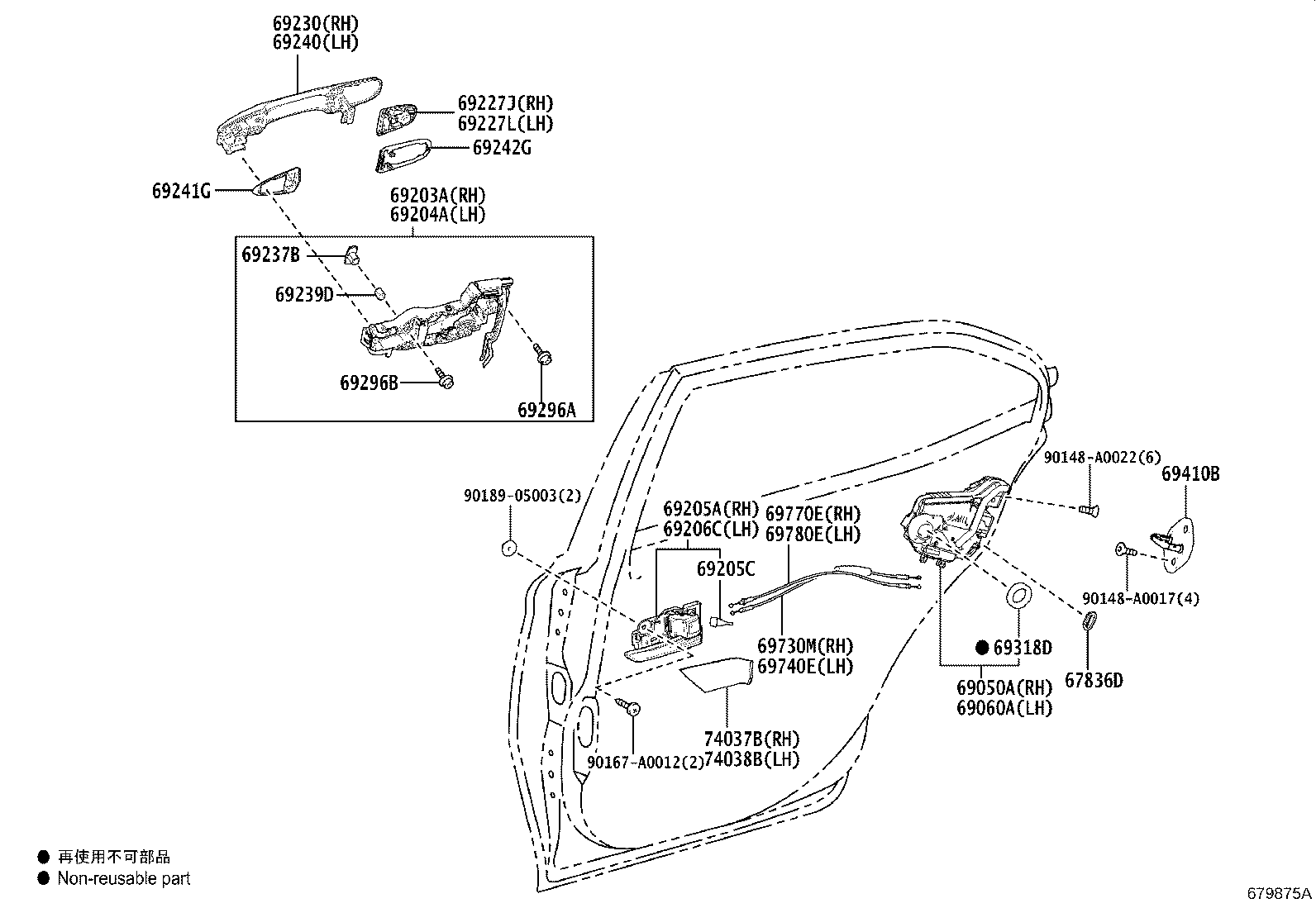

Click highlighted areas on diagram

diagram 67836D 69050A 69060A 69203A 69204A 69205A 69205C 69206C 69227J 69227L 69230 69237B 69239D 69240 69241G 69242G 69296A 69296B 69318D 69410B 69730M 69740E 69770E 69780E 74037B 74038B 90148A0017 90148A0022 90167A0012 9018905003
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-12040

AXXH50,GSX50

 2
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-07050

AXXH50,GSX50

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-07050

AXXH50,GSX50

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-07020

AXXH50,GSX50

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-07020

AXXH50,GSX50

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-06120C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90080-54005

AXXH50,GSX50

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-06160C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-06100

AXXH50,GSX50

BLACK

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-06100

AXXH50,GSX50

BLACK

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-06110J3

AXXH50,GSX50

DK.BLUE M.M.,8W6

 1
69211-06110C0

AXXH50,GSX50

ATTITUDE BLACK MC.,218

 1
69211-06110B4

AXXH50,GSX50

SLATE GRAY ME.,1K4

 1
69211-06110D0

AXXH50,GSX50

RED MC.,3T3

 1
69211-06110B1

AXXH50,GSX50

SILVER ME.,1J9

 1
69211-06110E0

AXXH50,GSX50

GRAPHITE ME.,4X7

 1
69211-06110D4

GSX50..XSE

EMOTIONAL RED 2,3U5

 1
69211-06110A1

AXXH50,GSX50

PLATINUM WHITE PEARL MC.,089

 1
69237B - NUT, REAR DOOR HANDLE
69237-06030

AXXH50,GSX50

 2
69239D - BUSH, REAR DOOR HANDLE
69239-06030

AXXH50,GSX50

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-06110B1

AXXH50,GSX50

SILVER ME.,1J9

 1
69211-06110B4

AXXH50,GSX50

SLATE GRAY ME.,1K4

 1
69211-06110A1

AXXH50,GSX50

PLATINUM WHITE PEARL MC.,089

 1
69211-06110C0

AXXH50,GSX50

ATTITUDE BLACK MC.,218

 1
69211-06110E0

AXXH50,GSX50

GRAPHITE ME.,4X7

 1
69211-06110J3

AXXH50,GSX50

DK.BLUE M.M.,8W6

 1
69211-06110D0

AXXH50,GSX50

RED MC.,3T3

 1
69211-06110D4

GSX50..XSE

EMOTIONAL RED 2,3U5

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-06080

AXXH50,GSX50

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-06080

AXXH50,GSX50

 2
69296A - SCREW, DOOR INSIDE HANDLE
69296-02020

AXXH50,GSX50

 2
69296B - SCREW, DOOR INSIDE HANDLE
69296-06070

AXXH50,GSX50

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-04010

AXXH50,GSX50

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-02020

AXXH50,GSX50

 2
69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER
69730-07020

AXXH50,GSX50

 1
69740E - CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER
69730-07020

AXXH50,GSX50

 1
69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K
69770-07030

AXXH50,GSX50

 1
69780E - CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK K
69770-07030

AXXH50,GSX50

 1
74037B - COVER SUB-ASSY, REAR DOOR ARMREST, RH
74037-07010C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
74038B - COVER SUB-ASSY, REAR DOOR ARMREST, LH
74038-07010C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
Common parts
90148-A0017
90148-A0022
90167-A0012
90189-05003
