GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )

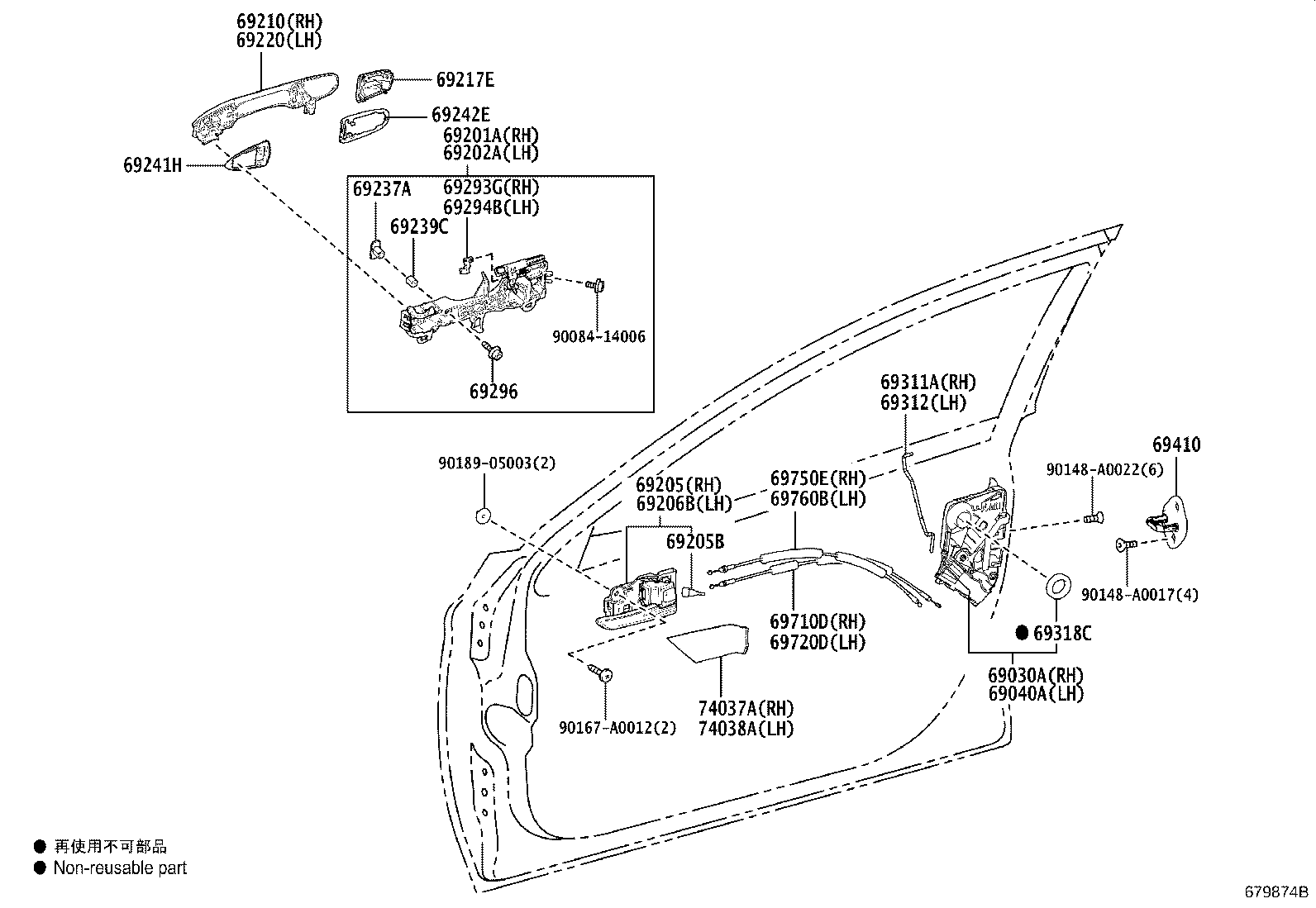

Click highlighted areas on diagram

diagram 69030A 69040A 69201A 69202A 69205 69205B 69206B 69210 69217E 69220 69237A 69239C 69241H 69242E 69293G 69294B 69296 69311A 69312 69318C 69410 69710D 69720D 69750E 69760B 74037A 74038A 9008414006 90148A0017 90148A0022 90167A0012 9018905003
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-07020

AXXH50,GSX50

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-07020

AXXH50,GSX50

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-06140

AXXH50,GSX50

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-06140

AXXH50,GSX50

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-06120C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90080-54005

AXXH50,GSX50

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-06160C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-06140A1

AXXH50,GSX50

PLATINUM WHITE PEARL MC.,089

 1
69210-06140B4

AXXH50,GSX50

SLATE GRAY ME.,1K4

 1
69210-06140C0

AXXH50,GSX50

ATTITUDE BLACK MC.,218

 1
69210-06140B1

AXXH50,GSX50

SILVER ME.,1J9

 1
69210-06140D4

GSX50..XSE

EMOTIONAL RED 2,3U5

 1
69210-06140D0

AXXH50,GSX50

RED MC.,3T3

 1
69210-06140J3

AXXH50,GSX50

DK.BLUE M.M.,8W6

 1
69210-06140E0

AXXH50,GSX50

GRAPHITE ME.,4X7

 1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69217-06090

AXXH50,GSX50

BLACK

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-06100D0

AXXH50,GSX50

RED MC.,3T3

 1
69210-06100C0

AXXH50,GSX50

ATTITUDE BLACK MC.,218

 1
69210-06100B4

AXXH50,GSX50

SLATE GRAY ME.,1K4

 1
69210-06100B1

AXXH50,GSX50

SILVER ME.,1J9

 1
69210-06100J3

AXXH50,GSX50

DK.BLUE M.M.,8W6

 1
69210-06100D4

GSX50..XSE

EMOTIONAL RED 2,3U5

 1
69210-06100E0

AXXH50,GSX50

GRAPHITE ME.,4X7

 1
69210-06100A1

AXXH50,GSX50

PLATINUM WHITE PEARL MC.,089

 1
69237A - NUT, FRONT DOOR HANDLE
69237-62010

AXXH50,GSX50

 2
69239C - BUSH, FRONT DOOR HANDLE
69239-06040

AXXH50,GSX50

 2
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-06080

AXXH50,GSX50

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-06080

AXXH50,GSX50

 2
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-33030

AXXH50,GSX50

 1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-33040

AXXH50,GSX50

 1
69296 - SCREW, DOOR INSIDE HANDLE
69296-0T010

AXXH50,GSX50

 2
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-07030

AXXH50,GSX50

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-07030

AXXH50,GSX50

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-04010

AXXH50,GSX50

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-02020

AXXH50,GSX50

 2
69710D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVE
69710-07020

AXXH50,GSX50

 1
69720D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVE
69710-07020

AXXH50,GSX50

 1
69750E - CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK
69750-07020

AXXH50,GSX50

 1
69760B - CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK
69750-07020

AXXH50,GSX50

 1
74037A - COVER SUB-ASSY, FRONT DOOR ARMREST, RH
74037-07010C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
74038A - COVER SUB-ASSY, FRONT DOOR ARMREST, LH
74038-07010C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
Common parts
90084-14006
90148-A0017
90148-A0022
90167-A0012
90189-05003
