GSX50L-AEZQBA (2018)
Toyota Avalon

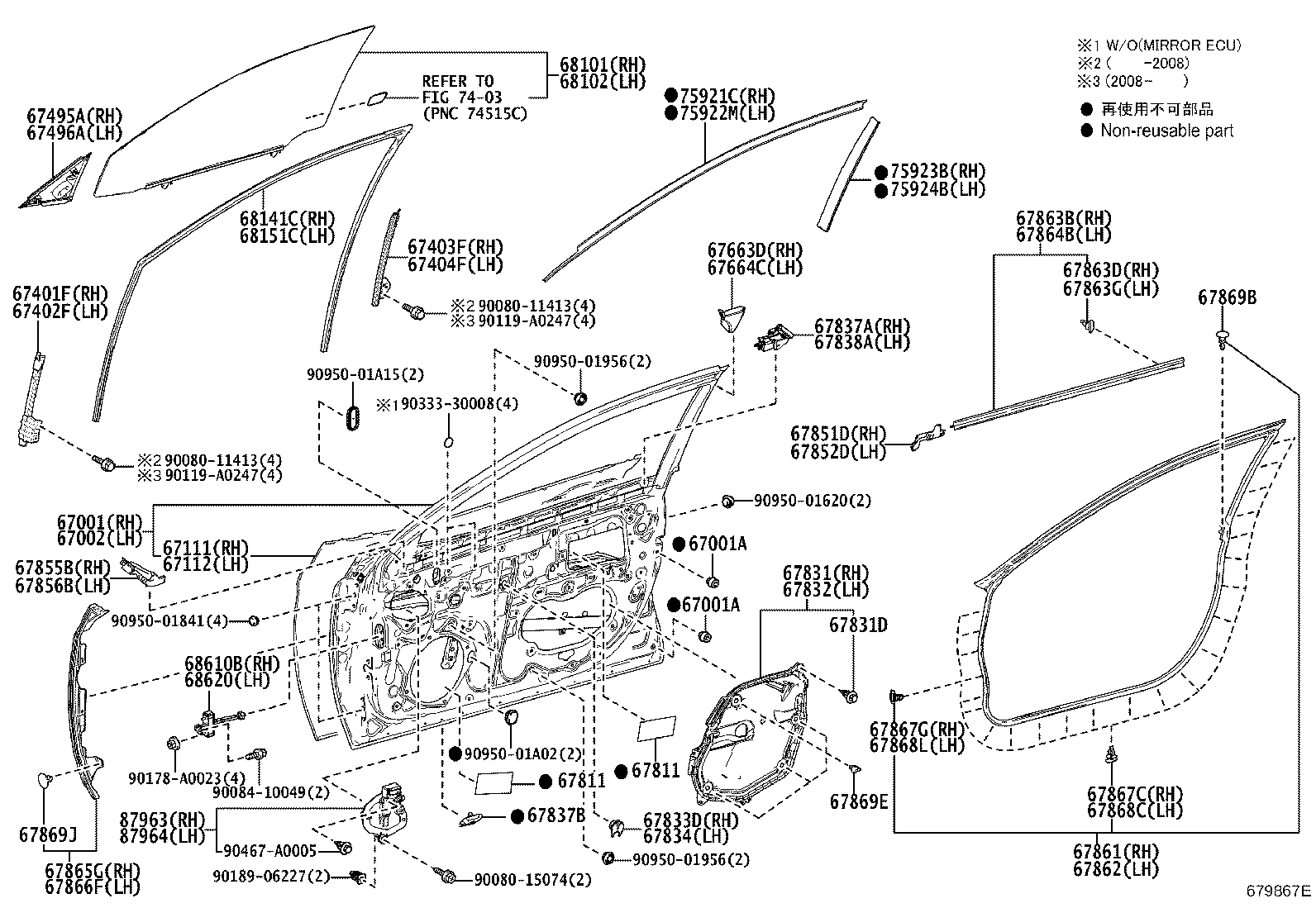

ILLUST NO. 1 OF 2(1804- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-07050 |
AXXH50,GSX50 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09143 |
AXXH50,GSX50 |
4 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09143 |
AXXH50,GSX50 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-07060 |
AXXH50,GSX50 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-07030 |
AXXH50,GSX50 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-07030 |
AXXH50,GSX50 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-06160 |
AXXH50,GSX50 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-06160 |
AXXH50,GSX50 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-06141 |
AXXH50,GSX50 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-06141 |
AXXH50,GSX50 |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-07010 |
AXXH50,GSX50 |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-07010 |
AXXH50,GSX50 |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-06130 |
AXXH50,GSX50 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-06130 |
AXXH50,GSX50 |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-AA040 |
AXXH50,GSX50 |
4 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-AA040 |
AXXH50,GSX50 |
4 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-06190 |
AXXH50,GSX50 |
1 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 90467-A0005 |
AXXH50,GSX50 |
6 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-06190 |
AXXH50,GSX50 |
1 | ||
| 67833D - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH | ||||
| 67833-0E010 |
AXXH50,GSX50 |
1 | ||
| 67834 - COVER, FRONT DOOR SERVICE HOLE, NO.2 LH | ||||
| 67833-0E010 |
AXXH50,GSX50 |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-07010 |
AXXH50,GSX50 |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-0E060 |
AXXH50,GSX50 |
2 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-07010 |
AXXH50,GSX50 |
1 | ||
| 67851D - SEAL, FRONT DOOR REAR OUTSIDE, RH | ||||
| 67851-06020 |
AXXH50,GSX50 |
1 | ||
| 67852D - SEAL, FRONT DOOR REAR OUTSIDE, LH | ||||
| 67852-06020 |
AXXH50,GSX50 |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-07020 |
AXXH50,GSX50 |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-07020 |
AXXH50,GSX50 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-07020 |
AXXH50,GSX50 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-07020 |
AXXH50,GSX50 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-07020 |
AXXH50,GSX50 |
1 | ||
| 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67867-52010 |
AXXH50,GSX50 |
8 | ||
| 67863G - RETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67867-52010 |
AXXH50,GSX50 |
8 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67863-07020 |
AXXH50,GSX50 |
1 | ||
| 67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH | ||||
| 67865-07010 |
AXXH50,GSX50 |
1 | ||
| 67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH | ||||
| 67866-07010 |
AXXH50,GSX50 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AXXH50,GSX50 |
22 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52030 |
AXXH50,GSX50 |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AXXH50,GSX50 |
22 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
AXXH50,GSX50 |
1 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
AXXH50,GSX50 |
2 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-0E010 |
AXXH50,GSX50 |
8 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 90467-06195 |
AXXH50,GSX50 |
8 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-07040 |
AXXH50,GSX50 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-07040 |
AXXH50,GSX50 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-07030 |
AXXH50,GSX50 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-07030 |
AXXH50,GSX50 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-06152 |
AXXH50,GSX50 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-06152 |
AXXH50,GSX50 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75985-07020 |
AXXH50,GSX50 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75986-07020 |
AXXH50,GSX50 |
1 | ||
| 75923B - TAPE, BLACK OUT, NO.2 RH | ||||
| 75975-07020 |
AXXH50,GSX50 |
1 | ||
| 75924B - TAPE, BLACK OUT, NO.2 LH | ||||
| 75976-07020 |
AXXH50,GSX50 |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-07010 |
AXXH50,GSX50 |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-07010 |
AXXH50,GSX50 |
1 | ||
| Common parts | ||||
| 90080-11413 | ||||
| 90080-15074 | ||||
| 90084-10049 | ||||
| 90119-A0247 | ||||
| 90178-A0023 | ||||
| 90189-06227 | ||||
| 90333-30008 | ||||
| 90467-A0005 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 90950-01A15 | ||||
| Linked diagrams | ||||
| 7403 | ||||

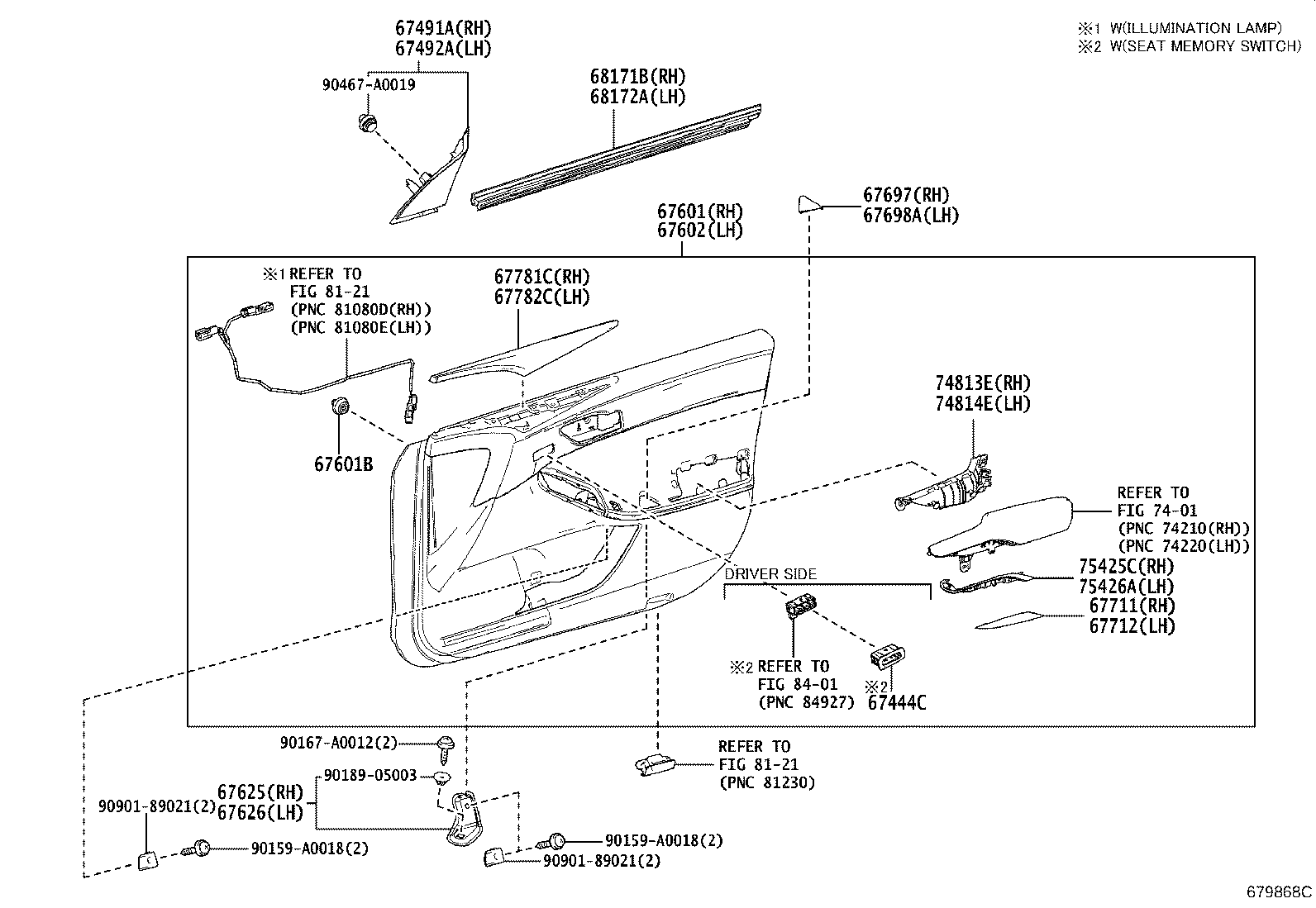

ILLUST NO. 2 OF 2(1804- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-07020 |
AXXH50,GSX50 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-07020 |
AXXH50,GSX50 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-07171C6 |
GSX50..XSE BLACK/BLACK/RED,TRIM21 |
1 | ||
| 67610-07170C2 |
AXXH50,GSX50..XSE BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67610-07171B6 |
AXXH50,GSX50..XSE NW.GRAY/BLACK/MD.GRAY,TRIM1# |
1 | ||
| 67610-07171C7 |
GSX50..XSE BLACK/BLACK/BLACK,TRIM20 |
1 | ||
| 67610-07172B6 |
AXXH50,GSX50..XSE GRAY,TRIM1#,## |
1 | ||
| 67610-07172C7 |
GSX50..XSE BLACK/BLACK,TRIM20,## |
1 | ||
| 67610-07172C6 |
GSX50..XSE BLACK/RED,TRIM21,## |
1 | ||
| 67610-07170B4 |
AXXH50,GSX50..XSE NW.GRAY/BLACK/MD.GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-A0005 |
AXXH50,GSX50..TOU,XSE |
40 | ||
| 90467-A0005 |
AXXH50,GSX50..TOU,XLE,XSE |
20 | ||
| 90467-A0005 |
AXXH50,GSX50..TOU,XSE |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-07210C2 |
AXXH50,GSX50..XSE BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67620-07210B4 |
AXXH50,GSX50..XSE NW.GRAY/BLACK/MD.GRAY,TRIM1# |
1 | ||
| 67620-07211C6 |
GSX50..XSE BLACK/BLACK/RED,TRIM21 |
1 | ||
| 67620-07211B6 |
AXXH50,GSX50..XSE NW.GRAY/BLACK/MD.GRAY,TRIM1# |
1 | ||
| 67620-07211C7 |
GSX50..XSE BLACK/BLACK/BLACK,TRIM20 |
1 | ||
| 67620-07212B6 |
AXXH50,GSX50..XSE GRAY,TRIM1#,## |
1 | ||
| 67620-07212C6 |
GSX50..XSE BLACK/RED,TRIM21,## |
1 | ||
| 67620-07212C7 |
GSX50..XSE BLACK/BLACK,TRIM20,## |
1 | ||
| 67625 - BRACKET, FRONT DOOR TRIM, RH | ||||
| 67625-07050 |
AXXH50,GSX50 |
1 | ||
| 67626 - BRACKET, FRONT DOOR TRIM, LH | ||||
| 67626-07010 |
AXXH50,GSX50 |
1 | ||
| 67697 - COVER, FRONT DOOR TRIM POCKET | ||||
| 67697-07010 |
AXXH50,GSX50 |
1 | ||
| 67698A - COVER, FRONT DOOR TRIM POCKET, LH | ||||
| 67698-07010 |
AXXH50,GSX50 |
1 | ||
| 67711 - COVER, FRONT DOOR TRIM, RH | ||||
| 67711-07010B0 |
AXXH50,GSX50..XSE GRAY,TRIM10 |
1 | ||
| 67711-07010C0 |
AXXH50,GSX50..XSE BLACK,TRIM10,2# |
1 | ||
| 67711-07010C0 |
AXXH50,GSX50..XSE BLACK,TRIM2# |
1 | ||
| 67711-07010B0 |
AXXH50,GSX50..XSE GRAY,TRIM1# |
2 | ||
| 67711-07010C0 |
AXXH50,GSX50..XSE BLACK,TRIM2# |
2 | ||
| 67711-07010B0 |
AXXH50,GSX50..XSE GRAY,TRIM1# |
1 | ||
| 67711-07010B0 |
AXXH50,GSX50..TOU,XSE GRAY,TRIM1# |
1 | ||
| 67711-07010C0 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM2# |
1 | ||
| 67712 - COVER, FRONT DOOR TRIM, LH | ||||
| 67712-07010B0 |
AXXH50,GSX50..XSE GRAY,TRIM1# |
1 | ||
| 67712-07010C0 |
AXXH50,GSX50..XSE BLACK,TRIM10,2# |
1 | ||
| 67712-07010C0 |
AXXH50,GSX50..XSE BLACK,TRIM2# |
1 | ||
| 67712-07010B0 |
AXXH50,GSX50..XSE GRAY,TRIM10 |
1 | ||
| 67712-07010B0 |
AXXH50,GSX50..XSE GRAY,TRIM1# |
2 | ||
| 67712-07010C0 |
AXXH50,GSX50..XSE BLACK,TRIM2# |
2 | ||
| 67712-07010C0 |
AXXH50,GSX50..TOU,XSE BLACK,TRIM2# |
1 | ||
| 67712-07010B0 |
AXXH50,GSX50..TOU,XSE GRAY,TRIM1# |
1 | ||
| 67781C - ORNAMENT SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67781-07030B0 |
AXXH50,GSX50..TOU,XSE DK. ALUMINUM,TRIM1#,2# |
2 | ||
| 67781-07030B0 |
AXXH50,GSX50..TOU,XSE DK. ALUMINUM,TRIM1#,2# |
1 | ||
| 67781-07030B0 |
AXXH50,GSX50..TOU,XSE DK. ALUMINUM,TRIM1#,2# |
1 | ||
| 67782C - ORNAMENT SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67782-07030B0 |
AXXH50,GSX50..TOU,XSE DK. ALUMINUM,TRIM1#,2# |
2 | ||
| 67782-07030B0 |
AXXH50,GSX50..TOU,XSE DK. ALUMINUM,TRIM1#,2# |
1 | ||
| 67782-07030B0 |
AXXH50,GSX50..TOU,XSE DK. ALUMINUM,TRIM1#,2# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-07021 |
AXXH50,GSX50 |
1 | ||
| 68171-07020 |
AXXH50,GSX50 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-07021 |
AXXH50,GSX50 |
1 | ||
| 68172-07020 |
AXXH50,GSX50 |
1 | ||
| 74813E - HANDLE, FRONT DOOR PULL, RH | ||||
| 74813-07050 |
AXXH50,GSX50..TOU,XSE |
2 | ||
| 74813-07050 |
AXXH50,GSX50..TOU,XLE,XSE |
1 | ||
| 74813-07050 |
AXXH50,GSX50..TOU,XSE |
1 | ||
| 74814E - HANDLE, FRONT DOOR PULL, LH | ||||
| 74814-07050 |
AXXH50,GSX50..TOU,XSE |
2 | ||
| 74814-07050 |
AXXH50,GSX50..TOU,XLE,XSE |
1 | ||
| 74814-07050 |
AXXH50,GSX50..TOU,XSE |
1 | ||
| 75425C - ORNAMENT, FRONT DOOR, RH | ||||
| 75425-07010 |
AXXH50,GSX50..TOU,XSE |
2 | ||
| 75425-07010 |
AXXH50,GSX50..TOU,XSE |
1 | ||
| 75425-07010 |
AXXH50,GSX50..TOU,XLE,XSE |
1 | ||
| 75426A - ORNAMENT, FRONT DOOR, LH | ||||
| 75426-07010 |
AXXH50,GSX50..TOU,XSE |
1 | ||
| 75426-07010 |
AXXH50,GSX50..TOU,XLE,XSE |
1 | ||
| 75426-07010 |
AXXH50,GSX50..TOU,XSE |
2 | ||
| Common parts | ||||
| 90159-A0018 | ||||
| 90167-A0012 | ||||
| 90189-05003 | ||||
| 90467-A0019 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8121 | ||||
| 8401 | ||||
