GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )GSX50

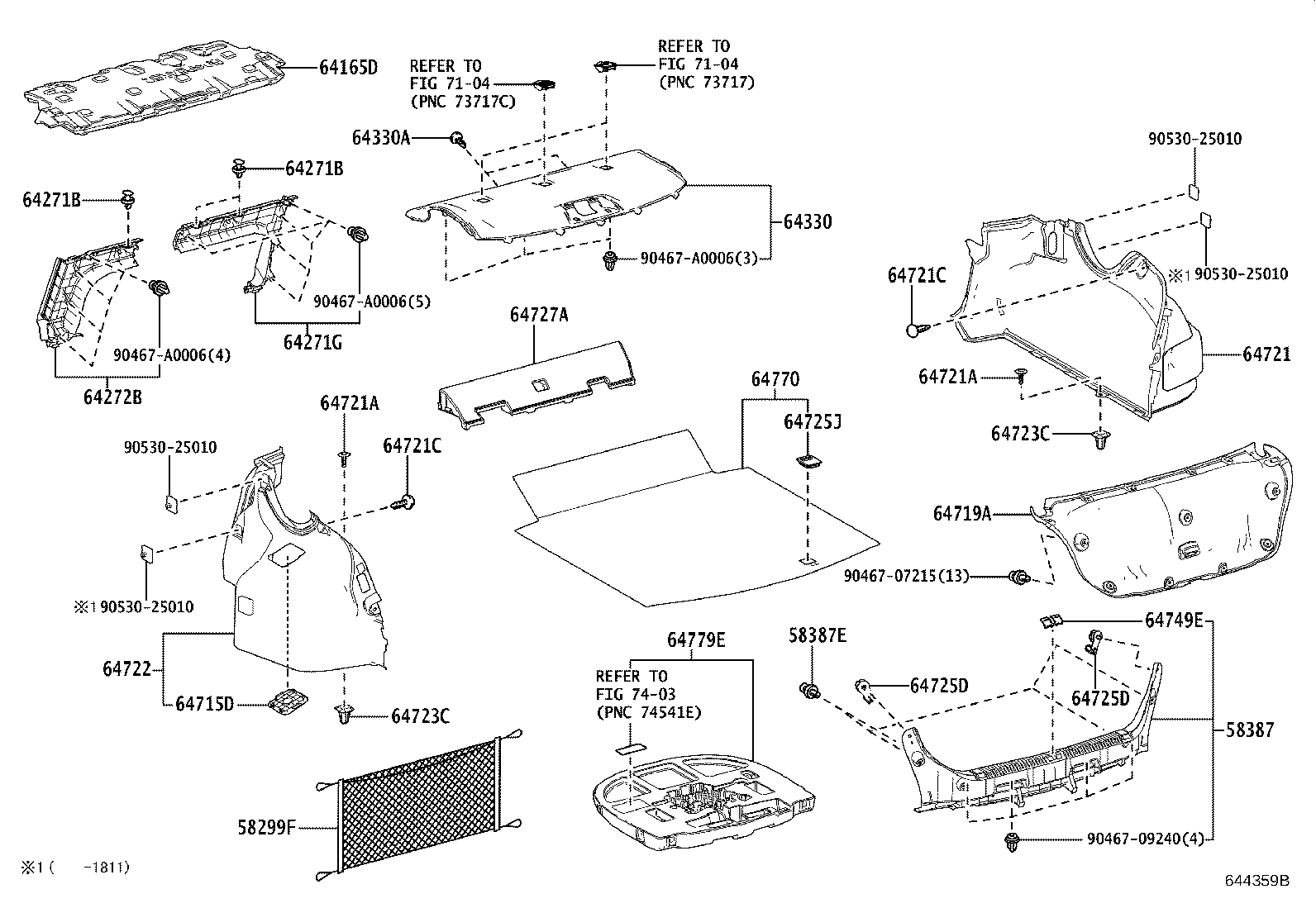

Click highlighted areas on diagram

diagram 58299F 58387 58387E 64165D 64271B 64271B 64271G 64272B 64330 64330A 64715D 64719A 64721 64721A 64721A 64721C 64721C 64722 64723C 64723C 64725D 64725D 64725J 64727A 64749E 64770 64779E 7104 7104 7403 9046707215 9046709240 90467A0006 90467A0006 90467A0006 9053025010 9053025010 9053025010 9053025010
Part # Description Qty Price
58299F - NET, BAGGAGE HOLDER
58299-AA010

AXXH50,GSX50

 1
58387 - PLATE, REAR FLOOR FINISH
58387-07020C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
58387E - CLIP(FOR REAR FLOOR FINISH PLATE)
90467-07215

AXXH50,GSX50

 4
64165D - COVER, UPPER BACK PANEL HOLE, NO.1
64165-07050

AXXH50,GSX50..XLE,XSE

AUDIO-9INCH DISPLAY & 14SPEAKER

 1
64165-07040

AXXH50,GSX50..XLE,XSE

 1
64165-07050

AXXH50,GSX50..XLE,XSE

AUDIO-9INCH DISPLAY & 14SPEAKER

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-A0002C4

AXXH50,GSX50

BLACK

 3
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-A0002C4

AXXH50,GSX50

BLACK

 3
64271G - BOARD, ROOM PARTITION, RH
64271-06090C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
64272B - BOARD, ROOM PARTITION, LH
64272-06050C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-07100C1

AXXH50,GSX50..XSE

AUDIO-9INCH DISPLAY & 14SPEAKER,BLACK,TRIM1#,2#

 1
64330-07100C1

AXXH50,GSX50..XSE

AUDIO-9INCH DISPLAY & 14SPEAKER,BLACK,TRIM1#,2#

 1
64330-07090C0

AXXH50,GSX50..XSE

BLACK,TRIM1#,2#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-05164C7

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 2
64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
64715-06060C0

GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-07020C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-07030C0

GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08222C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 2
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08222C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 2
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-A0002C4

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 2
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-A0002C4

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 2
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-07030C0

GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
64723C - CLIP, LUGGAGE COMPARTMENT TRIM COVER
90467-10023

AXXH50,GSX50

 2
64779-26010

AXXH50,GSX50

 2
64723C - CLIP, LUGGAGE COMPARTMENT TRIM COVER
90467-10023

AXXH50,GSX50

 2
64779-26010

AXXH50,GSX50

 2
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-0T010C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 2
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-0T010C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 2
64725J - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-06090

AXXH50,GSX50

 1
64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER
64727-06100

AXXH50,GSX50

 1
64749E - COVER, LUGGAGE COMPARTMENT DOOR STRIKER
64749-07010C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-06340C1

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
64779E - TRAY, SPARE WHEEL COVER
64779-06210

AXXH50,GSX50

 1
Common parts
90467-07215
90467-09240
90467-A0006
90530-25010
Linked diagrams
7104
7403
