GSX50L-AEZQBA (2018)
Toyota Avalon
Production
Apr 2018
-
Aug 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

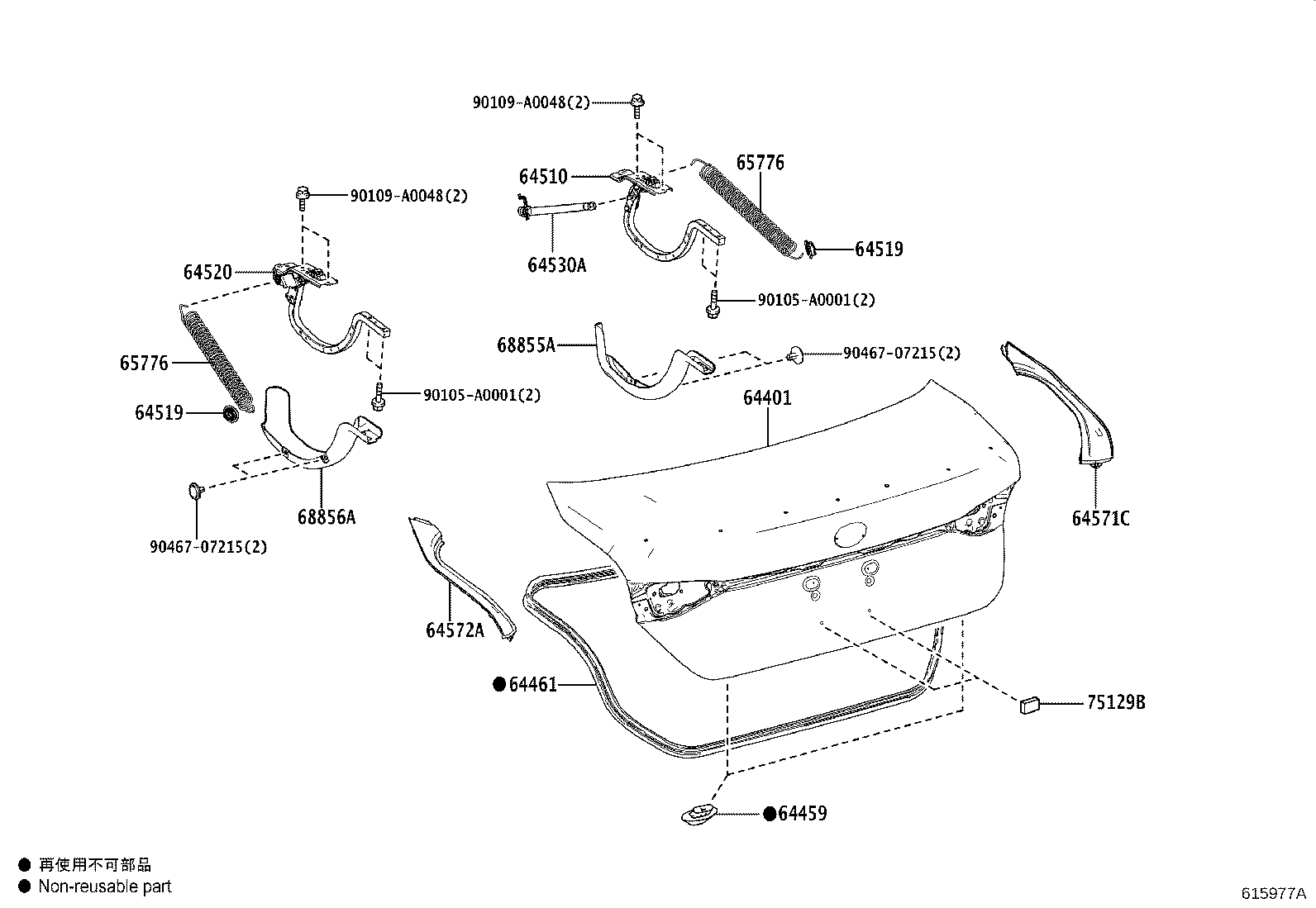

ILLUST NO. 1 OF 2(1804- )
Click highlighted areas on diagram
LUGGAGE COMPARTMENT DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-07210 |
GSX50..XSE TRD PACKAGE |
1 | ||
| 64401-07210 |
AXXH50,GSX50..TOU,XSE |
1 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 64459-06040 |
AXXH50,GSX50 |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-07060 |
AXXH50,GSX50 |
1 | ||
| 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-07020 |
AXXH50,GSX50 |
1 | ||
| 64519 - BUSH, LUGGAGE DOOR HINGE SUPPORT | ||||
| 64519-07020 |
AXXH50,GSX50 |
2 | ||
| 64519 - BUSH, LUGGAGE DOOR HINGE SUPPORT | ||||
| 64519-07020 |
AXXH50,GSX50 |
2 | ||
| 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-07030 |
AXXH50,GSX50 |
1 | ||
| 64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64530-07011 |
AXXH50,GSX50 |
1 | ||
| 64530-07010 |
AXXH50,GSX50 |
1 | ||
| 64571C - COVER, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64571-07020 |
AXXH50,GSX50 |
1 | ||
| 64572A - COVER, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64572-07020 |
AXXH50,GSX50 |
1 | ||
| 65776 - SPRING, BACK DOOR STAY | ||||
| 65776-07020 |
AXXH50,GSX50..TOU,XSE |
2 | ||
| 65776 - SPRING, BACK DOOR STAY | ||||
| 65776-07020 |
AXXH50,GSX50..TOU,XSE |
2 | ||
| 68855A - PROTECTOR, BACK DOOR HINGE, UPPER RH | ||||
| 82817-07520 |
AXXH50,GSX50 |
1 | ||
| 68856A - PROTECTOR, BACK DOOR HINGE, UPPER LH | ||||
| 82818-07020 |
AXXH50,GSX50 |
1 | ||
| 75129B - CUSHION, REAR LICENCE PLATE | ||||
| 75129-AC010 |
AXXH50,GSX50 |
2 | ||
| Common parts | ||||
| 90105-A0001 | ||||
| 90109-A0048 | ||||
| 90467-07215 | ||||

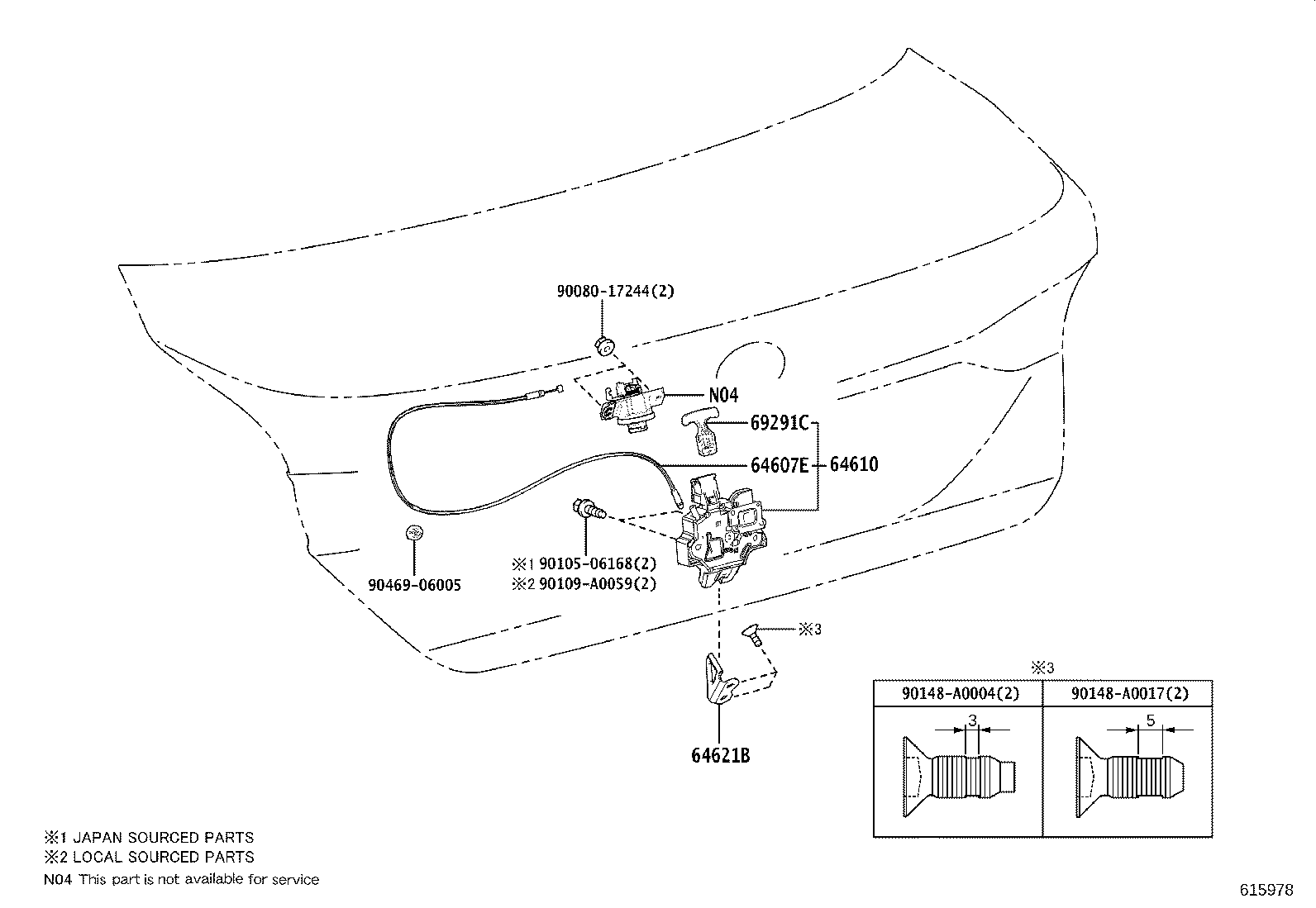

ILLUST NO. 2 OF 2(1804- )
Click highlighted areas on diagram
LUGGAGE DOOR LOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64607E - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-06330 |
AXXH50,GSX50 |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-06070 |
AXXH50,GSX50 |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-06030 |
AXXH50,GSX50 |
1 | ||
| 69291C - HANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE | ||||
| 69291-33020 |
AXXH50,GSX50 |
1 | ||
| Common parts | ||||
| 90080-17244 | ||||
| 90105-06168 | ||||
| 90109-A0059 | ||||
| 90148-A0004 | ||||
| 90148-A0017 | ||||
| 90469-06005 | ||||
