GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

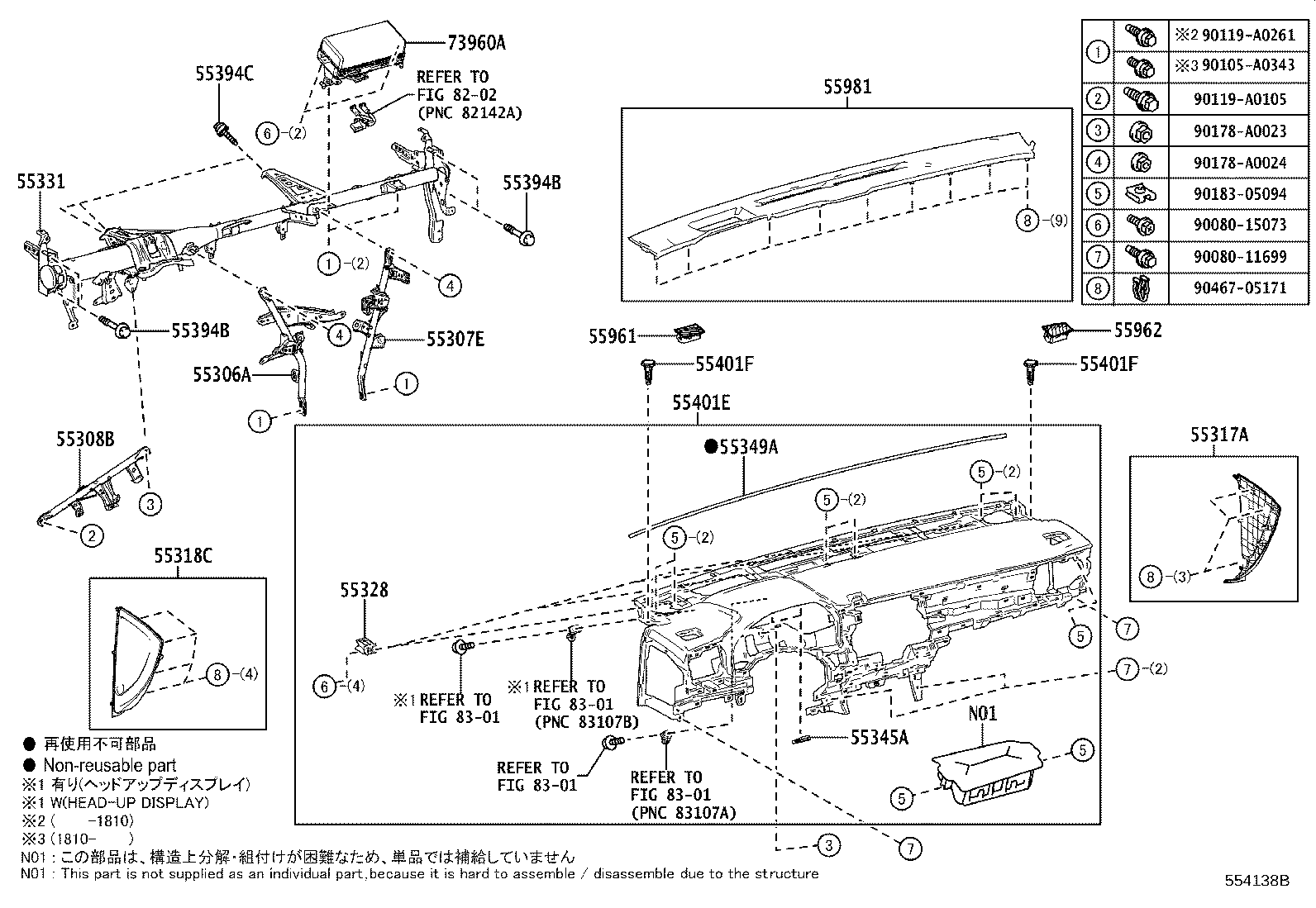

ILLUST NO. 1 OF 2(1804- )

Click highlighted areas on diagram

diagram 55306A 55307E 55308B 55317A 55318C 55328 55331 55345A 55349A 55394B 55394B 55394C 55401E 55401F 55401F 55961 55962 55981 73960A 8202 8301 8301 8301 8301 9008011699 9008015073 90105A0343 90119A0105 90119A0261 90178A0023 90178A0024 9018305094 9046705171
Part # Description Qty Price
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-07060

AXXH50,GSX50

 1
55307E - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-07050

AXXH50,GSX50

 1
55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55308-06160

AXXH50,GSX50

 1
55317A - PANEL, INSTRUMENT SIDE, RH
55317-07050C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
55318C - PANEL, INSTRUMENT SIDE, LH
55318-07050C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-60090

AXXH50,GSX50

 4
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-07080

AXXH50,GSX50

 1
55345A - CLIP, INSTRUMENT PANEL, NO.1
55345-12060

AXXH50,GSX50

 2
55349A - CUSHION, INSTRUMENT PANEL
55349-06170

AXXH50,GSX50

 1
55394B - BOLT, INSTRUMENT PANEL
90105-A0280

AXXH50,GSX50

 4
55394B - BOLT, INSTRUMENT PANEL
90105-A0280

AXXH50,GSX50

 4
55394C - BOLT, INSTRUMENT PANEL
90119-A0312

AXXH50,GSX50

 3
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-07120B0

AXXH50,GSX50..XLE,XSE

NEUTRAL WARM GRAY,TRIM1#

 1
55401-07120C2

AXXH50,GSX50..XSE

SOFT BLACK,TRIM2#

 1
55401F - CLIP(FOR SAFETY PAD)
52161-02020

AXXH50,GSX50

 2
55401F - CLIP(FOR SAFETY PAD)
52161-02020

AXXH50,GSX50

 2
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-07040B0

AXXH50,GSX50..TOU,XLE,XSE

NEUTRAL WARM GRAY,TRIM1#

 1
55961-07040C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM2#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-07040B0

AXXH50,GSX50..TOU,XLE,XSE

NEUTRAL WARM GRAY,TRIM1#

 1
55962-07040C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM2#

 1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-07050B0

AXXH50,GSX50..XLE,XSE

AUDIO-9INCH DISPLAY & 14SPEAKER,NEUTRAL WARM GRAY,TRIM1#

 1
55981-07040B0

AXXH50,GSX50..XLE,XSE

NEUTRAL WARM GRAY,TRIM1#

 1
55981-07050C0

AXXH50,GSX50..XSE

AUDIO-9INCH DISPLAY & 14SPEAKER,BLACK,TRIM2#

 1
55981-07050C0

AXXH50,GSX50..XSE

AUDIO-9INCH DISPLAY & 14SPEAKER,BLACK,TRIM2#

 1
55981-07040C0

AXXH50,GSX50..XSE

BLACK,TRIM2#

 1
55981-07050B0

AXXH50,GSX50..XLE,XSE

AUDIO-9INCH DISPLAY & 14SPEAKER,NEUTRAL WARM GRAY,TRIM1#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-07100

AXXH50,GSX50

 1
73960-07111

AXXH50,GSX50

 1
Common parts
90080-11699
90080-15073
90105-A0343
90119-A0105
90119-A0261
90178-A0023
90178-A0024
90183-05094
90467-05171
Linked diagrams
8202
8301

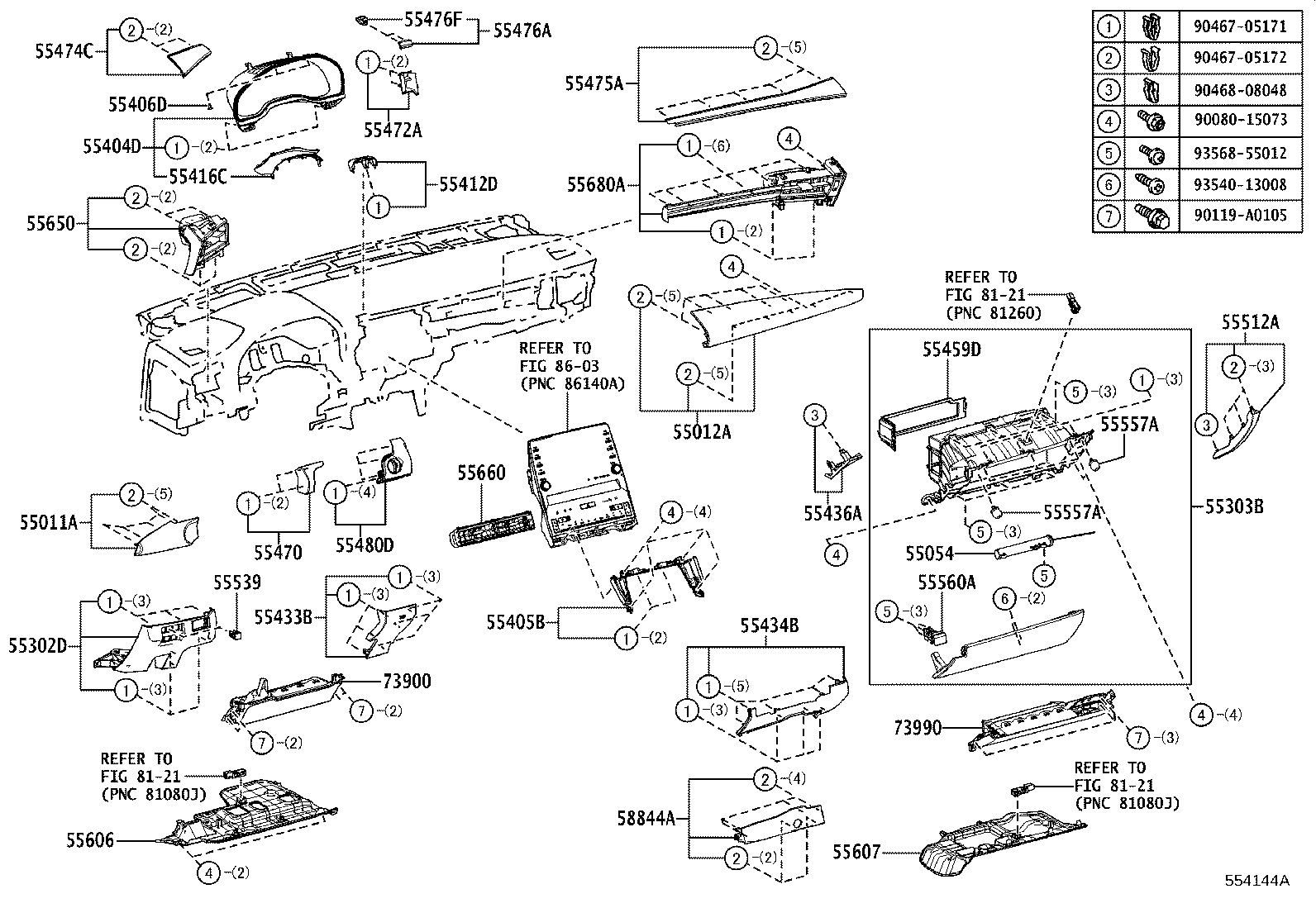

ILLUST NO. 2 OF 2(1804- )

Click highlighted areas on diagram

diagram 55011A 55012A 55054 55302D 55303B 55404D 55405B 55406D 55412D 55416C 55433B 55434B 55436A 55459D 55470 55472A 55474C 55475A 55476A 55476F 55480D 55512A 55539 55557A 55557A 55560A 55606 55607 55650 55660 55680A 58844A 73900 73990 8121 8121 8121 8603 9008015073 90119A0105 9046705171 9046705172 9046808048 9354013008 9356855012
Part # Description Qty Price
55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1
55011-07030C0

GSX50..XSE

BLACK/BLACK THREAD,TRIM2#

 1
55011-07030C0

GSX50..XSE

BLACK/BLACK THREAD,TRIM20,21

 1
55011-07030B3

AXXH50,GSX50

GRAY/LT.GRAY THREAD,TRIM1#

 1
55011-07030C4

GSX50..XSE

BLACK/RED,TRIM21

 1
55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2
55012-07030C4

GSX50..XSE

BLACK/RED,TRIM21

 1
55012-07030C0

GSX50..XSE

BLACK/BLACK THREAD,TRIM2#

 1
55012-07030B3

AXXH50,GSX50

GRAY/LT.GRAY THREAD,TRIM1#

 1
55012-07030C0

GSX50..XSE

BLACK/BLACK THREAD,TRIM20,21

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-06100

AXXH50,GSX50

 1
55302D - PANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1
55302-07070C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-07050C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55404-07040

AXXH50,GSX50

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-07030

AXXH50,GSX50

 1
55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH)
90467-06165C3

AXXH50,GSX50

BLACK

 2
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-07040

AXXH50,GSX50

 1
55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL
55416-07040

AXXH50,GSX50

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55435-07050C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-07060C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
55436A - PANEL, INSTRUMENT PANEL FINISH, END LH
55436-07040C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
55459D - COVER, INSTRUMENT, LOWER LH
55459-06090

AXXH50,GSX50

 1
55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL
55470-07010B0

AXXH50,GSX50..TOU,XSE

GRAY,TRIM10

 1
55470-07010C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM10,2#

 1
55472A - MOULDING, INSTRUMENT CLUSTER, NO.2
55472-07030

AXXH50,GSX50

 1
55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55474-07100B0

AXXH50,GSX50..TOU,XSE

DK. ALUMINUM,TRIM1#,2#

 1
55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
55475-07120B0

AXXH50,GSX50..TOU,XSE

DK. ALUMINUM,TRIM1#,2#

 1
55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3
55476-07020B0

AXXH50,GSX50..TOU,XSE

DK. ALUMINUM,TRIM1#,2#

 1
55476F - CLIP, INSTRUMENT CLUSTER FINISH PANEL GARNISH
90467-05172

AXXH50,GSX50..LIMD,TOU,XSE

 2
55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR
55480-07010C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM10,2#

 1
55480-07010B0

AXXH50,GSX50..TOU,XSE

GRAY,TRIM10

 1
55512A - PLATE, GLOVE COMPARTMENT
55312-07030C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-06110

AXXH50,GSX50

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-47050

AXXH50,GSX50

 2
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-47050

AXXH50,GSX50

 2
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-07020C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-06010

AXXH50,GSX50

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-07020

AXXH50,GSX50

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-07060

AXXH50,GSX50

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-07030

AXXH50,GSX50

 1
55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4
55680-07030

AXXH50,GSX50

 1
58844A - BEZEL, CONSOLE BOX
58844-07060C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-06110C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2
73990-06060C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
Common parts
90080-15073
90119-A0105
90467-05171
90467-05172
90468-08048
93540-13008
93568-55012
Linked diagrams
8121
8603
