GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )

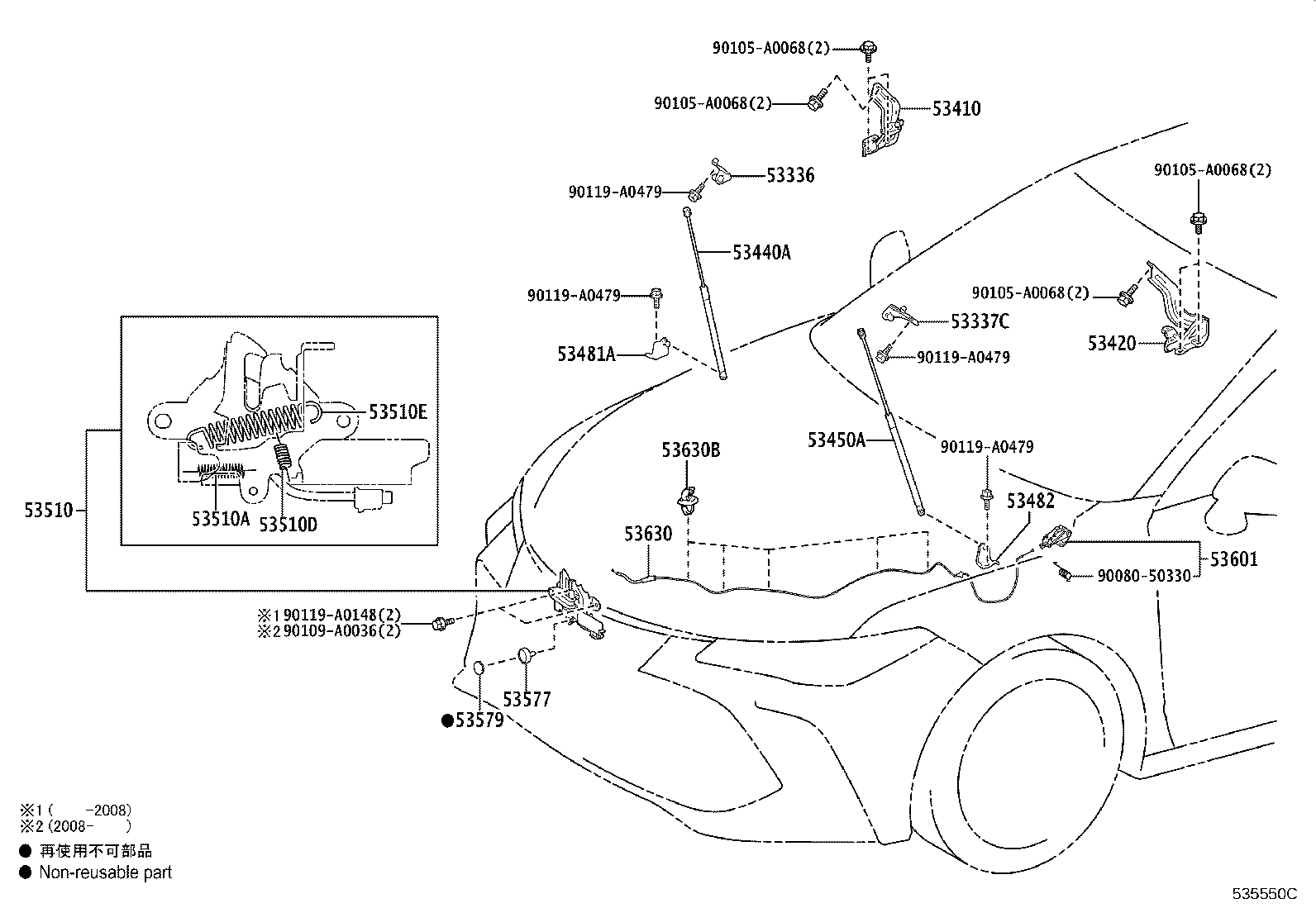

Click highlighted areas on diagram

diagram 53336 53337C 53410 53420 53440A 53450A 53481A 53482 53510 53510A 53510D 53510E 53577 53579 53601 53630 53630B 9008050330 90105A0068 90105A0068 90105A0068 90105A0068 90109A0036 90119A0148 90119A0479 90119A0479 90119A0479 90119A0479
Part # Description Qty Price
53336 - BRACKET, HOOD STAY, RH
53336-06080

AXXH50,GSX50

 1
53337C - BRACKET, HOOD STAY, LH
53337-06070

AXXH50,GSX50

 1
53410 - HINGE ASSY, HOOD, RH
53410-07020

AXXH50,GSX50

 1
53420 - HINGE ASSY, HOOD, LH
53420-07020

AXXH50,GSX50

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-07010

AXXH50,GSX50

 1
53450A - SUPPORT ASSY, HOOD, LH
53440-07010

AXXH50,GSX50

 1
53481A - BRACKET, HOOD SUPPORT, RH
53481-07020

AXXH50,GSX50

 1
53482 - BRACKET, HOOD SUPPORT, LH
53482-07020

AXXH50,GSX50

 1
53510 - LOCK ASSY, HOOD
53510-07030

AXXH50,GSX50

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

AXXH50,GSX50

WD=0.9,CW=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

AXXH50,GSX50

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-18067

AXXH50,GSX50

WD=1.8,CW=13

 1
53577 - BOLT, HOOD LOCK
53577-0E010

AXXH50,GSX50

 1
53579 - CAP, HOOD LOCK NUT
53579-0E010

AXXH50,GSX50

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-02020C3

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
53601-02040C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-06231

AXXH50,GSX50

 1
53630-06230

AXXH50,GSX50

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

AXXH50,GSX50

 5
Common parts
90080-50330
90105-A0068
90109-A0036
90119-A0148
90119-A0479
