GSX50L-AEZQBA (2018)
Toyota Avalon

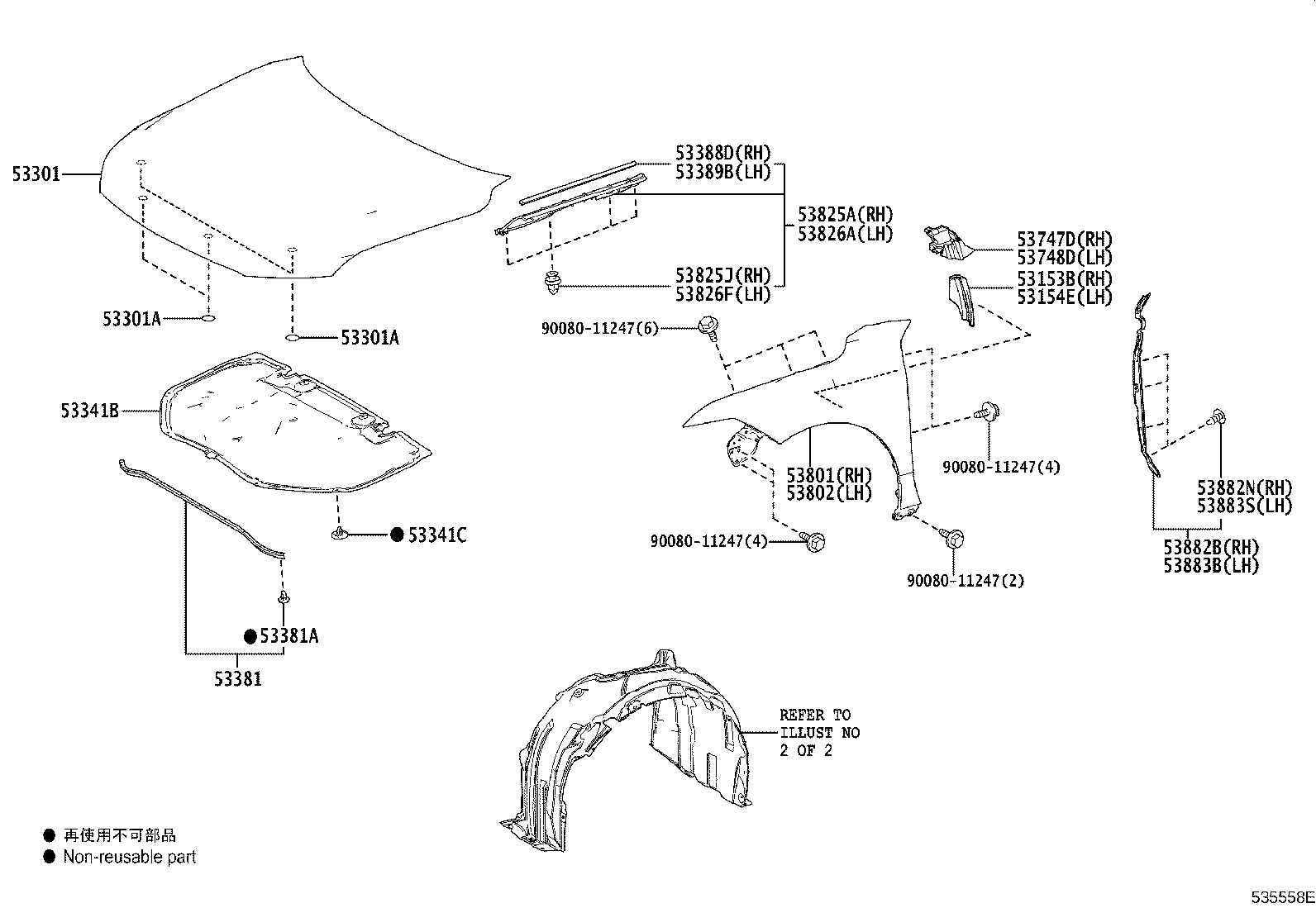

ILLUST NO. 1 OF 2(1804- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153B - GUIDE, FRONT SIDE AIR | ||||
| 53153-07010 |
AXXH50,GSX50 |
1 | ||
| 53154E - GUIDE, FRONT SIDE AIR, NO.2 | ||||
| 53154-07010 |
AXXH50,GSX50 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-07070 |
AXXH50,GSX50 |
1 | ||
| 53301A - PLUG, HOLE(FOR HOOD) | ||||
| 90950-06124 |
AXXH50,GSX50 |
4 | ||
| 53301A - PLUG, HOLE(FOR HOOD) | ||||
| 90950-06124 |
AXXH50,GSX50 |
4 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-07020 |
AXXH50,GSX50 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-A0003 |
AXXH50,GSX50 |
9 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-06190 |
AXXH50,GSX50 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90080-46010 |
AXXH50,GSX50 |
10 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-07020 |
AXXH50,GSX50 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53388-07020 |
AXXH50,GSX50 |
1 | ||
| 53747D - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-07020 |
AXXH50,GSX50 |
1 | ||
| 53748D - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-07020 |
AXXH50,GSX50 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-07050 |
AXXH50,GSX50 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-07050 |
AXXH50,GSX50 |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-07030 |
AXXH50,GSX50 |
1 | ||
| 53825J - CLIP, FRONT FENDER PROTECTOR | ||||
| 90467-A0006 |
AXXH50,GSX50 |
4 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-07030 |
AXXH50,GSX50 |
1 | ||
| 53826F - CLIP, FRONT FENDER PROTECTOR | ||||
| 90467-A0006 |
AXXH50,GSX50 |
4 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-07020 |
AXXH50,GSX50 |
1 | ||
| 53882N - CLIP(FOR FRONT FENDER SEAL) | ||||
| 90467-06195 |
AXXH50,GSX50 |
4 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53883-07020 |
AXXH50,GSX50 |
1 | ||
| 53883S - CLIP(FOR FRONT FENDER SEAL) | ||||
| 90467-06195 |
AXXH50,GSX50 |
4 | ||
| Common parts | ||||
| 90080-11247 | ||||

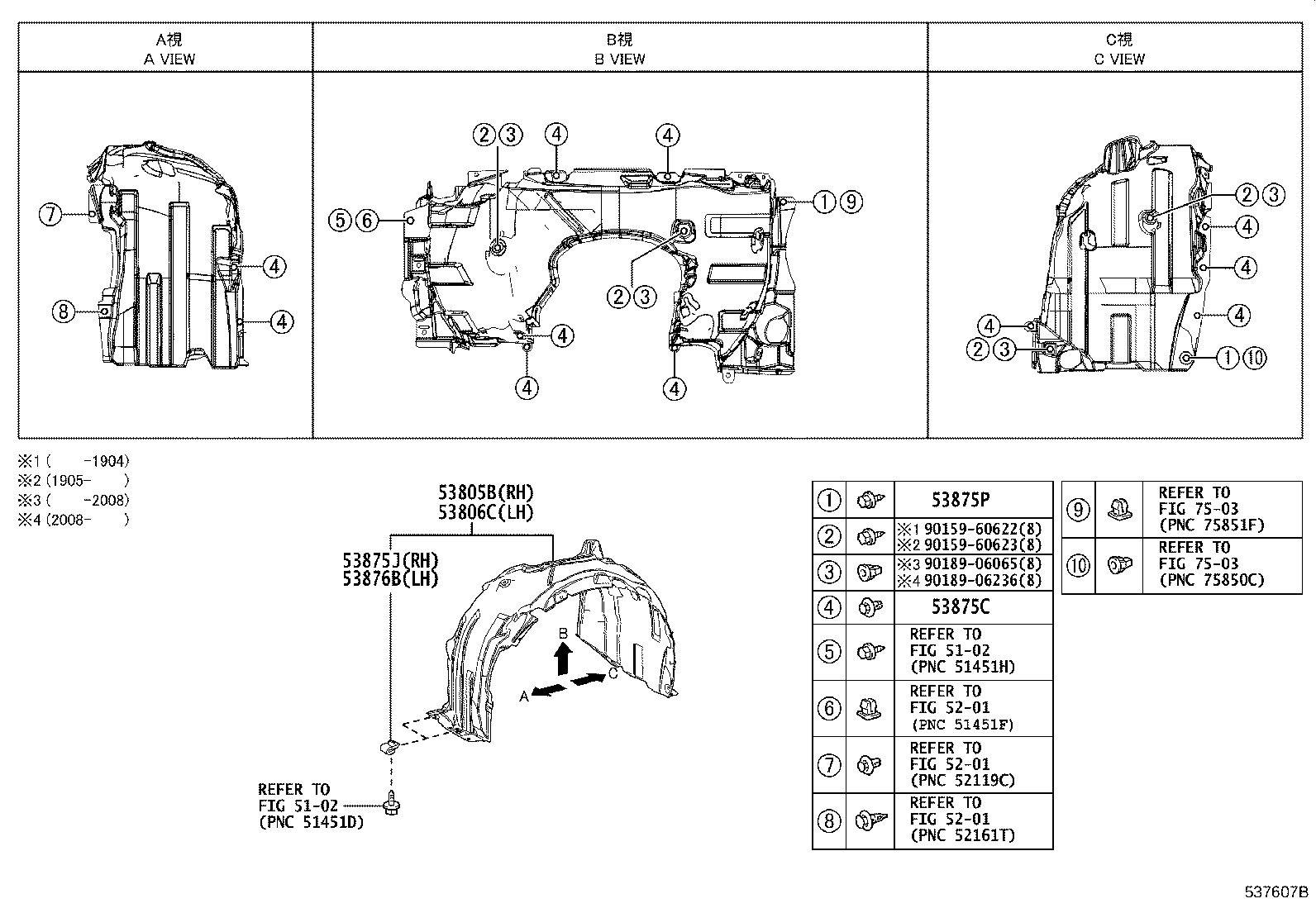

ILLUST NO. 2 OF 2(1804- )XLE,XSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53805B - SHIELD SUB-ASSY, FENDER SPLASH, FRONT RH | ||||
| 53805-07030 |
GSX50..XSE TRD PACKAGE |
1 | ||
| 53805-07030 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 53806C - SHIELD SUB-ASSY, FENDER SPLASH, FRONT LH | ||||
| 53806-07030 |
AXXH50,GSX50..XLE,XSE |
1 | ||
| 53806-07030 |
GSX50..XSE TRD PACKAGE |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-A0037 |
GSX50..XSE TRD PACKAGE |
22 | ||
| 90467-A0037 |
AXXH50,GSX50 |
22 | ||
| 53875J - CLIP, FRONT FENDER LINER | ||||
| 90467-A0036 |
AXXH50,GSX50 |
2 | ||
| 90467-A0036 |
GSX50..XSE TRD PACKAGE |
2 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60623 |
AXXH50,GSX50 |
4 | ||
| 90159-60623 |
GSX50..XSE TRD PACKAGE |
4 | ||
| 90159-60622 |
GSX50..XSE TRD PACKAGE |
4 | ||
| 90159-60622 |
AXXH50,GSX50 |
4 | ||
| 53876B - CLIP, FRONT FENDER LINER | ||||
| 90467-A0036 |
AXXH50,GSX50 |
2 | ||
| 90467-A0036 |
GSX50..XSE TRD PACKAGE |
2 | ||
| Common parts | ||||
| 90159-60622 | ||||
| 90159-60623 | ||||
| 90189-06065 | ||||
| 90189-06236 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
| 7503 | ||||
