GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )TOU,XSE

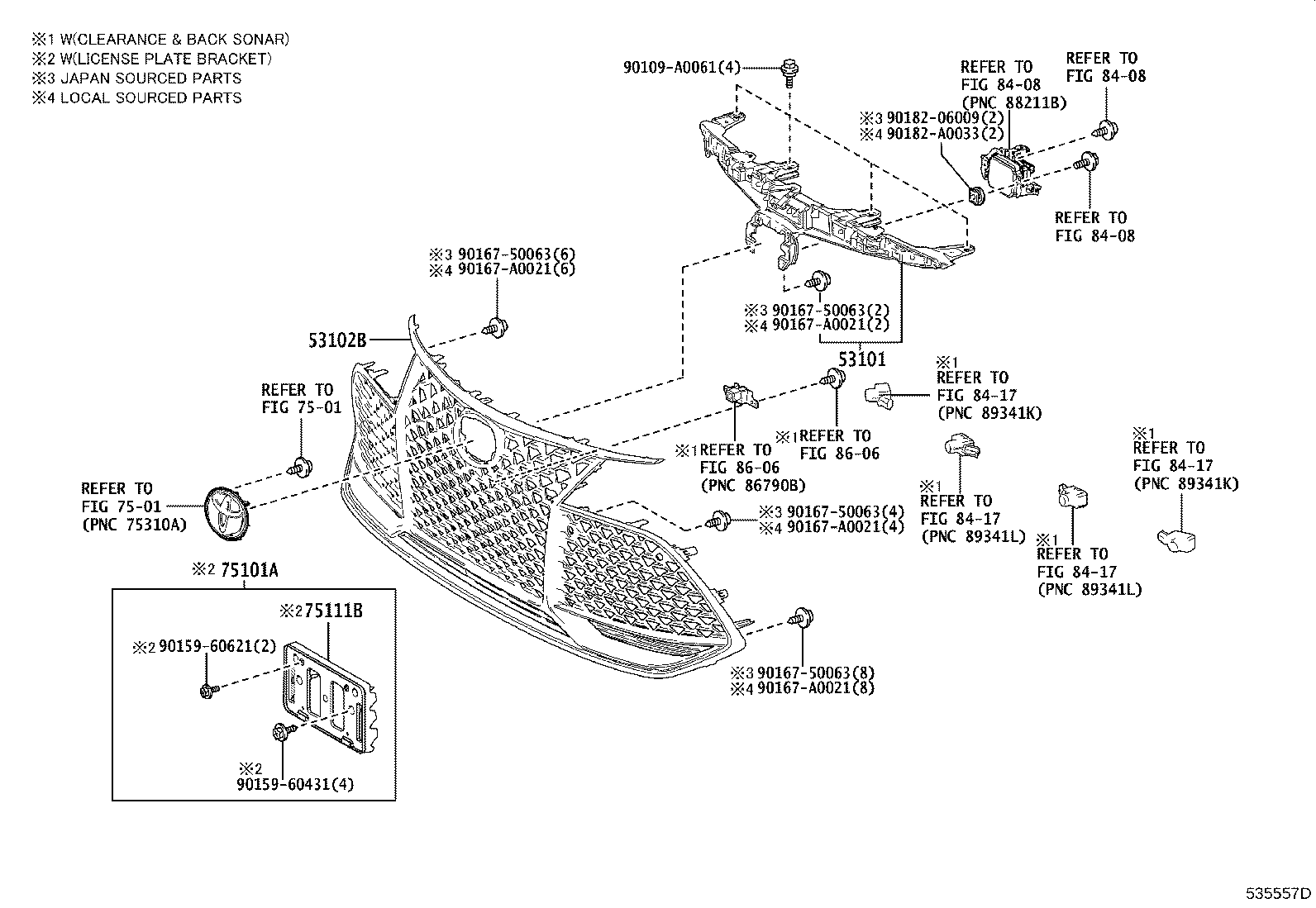

Click highlighted areas on diagram

diagram 53101 53102B 7501 7501 75101A 75111B 8408 8408 8408 8417 8417 8417 8417 8606 8606 90109A0061 9015960431 9015960621 9016750063 9016750063 9016750063 9016750063 90167A0021 90167A0021 90167A0021 90167A0021 9018206009 90182A0033
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-07200

AXXH50,GSX50

NO PAINT REQ.

 1
53102B - GRILLE SUB-ASSY, RADIATOR, LOWER
53102-07100

AXXH50,GSX50..TOU,XSE

 1
75101A - BRACKET SUB-ASSY, FRONT LICENSE PLATE
75101-07120

AXXH50,GSX50..TOU,XSE

LICENSE PLATE BRACKET-WITH(FRONT) & WITHOUT(REAR)

 1
75111B - BRACKET, FRONT LICENSE PLATE
75111-07140

AXXH50,GSX50..TOU,XSE

LICENSE PLATE BRACKET-WITH(FRONT) & WITHOUT(REAR)

 1
Common parts
90109-A0061
90159-60431
90159-60621
90167-50063
90167-A0021
90182-06009
90182-A0033
Linked diagrams
7501
8408
8417
8606
