GSX50L-AEZQBA (2018)
Toyota Avalon
Production
Apr 2018
-
Aug 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1804- )AXXA55,GSX50

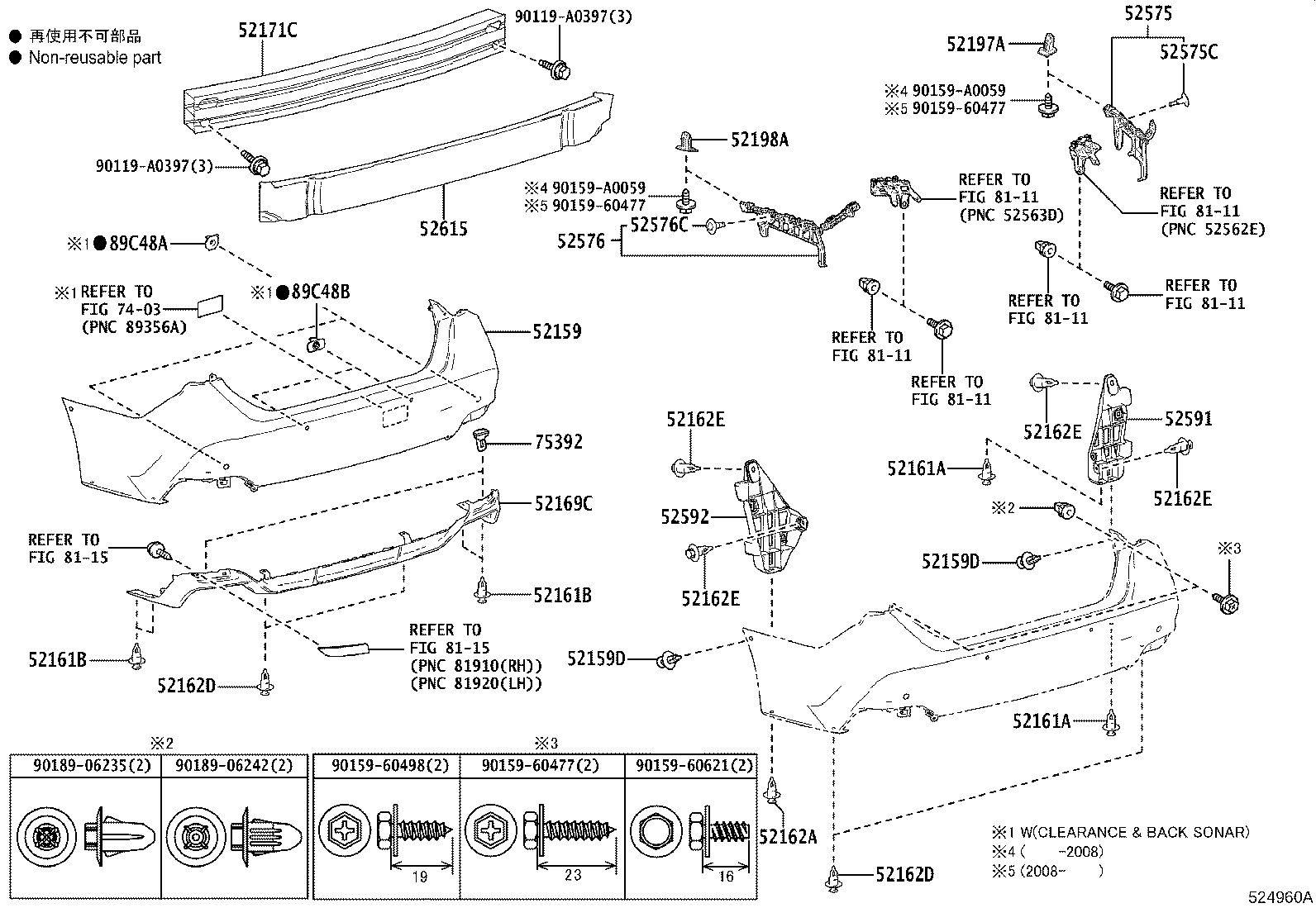

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-07903 |
AXXH50,GSX50 PAINT REQ. |
1 | ||
| 52159-07907 |
GSX50..XSE PAINT REQ.,TRD PACKAGE |
1 | ||
| 52159D - CLIP, REAR BUMPER COVER | ||||
| 90467-05170 |
AXXH50,GSX50 |
2 | ||
| 52159D - CLIP, REAR BUMPER COVER | ||||
| 90467-05170 |
AXXH50,GSX50 |
2 | ||
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-02020 |
GSX50 |
2 | ||
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-02020 |
GSX50 |
2 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
GSX50..XSE TRD PACKAGE |
2 | ||
| 52161-02020 |
AXXH50,GSX50 |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
GSX50..XSE TRD PACKAGE |
2 | ||
| 52161-02020 |
AXXH50,GSX50 |
4 | ||
| 52162A - PIECE, REAR BUMPER, LH | ||||
| 52161-02020 |
AXXH50,GSX50 |
2 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02020 |
GSX50 |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02020 |
GSX50 |
4 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-02020 |
AXXH50,GSX50 |
4 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-02020 |
AXXH50,GSX50 |
4 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-02020 |
AXXH50,GSX50 |
4 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-02020 |
AXXH50,GSX50 |
4 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-07070C1 |
GSX50..TOU,XSE BLACK,089 ,1J9 ,1K4 ,218 ,3T3 ,4X7 ,8W6 |
1 | ||
| 52171C - REINFORCEMENT, REAR BUMPER | ||||
| 52171-06170 |
AXXH50,GSX50 |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-53040 |
AXXH50,GSX50 |
1 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52198-53020 |
AXXH50,GSX50 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-07020 |
AXXH50,GSX50 |
1 | ||
| 52575C - CLIP, REAR BUMPER SIDE RETAINER | ||||
| 90467-09237 |
AXXH50,GSX50 |
3 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-07020 |
AXXH50,GSX50 |
1 | ||
| 52576C - CLIP, REAR BUMPER SIDE RETAINER | ||||
| 90467-09237 |
AXXH50,GSX50 |
3 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-07020 |
AXXH50,GSX50 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-07020 |
AXXH50,GSX50 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-07040 |
AXXH50,GSX50 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
AXXH50,GSX50 |
2 | ||
| Common parts | ||||
| 90119-A0397 | ||||
| 90159-60477 | ||||
| 90159-60498 | ||||
| 90159-60621 | ||||
| 90159-A0059 | ||||
| 90189-06235 | ||||
| 90189-06242 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8111 | ||||
| 8115 | ||||
