GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )

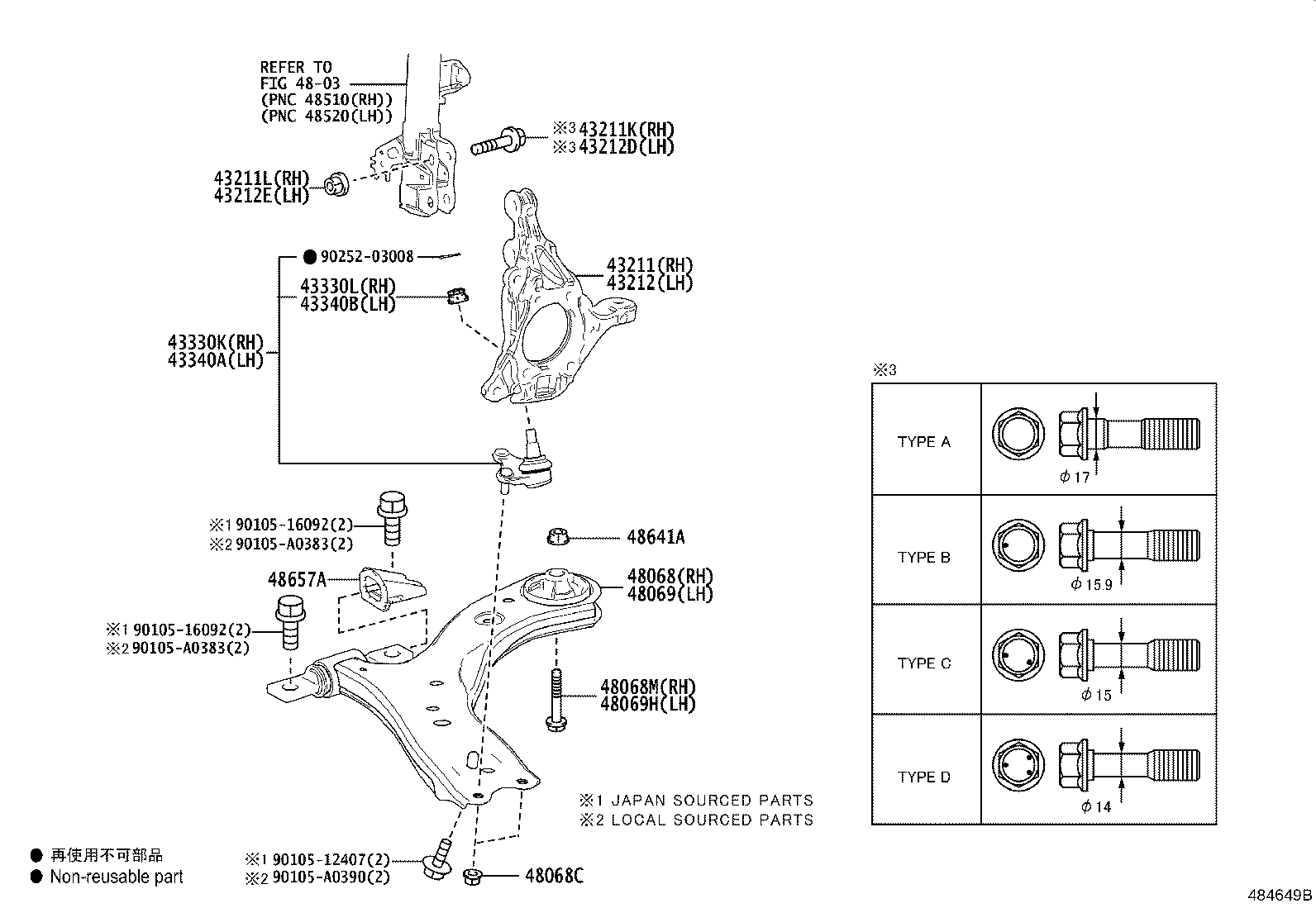

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43340A 43340B 4803 48068 48068C 48068M 48069 48069H 48641A 48657A 9010512407 9010516092 9010516092 90105A0383 90105A0383 90105A0390 9025203008
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-06260

GSX50..XSE

TRD PACKAGE

 4
43211-06260

AXXH50,GSX50

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17020

AXXH50,GSX50

OD=17,(J),TYPE A:REF ILL.

 2
90105-A0385

AXXH50,GSX50

OD=17,(L),TYPE A:REF ILL.

 2
90105-17015

AXXH50,GSX50

OD=14,TYPE D:REFER ILLUST.

 1
90105-17014

AXXH50,GSX50

OD=15,TYPE C:REFER ILLUST.

 1
90105-17013

AXXH50,GSX50

OD=15.9,TYPE B:REFER ILLUST.

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-A0027

AXXH50,GSX50

 2
43212 - KNUCKLE, STEERING, LH
43212-06260

AXXH50,GSX50

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17015

AXXH50,GSX50

OD=14,TYPE D:REFER ILLUST.

 1
90105-A0385

AXXH50,GSX50

OD=17,(L),TYPE A:REF ILL.

 2
90105-17014

AXXH50,GSX50

OD=15,TYPE C:REFER ILLUST.

 1
90105-17020

AXXH50,GSX50

OD=17,(J),TYPE A:REF ILL.

 2
90105-17013

AXXH50,GSX50

OD=15.9,TYPE B:REFER ILLUST.

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-A0027

AXXH50,GSX50

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09A30

AXXH50,GSX50

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

AXXH50,GSX50

(J)

 1
90080-17214

AXXH50,GSX50

(L)

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-09A30

AXXH50,GSX50

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90080-17214

AXXH50,GSX50

(L)

 1
90171-14003

AXXH50,GSX50

(J)

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-06200

AXXH50,GSX50

 1
48068C - NUT(FOR FRONT SUSPENSION LOWER ARM)
90178-A0094

AXXH50,GSX50

 4
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-A0459

AXXH50,GSX50

(L)

 1
90119-14180

AXXH50,GSX50

(J)

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-06200

AXXH50,GSX50

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-14180

AXXH50,GSX50

(J)

 1
90119-A0459

AXXH50,GSX50

(L)

 1
48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT)
90080-17223

AXXH50,GSX50

 2
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-28010

AXXH50,GSX50

(J)

 2
48657-06010

AXXH50,GSX50

(L)

 2
Common parts
90105-12407
90105-16092
90105-A0383
90105-A0390
90252-03008
Linked diagrams
4803
