GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

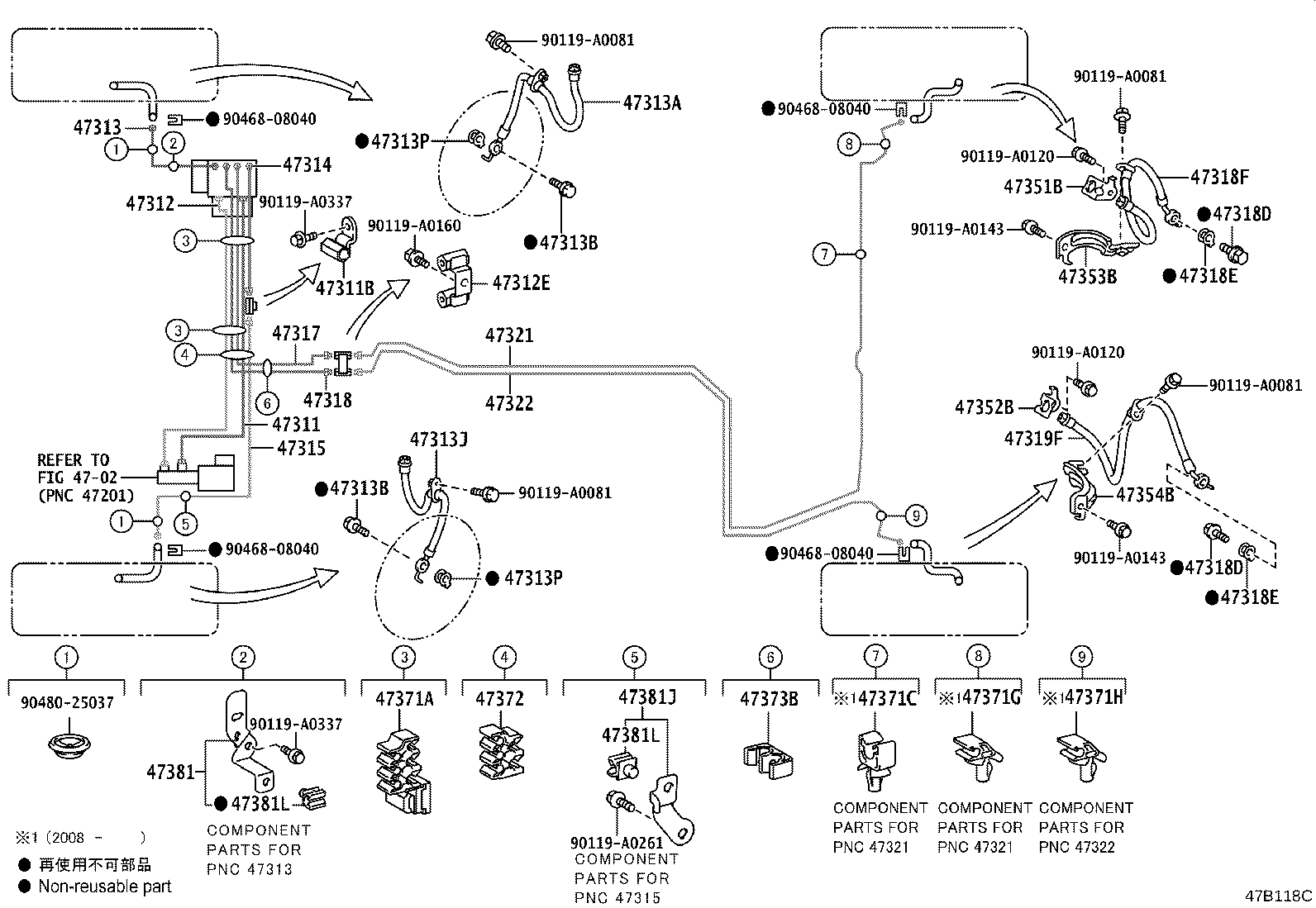

ILLUST NO. 1 OF 2(1804- )GSX50

Click highlighted areas on diagram

diagram 4702 47311 47311B 47312 47312E 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47315 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47351B 47352B 47353B 47354B 47371A 47371C 47371G 47371H 47372 47373B 47381 47381J 47381L 47381L 90119A0081 90119A0081 90119A0081 90119A0081 90119A0120 90119A0120 90119A0143 90119A0143 90119A0160 90119A0261 90119A0337 90119A0337 9046808040 9046808040 9046808040 9046808040 9048025037
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-06650

GSX50

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-A0015

AXXH50,GSX50

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-06490

GSX50

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-A0011

AXXH50,GSX50

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-06480

AXXH50,GSX50

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-A2104

AXXH50,GSX50

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-A0001

AXXH50,GSX50

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-A0001

AXXH50,GSX50

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-A2105

AXXH50,GSX50

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

AXXH50,GSX50

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

AXXH50,GSX50

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-06430

AXXH50,GSX50

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-06450

AXXH50,GSX50

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-07110

AXXH50,GSX50

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-07060

AXXH50,GSX50

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-A0001

AXXH50,GSX50

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-A0001

AXXH50,GSX50

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

AXXH50,GSX50

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

AXXH50,GSX50

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-A2107

AXXH50,GSX50

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-A2108

AXXH50,GSX50

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-07080

GSX50

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-07080

GSX50

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-06050

AXXH50,GSX50

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-06050

AXXH50,GSX50

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47351-06040

AXXH50,GSX50

 1
47351-06040

GSX50..XSE

TRD PACKAGE

 2
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-06040

AXXH50,GSX50

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01E31

GSX50

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01E40

GSX50

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90464-00904

AXXH50,GSX50

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47371-33340

AXXH50,GSX50

 1
47381J - BRACKET, BRAKE TUBE CLAMP, NO.2
47371-33350

AXXH50,GSX50

 1
47381L - BRACKET, BRAKE TUBE CLAMP, NO.3
90949-01D56

AXXH50,GSX50

 2
47381L - BRACKET, BRAKE TUBE CLAMP, NO.3
90949-01D56

AXXH50,GSX50

 2
Common parts
90119-A0081
90119-A0120
90119-A0143
90119-A0160
90119-A0261
90119-A0337
90468-08040
90480-25037
Linked diagrams
4702

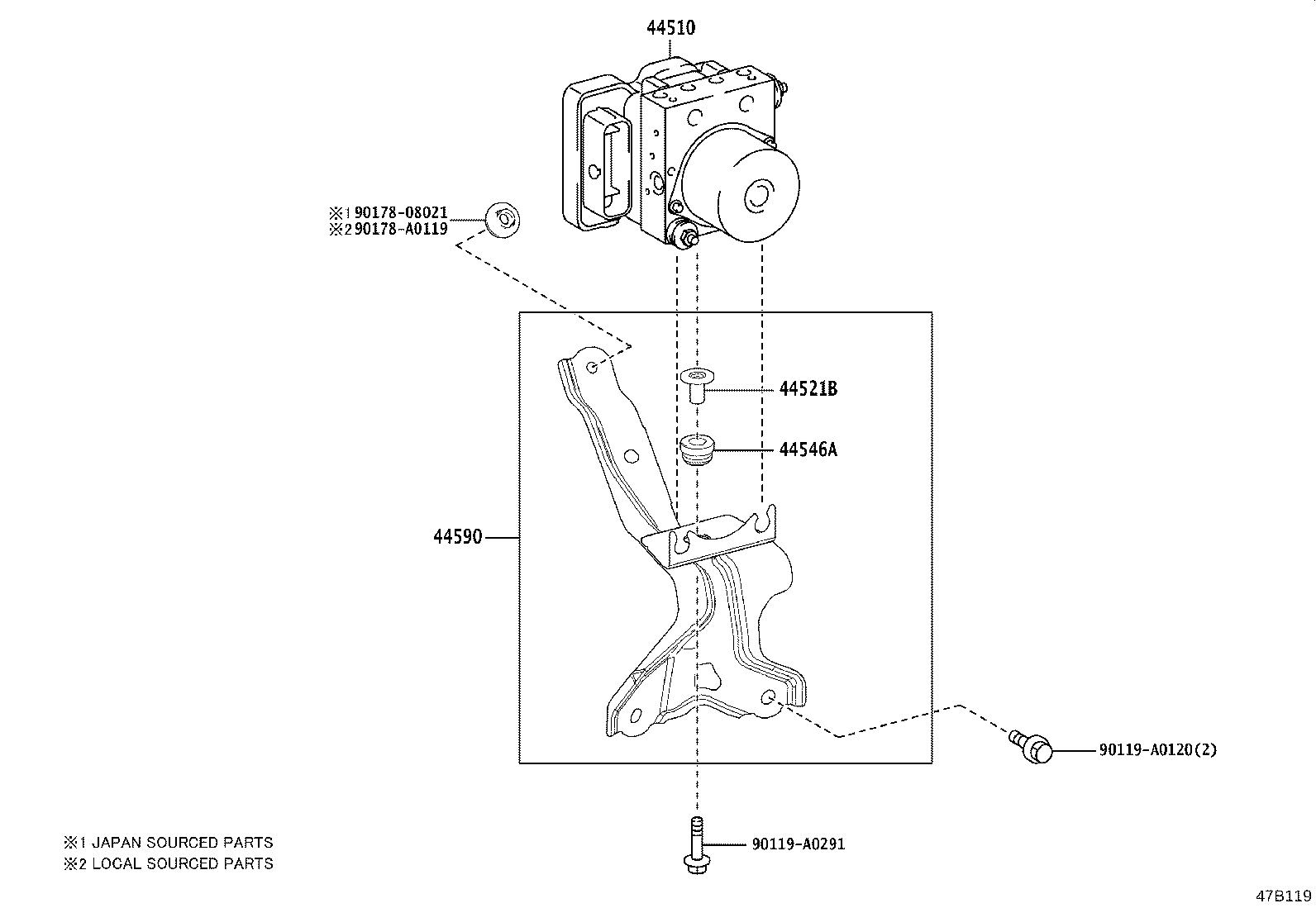

ILLUST NO. 2 OF 2(1804-2108)AXXA55,GSX50

Click highlighted areas on diagram

diagram 44510 44521B 44546A 44590 90119A0120 90119A0291 9017808021 90178A0119
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-07151

GSX50

 1
44050-07201

GSX50..XSE

TRD PACKAGE

 1
44050-07150

GSX50

 1
44050-07200

GSX50..XSE

TRD PACKAGE

 1
44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2
44521-12060

GSX50

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-10080

GSX50

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-06310

GSX50

 1
Common parts
90119-A0120
90119-A0291
90178-08021
90178-A0119
