GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )

Click highlighted areas on diagram

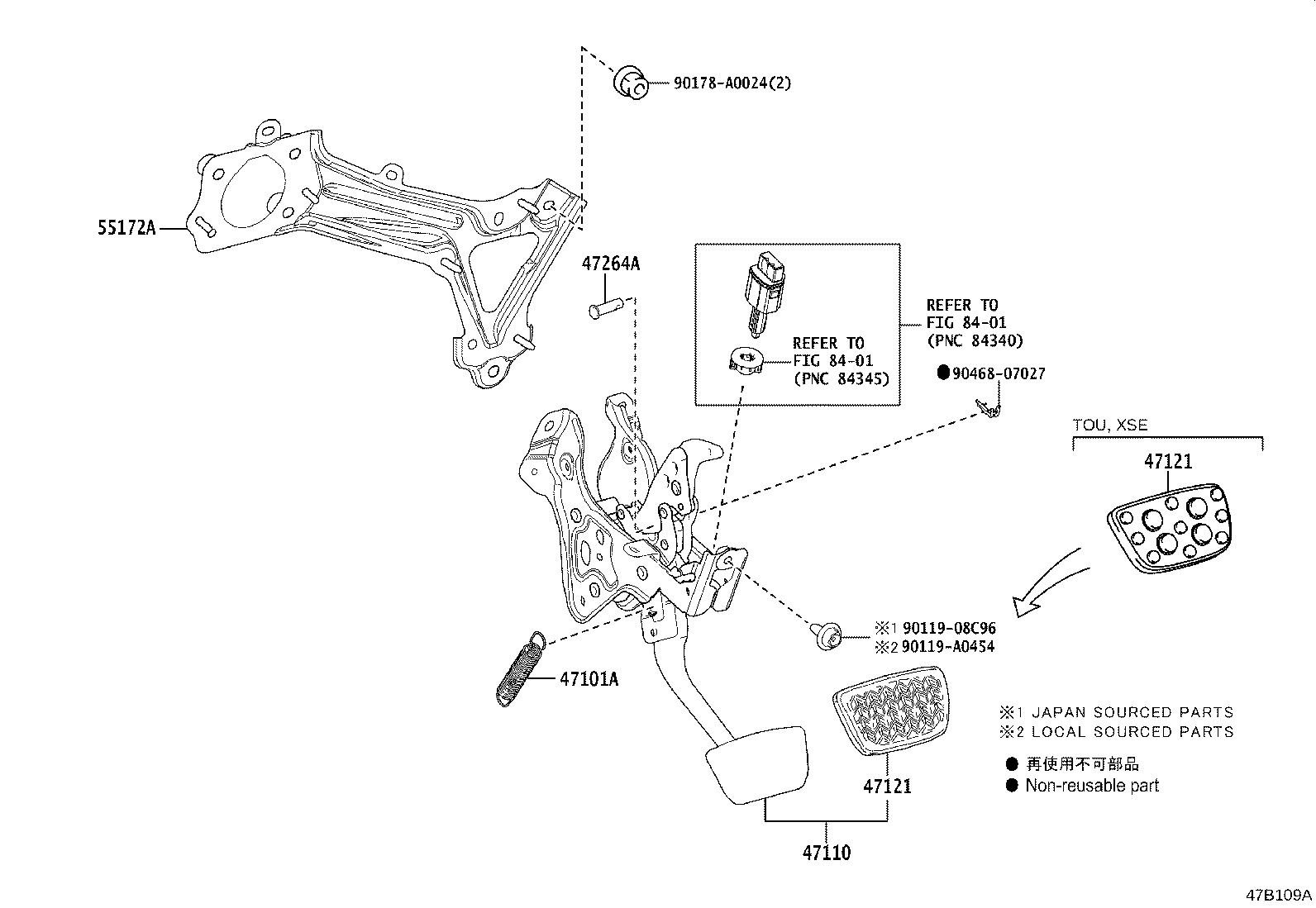

diagram 47101A 47110 47121 47121 47264A 55172A 8401 8401 9011908C96 90119A0454 90178A0024 9046807027
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12046

AXXH50,GSX50

 1
90506-A0012

GSX50..XSE

TRD PACKAGE

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-07050

GSX50..TOU,XSE

 1
47121 - PAD, BRAKE PEDAL
47121-48020

AXXH50,GSX50..TOU,XSE

 1
47121 - PAD, BRAKE PEDAL
47121-48020

AXXH50,GSX50..TOU,XSE

 1
47264A - PIN(FOR PUSH ROD)
90240-08082

AXXH50,GSX50

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-06070

AXXH50,GSX50

(L)

 1
55172-06070

AXXH50,GSX50

 1
55172-33040

AXXH50,GSX50

(J)

 1
Common parts
90119-08C96
90119-A0454
90178-A0024
90468-07027
Linked diagrams
8401
