GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )GSX50

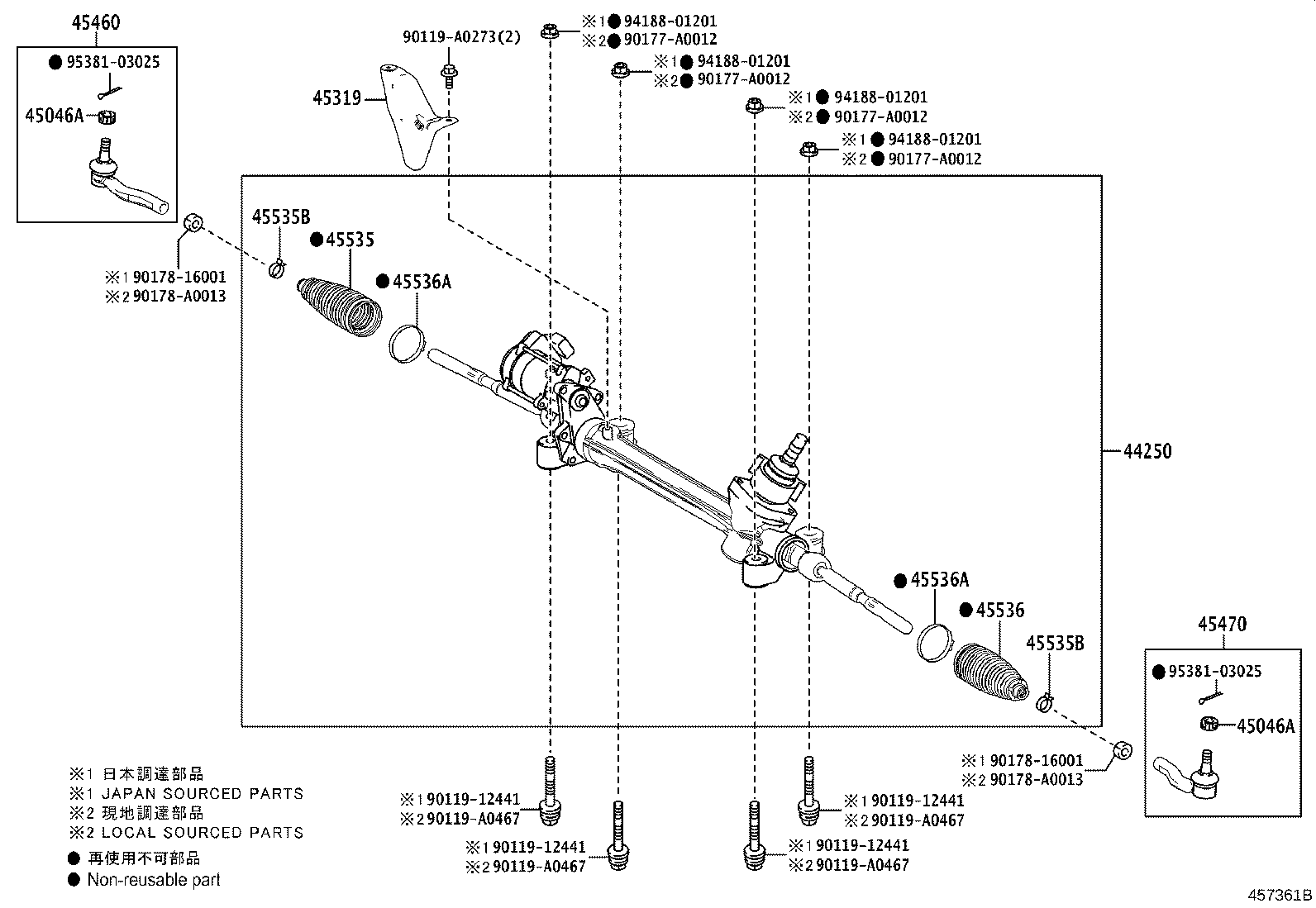

Click highlighted areas on diagram

diagram 44250 45046A 45046A 45319 45460 45470 45535 45535B 45535B 45536 45536A 45536A 9011912441 9011912441 9011912441 9011912441 90119A0273 90119A0467 90119A0467 90119A0467 90119A0467 90177A0012 90177A0012 90177A0012 90177A0012 9017816001 9017816001 90178A0013 90178A0013 9418801201 9418801201 9418801201 9418801201 9538103025 9538103025
Part # Description Qty Price
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-07180

AXXH50,GSX50..TOU,XSE

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90080-17220

AXXH50,GSX50

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90080-17220

AXXH50,GSX50

 2
45319 - INSULATOR, STEERING GEAR HEAT
45319-06020

GSX50

 1
45460 - ROD ASSY, TIE, RH
45460-09280

AXXH50,GSX50

 1
45470 - ROD ASSY, TIE, LH
45470-09180

AXXH50,GSX50

 1
45535 - BOOT, STEERING RACK, NO.1
45535-09500

AXXH50,GSX50

 1
45535B - CLIP(FOR STEERING RACK BOOT)
45537-0T010

AXXH50,GSX50

 2
45537-02020

AXXH50,GSX50

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-0T010

AXXH50,GSX50

 2
45537-02020

AXXH50,GSX50

 2
45536 - BOOT, STEERING RACK, NO.2
45535-09500

AXXH50,GSX50

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-0T010

AXXH50,GSX50

 2
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-0T010

AXXH50,GSX50

 2
Common parts
90119-12441
90119-A0273
90119-A0467
90177-A0012
90178-16001
90178-A0013
94188-01201
95381-03025
