GSX50L-AEZQBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )

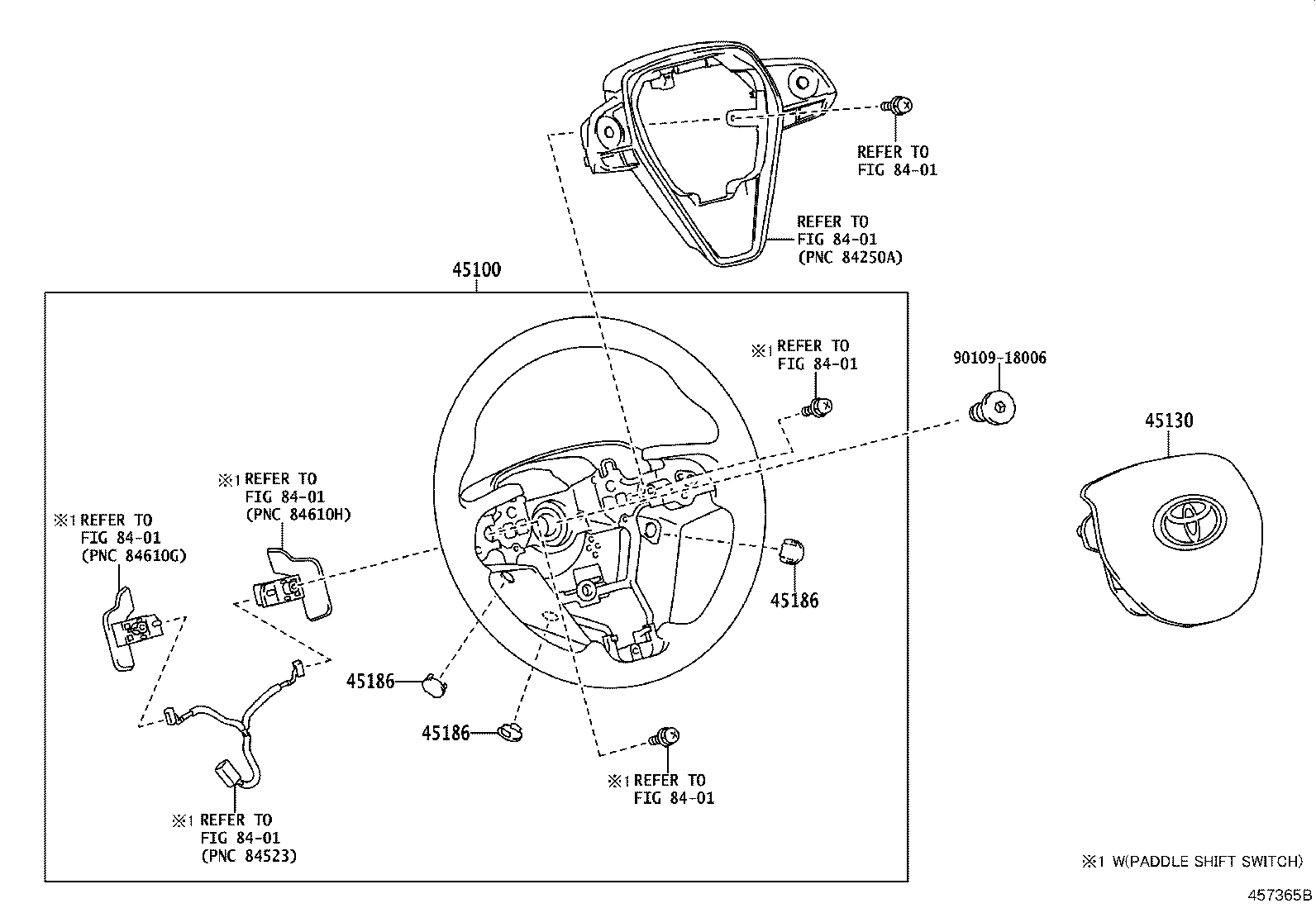

Click highlighted areas on diagram

diagram 45100 45130 45186 45186 45186 8401 8401 8401 8401 8401 8401 8401 9010918006
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-07500C0

AXXH50,GSX50..XSE

3-SPOKE,LEATHER,BLACK,TRIM1#,2#

 1
45100-07500C1

GSX50..XSE

3-SPOKE,LEATHER,BLACK & BLACK,TRIM1#,20

 1
45100-07500C2

GSX50..XSE

3-SPOKE,LEATHER,BLACK & RED,TRIM21

 1
45130 - BUTTON ASSY, HORN
45130-06530C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
45130-06480C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-06370C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 3
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-06370C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 3
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-06370C0

AXXH50,GSX50..TOU,XSE

BLACK,TRIM1#,2#

 3
Common parts
90109-18006
Linked diagrams
8401
