GSX50L-AEZQBA (2018)
Toyota Avalon
Production
Apr 2018
-
Aug 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1804-2008)GSX50

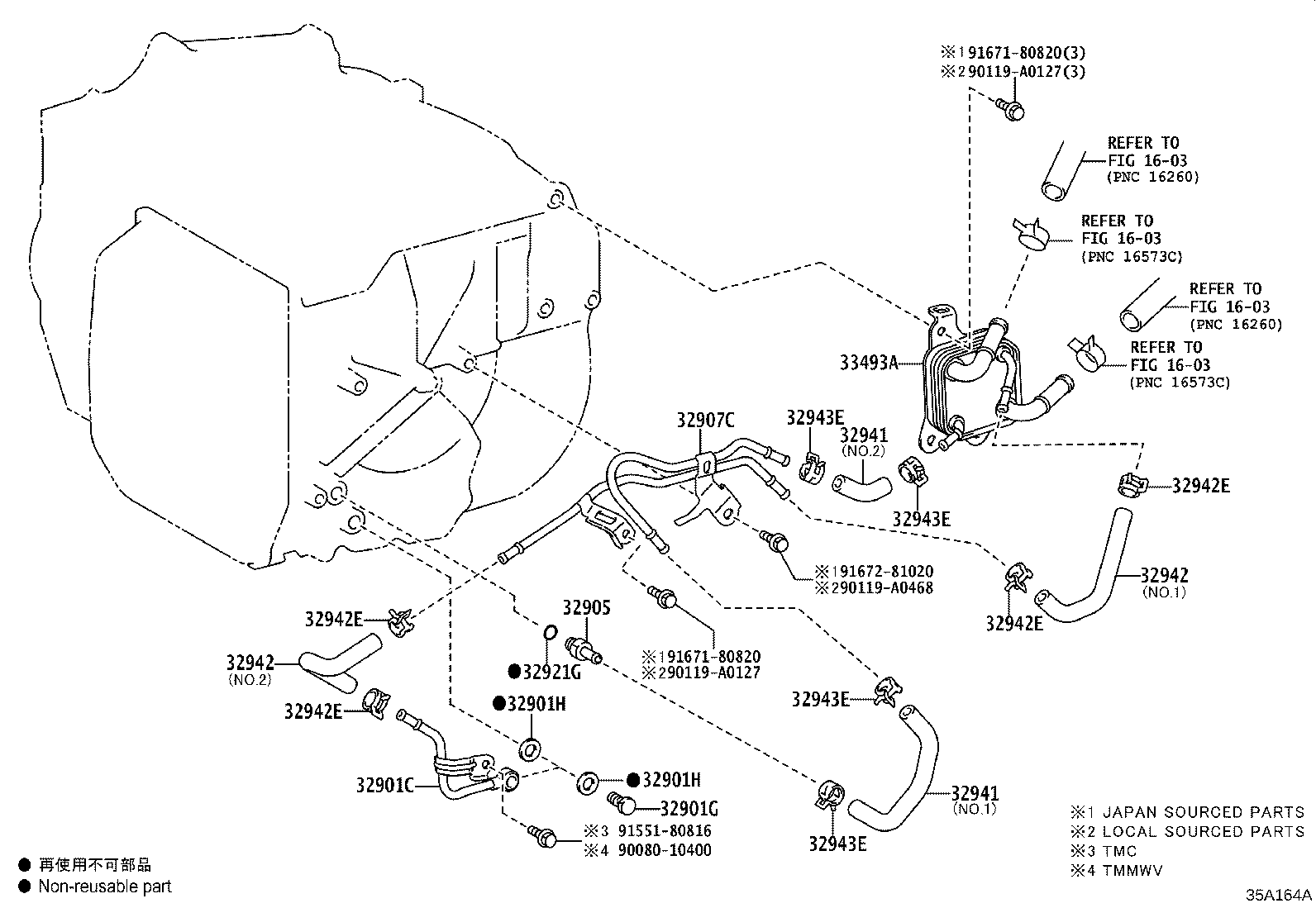

Click highlighted areas on diagram
UA80E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32901C - UNION SUB-ASSY, OIL COOLER | ||||
| 32901-48020 |
GSX50 |
1 | ||
| 32901G - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-14003 |
GSX50 |
1 | ||
| 32901H - GASKET(FOR OIL COOLER UNION) | ||||
| 90430-A0007 |
GSX50 TMMWV:REFER 35-01 |
2 | ||
| 90430-14016 |
GSX50 TOYOTA:REFER 35-01 |
2 | ||
| 32901H - GASKET(FOR OIL COOLER UNION) | ||||
| 90430-A0007 |
GSX50 TMMWV:REFER 35-01 |
2 | ||
| 90430-14016 |
GSX50 TOYOTA:REFER 35-01 |
2 | ||
| 32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1 | ||||
| 90404-14030 |
GSX50 |
1 | ||
| 32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1 | ||||
| 32907-0E030 |
GSX50 |
1 | ||
| 32907-06030 |
GSX50 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11031 |
GSX50 |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-06160 |
GSX50 NO.1 |
1 | ||
| 32941-0R070 |
GSX50 NO.1 |
1 | ||
| 32941-06170 |
GSX50 NO.2 |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-06160 |
GSX50 NO.1 |
1 | ||
| 32941-0R070 |
GSX50 NO.1 |
1 | ||
| 32941-06170 |
GSX50 NO.2 |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-06160 |
GSX50 NO.2 |
1 | ||
| 32942-06150 |
GSX50 NO.1 |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-06160 |
GSX50 NO.2 |
1 | ||
| 32942-06150 |
GSX50 NO.1 |
1 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GSX50 (J) |
4 | ||
| 90466-A0014 |
GSX50 (L) |
4 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GSX50 (J) |
4 | ||
| 90466-A0014 |
GSX50 (L) |
4 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GSX50 (J) |
4 | ||
| 90466-A0014 |
GSX50 (L) |
4 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GSX50 (J) |
4 | ||
| 90466-A0014 |
GSX50 (L) |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-A0014 |
GSX50 (L) |
4 | ||
| 90466-16004 |
GSX50 (J) |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-A0014 |
GSX50 (L) |
4 | ||
| 90466-16004 |
GSX50 (J) |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-A0014 |
GSX50 (L) |
4 | ||
| 90466-16004 |
GSX50 (J) |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-A0014 |
GSX50 (L) |
4 | ||
| 90466-16004 |
GSX50 (J) |
4 | ||
| 33493A - COOLER, TRANSMISSION OIL | ||||
| 33493-06020 |
GSX50 |
1 | ||
| 33493-06021 |
GSX50 |
1 | ||
| Common parts | ||||
| 90080-10400 | ||||
| 90119-A0127 | ||||
| 90119-A0468 | ||||
| 91551-80816 | ||||
| 91671-80820 | ||||
| 91672-81020 | ||||
| Linked diagrams | ||||
| 1603 | ||||
