GSX50L-AEZQBA (2018)
Toyota Avalon
Production
Apr 2018
-
Aug 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1804-2008)GSX50

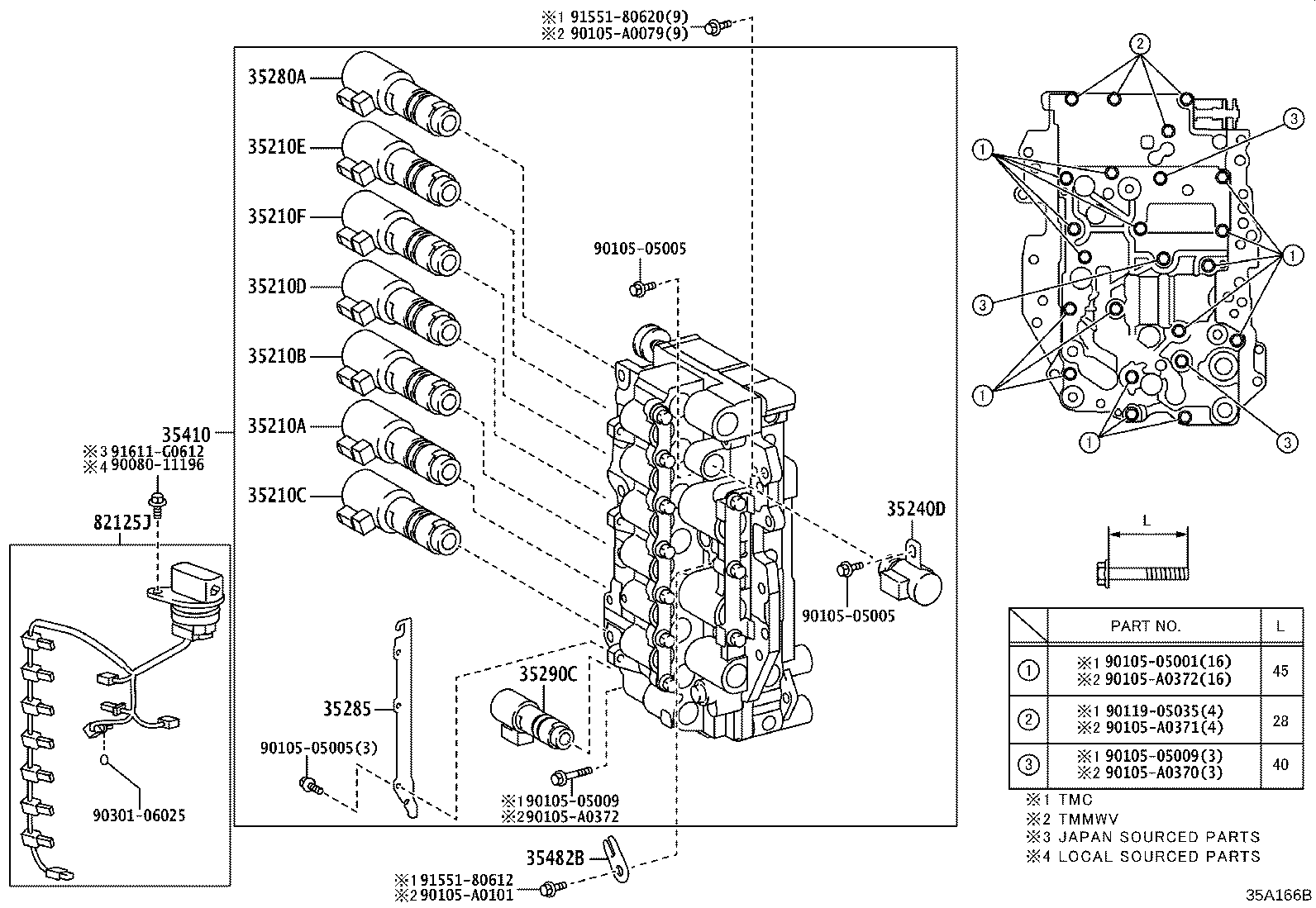

Click highlighted areas on diagram
UA80E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210A - VALVE, SOLENOID(SL1) | ||||
| 35210-48020 |
GSX50 TOYOTA:REFER 35-01 |
1 | ||
| 35210-06020 |
GSX50 TMMWV:REFER 35-01 |
1 | ||
| 35210B - VALVE, SOLENOID(SL3) | ||||
| 35210-06020 |
GSX50 TMMWV:REFER 35-01 |
1 | ||
| 35210-48020 |
GSX50 TOYOTA:REFER 35-01 |
1 | ||
| 35210C - VALVE, SOLENOID(SL2) | ||||
| 35210-48020 |
GSX50 TOYOTA:REFER 35-01 |
1 | ||
| 35210-06020 |
GSX50 TMMWV:REFER 35-01 |
1 | ||
| 35210D - VALVE, SOLENOID(SL4) | ||||
| 35210-48020 |
GSX50 TOYOTA:REFER 35-01 |
1 | ||
| 35210-06020 |
GSX50 TMMWV:REFER 35-01 |
1 | ||
| 35210E - VALVE, SOLENOID(SL5) | ||||
| 35210-48020 |
GSX50 TOYOTA:REFER 35-01 |
1 | ||
| 35210-06020 |
GSX50 TMMWV:REFER 35-01 |
1 | ||
| 35210F - VALVE, SOLENOID(SL6) | ||||
| 35210-48020 |
GSX50 TOYOTA:REFER 35-01 |
1 | ||
| 35210-06020 |
GSX50 TMMWV:REFER 35-01 |
1 | ||
| 35240D - VALVE, SOLENOID(SL) | ||||
| 35240-48020 |
GSX50 |
1 | ||
| 35280A - VALVE, SOLENOID(SLU) | ||||
| 35280-06020 |
GSX50 TMMWV:REFER 35-01 |
1 | ||
| 35280-48030 |
GSX50 TOYOTA:REFER 35-01 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-48030 |
GSX50 TOYOTA:REFER 35-01 |
1 | ||
| 35285-06020 |
GSX50 TMMWV:REFER 35-01 |
1 | ||
| 35290C - VALVE, SOLENOID(SLT) | ||||
| 35290-06010 |
GSX50 TMMWV:REFER 35-01 |
1 | ||
| 35290-48030 |
GSX50 TOYOTA:REFER 35-01 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-48090 |
GSX50 TOYOTA:REFER 35-01 |
1 | ||
| 35410-06050 |
GSX50 TMMWV:REFER 35-01 |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-73010 |
GSX50 |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-33170 |
GSX50 (J) |
1 | ||
| 82125-06281 |
GSX50 (L) |
1 | ||
| 82125-33171 |
GSX50 (J) |
1 | ||
| Common parts | ||||
| 90080-11196 | ||||
| 90105-05001 | ||||
| 90105-05005 | ||||
| 90105-05009 | ||||
| 90105-A0079 | ||||
| 90105-A0101 | ||||
| 90105-A0370 | ||||
| 90105-A0371 | ||||
| 90105-A0372 | ||||
| 90119-05035 | ||||
| 90301-06025 | ||||
| 91551-80612 | ||||
| 91551-80620 | ||||
| 91611-G0612 | ||||
