GSX50L-AEZQBA (2018)
Toyota Avalon
Production
Apr 2018
-
Aug 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

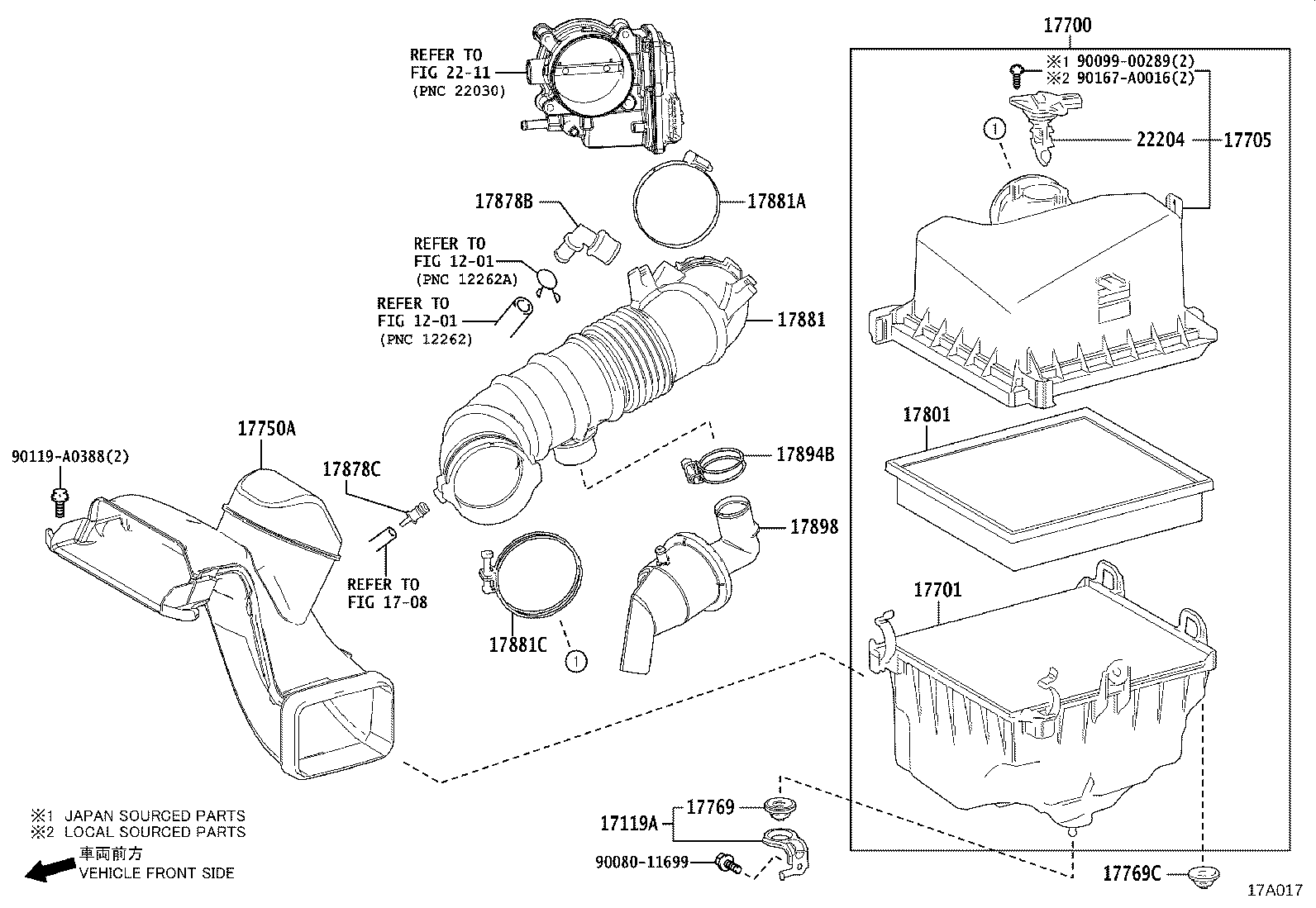

ILLUST NO. 2 OF 2(1804- )2GRFKS..TOU,XSE
Click highlighted areas on diagram
2GRFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-F0010 |
2GRFKS..GSX50 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-F0010 |
2GRFKS..GSX50 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-F0010 |
2GRFKS..GSX50 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-F0010 |
2GRFKS..GSX50 |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-0P080 |
2GRFKS..GSX50 |
1 | ||
| 17769 - SUPPORT, AIR CLEANER | ||||
| 17769-25020 |
2GRFKS..GSX50 |
1 | ||
| 17769C - SUPPORT, AIR CLEANER, NO.1 | ||||
| 17769-25020 |
2GRFKS..GSX50 |
2 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-F0050 |
2GRFKS..GSX50 (L) |
1 | ||
| 17801-25020 |
2GRFKS..GSX50 (J) |
1 | ||
| 17878B - TUBE, VENTILATION | ||||
| 17878-0P040 |
2GRFKS..GSX50 |
1 | ||
| 17878C - TUBE, VENTILATION, NO.2 | ||||
| 17878-0P060 |
2GRFKS..GSX50 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0P230 |
2GRFKS..GSX50 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-90005 |
2GRFKS..GSX50 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10880 |
2GRFKS..GSX50 |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10450 |
2GRFKS..GSX50..TOU,XSE |
1 | ||
| 17898 - CREATOR, INTAKE AIR SOUND | ||||
| 17898-0P010 |
2GRFKS..GSX50..TOU,XSE |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75040 |
2GRFKS..GSX50 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90099-00289 | ||||
| 90119-A0388 | ||||
| 90167-A0016 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1708 | ||||
| 2211 | ||||
