GSX50L-AEZQBA (2018)
Toyota Avalon
Production
Apr 2018
-
Aug 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1804-2008)2GRFKS

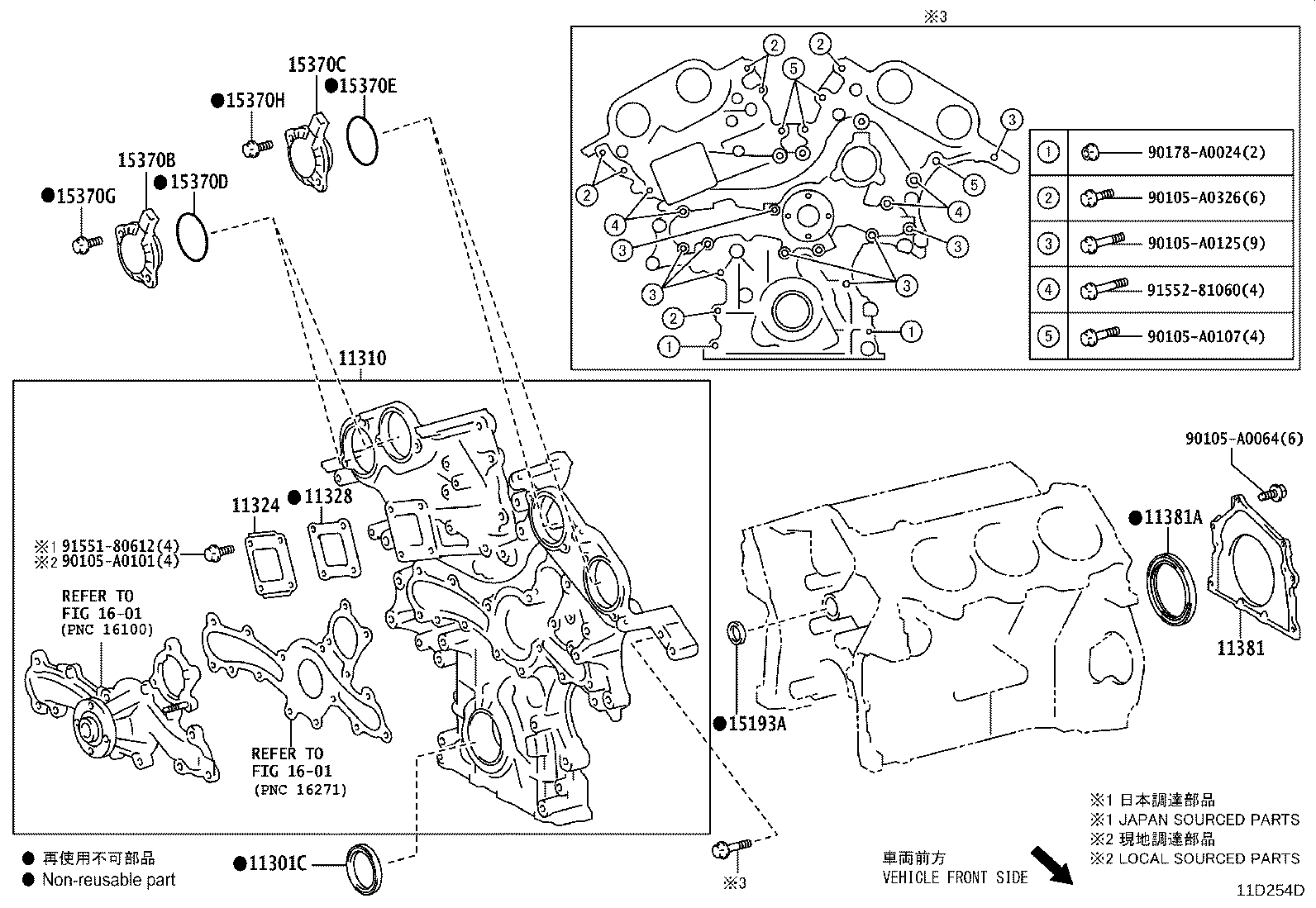

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-A0028 |
2GRFKS..GSX50 |
1 | ||
| 11310 - COVER ASSY, TIMING CHAIN | ||||
| 11310-0P050 |
2GRFKS..GSX50 |
1 | ||
| 11324 - PLATE, TIMING CHAIN COVER | ||||
| 11324-0P010 |
2GRFKS..GSX50 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-0P010 |
2GRFKS..GSX50 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-0P020 |
2GRFKS..GSX50 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-A0027 |
2GRFKS..GSX50 |
1 | ||
| 15193A - GASKET, OIL PUMP | ||||
| 15193-0P010 |
2GRFKS..GSX50 (L) |
1 | ||
| 15193-31020 |
2GRFKS..GSX50 (J) |
1 | ||
| 15370B - SOLENOID ASSY, CAM TIMING OIL CONTROL, RH | ||||
| 15370-0P020 |
2GRFKS..GSX50 |
2 | ||
| 15370C - SOLENOID ASSY, CAM TIMING OIL CONTROL, LH | ||||
| 15370-0P020 |
2GRFKS..GSX50 |
2 | ||
| 15370D - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID RH) | ||||
| 90301-50003 |
2GRFKS..GSX50 |
2 | ||
| 15370E - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID LH) | ||||
| 90301-50003 |
2GRFKS..GSX50 |
2 | ||
| 15370G - BOLT(FOR CAM TIMING OIL CONTROL SOLENOID RH) | ||||
| 90105-A0064 |
2GRFKS..GSX50 |
4 | ||
| 15370H - BOLT(FOR CAM TIMING OIL CONTROL SOLENOID LH) | ||||
| 90105-A0064 |
2GRFKS..GSX50 |
4 | ||
| Common parts | ||||
| 90105-A0064 | ||||
| 90105-A0101 | ||||
| 90105-A0107 | ||||
| 90105-A0125 | ||||
| 90105-A0326 | ||||
| 90178-A0024 | ||||
| 91551-80612 | ||||
| 91552-81060 | ||||
| Linked diagrams | ||||
| 1601 | ||||
