GSX50L-AEZGBA (2020)
Toyota Avalon

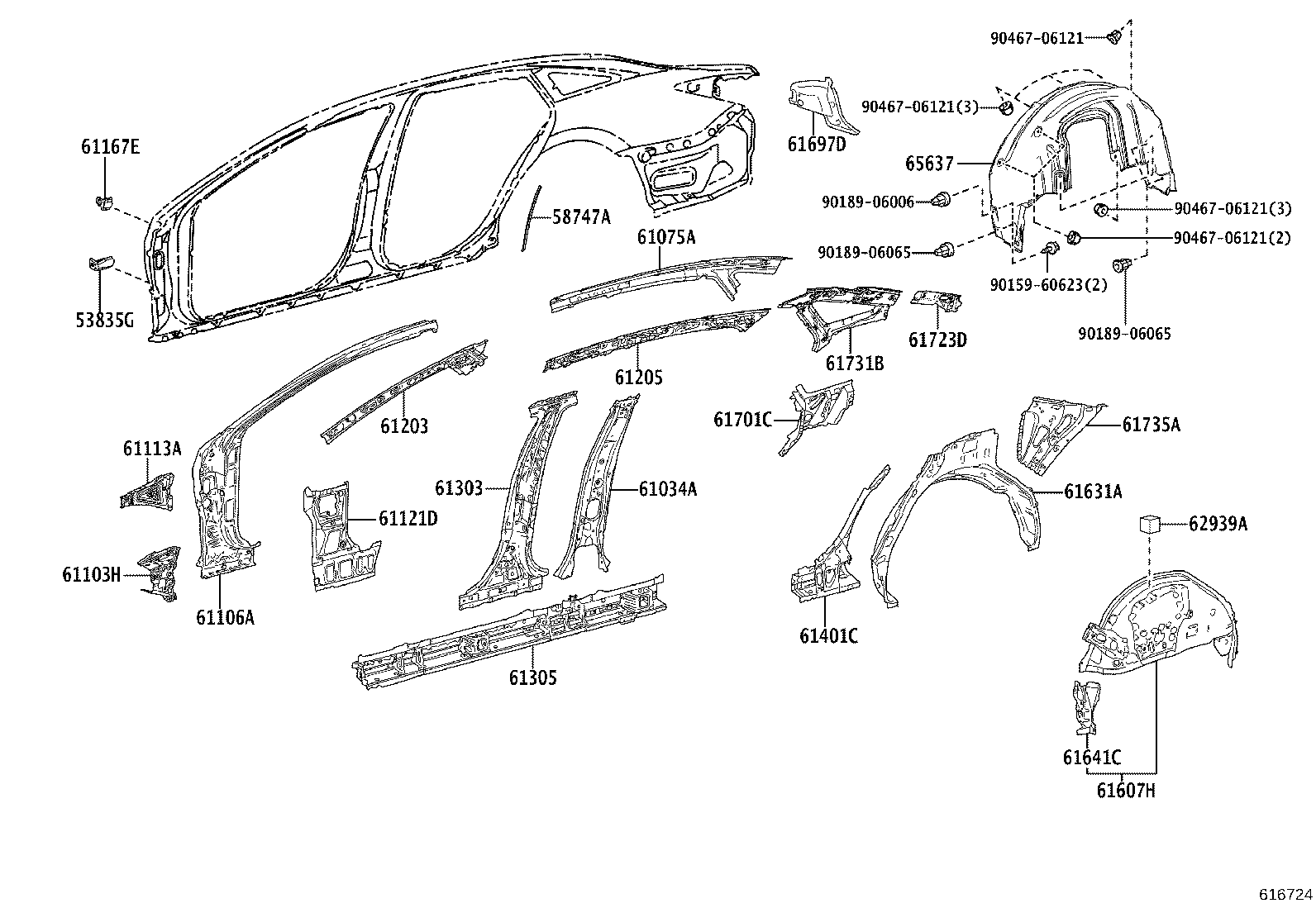

ILLUST NO. 2 OF 2(2008- )
INNER PANEL,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53835G - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53839-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 58747A - PROTECTOR, QUARTER PANEL, REAR RH | ||||
| 58747-07020 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61034A - PILLAR SUB-ASSY, NO.3 INNER, RH | ||||
| 61034-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61075A - RAIL SUB-ASSY, NO.3 UPPER OUTER, RH | ||||
| 61075-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61103H - PANEL SUB-ASSY, SIDE, NO.2 RH | ||||
| 61103-06070 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-07080 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61113A - PANEL, SIDE, OUTER NO.2 RH | ||||
| 61113-06020 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61121D - PANEL, COWL SIDE, RH | ||||
| 61121-06170 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61167E - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-07020 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH | ||||
| 61205-07900 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-07900 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-07900 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61607H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-07050 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-07030 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-07900 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61701C - PANEL SUB-ASSY, ROOF SIDE, OUTER RH | ||||
| 61701-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61723D - REINFORCEMENT, QUARTER WINDOW OPENING, RH | ||||
| 61723-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-07040 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-07040 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-06080 |
AXXA55,AXXH51,GSX50 |
2 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-07030 |
AXXA55,AXXH51,GSX50 |
1 | ||
| Common parts | ||||
| 90159-60623 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90467-06121 | ||||

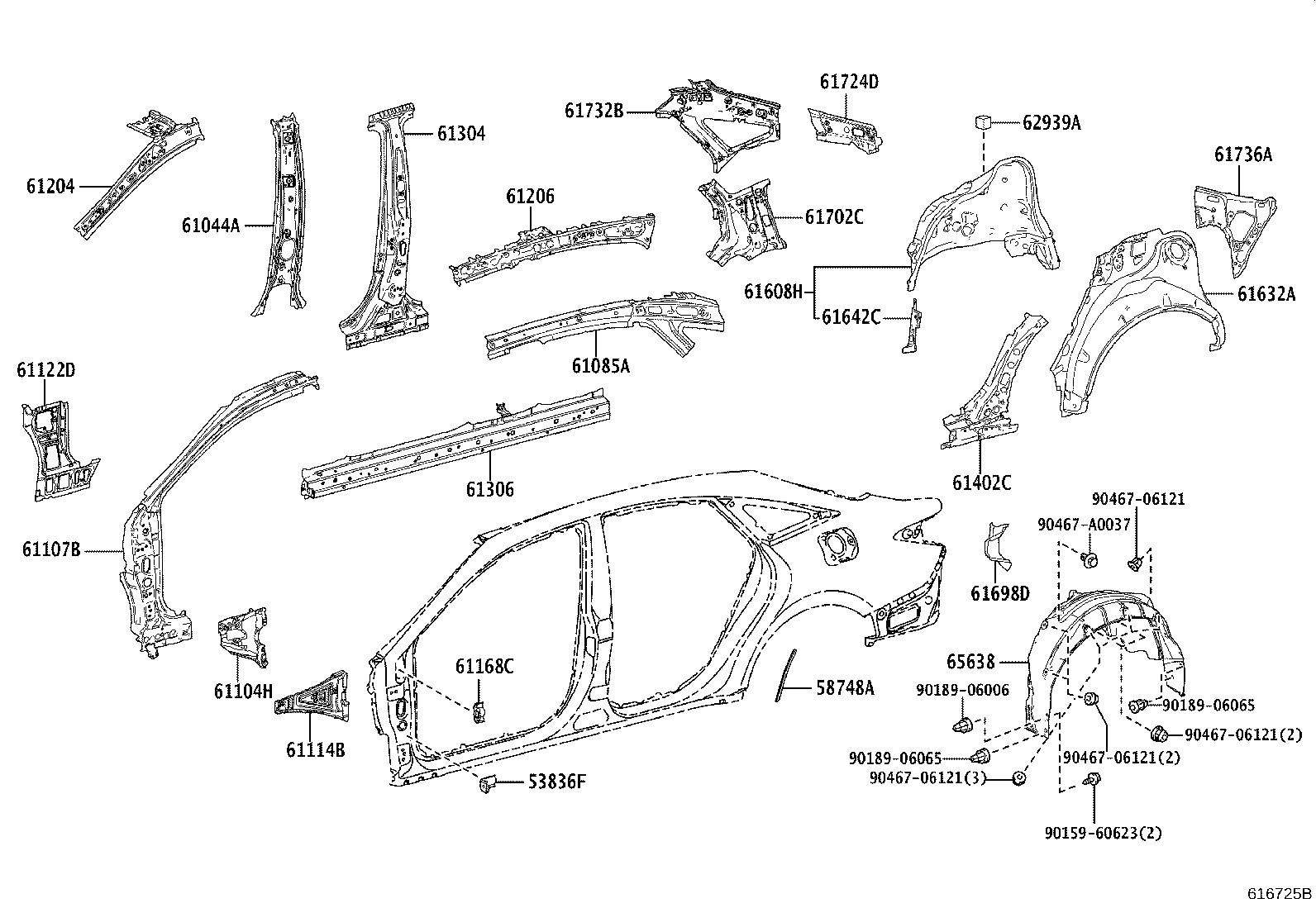

ILLUST NO. 2 OF 2(2008- )
INNER PANEL,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53836F - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53839-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 58748A - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 58748-07020 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61044A - PILLAR SUB-ASSY, NO.3 INNER, LH | ||||
| 61044-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61085A - RAIL SUB-ASSY, NO.3 UPPER OUTER, LH | ||||
| 61085-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61104H - PANEL SUB-ASSY, SIDE, NO.2 LH | ||||
| 61104-06070 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-07080 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61114B - PANEL, SIDE, OUTER NO.2 LH | ||||
| 61114-06020 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61122D - PANEL, COWL SIDE, LH | ||||
| 61122-06160 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61168C - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-07020 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH | ||||
| 61206-07900 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-07900 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-07900 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-07050 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-07901 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-07020 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-07900 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61702C - PANEL SUB-ASSY, ROOF SIDE, OUTER LH | ||||
| 61702-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61724D - REINFORCEMENT, QUARTER WINDOW OPENING, LH | ||||
| 61724-07010 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-07040 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-07040 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-06080 |
AXXA55,AXXH51,GSX50 |
2 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-07030 |
AXXA55,AXXH51,GSX50 |
1 | ||
| Common parts | ||||
| 90159-60623 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90467-06121 | ||||
| 90467-A0037 | ||||
