GSX50L-AEZGBA (2018)
Toyota Avalon
Production
Apr 2018
-
Aug 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1804-2008)GSX50 ; (2008- )GSX50

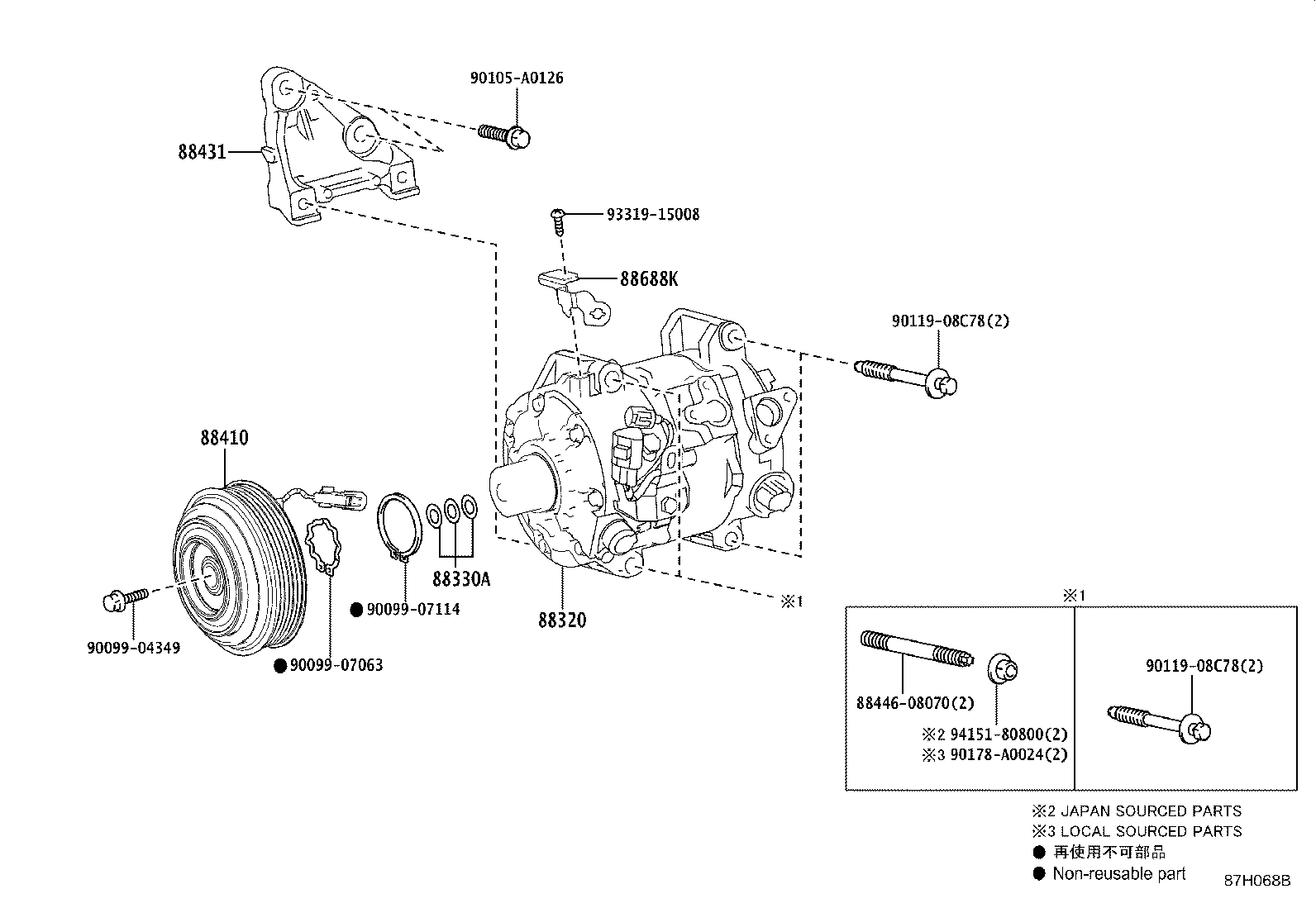

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-48330 |
GSX50 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GSX50 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-0N010 |
GSX50 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-0E040 |
GSX50 |
1 | ||
| 88431-0E010 |
GSX50 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-33570 |
GSX50 |
1 | ||
| Common parts | ||||
| 88446-08070 | ||||
| 90099-04349 | ||||
| 90099-07063 | ||||
| 90099-07114 | ||||
| 90105-A0126 | ||||
| 90119-08C78 | ||||
| 90178-A0024 | ||||
| 93319-15008 | ||||
| 94151-80800 | ||||
