GSX50L-AEZGBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )2GRFKS

Click highlighted areas on diagram

12V 100A, 130A

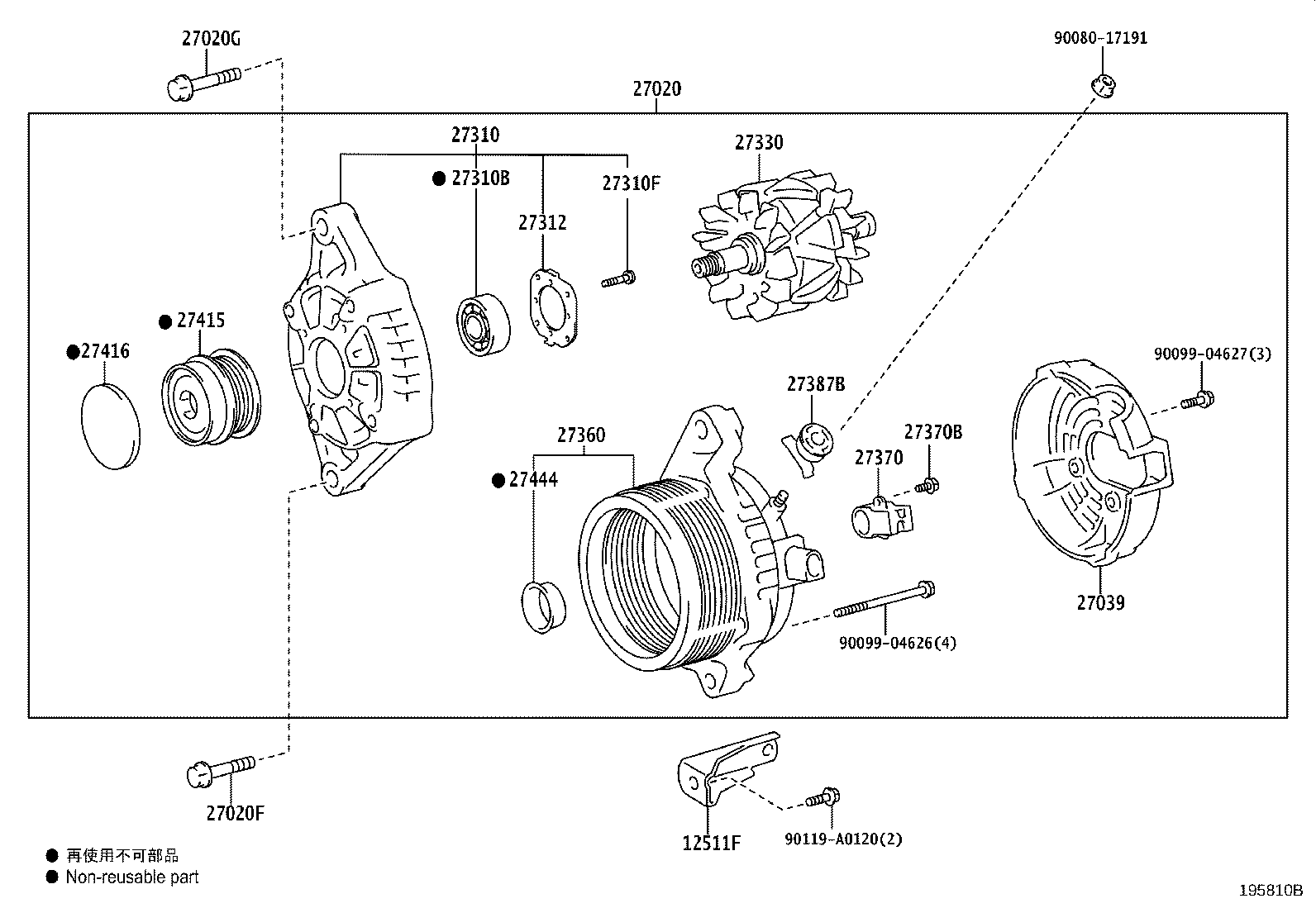

diagram 12511F 27020 27020F 27020G 27039 27310 27310B 27310F 27312 27330 27360 27370 27370B 27387B 27415 27416 27444 9008017191 9009904626 9009904627 90119A0120
Part # Description Qty Price
12511F - BRACKET, ALTERNATOR, NO.1
12511-0P070

2GRFKS..GSX50

 1
27020 - ALTERNATOR ASSY
27060-0P410

2GRFKS..GSX50..XLE,XSE

12V 100A

 1
27020F - BOLT, NO.1(FOR ALTERNATOR)
90105-A0107

2GRFKS..GSX50

 1
27020G - BOLT, NO.2(FOR ALTERNATOR)
91552-81095

2GRFKS..GSX50

(J)

 1
90105-A0324

2GRFKS..GSX50

(L)

 1
27039 - COVER, ALTERNATOR REAR END
27039-0C170

2GRFKS..GSX50..XLE,XSE

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0P460

2GRFKS..GSX50..XLE,XSE

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10033

2GRFKS..GSX50..XLE,XSE

 1
27310F - SCREW(FOR ALTERNATOR DRIVE END FRAME)
90068-00022

2GRFKS..GSX50..XLE,XSE

 4
90099-00268

2GRFKS..GSX50..XLE,XSE

 4
27312 - PLATE, RETAINER
27312-72100

2GRFKS..GSX50

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0C170

2GRFKS..GSX50..XLE,XSE

 1
27360 - COIL ASSY, ALTERNATOR
27360-0P350

2GRFKS..GSX50..XLE,XSE

 1
27360-0P460

2GRFKS..GSX50..XLE,XSE

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-0V160

2GRFKS..GSX50..XLE,XSE

 1
27370B - SCREW(FOR ALTERNATOR BRUSH HOLDER)
90068-00023

2GRFKS..GSX50..XLE,XSE

 2
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-20130

2GRFKS..GSX50

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0P020

2GRFKS..GSX50

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

2GRFKS..GSX50

 1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-0C170

2GRFKS..GSX50..XLE,XSE

 1
Common parts
90080-17191
90099-04626
90099-04627
90119-A0120
