GSX40L-AETQKA (2012)
Toyota Avalon

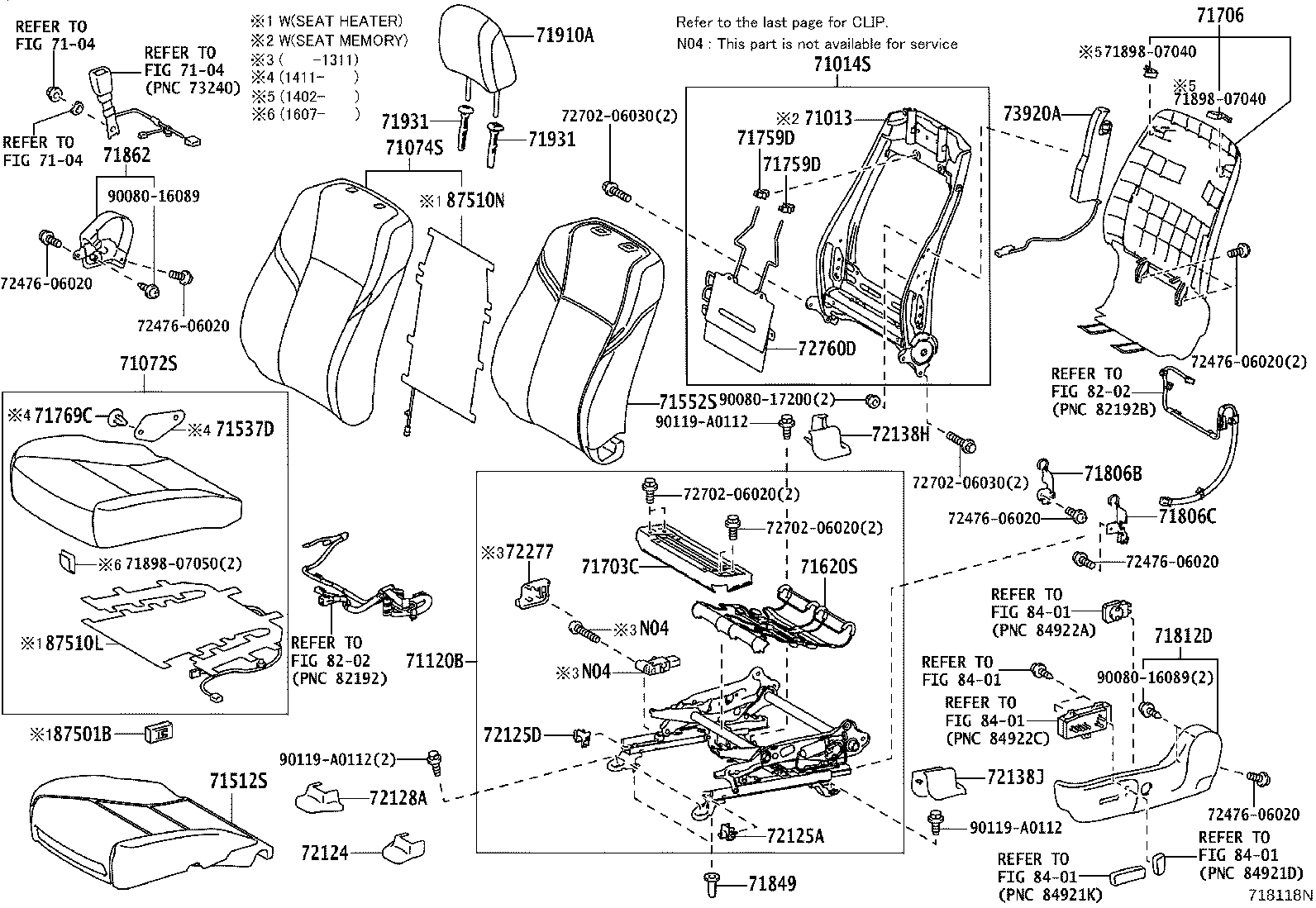

ILLUST NO. 1 OF 2(1210- )
DRIVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013 - FRAME SUB-ASSY, FRONT SEAT BACK | ||||
| 71013-07070 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 71013-07070 |
GSX40..XLETO |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71104-07030 |
AVX40,GSX40..XLE,XLEPR |
1 | ||
| 71104-07040 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 71104-07040 |
GSX40..XLETO |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-07190B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT.GRAY,TRIM1# |
1 | ||
| 71072-07190C3 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71072-07190A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71072-07191A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71072-07081C0 |
GSX40..XLETO SPORT EDITION,BLACK,TRIM2# |
1 | ||
| 71072-07082C1 |
GSX40..XLETO SPORT EDITION,BLACK,TRIM2# |
1 | ||
| 71072-07191C3 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71072-07192B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71072-07192C3 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71072-07192A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71072-07191B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-07310C2 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71074-07310B2 |
AVX40,GSX40..XLE,XLEPR,XLETO LT.GRAY,TRIM1# |
1 | ||
| 71074-07310A2 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71074-07311C2 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71074-07311B2 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71074-07311B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71074-07311A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71074-07311A2 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71074-07251C1 |
GSX40..XLETO SPORT EDITION,BLACK,TRIM2# |
1 | ||
| 71074-07311C4 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-07050 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 71120-07070 |
AVX40,GSX40..XLE,XLEPR |
1 | ||
| 71120-07071 |
AVX40,GSX40..XLE,XLEPR |
1 | ||
| 71120-07051 |
GSX40..XLETO |
1 | ||
| 71120-07050 |
GSX40..XLETO |
1 | ||
| 71120-07051 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 71120-07072 |
AVX40,GSX40..XLE,XLEPR |
1 | ||
| 71120-07052 |
GSX40..XLETO |
1 | ||
| 71120-07052 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-07010 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-06190 |
AVX40,GSX40 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-07050 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-06370 |
AVX40,GSX40 |
1 | ||
| 71703C - PANEL SUB-ASSY, FRONT SEAT CUSHION | ||||
| 71703-06010 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-07070C0 |
AVX40,GSX40 BLACK,TRIM2# |
1 | ||
| 71705-07071A0 |
AVX40,GSX40 FLAXEN,TRIM0# |
1 | ||
| 71705-07070A0 |
AVX40,GSX40 FLAXEN,TRIM0# |
1 | ||
| 71705-07070B0 |
AVX40,GSX40 LT GRAY,TRIM1# |
1 | ||
| 71705-07071C0 |
AVX40,GSX40 BLACK,TRIM2# |
1 | ||
| 71705-07071B0 |
AVX40,GSX40 LT.GRAY,TRIM1# |
1 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-06020 |
AVX40,GSX40 |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-06020 |
AVX40,GSX40 |
2 | ||
| 71769C - CLIP, FRONT SEAT CUSHION COVER | ||||
| 71769-60010C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71769-60010A4 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71769-60010P1 |
AVX40,GSX40..XLE,XLEPR,XLETO LT.GRAY,TRIM1# |
1 | ||
| 71806B - SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.1 | ||||
| 71806-06010C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 71806C - SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.2 | ||||
| 71806-06020C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-06200C0 |
AVX40,GSX40..XLE,XLEPR BLACK,TRIM0#,1#,2# |
1 | ||
| 71812-07060C0 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY),BLACK,TRIM0#,1#,2# |
1 | ||
| 71812-07060C0 |
GSX40..XLETO BLACK,TRIM0#,1#,2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-0T020 |
AVX40,GSX40 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06140C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-07140C4 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
2 | ||
| 71910-07140B4 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
2 | ||
| 71910-07140A4 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020B1 |
AVX40,GSX40 W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
AVX40,GSX40 W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B1 |
AVX40,GSX40 W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47020A7 |
AVX40,GSX40 W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
AVX40,GSX40 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C0 |
AVX40,GSX40 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020B1 |
AVX40,GSX40 W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
AVX40,GSX40 W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B1 |
AVX40,GSX40 W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47020A7 |
AVX40,GSX40 W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
AVX40,GSX40 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C0 |
AVX40,GSX40 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-07020C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-06010 |
AVX40,GSX40 |
3 | ||
| 72125-06010 |
AVX40,GSX40 |
3 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-06020 |
AVX40,GSX40 |
3 | ||
| 72125-06020 |
AVX40,GSX40 |
3 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-07020C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-07030C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-07030C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR, | ||||
| 72277-06010 |
AVX40,GSX40 |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-07010 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-07030 |
AVX40,GSX40 |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-06010 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 87501-06010 |
GSX40..XLETO |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-06090 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87510-06091 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87510-06100 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-06070 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87530-06071 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| Common parts | ||||
| 71898-07040 | ||||
| 71898-07050 | ||||
| 72476-06020 | ||||
| 72702-06020 | ||||
| 72702-06030 | ||||
| 90080-16089 | ||||
| 90080-17200 | ||||
| 90119-A0112 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

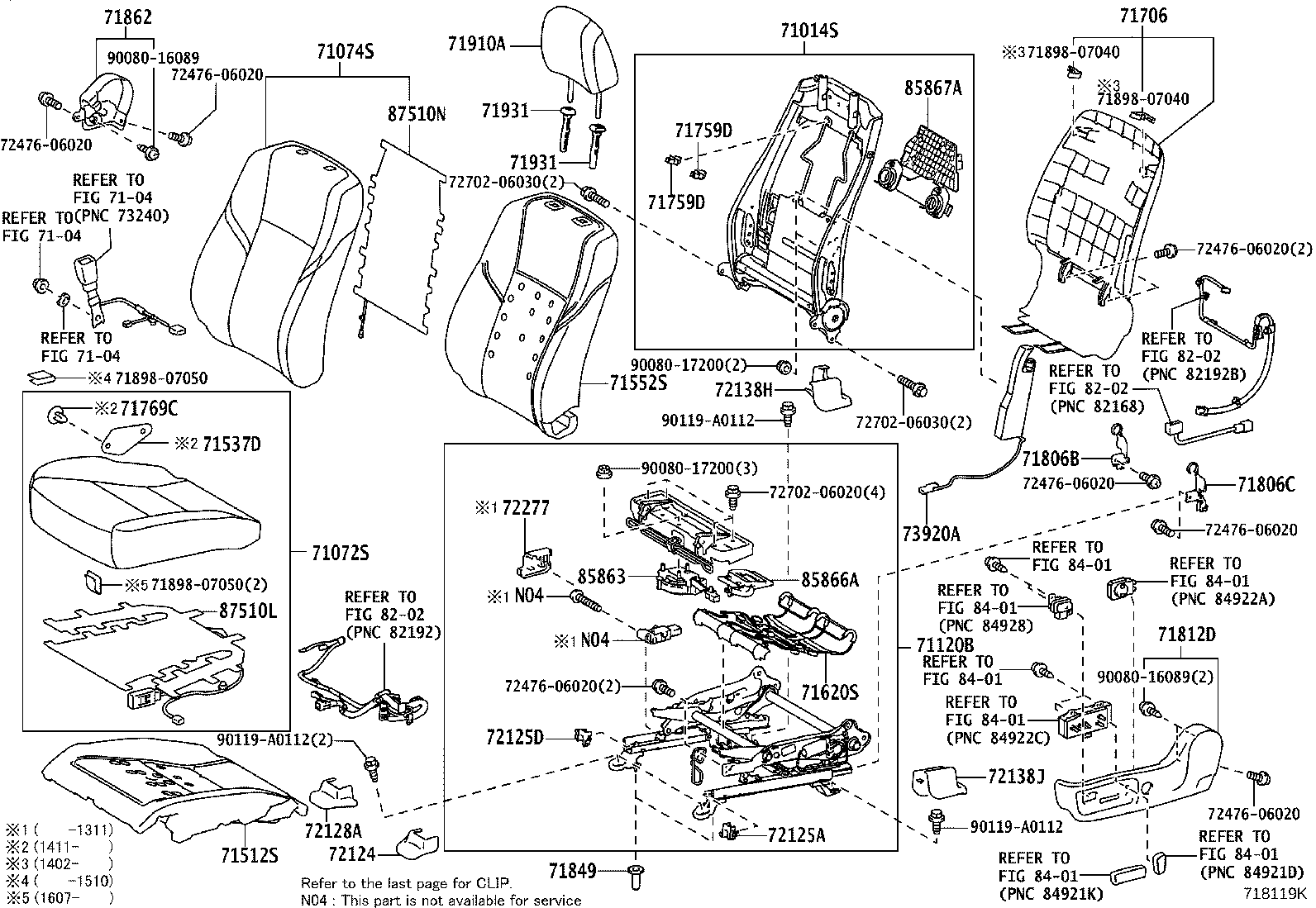

ILLUST NO. 1 OF 2(1210- )
DRIVER W(SEAT AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71104-07030 |
AVX40,GSX40..XLE,XLEPR |
1 | ||
| 71104-07040 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 71104-07040 |
GSX40..XLETO |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-07190B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT.GRAY,TRIM1# |
1 | ||
| 71072-07190C3 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71072-07190A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71072-07191A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71072-07081C0 |
GSX40..XLETO SPORT EDITION,BLACK,TRIM2# |
1 | ||
| 71072-07082C1 |
GSX40..XLETO SPORT EDITION,BLACK,TRIM2# |
1 | ||
| 71072-07191C3 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71072-07192B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71072-07192C3 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71072-07192A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71072-07191B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-07310C2 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71074-07310B2 |
AVX40,GSX40..XLE,XLEPR,XLETO LT.GRAY,TRIM1# |
1 | ||
| 71074-07310A2 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71074-07311C2 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71074-07311B2 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71074-07311B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71074-07311A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71074-07311A2 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71074-07251C1 |
GSX40..XLETO SPORT EDITION,BLACK,TRIM2# |
1 | ||
| 71074-07311C4 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-07050 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 71120-07070 |
AVX40,GSX40..XLE,XLEPR |
1 | ||
| 71120-07071 |
AVX40,GSX40..XLE,XLEPR |
1 | ||
| 71120-07051 |
GSX40..XLETO |
1 | ||
| 71120-07050 |
GSX40..XLETO |
1 | ||
| 71120-07051 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 71120-07072 |
AVX40,GSX40..XLE,XLEPR |
1 | ||
| 71120-07052 |
GSX40..XLETO |
1 | ||
| 71120-07052 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-07010 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-06190 |
AVX40,GSX40 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-07050 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-06370 |
AVX40,GSX40 |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-07070C0 |
AVX40,GSX40 BLACK,TRIM2# |
1 | ||
| 71705-07071A0 |
AVX40,GSX40 FLAXEN,TRIM0# |
1 | ||
| 71705-07070A0 |
AVX40,GSX40 FLAXEN,TRIM0# |
1 | ||
| 71705-07070B0 |
AVX40,GSX40 LT GRAY,TRIM1# |
1 | ||
| 71705-07071C0 |
AVX40,GSX40 BLACK,TRIM2# |
1 | ||
| 71705-07071B0 |
AVX40,GSX40 LT.GRAY,TRIM1# |
1 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-06020 |
AVX40,GSX40 |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-06020 |
AVX40,GSX40 |
2 | ||
| 71769C - CLIP, FRONT SEAT CUSHION COVER | ||||
| 71769-60010C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71769-60010A4 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71769-60010P1 |
AVX40,GSX40..XLE,XLEPR,XLETO LT.GRAY,TRIM1# |
1 | ||
| 71806B - SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.1 | ||||
| 71806-06010C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 71806C - SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.2 | ||||
| 71806-06020C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-06200C0 |
AVX40,GSX40..XLE,XLEPR BLACK,TRIM0#,1#,2# |
1 | ||
| 71812-07060C0 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY),BLACK,TRIM0#,1#,2# |
1 | ||
| 71812-07060C0 |
GSX40..XLETO BLACK,TRIM0#,1#,2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-0T020 |
AVX40,GSX40 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06140C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-07140C4 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
2 | ||
| 71910-07140B4 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
2 | ||
| 71910-07140A4 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020B1 |
AVX40,GSX40 W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
AVX40,GSX40 W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B1 |
AVX40,GSX40 W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47020A7 |
AVX40,GSX40 W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
AVX40,GSX40 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C0 |
AVX40,GSX40 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020B1 |
AVX40,GSX40 W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
AVX40,GSX40 W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B1 |
AVX40,GSX40 W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47020A7 |
AVX40,GSX40 W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
AVX40,GSX40 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C0 |
AVX40,GSX40 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-07020C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-06010 |
AVX40,GSX40 |
3 | ||
| 72125-06010 |
AVX40,GSX40 |
3 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-06020 |
AVX40,GSX40 |
3 | ||
| 72125-06020 |
AVX40,GSX40 |
3 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-07020C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-07030C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-07030C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR, | ||||
| 72277-06010 |
AVX40,GSX40 |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-07030 |
AVX40,GSX40 |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-06090 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87510-06091 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87510-06100 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-06070 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87530-06071 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| Common parts | ||||
| 71898-07040 | ||||
| 71898-07050 | ||||
| 72476-06020 | ||||
| 72702-06020 | ||||
| 72702-06030 | ||||
| 90080-16089 | ||||
| 90080-17200 | ||||
| 90119-A0112 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

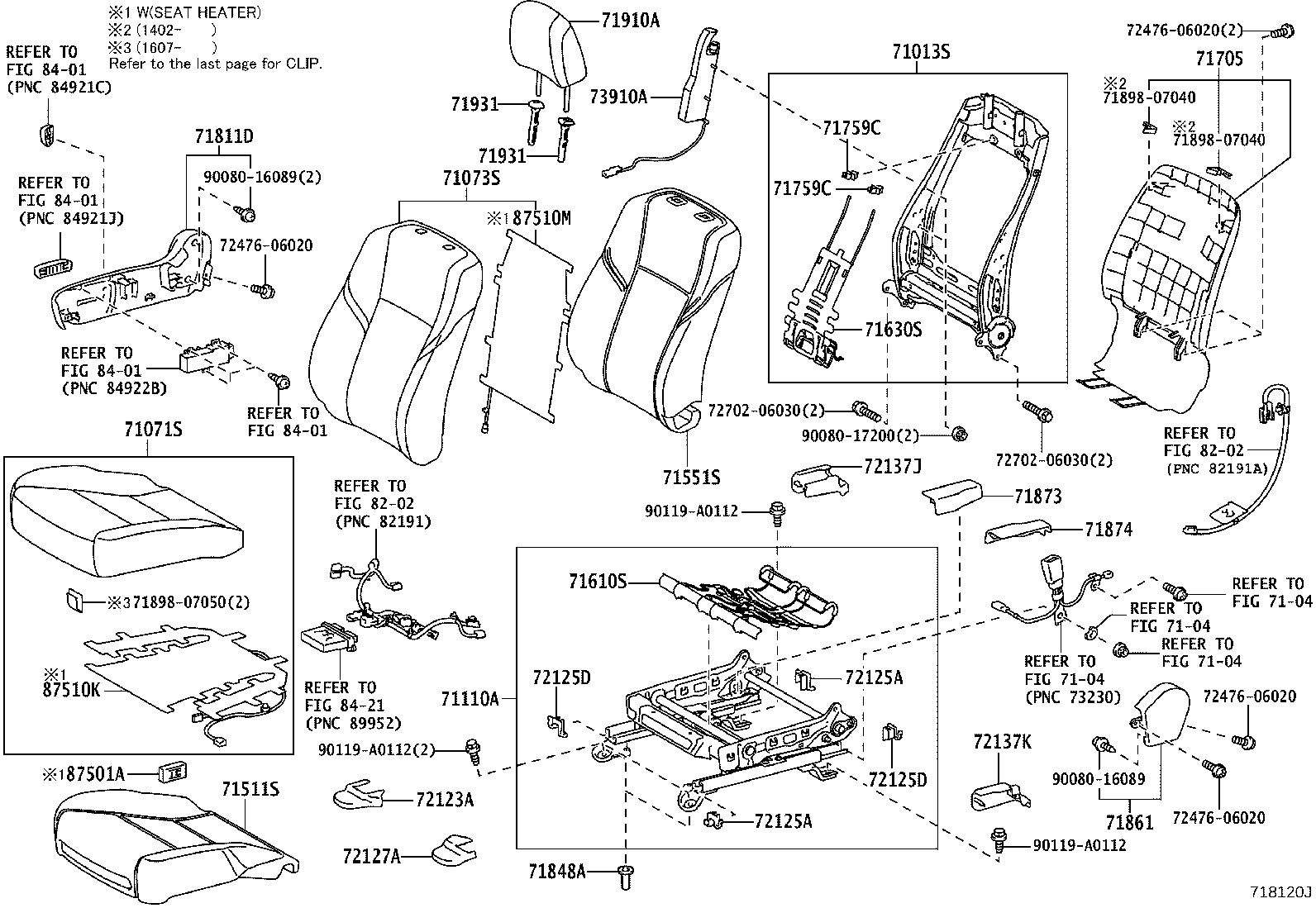

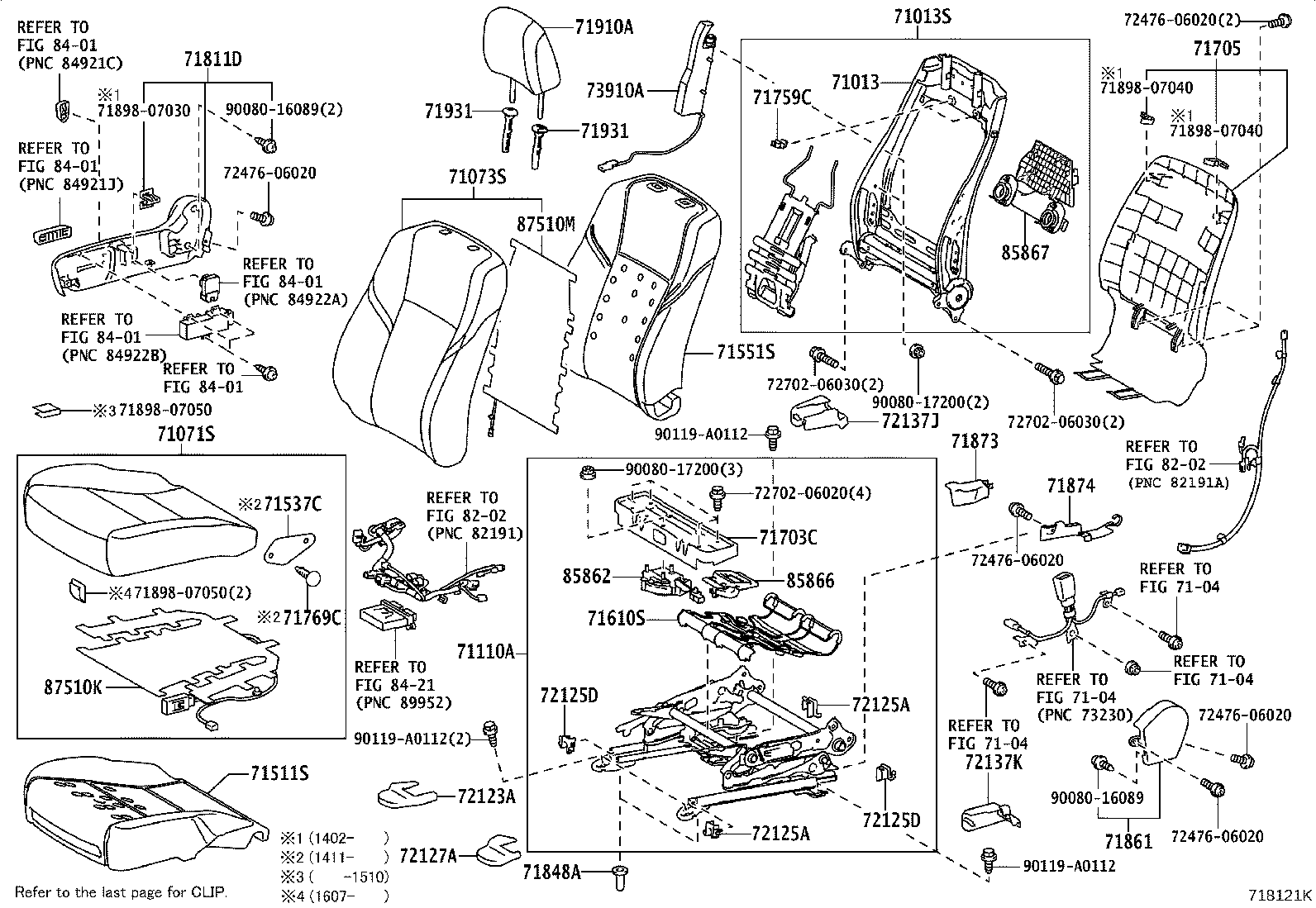

ILLUST NO. 2 OF 2(1210- )
PASSENGER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71103-07020 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-07130B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT.GRAY,TRIM1# |
1 | ||
| 71071-07130C3 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71071-07130A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71071-07131B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71071-07131C3 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71071-07151C0 |
GSX40..XLETO SPORT EDITION,BLACK,TRIM2# |
1 | ||
| 71071-07132A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71071-07132C3 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71071-07152C1 |
GSX40..XLETO SPORT EDITION,BLACK,TRIM2# |
1 | ||
| 71071-07131A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71071-07132B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-07300C2 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71073-07300A2 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71073-07300B2 |
AVX40,GSX40..XLE,XLEPR,XLETO LT.GRAY,TRIM1# |
1 | ||
| 71073-07301A2 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71073-07301C2 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71073-07301B2 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71073-07301C4 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71073-07301A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71073-07301B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71073-07321C1 |
GSX40..XLETO SPORT EDITION,BLACK,TRIM2# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-07120 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 71110-07120 |
AVX40,GSX40..XLE,XLEPR |
1 | ||
| 71110-07121 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 71110-07120 |
GSX40..XLETO |
1 | ||
| 71110-07121 |
GSX40..XLETO |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-07010 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-07050 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-06380 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71610-06380 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-06380 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-07070C0 |
AVX40,GSX40 BLACK,TRIM2# |
1 | ||
| 71705-07070B0 |
AVX40,GSX40 LT GRAY,TRIM1# |
1 | ||
| 71705-07071B0 |
AVX40,GSX40 LT.GRAY,TRIM1# |
1 | ||
| 71705-07071A0 |
AVX40,GSX40 FLAXEN,TRIM0# |
1 | ||
| 71705-07071C0 |
AVX40,GSX40 BLACK,TRIM2# |
1 | ||
| 71705-07070A0 |
AVX40,GSX40 FLAXEN,TRIM0# |
1 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-06020 |
AVX40,GSX40 |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-06020 |
AVX40,GSX40 |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-06190C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM0#,1#,2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-0T020 |
AVX40,GSX40 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-07040C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM0#,1#,2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06300C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM0#,1#,2# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06330C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM0#,1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-07140C4 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
2 | ||
| 71910-07140B4 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
2 | ||
| 71910-07140A4 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020B1 |
AVX40,GSX40 W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
AVX40,GSX40 W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B1 |
AVX40,GSX40 W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47020A7 |
AVX40,GSX40 W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
AVX40,GSX40 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C0 |
AVX40,GSX40 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020B1 |
AVX40,GSX40 W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
AVX40,GSX40 W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B1 |
AVX40,GSX40 W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47020A7 |
AVX40,GSX40 W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
AVX40,GSX40 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C0 |
AVX40,GSX40 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-07040C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM0#,1#,2# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-06010 |
AVX40,GSX40 |
3 | ||
| 72125-06010 |
AVX40,GSX40 |
3 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-06010 |
AVX40,GSX40 |
3 | ||
| 72125-06010 |
AVX40,GSX40 |
3 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-06020 |
AVX40,GSX40 |
3 | ||
| 72125-06020 |
AVX40,GSX40 |
3 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-06020 |
AVX40,GSX40 |
3 | ||
| 72125-06020 |
AVX40,GSX40 |
3 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-07030C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-07040C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM0#,1#,2# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-07030C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-07030 |
AVX40,GSX40 |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-06010 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-06091 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87510-06090 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87510-06100 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-06071 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87530-06070 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| Common parts | ||||
| 71898-07040 | ||||
| 71898-07050 | ||||
| 72476-06020 | ||||
| 72702-06030 | ||||
| 90080-16089 | ||||
| 90080-17200 | ||||
| 90119-A0112 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
ILLUST NO. 2 OF 2(1210- )
PASSENGER W(SEAT AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013 - FRAME SUB-ASSY, FRONT SEAT BACK | ||||
| 71013-07070 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 71013-07070 |
GSX40..XLETO |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71103-07020 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-07130B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT.GRAY,TRIM1# |
1 | ||
| 71071-07130C3 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71071-07130A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71071-07131B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71071-07131C3 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71071-07151C0 |
GSX40..XLETO SPORT EDITION,BLACK,TRIM2# |
1 | ||
| 71071-07132A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71071-07132C3 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71071-07152C1 |
GSX40..XLETO SPORT EDITION,BLACK,TRIM2# |
1 | ||
| 71071-07131A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71071-07132B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-07300C2 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71073-07300A2 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71073-07300B2 |
AVX40,GSX40..XLE,XLEPR,XLETO LT.GRAY,TRIM1# |
1 | ||
| 71073-07301A2 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71073-07301C2 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71073-07301B2 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71073-07301C4 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71073-07301A3 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71073-07301B3 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
1 | ||
| 71073-07321C1 |
GSX40..XLETO SPORT EDITION,BLACK,TRIM2# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-07120 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 71110-07120 |
AVX40,GSX40..XLE,XLEPR |
1 | ||
| 71110-07121 |
AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY) |
1 | ||
| 71110-07120 |
GSX40..XLETO |
1 | ||
| 71110-07121 |
GSX40..XLETO |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-07010 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-07050 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-06380 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71610-06380 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71703C - PANEL SUB-ASSY, FRONT SEAT CUSHION | ||||
| 71703-06010 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-07070C0 |
AVX40,GSX40 BLACK,TRIM2# |
1 | ||
| 71705-07070B0 |
AVX40,GSX40 LT GRAY,TRIM1# |
1 | ||
| 71705-07071B0 |
AVX40,GSX40 LT.GRAY,TRIM1# |
1 | ||
| 71705-07071A0 |
AVX40,GSX40 FLAXEN,TRIM0# |
1 | ||
| 71705-07071C0 |
AVX40,GSX40 BLACK,TRIM2# |
1 | ||
| 71705-07070A0 |
AVX40,GSX40 FLAXEN,TRIM0# |
1 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-06020 |
AVX40,GSX40 |
2 | ||
| 71769C - CLIP, FRONT SEAT CUSHION COVER | ||||
| 71769-60010C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
1 | ||
| 71769-60010A4 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
1 | ||
| 71769-60010P1 |
AVX40,GSX40..XLE,XLEPR,XLETO LT.GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-06190C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM0#,1#,2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-0T020 |
AVX40,GSX40 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-07040C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM0#,1#,2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06300C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM0#,1#,2# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06330C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM0#,1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-07140C4 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM2# |
2 | ||
| 71910-07140B4 |
AVX40,GSX40..XLE,XLEPR,XLETO LT GRAY,TRIM1# |
2 | ||
| 71910-07140A4 |
AVX40,GSX40..XLE,XLEPR,XLETO FLAXEN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020B1 |
AVX40,GSX40 W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
AVX40,GSX40 W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B1 |
AVX40,GSX40 W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47020A7 |
AVX40,GSX40 W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
AVX40,GSX40 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C0 |
AVX40,GSX40 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020B1 |
AVX40,GSX40 W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47020A7 |
AVX40,GSX40 W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020B1 |
AVX40,GSX40 W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47020A7 |
AVX40,GSX40 W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C0 |
AVX40,GSX40 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C0 |
AVX40,GSX40 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-07040C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM0#,1#,2# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-06010 |
AVX40,GSX40 |
3 | ||
| 72125-06010 |
AVX40,GSX40 |
3 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-06010 |
AVX40,GSX40 |
3 | ||
| 72125-06010 |
AVX40,GSX40 |
3 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-06020 |
AVX40,GSX40 |
3 | ||
| 72125-06020 |
AVX40,GSX40 |
3 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-06020 |
AVX40,GSX40 |
3 | ||
| 72125-06020 |
AVX40,GSX40 |
3 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-07030C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-07040C0 |
AVX40,GSX40..XLE,XLEPR,XLETO BLACK,TRIM0#,1#,2# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-07030C0 |
AVX40,GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-07030 |
AVX40,GSX40 |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-06091 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87510-06090 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87510-06100 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-06071 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| 87530-06070 |
AVX40,GSX40..XLE,XLEPR,XLETO |
1 | ||
| Common parts | ||||
| 71898-07030 | ||||
| 71898-07040 | ||||
| 71898-07050 | ||||
| 72476-06020 | ||||
| 72702-06020 | ||||
| 72702-06030 | ||||
| 90080-16089 | ||||
| 90080-17200 | ||||
| 90119-A0112 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
(1210- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
