GSX40L-AETQKA (2012)
Toyota Avalon

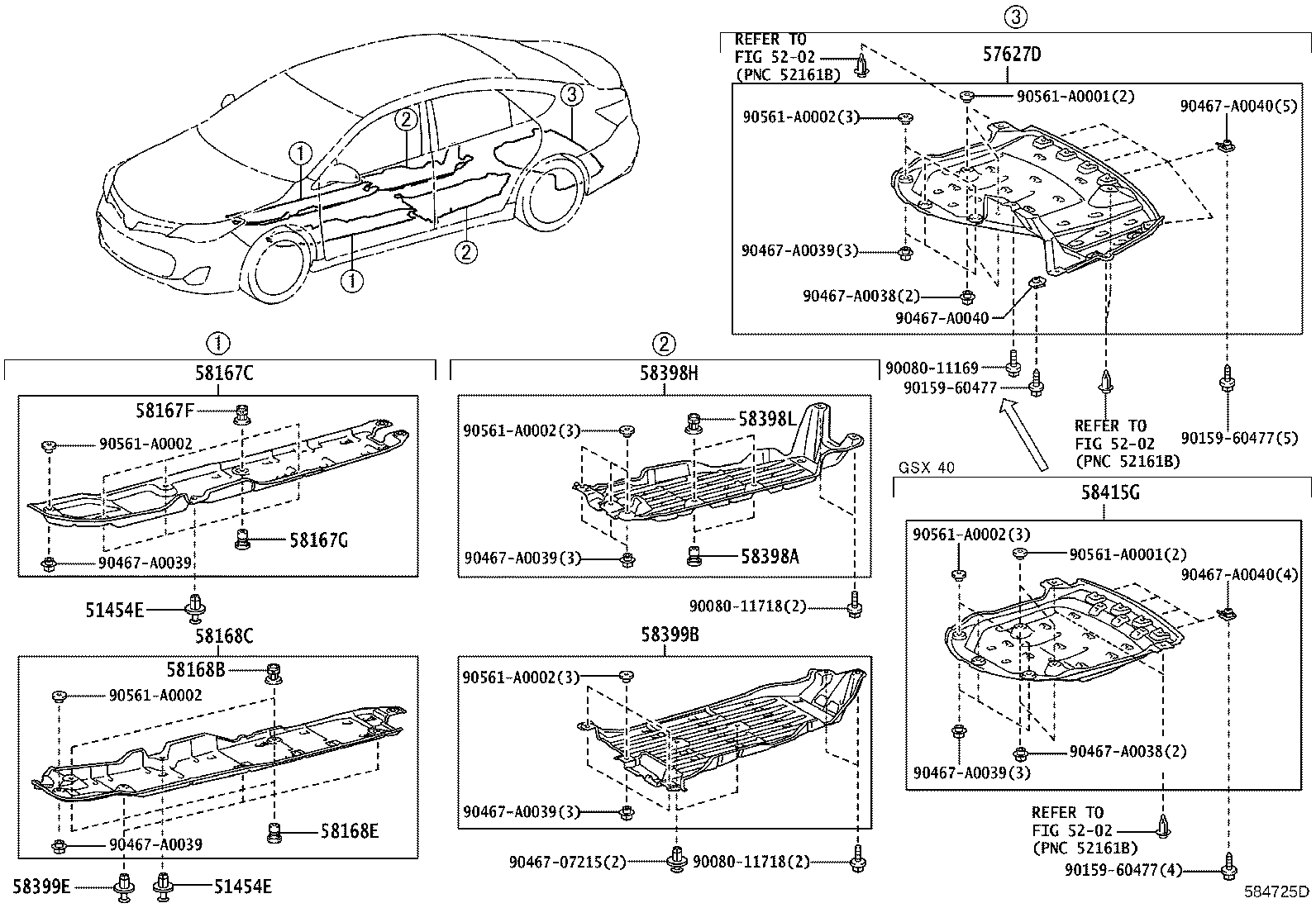

ILLUST NO. 2 OF 2(1210- )
FLOOR UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51454E - SILENCER, FRONT FLOOR COVER | ||||
| 51454-08010 |
AVX40,GSX40 |
2 | ||
| 51454E - SILENCER, FRONT FLOOR COVER | ||||
| 51454-08010 |
AVX40,GSX40 |
2 | ||
| 58167C - COVER, FRONT FLOOR, CENTER RH | ||||
| 58167-07010 |
GSX40 |
1 | ||
| 58167F - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-A0029A0 |
AVX40,GSX40 SUPER WHITE 2 |
4 | ||
| 58167G - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-A0030C0 |
AVX40,GSX40 BLACK |
4 | ||
| 58168B - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-A0029A0 |
AVX40,GSX40 SUPER WHITE 2 |
2 | ||
| 58168C - COVER, FRONT FLOOR, CENTER LH | ||||
| 58168-07010 |
AVX40,GSX40 |
1 | ||
| 58168E - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-A0030C0 |
AVX40,GSX40 BLACK |
2 | ||
| 58398A - CLIP, NO.3(FOR FLOOR UNDER COVER) | ||||
| 90467-A0029A0 |
AVX40,GSX40 SUPER WHITE 2 |
2 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-06030 |
AVX40,GSX40 |
1 | ||
| 58398L - CLIP, NO.4(FOR FLOOR UNDER COVER) | ||||
| 90467-A0030C0 |
AVX40,GSX40 BLACK |
2 | ||
| 58399B - COVER, FLOOR UNDER, NO.2 | ||||
| 58399-06030 |
AVX40,GSX40 |
1 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-07201 |
AVX40,GSX40 |
3 | ||
| 90467-A0037 |
AVX40,GSX40 |
3 | ||
| 58415G - BOARD, REAR FLOOR, NO.1 | ||||
| 58415-07010 |
GSX40 |
1 | ||
| Common parts | ||||
| 90080-11169 | ||||
| 90080-11718 | ||||
| 90159-60477 | ||||
| 90467-07215 | ||||
| 90467-A0038 | ||||
| 90467-A0039 | ||||
| 90467-A0040 | ||||
| 90561-A0001 | ||||
| 90561-A0002 | ||||
| Linked diagrams | ||||
| 5202 | ||||

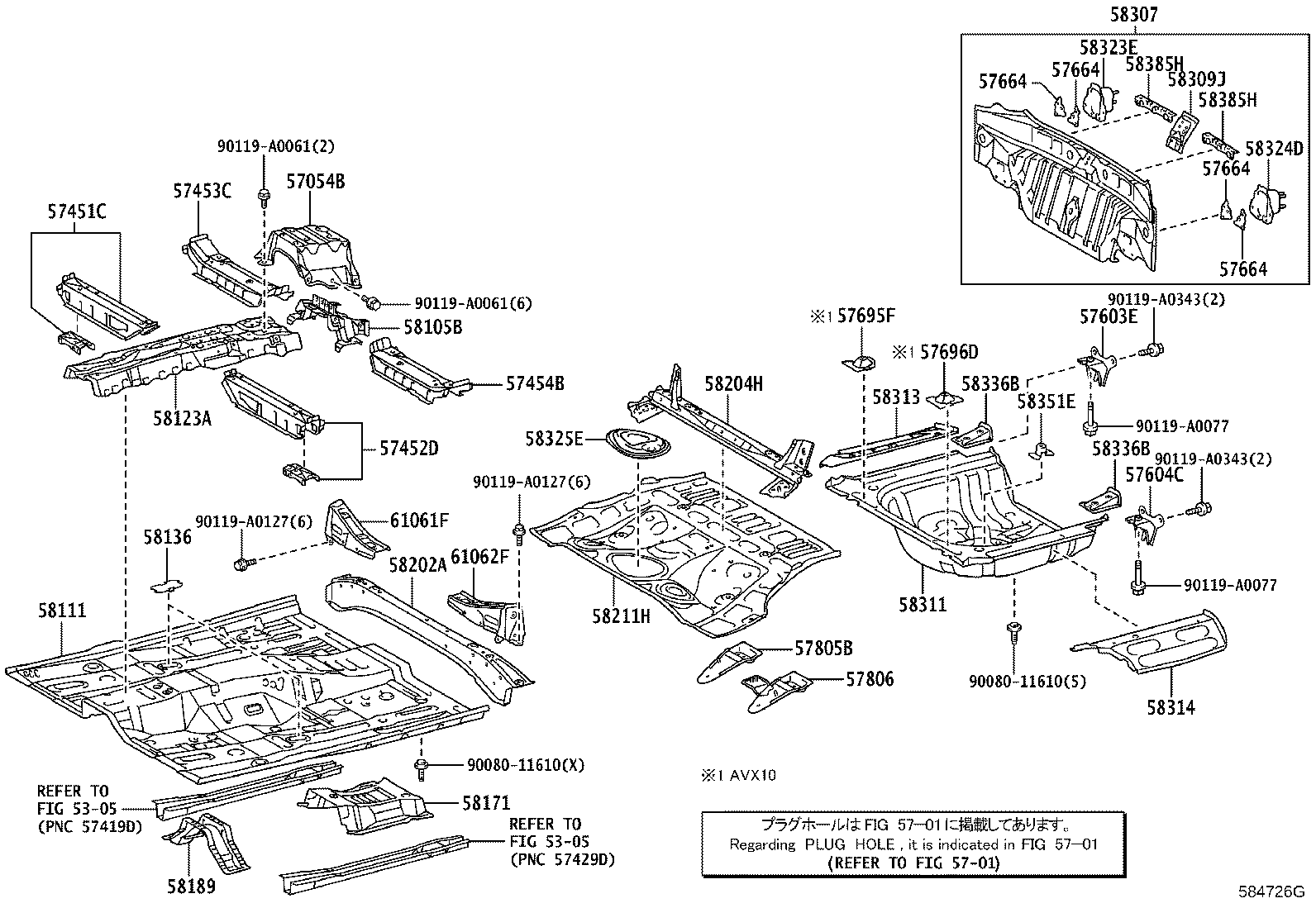

ILLUST NO. 1 OF 2(1210- )
FLOOR PANEL & LOWER BACK PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57054B - REINFORCET SUB-ASSY, CROSS MEMBER FLOOR, NO.4 | ||||
| 57054-06040 |
AVX40,GSX40 |
1 | ||
| 57451C - MEMBER, FRONT FLOOR CROSS, RH | ||||
| 57451-07901 |
AVX40,GSX40 |
1 | ||
| 57452D - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-07902 |
AVX40,GSX40 |
1 | ||
| 57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH | ||||
| 57453-06060 |
AVX40,GSX40 |
1 | ||
| 57454B - MEMBER, FRONT FLOOR CROSS SIDE, LH | ||||
| 57454-06060 |
AVX40,GSX40 |
1 | ||
| 57603E - EXTENSION SUB-ASSY, REAR SIDE MEMBER, RH | ||||
| 57603-07010 |
AVX40,GSX40 |
1 | ||
| 57604C - EXTENSION SUB-ASSY, REAR SIDE MEMBER, LH | ||||
| 57604-07020 |
GSX40 |
1 | ||
| 57664 - BRACE, BODY LOWER BACK PANEL | ||||
| 58325-07010 |
AVX40,GSX40 |
4 | ||
| 57664 - BRACE, BODY LOWER BACK PANEL | ||||
| 58325-07010 |
AVX40,GSX40 |
4 | ||
| 57664 - BRACE, BODY LOWER BACK PANEL | ||||
| 58325-07010 |
AVX40,GSX40 |
4 | ||
| 57664 - BRACE, BODY LOWER BACK PANEL | ||||
| 58325-07010 |
AVX40,GSX40 |
4 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-06020 |
AVX40,GSX40 |
1 | ||
| 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | ||||
| 57806-06020 |
AVX40,GSX40 |
1 | ||
| 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB | ||||
| 58105-06010 |
AVX40,GSX40 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-07042 |
AVX40,GSX40 |
1 | ||
| 58111-07903 |
AVX40,GSX40 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-06050 |
AVX40,GSX40 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-06050 |
AVX40,GSX40 |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-07050 |
AVX40,GSX40 |
1 | ||
| 58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET | ||||
| 58189-07030 |
AVX40,GSX40 |
1 | ||
| 58202A - PAN SUB-ASSY, CENTER FLOOR, FRONT | ||||
| 58202-06050 |
AVX40,GSX40 |
1 | ||
| 58204H - PAN SUB-ASSY, CENTER FLOOR, REAR | ||||
| 58204-07010 |
AVX40,GSX40 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-06201 |
GSX40 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-07040 |
AVX40,GSX40 |
1 | ||
| 58309J - RETAINER SUB-ASSY, LUGGAGE DOOR LOCK STRIKER | ||||
| 58309-07030 |
AVX40,GSX40 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-06151 |
GSX40 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-06120 |
GSX40 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-06120 |
AVX40,GSX40 |
1 | ||
| 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH | ||||
| 58303-07010 |
AVX40,GSX40 |
1 | ||
| 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH | ||||
| 58304-07010 |
AVX40,GSX40 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-06061 |
AVX40,GSX40 |
1 | ||
| 58325-06060 |
AVX40,GSX40 |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-06070 |
AVX40,GSX40 |
2 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-06070 |
AVX40,GSX40 |
2 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-06030 |
AVX40,GSX40 |
1 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 58385-06080 |
AVX40,GSX40 |
2 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 58385-06080 |
AVX40,GSX40 |
2 | ||
| 61061F - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 | ||||
| 61061-06032 |
AVX40,GSX40 |
1 | ||
| 61062F - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2 | ||||
| 61062-06032 |
AVX40,GSX40 |
1 | ||
| Common parts | ||||
| 90080-11610 | ||||
| 90119-A0061 | ||||
| 90119-A0077 | ||||
| 90119-A0127 | ||||
| 90119-A0343 | ||||
| Linked diagrams | ||||
| 5305 | ||||
| 5701 | ||||
