GSX40L-AETQKA (2012)
Toyota Avalon
Production
Oct 2012
-
Oct 2015
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1210- )GSX40

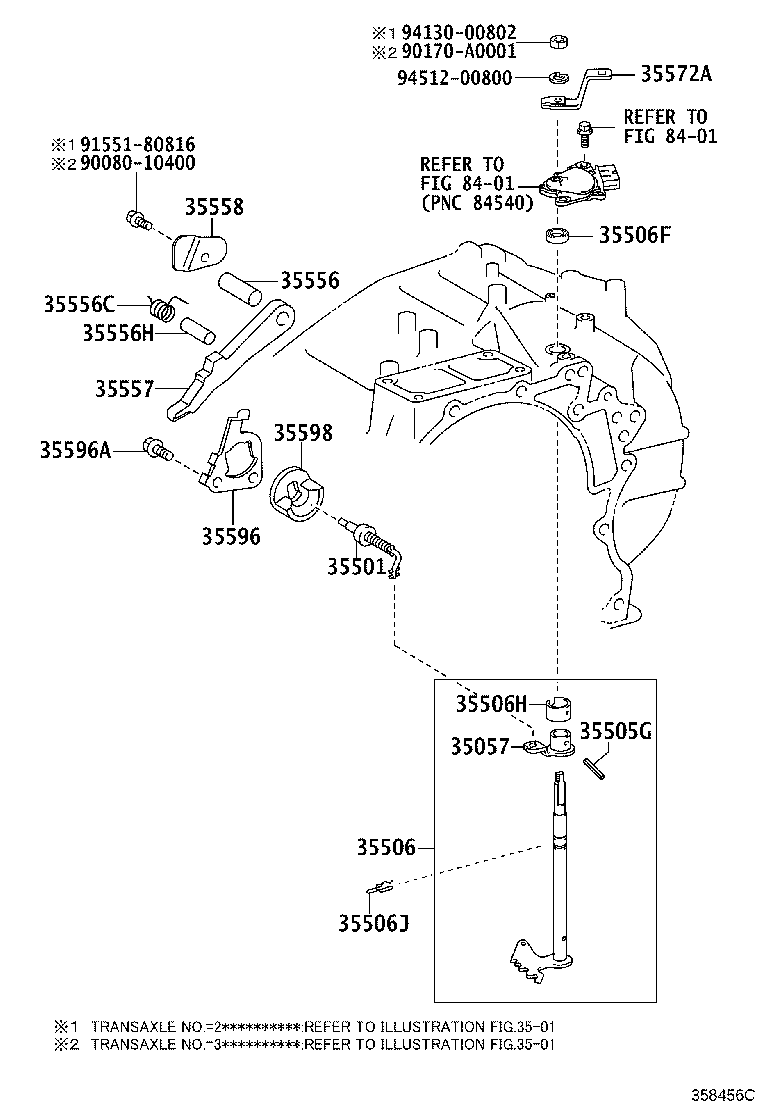

Click highlighted areas on diagram
U660E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35057 - LEVER SUB-ASSY,PARKING LOCK | ||||
| 35057-33010 |
GSX40 |
1 | ||
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-33020 |
GSX40 |
1 | ||
| 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) | ||||
| 90254-04011 |
GSX40 |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35506-33020 |
GSX40 |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-A0009 |
GSX40 *325 |
1 | ||
| 90311-12002 |
GSX40 *324 |
1 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20006 |
GSX40 |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-A0001 |
GSX40 *325 |
1 | ||
| 90524-09002 |
GSX40 *324 |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-33010 |
GSX40 |
1 | ||
| 35556-0R010 |
GSX40 *325 |
1 | ||
| 35556-33010 |
GSX40 *324 |
1 | ||
| 35556C - SPRING, TORSION (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90508-A0008 |
GSX40 *325 |
1 | ||
| 90508-21007 |
GSX40 *324 |
1 | ||
| 35556H - SHAFT, PARKING LOCK PAWL | ||||
| 35556-63010 |
GSX40 |
1 | ||
| 35556-0R020 |
GSX40 *325 |
1 | ||
| 35556-63010 |
GSX40 *324 |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-33021 |
GSX40 |
1 | ||
| 35558 - CLAMP, PAWL SHAFT | ||||
| 35558-33010 |
GSX40 |
1 | ||
| 35558-33010 |
GSX40 *324 |
1 | ||
| 35558-06010 |
GSX40 *325 |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-08020 |
GSX40 *325 |
1 | ||
| 35572-33020 |
GSX40 *324 |
1 | ||
| 35596 - PLATE, PAWL STOPPER | ||||
| 35596-07010 |
GSX40 *325 |
1 | ||
| 35596-33010 |
GSX40 *324 |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90080-10400 |
GSX40 *8-1.25PX16-13.5,*325 |
2 | ||
| 91551-80816 |
GSX40 *8-1.25PX16-13.5,*324 |
2 | ||
| 35598 - SLEEVE, PARKING LOCK | ||||
| 35598-33010 |
GSX40 |
1 | ||
| 35598-33010 |
GSX40 *324 |
1 | ||
| 35598-0R010 |
GSX40 *325 |
1 | ||
| Common parts | ||||
| 90080-10400 | ||||
| 90170-A0001 | ||||
| 91551-80816 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
