GSX40L-AETQKA (2015)

Toyota Avalon

Production Oct 2015 - Apr 2018
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )

Click highlighted areas on diagram

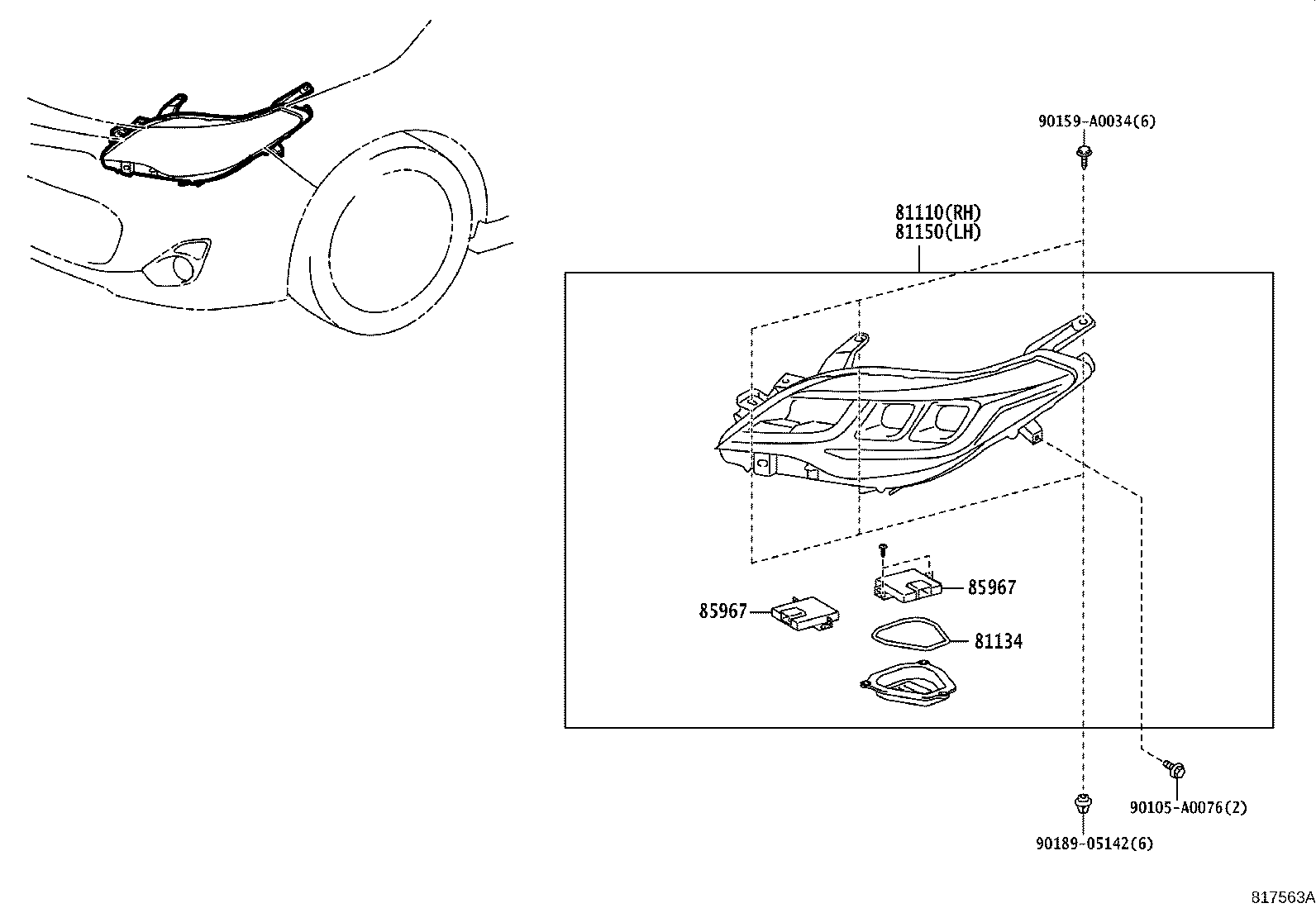

LED HEADLAMP

diagram 81110 81134 81150 85967 85967 90105A0076 90159A0034 9018905142
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-07122

AVX40,GSX40..XLE,XLEPR

 1
81110-07180

GSX40..XLETO

 1
81110-07120

AVX40,GSX40..XLE,XLEPR,XLETO

 1
81134 - GASKET, HEADLAMP
81117-07180

GSX40..XLETO

 2
90075-23002

AVX40,GSX40..XLE,XLETO

HEADLAMP-DISCHARGE

 2
81150 - HEADLAMP ASSY, LH
81150-07120

AVX40,GSX40..XLE,XLEPR,XLETO

 1
81150-07122

AVX40,GSX40..XLE,XLEPR

 1
81150-07160

GSX40..XLETO

 1
85967 - COMPUTER, LIGHT CONTROL
85967-08020

AVX40,GSX40..XLE,XLETO

HEADLAMP-DISCHARGE

 2
85967-07020

GSX40..XLETO

 4
85967 - COMPUTER, LIGHT CONTROL
85967-08020

AVX40,GSX40..XLE,XLETO

HEADLAMP-DISCHARGE

 2
85967-07020

GSX40..XLETO

 4
Common parts
90105-A0076
90159-A0034
90189-05142
