GSX40L-AETPKA (2015)

Toyota Avalon

Production Oct 2015 - Apr 2018
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )

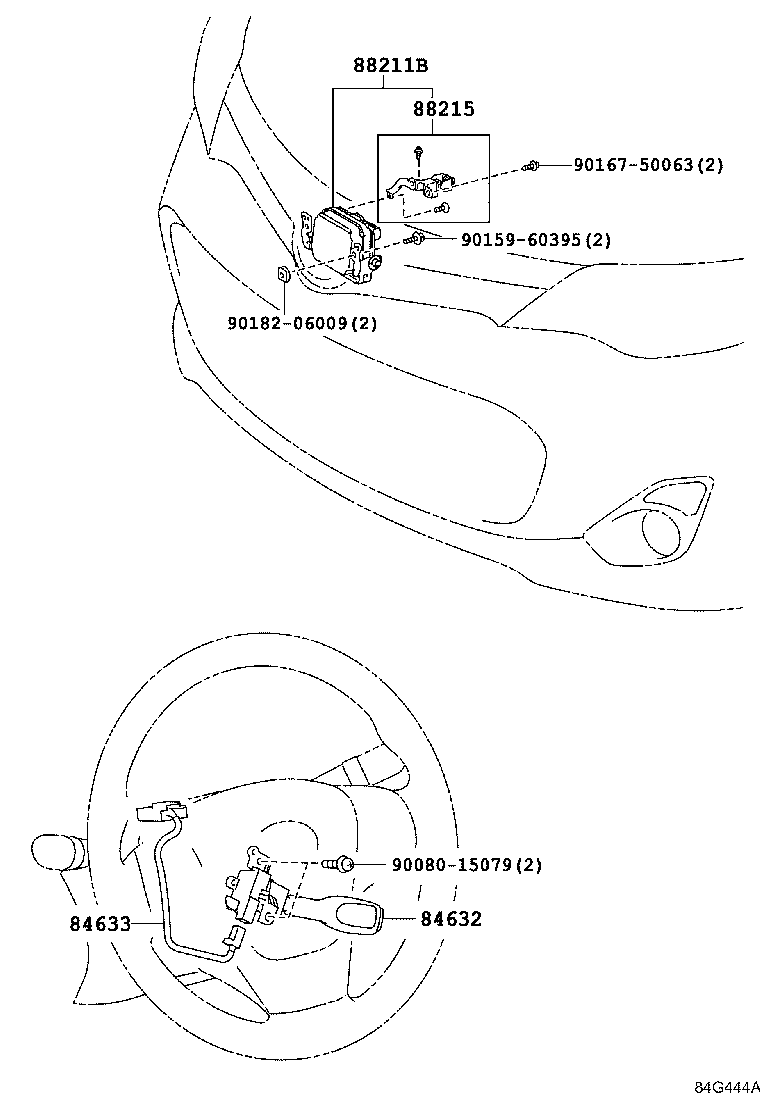

Click highlighted areas on diagram

diagram 84632 84633 88211B 88215 9008015079 9015960395 9016750063 9018206009
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-08021

AVX40,GSX40

 1
84632-08011

AVX40,GSX40..LIMD

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

 1
84632-07040

AVX40,GSX40

 1
84632-07060

AVX40,GSX40

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-0E020

AVX40,GSX40

 1
84633-0E010

AVX40,GSX40..LIMD

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

 1
84633-07020

AVX40,GSX40

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

 1
84633-0E040

AVX40,GSX40

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-07010

GSX40..LIMD

CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED & WITH(*LKA)

 1
88210-41020

AVX40,GSX40..LIMD

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

 1
88210-07010

GSX40..LIMD

CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-DISCHARGE & WITH(*LKA)

 1
88215 - BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1
88201-60010

GSX40..LIMD

CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-DISCHARGE & WITH(*LKA)

 1
88201-60010

GSX40..LIMD

CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED & WITH(*LKA)

 1
Common parts
90080-15079
90159-60395
90167-50063
90182-06009
