GSX40L-AETPKA (2012)

Toyota Avalon

Production Oct 2012 - Oct 2015
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )GSX40

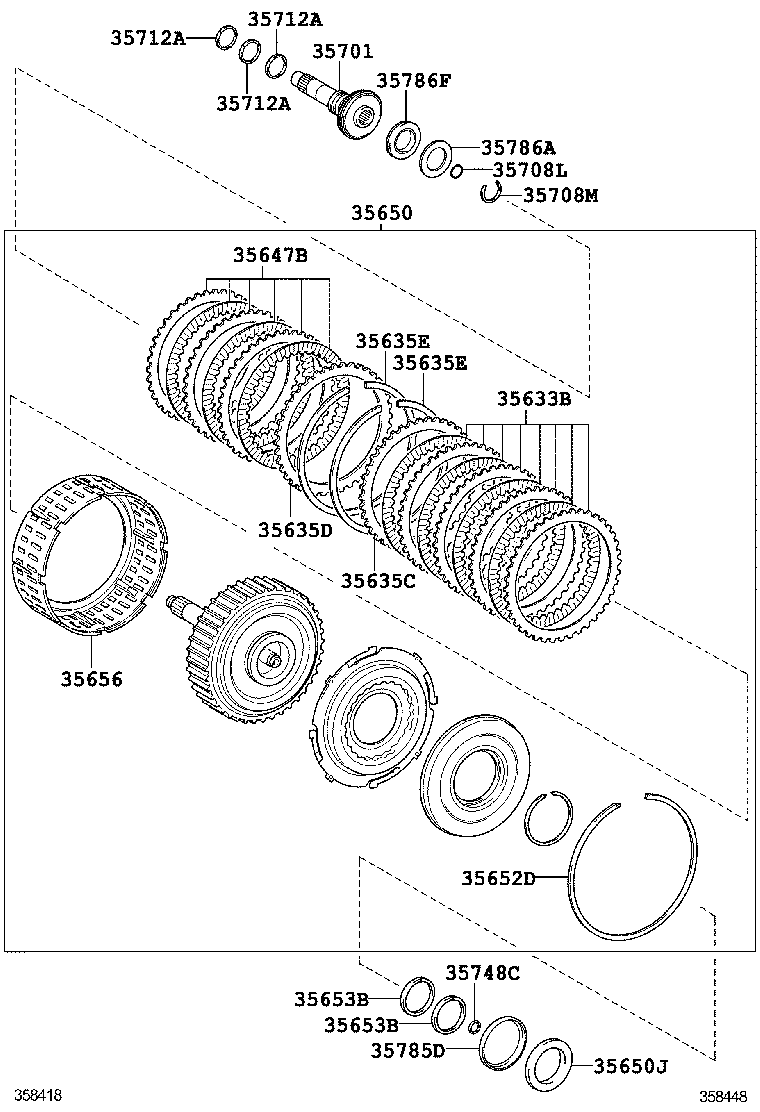

Click highlighted areas on diagram

U660E

diagram 35633B 35635C 35635D 35635E 35635E 35647B 35650 35650J 35652D 35653B 35653B 35656 35701 35708L 35708M 35712A 35712A 35712A 35748C 35785D 35786A 35786F
Part # Description Qty Price
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35607-33010

GSX40

*324

 1
35607-08010

GSX40

*325

 1
35635C - CLUTCH FRANGE, DIRECT MULTIPLE DISC, NO.1
35635-08080

GSX40

T=3.2,MARK 32,*325

 1
35635-08070

GSX40

T=3.1,MARK 31,*325

 1
35635-08060

GSX40

T=3.0,MARK 30,*325

 1
35635-08110

GSX40

T=3.5,MARK 35,*325

 1
35635-08100

GSX40

T=3.4,MARK 34,*325

 1
35635-73050

GSX40

T=3.4,MARK 34,*324

 1
35635-73020

GSX40

T=3.1,MARK 31,*324

 1
35635-08090

GSX40

T=3.3,MARK 33,*325

 1
35635-73060

GSX40

T=3.5,MARK 35,*324

 1
35635-73040

GSX40

T=3.3,MARK 33,*324

 1
35635-08120

GSX40

T=3.6,MARK 36,*325

 1
35635-73030

GSX40

T=3.2,MARK 32,*324

 1
35635-73010

GSX40

T=3.0,MARK 30,*324

 1
35635D - CLUTCH FRANGE, DIRECT MULTIPLE DISC, NO.2
35635-08060

GSX40

T=3.0,MARK 30,*325

 1
35635-08070

GSX40

T=3.1,MARK 31,*325

 1
35635-73010

GSX40

T=3.0,MARK 30,*324

 1
35635-73050

GSX40

T=3.4,MARK 34,*324

 1
35635-73040

GSX40

T=3.3,MARK 33,*324

 1
35635-08120

GSX40

T=3.6,MARK 36,*325

 1
35635-08110

GSX40

T=3.5,MARK 35,*325

 1
35635-73020

GSX40

T=3.1,MARK 31,*324

 1
35635-73030

GSX40

T=3.2,MARK 32,*324

 1
35635-08090

GSX40

T=3.3,MARK 33,*325

 1
35635-73060

GSX40

T=3.5,MARK 35,*324

 1
35635-08100

GSX40

T=3.4,MARK 34,*325

 1
35635-08080

GSX40

T=3.2,MARK 32,*325

 1
35635E - RING, SNAP (FOR DIRECT MULTIPLE DISC CLUTCH)
90520-A0020

GSX40

*325

 2
90520-99107

GSX40

*324

 2
35635E - RING, SNAP (FOR DIRECT MULTIPLE DISC CLUTCH)
90520-A0020

GSX40

*325

 2
90520-99107

GSX40

*324

 2
35647B - PLATE, CLUTCH, NO.2
35065-33020

GSX40

*324

 1
35065-08010

GSX40

*325

 1
35650 - CLUTCH ASSY, REAR MULTIPLE DISC
35650-08010

GSX40

*325

 1
35650-33070

GSX40

*324

 1
35650J - BEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)
90374-48006

GSX40

*325

 1
90374-48009

GSX40

*324

 1
90374-A0032

GSX40

*325

 1
90374-48006

GSX40

*324

 1
35652D - RING, SNAP (FOR DIRECT CLUTCH PISTON)
90520-99111

GSX40

*324

 1
90520-A0022

GSX40

*325

 1
35653B - RING, DIRECT CLUTCH DRUM OIL SEAL
35653-33010

GSX40

 2
35653B - RING, DIRECT CLUTCH DRUM OIL SEAL
35653-33010

GSX40

 2
35656 - PISTON, DIRECT CLUTCH, NO.2
35656-08010

GSX40

*325

 1
35656-33010

GSX40

*324

 1
35701 - SHAFT SUB-ASSY, INPUT
35711-33060

GSX40

 1
35708L - RING, O (FOR INTERMEDIATE SHAFT)
90301-11032

GSX40

*324

 1
90301-A0024

GSX40

*325

 1
35708M - RING, SNAP (FOR INTERMEDIATE SHAFT)
90520-23065

GSX40

 1
35712A - RING, INPUT SHAFT OIL SEAL
35712-33010

GSX40

 3
35712-33010

GSX40

*324

 3
35712-33010

GSX40

*325

 3
35712-0R010

GSX40

*325

 3
35712A - RING, INPUT SHAFT OIL SEAL
35712-33010

GSX40

 3
35712-33010

GSX40

*324

 3
35712-33010

GSX40

*325

 3
35712-0R010

GSX40

*325

 3
35712A - RING, INPUT SHAFT OIL SEAL
35712-33010

GSX40

 3
35712-33010

GSX40

*324

 3
35712-33010

GSX40

*325

 3
35712-0R010

GSX40

*325

 3
35748C - RING, INTERMEDIATE SHAFT OIL SEAL
35748-33010

GSX40

 1
35785D - RACE, THRUST BEARING, NO.4
35785-06010

GSX40

*325

 1
35785-33020

GSX40

*324

 1
35785-33020

GSX40

*325

 1
35785-48020

GSX40

*324

 1
35786A - RACE, THRUST BEARING, NO.1
35786-33010

GSX40

*324

 1
35786-07010

GSX40

*325

 1
35786F - BEARING, THRUST NEEDLE ROLLER
90374-29005

GSX40

*324

 1
90374-A0040

GSX40

*325

 1
90374-A0025

GSX40

*325

 1
