GSX30L-AETPKA (2007)

Toyota Avalon

Production Jul 2007 - Mar 2010
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501-1003)

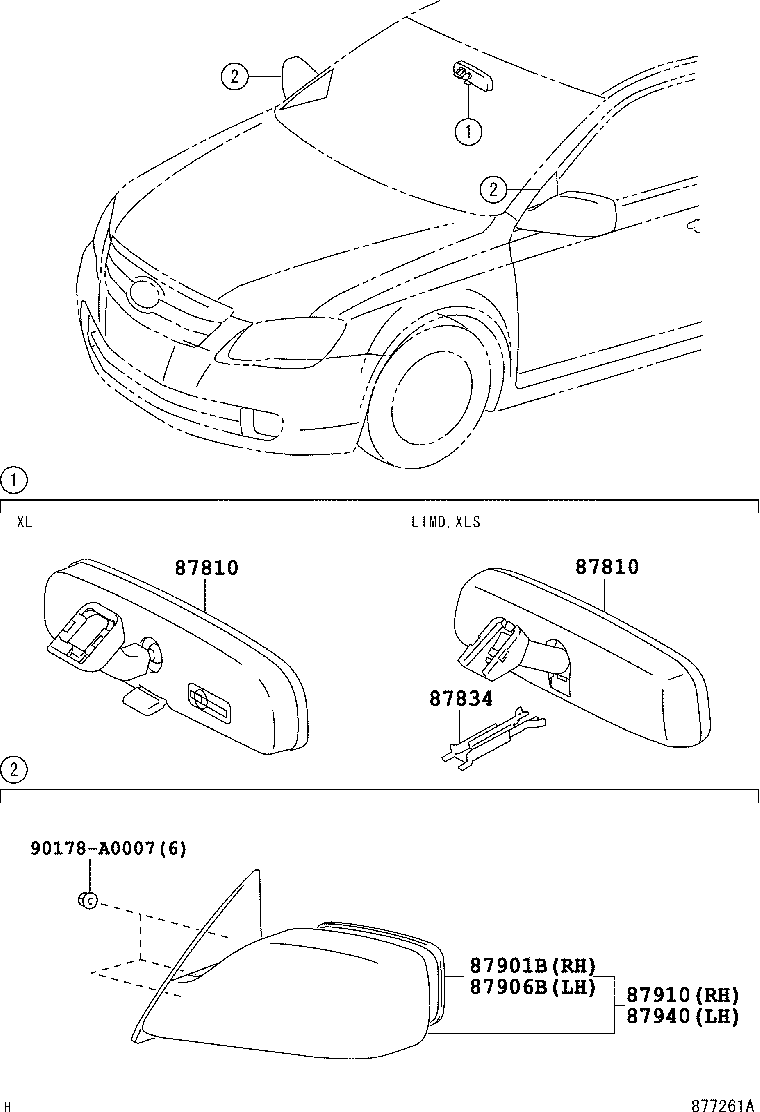

Click highlighted areas on diagram

diagram 87810 87810 87834 87901B 87906B 87910 87940 90178A0007
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-07010

GSX30..LIMD,XLS

 1
87810-AC080

GSX30..LIMD,XLS

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-07010

GSX30..LIMD,XLS

 1
87810-AC080

GSX30..LIMD,XLS

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87818-AC010

GSX30..LIMD,XLS

 1
87818-AC010

GSX30..LIMD,XLS

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87902-AC031

GSX30..LIMD

 1
87902-AC032

GSX30..LIMD

 1
87902-AC030

GSX30..LIMD

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87907-AC031

GSX30..LIMD

 1
87907-AC030

GSX30..LIMD

 1
87907-AC032

GSX30..LIMD

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-AC060B0

GSX30..LIMD

SILVER ME.,1D4

 1
87910-AC060A0

GSX30..LIMD

WHITE PEARL CS.,070

 1
87910-AC060C0

GSX30..LIMD

BLACK,202

 1
87910-AC060D0

GSX30..LIMD

DK RED MC,3Q7

 1
87910-AC060E0

GSX30..LIMD

BEIGE M. M.,4Q2

 1
87910-AC060G0

GSX30..LIMD

LT.GREEN ME.,6U0

 1
87910-AC060J0

GSX30..LIMD

DK.BLUE M.M.,8P4

 1
87910-AC060J1

GSX30..LIMD

BLUE ME.,8R5

 1
87910-AC060B1

GSX30..LIMD

GRAY M.M.,1E3

 1
87910-AC061J0

GSX30..LIMD

DK.BLUE M.M.,8P4

 1
87910-AC061B3

GSX30..LIMD

GRAY ME.,1G3

 1
87910-AC061A0

GSX30..LIMD

WHITE PEARL CS.,070

 1
87910-AC061E0

GSX30..LIMD

BEIGE M. M.,4Q2

 1
87910-AC061G0

GSX30..LIMD

LT.GREEN ME.,6U0

 1
87910-AC061B2

GSX30..LIMD

SILVER ME.,1F7

 1
87910-AC061E1

GSX30..LIMD

DK.BROWN ME.,4U5

 1
87910-AC061J1

GSX30..LIMD

BLUE ME.,8R5

 1
87910-AC061D0

GSX30..LIMD

DK RED MC,3Q7

 1
87910-AC061C0

GSX30..LIMD

BLACK,202

 1
87910-AC061E2

GSX30..LIMD

BEIGE ME.,4T8

 1
87910-AC062B3

GSX30..LIMD

GRAY ME.,1G3

 1
87910-AC062C0

GSX30..LIMD

BLACK,202

 1
87910-AC062G0

GSX30..LIMD

LT.GREEN ME.,6U0

 1
87910-AC062D0

GSX30..LIMD

DK RED MC,3Q7

 1
87910-AC062A0

GSX30..LIMD

WHITE PEARL CS.,070

 1
87910-AC062E2

GSX30..LIMD

BEIGE ME.,4T8

 1
87910-AC062B2

GSX30..LIMD

SILVER ME.,1F7

 1
87910-AC062E1

GSX30..LIMD

DK.BROWN ME.,4U5

 1
87910-AC062J1

GSX30..LIMD

BLUE ME.,8R5

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-AC080A0

GSX30..LIMD

WHITE PEARL CS.,070

 1
87940-AC080D0

GSX30..LIMD

DK RED MC,3Q7

 1
87940-AC080J0

GSX30..LIMD

DK.BLUE M.M.,8P4

 1
87940-AC080B0

GSX30..LIMD

SILVER ME.,1D4

 1
87940-AC080G0

GSX30..LIMD

LT.GREEN ME.,6U0

 1
87940-AC080J1

GSX30..LIMD

BLUE ME.,8R5

 1
87940-AC080E0

GSX30..LIMD

BEIGE M. M.,4Q2

 1
87940-AC080C0

GSX30..LIMD

BLACK,202

 1
87940-AC080B1

GSX30..LIMD

GRAY M.M.,1E3

 1
87940-AC081C0

GSX30..LIMD

BLACK,202

 1
87940-AC081B2

GSX30..LIMD

SILVER ME.,1F7

 1
87940-AC081J1

GSX30..LIMD

BLUE ME.,8R5

 1
87940-AC081B3

GSX30..LIMD

GRAY ME.,1G3

 1
87940-AC081E0

GSX30..LIMD

BEIGE M. M.,4Q2

 1
87940-AC081J0

GSX30..LIMD

DK.BLUE M.M.,8P4

 1
87940-AC081D0

GSX30..LIMD

DK RED MC,3Q7

 1
87940-AC081A0

GSX30..LIMD

WHITE PEARL CS.,070

 1
87940-AC081G0

GSX30..LIMD

LT.GREEN ME.,6U0

 1
87940-AC081E2

GSX30..LIMD

BEIGE ME.,4T8

 1
87940-AC081E1

GSX30..LIMD

DK.BROWN ME.,4U5

 1
87940-AC082B3

GSX30..LIMD

GRAY ME.,1G3

 1
87940-AC082B2

GSX30..LIMD

SILVER ME.,1F7

 1
87940-AC082E2

GSX30..LIMD

BEIGE ME.,4T8

 1
87940-AC082G0

GSX30..LIMD

LT.GREEN ME.,6U0

 1
87940-AC082D0

GSX30..LIMD

DK RED MC,3Q7

 1
87940-AC082J1

GSX30..LIMD

BLUE ME.,8R5

 1
87940-AC082C0

GSX30..LIMD

BLACK,202

 1
87940-AC082E1

GSX30..LIMD

DK.BROWN ME.,4U5

 1
87940-AC082A0

GSX30..LIMD

WHITE PEARL CS.,070

 1
Common parts
90178-A0007
