Toyota Avalon GSX30 WIRING & CLAMP

GSX30L-AETNKA (2007)

Toyota Avalon

Production Jul 2007 - Mar 2010

Engine 2GRFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

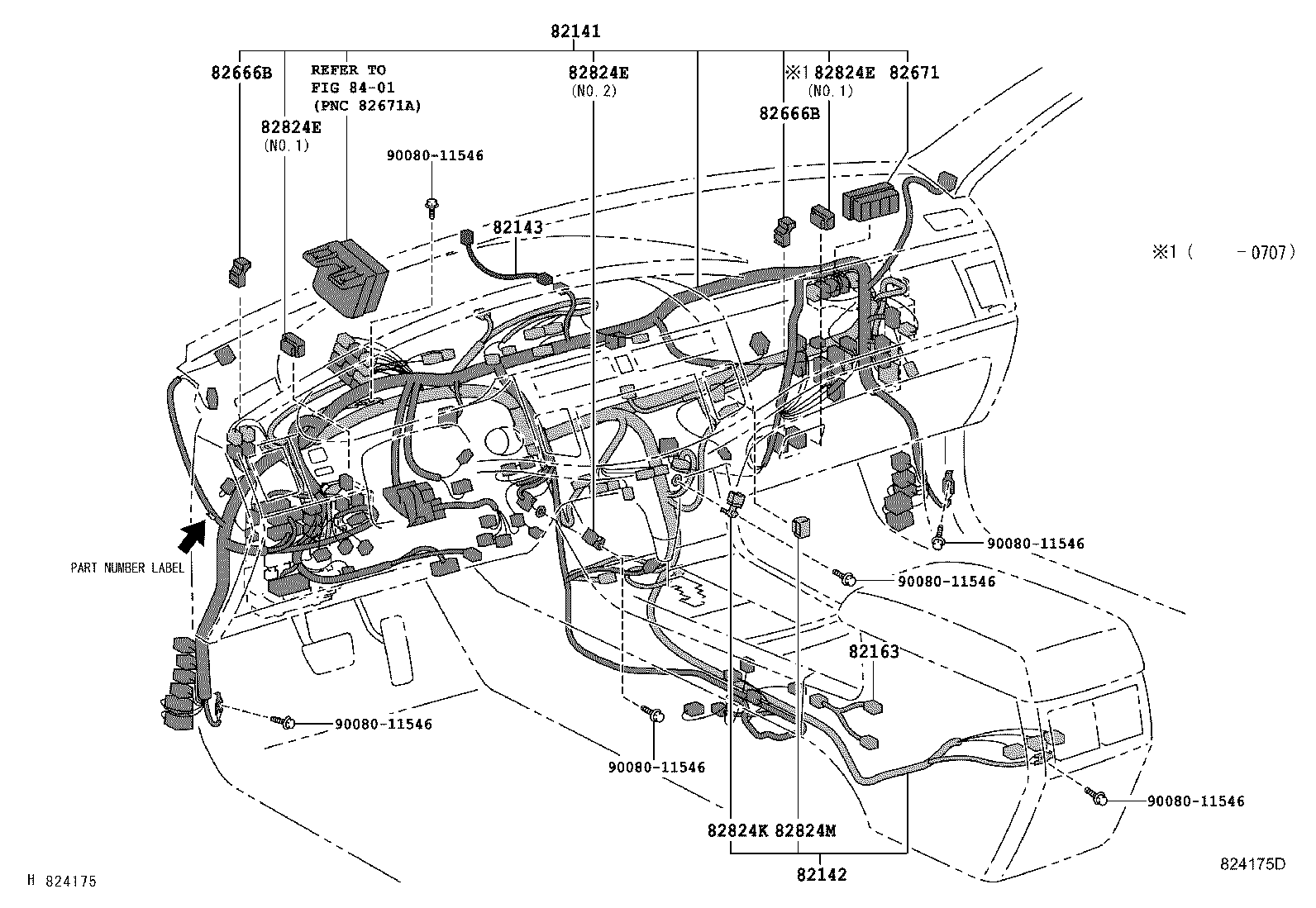

ILLUST NO. 3 OF 9(0501-1003)

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-AC010	GSX30..XL	01/2005 - 08/2006	1
82141-AC020	GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)	01/2005 - 08/2006	1
82141-AC020	GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)	01/2005 - 08/2006	1
82141-07450	GSX30..XL	07/2007 - 08/2008	1
82141-07480	GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)	07/2007 - 08/2008	1
82141-07480	GSX30..XL ANTI-THEFT SYSTEM-WITH (IMMOBILIZER & ALARM)	07/2007 - 08/2008	1
82141-07490	GSX30..XL ANTI-THEFT SYSTEM-WITH (IMMOBILIZER & ALARM)&VEHICLE STABILITY CONT-WITH(W/TRACTION CONTROL)	07/2007 - 08/2008	1
82141-07490	GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)&VEHICLE STABILITY CONT-WITH(W/TRACTION CONTROL)	07/2007 - 08/2008	1
82141-07670	GSX30..XL VEHICLE STABILITY CONT-WITH(W/TRACTION CONTROL)	07/2007 - 08/2008	1
82141-07490	GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)	08/2008 - 08/2009	1
82141-07490	GSX30..XL ANTI-THEFT SYSTEM-WITH (IMMOBILIZER & ALARM)	08/2008 - 08/2009	1
82141-07670	GSX30..XL	08/2008 - 08/2009	1
82141-07671	GSX30..XL	08/2009 - 12/2999	1
82141-07491	GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)	08/2009 - 12/2999	1
82141-07491	GSX30..XL ANTI-THEFT SYSTEM-WITH (IMMOBILIZER & ALARM)	08/2009 - 12/2999	1
82141-AC010	GSX30..XL PART NUMBER LABEL=82141-AC010	01/2005 - 08/2006	1
82141-AC020	GSX30..XL PART NUMBER LABEL=82141-AC020	01/2005 - 08/2006	1
82141-07480	GSX30..XL PART NUMBER LABEL=82141-07480	07/2007 - 08/2008	1
82141-07450	GSX30..XL PART NUMBER LABEL=82141-07450	07/2007 - 08/2008	1
82141-07670	GSX30..XL PART NUMBER LABEL=82141-07670	07/2007 - 08/2008	1
82141-07490	GSX30..XL PART NUMBER LABEL=82141-07490	07/2007 - 08/2008	1
82141-07490	GSX30..XL PART NUMBER LABEL=82141-07490	08/2008 - 08/2009	1
82141-07670	GSX30..XL PART NUMBER LABEL=82141-07670	08/2008 - 08/2009	1
82141-07491	GSX30..XL PART NUMBER LABEL=82141-07481	08/2009 - 12/2999	1
82141-07671	GSX30..XL PART NUMBER LABEL=82141-07671	08/2009 - 12/2999	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-AC020	GSX30..XL,XLS AUDIO-AM/FM/CD-CH 9SP & CASSETTE	01/2005 - 08/2006	1
82142-AC020	GSX30..XL AUDIO-AM/FM/CD 9SP & CASSETTE	01/2005 - 08/2006	1
82142-AC030	GSX30..XL,XLS AUDIO-JBL AM/FM/CD-CH 12SP	01/2005 - 08/2006	1
82142-AC010	GSX30..XL,XLS	01/2005 - 08/2006	1
82142-AC030	GSX30..XL,XLS AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE	01/2005 - 08/2006	1
82142-07040	GSX30..XL AUDIO-JBL AM/FM/CD-CH 12SP	07/2007 - 12/2999	1
82142-07050	GSX30..XL AUDIO-JBL AM/FM/CD-CH 12SP&EMV & NAVIGATION SYSTEM-WITH	07/2007 - 12/2999	1
82142-07020	GSX30..XL	07/2007 - 12/2999	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-AC010	GSX30..XL	07/2007 - 12/2999	1
82143-AC010	GSX30	01/2005 - 07/2007	1
82163 - WIRE, FLOOR, NO.3
82163-AC030	GSX30	01/2005 - 07/2007	1
82163-07010	GSX30	07/2007 - 03/2010	1
82666B - HOLDER, CONNECTOR NO.3
82666-48030	GSX30	01/2005 - 07/2007	2
82666-48030	GSX30..XL ANTI-THEFT SYSTEM-WITH (IMMOBILIZER & ALARM)	07/2007 - 08/2008	2
82666-48030	GSX30..XL ANTI-THEFT SYSTEM-WITH (IMMOBILIZER & ALARM)&VEHICLE STABILITY CONT-WITH(W/TRACTION CONTROL)	07/2007 - 08/2008	2
82666-48030	GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)	07/2007 - 08/2008	2
82666-48030	GSX30..XL,XLS VEHICLE STABILITY CONT-WITH(W/TRACTION CONTROL)	07/2007 - 08/2008	2
82666-48030	GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)&VEHICLE STABILITY CONT-WITH(W/TRACTION CONTROL)	07/2007 - 08/2008	2
82666-48030	GSX30..XL	08/2008 - 12/2999	2
82666B - HOLDER, CONNECTOR NO.3
82666-48030	GSX30	01/2005 - 07/2007	2
82666-48030	GSX30..XL ANTI-THEFT SYSTEM-WITH (IMMOBILIZER & ALARM)	07/2007 - 08/2008	2
82666-48030	GSX30..XL ANTI-THEFT SYSTEM-WITH (IMMOBILIZER & ALARM)&VEHICLE STABILITY CONT-WITH(W/TRACTION CONTROL)	07/2007 - 08/2008	2
82666-48030	GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)	07/2007 - 08/2008	2
82666-48030	GSX30..XL,XLS VEHICLE STABILITY CONT-WITH(W/TRACTION CONTROL)	07/2007 - 08/2008	2
82666-48030	GSX30..XL ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)&VEHICLE STABILITY CONT-WITH(W/TRACTION CONTROL)	07/2007 - 08/2008	2
82666-48030	GSX30..XL	08/2008 - 12/2999	2
82671 - BLOCK, JUNCTION
82671-AC020	GSX30	01/2005 - 07/2007	1
82671-AC020	GSX30..XL	07/2007 - 12/2999	1
82824E - CONNECTOR, WIRING HARNESS
82824-48070	GSX30 NO.2	01/2005 - 07/2007	1
82824-12210	GSX30 NO.1	01/2005 - 07/2007	2
82824-12210	GSX30..XL NO.1	07/2007 - 12/2999	1
82824-48070	GSX30..XL NO.2	07/2007 - 12/2999	1
82824E - CONNECTOR, WIRING HARNESS
82824-48070	GSX30 NO.2	01/2005 - 07/2007	1
82824-12210	GSX30 NO.1	01/2005 - 07/2007	2
82824-12210	GSX30..XL NO.1	07/2007 - 12/2999	1
82824-48070	GSX30..XL NO.2	07/2007 - 12/2999	1
82824E - CONNECTOR, WIRING HARNESS
82824-48070	GSX30 NO.2	01/2005 - 07/2007	1
82824-12210	GSX30 NO.1	01/2005 - 07/2007	2
82824-12210	GSX30..XL NO.1	07/2007 - 12/2999	1
82824-48070	GSX30..XL NO.2	07/2007 - 12/2999	1
82824K - CONNECTOR, WIRING HARNESS
82824-48070	GSX30..XL,XLS AUDIO-AM/FM/CD-CH 9SP & CASSETTE	01/2005 - 07/2007	1
82824-48070	GSX30..XL,XLS AUDIO-JBL AM/FM/CD-CH 12SP	01/2005 - 07/2007	1
82824-48070	GSX30..XL AUDIO-JBL AM/FM/CD-CH 12SP	07/2007 - 12/2999	1
82824-48070	GSX30..XL,XLS AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE	01/2005 - 07/2007	1
82824-48070	GSX30..XL AUDIO-JBL AM/FM/CD-CH 12SP&EMV & NAVIGATION SYSTEM-WITH	07/2007 - 12/2999	1
82824-48070	GSX30..XL AUDIO-AM/FM/CD 9SP & CASSETTE	01/2005 - 07/2007	1
82824M - CONNECTOR, WIRING HARNESS
82824-20110	GSX30..XL,XLS	01/2005 - 07/2007	1
82824-20110	GSX30..XL	07/2007 - 12/2999	1
Common parts
90080-11546
Linked diagrams
8401

ILLUST NO. 2 OF 9(0707- )

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-07090	GSX30..XL,XLS	01/2005 - 08/2005	1
82121-07110	GSX30..XL	07/2007 - 12/2999	1
82122 - WIRE, ENGINE, NO.2
82122-06060	GSX30..XL	07/2007 - 12/2999	1
82122-07030	GSX30	01/2005 - 07/2007	1
82219A - WIRE, SENSOR
82219-41010	GSX30	01/2005 - 01/2006	1
82219-06010	GSX30..XL	07/2007 - 12/2999	1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-07010	GSX30..XL	07/2007 - 12/2999	1
82661-07010	GSX30	01/2005 - 07/2007	1
82666A - HOLDER, CONNECTOR NO.2
82666-43040	GSX30	01/2005 - 07/2007	1
82666-43040	GSX30..XL	07/2007 - 12/2999	1
82823S - CAP, STARTER TERMINAL
82823-12090	GSX30	07/2007 - 03/2010	1
82824D - CONNECTOR, WIRING HARNESS
82824-50110	GSX30	01/2005 - 07/2007	1
82824-48020	GSX30..XL	07/2007 - 12/2999	1
Common parts
90080-11354
90080-11545
90080-12001
90080-17198
90119-A0072
90119-A0160
90178-A0023

ILLUST NO. 8 OF 9(0707-1003)

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-A7002	GSX30..XL	07/2007 - 03/2010	1
90980-07421	GSX30	01/2005 - 07/2007	1
82001C - CABLE, BOND, NO.2
90980-07422	GSX30	01/2005 - 07/2007	1
90980-A7003	GSX30..XL	07/2007 - 03/2010	1
Common parts
82711-34310
90080-10348
90080-11545
90119-A0160
