GSX30L-AETGKA (2010)
Toyota Avalon
Production
Mar 2010
-
Oct 2012
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1003- )

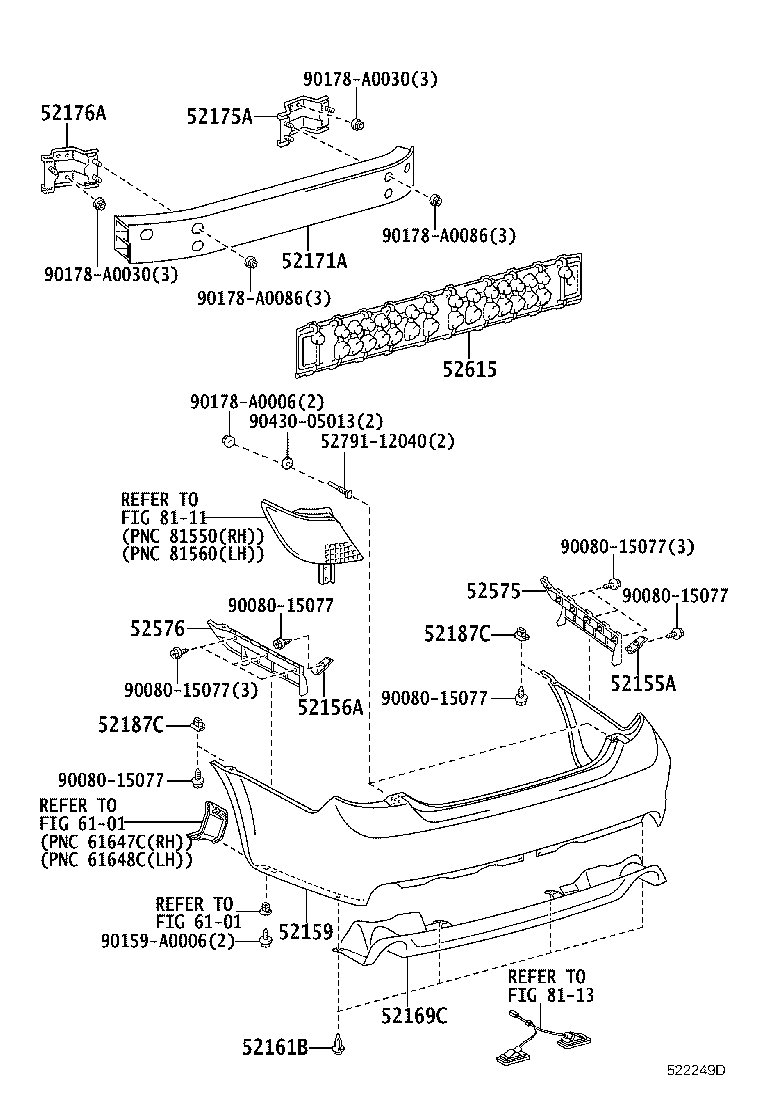

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-AC010 |
GSX30 |
1 | ||
| 52155-AC010 |
GSX30 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-AC010 |
GSX30 |
1 | ||
| 52156-AC010 |
GSX30 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-07900 |
GSX30 PAINT REQ. |
1 | ||
| 52159-AC904 |
GSX30 PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
GSX30 |
2 | ||
| 52161-02020 |
GSX30 |
4 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-07010 |
GSX30 NO PAINT REQ. |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-AC060 |
GSX30 |
1 | ||
| 52171-AC060 |
GSX30 |
1 | ||
| 52171-AC061 |
GSX30 |
1 | ||
| 52175A - BRACKET, REAR BUMPER ARM MOUNTING, RH | ||||
| 52175-AC030 |
GSX30 |
1 | ||
| 52175-AC030 |
GSX30 |
1 | ||
| 52176A - BRACKET, REAR BUMPER ARM MOUNTING, LH | ||||
| 52176-AC030 |
GSX30 |
1 | ||
| 52176-AC030 |
GSX30 |
1 | ||
| 52187C - BRACKET, REAR BUMPER SIDE, NO.2 | ||||
| 52187-AC010 |
GSX30 |
2 | ||
| 52187-AC010 |
GSX30 |
2 | ||
| 52187C - BRACKET, REAR BUMPER SIDE, NO.2 | ||||
| 52187-AC010 |
GSX30 |
2 | ||
| 52187-AC010 |
GSX30 |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-AC030 |
GSX30 |
1 | ||
| 52575-AC030 |
GSX30 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-AC030 |
GSX30 |
1 | ||
| 52576-AC030 |
GSX30 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-AC040 |
GSX30 |
1 | ||
| 52615-07010 |
GSX30 |
1 | ||
| Common parts | ||||
| 52791-12040 | ||||
| 90080-15077 | ||||
| 90159-A0006 | ||||
| 90178-A0006 | ||||
| 90178-A0030 | ||||
| 90178-A0086 | ||||
| 90430-05013 | ||||
| Linked diagrams | ||||
| 6101 | ||||
| 8111 | ||||
| 8113 | ||||
