GSX30L-AEAGKA (2005)
Toyota Avalon

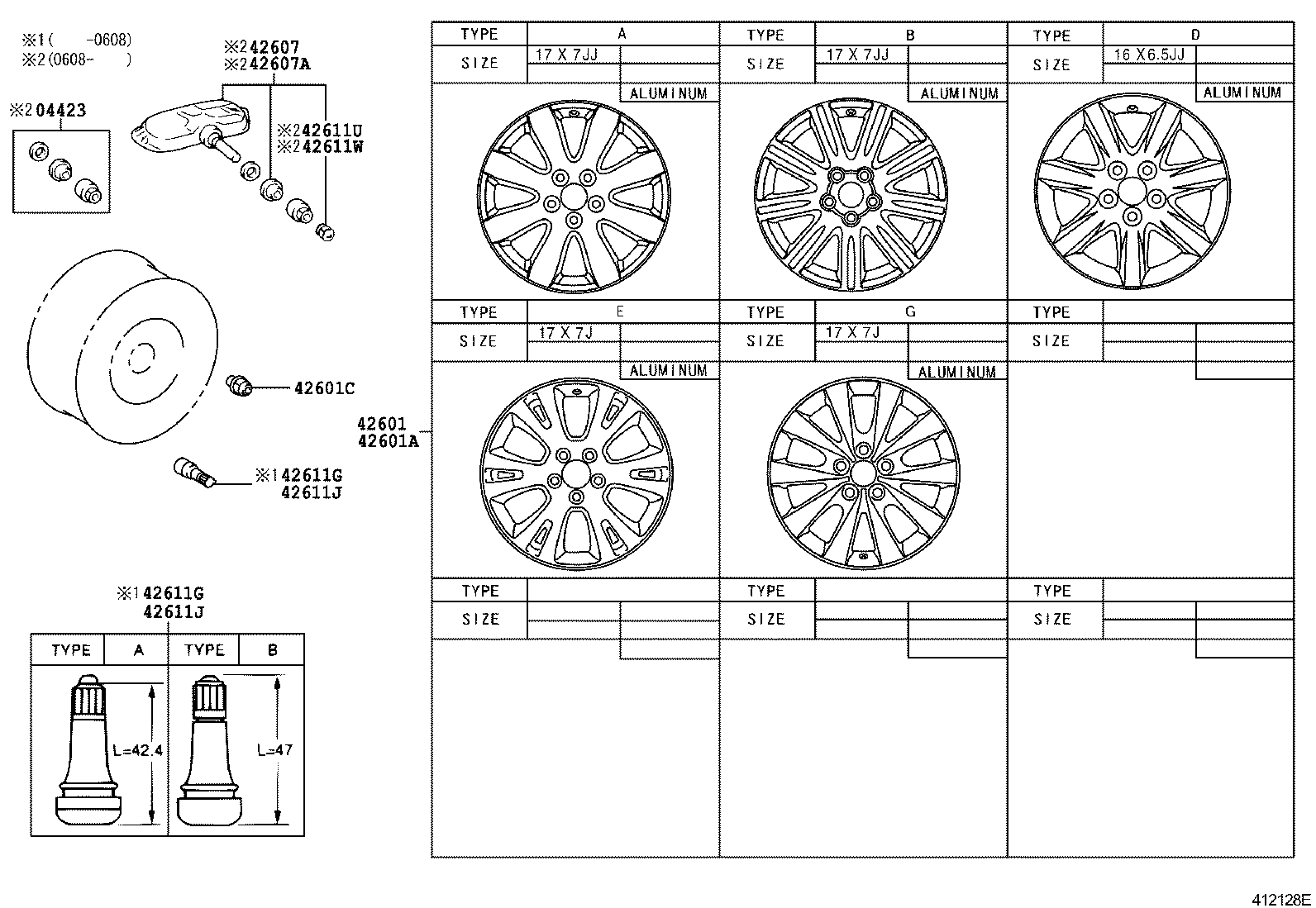

ILLUST NO. 1 OF 3(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-0E010 |
GSX30 |
4 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-AC060 |
GSX30..XL 17X7JJ, #,GRADE PACKAGE-SPORTS PACKAGE&SPARE TIRE-STD TIRE ALUMINIUM 17" C,TYPE A:REFER ILLUST. |
4 | ||
| 42611-AC090 |
GSX30..XLS 17X7JJ, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-AC061 |
GSX30..XL 17X7JJ, #,GRADE PACKAGE-SPORTS PACKAGE,TYPE A:REFER ILLUST. |
4 | ||
| 42611-AC091 |
GSX30..XLS 17X7JJ, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-AC080 |
GSX30..XL 16X6.5JJ, #,TYPE D:REFER ILLUST. |
4 | ||
| 42611-AC081 |
GSX30..XL 16X6.5JJ, #,TYPE D:REFER ILLUST. |
4 | ||
| 42611-AC060 |
GSX30..XL 17X7JJ, #,GRADE PACKAGE-SPORTS PACKAGE,TYPE A:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-AC081 |
GSX30..XL 16X6.5JJ, #,TYPE D:REFER ILLUST. |
1 | ||
| 42611-AE050 |
GSX30 17X4T,TYPE C:REFER ILLUST. |
1 | ||
| 42611-AC090 |
GSX30..XLS 17X7JJ, #,SPARE TIRE-STD TIRE ALUMINIUM 17" A,TYPE A:REFER ILLUST. |
1 | ||
| 42611-AC080 |
GSX30..XL 16X6.5JJ, #,SPARE TIRE-STD TIRE ALUMINIUM 16",TYPE D:REFER ILLUST. |
1 | ||
| 42611-AC060 |
GSX30..XL 17X7JJ, #,GRADE PACKAGE-SPORTS PACKAGE&SPARE TIRE-STD TIRE ALUMINIUM 17" C,TYPE A:REFER ILLUST. |
1 | ||
| 42611-AC091 |
GSX30..XLS 17X7JJ, #,TYPE A:REFER ILLUST. |
1 | ||
| 42611-AC061 |
GSX30..XL 17X7JJ, #,GRADE PACKAGE-SPORTS PACKAGE,TYPE A:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90084-94001 |
GSX30 |
20 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-06011 |
GSX30..LIMD,XL |
4 | ||
| 42607-06011 |
GSX30..XLS |
5 | ||
| 42607A - VALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE) | ||||
| 42607-06011 |
GSX30 |
1 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90080-45001 |
GSX30 TYPE A:REFER ILLUST. |
4 | ||
| 90080-45006 |
GSX30 TYPE B:REFER ILLUST. |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90080-45001 |
GSX30 TYPE A:REFER ILLUST. |
4 | ||
| 90080-45006 |
GSX30 TYPE B:REFER ILLUST. |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90080-45006 |
GSX30..XL GRADE PACKAGE-SPORTS PACKAGE&SPARE TIRE-STD TIRE ALUMINIUM 17" C,TYPE B:REFER ILLUST. |
4 | ||
| 90080-45006 |
GSX30 TYPE B:REFER ILLUST. |
1 | ||
| 90080-45001 |
GSX30 TYPE A:REFER ILLUST. |
1 | ||
| 90080-45001 |
GSX30..XL GRADE PACKAGE-SPORTS PACKAGE&SPARE TIRE-STD TIRE ALUMINIUM 17" C,TYPE A:REFER ILLUST. |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90080-45006 |
GSX30..XL GRADE PACKAGE-SPORTS PACKAGE&SPARE TIRE-STD TIRE ALUMINIUM 17" C,TYPE B:REFER ILLUST. |
4 | ||
| 90080-45006 |
GSX30 TYPE B:REFER ILLUST. |
1 | ||
| 90080-45001 |
GSX30 TYPE A:REFER ILLUST. |
1 | ||
| 90080-45001 |
GSX30..XL GRADE PACKAGE-SPORTS PACKAGE&SPARE TIRE-STD TIRE ALUMINIUM 17" C,TYPE A:REFER ILLUST. |
4 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-A5002 |
GSX30 |
4 | ||
| 42611W - CAP, TIRE VALVE (FOR SPARE) | ||||
| 90942-A5002 |
GSX30 |
1 | ||
ILLUST NO. 2 OF 3(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-AC060 |
GSX30..XLS *CHR,TYPE B:REFER ILLUST. |
4 | ||
| 42603-AC040 |
GSX30..XL *ALU,TYPE B:REFER ILLUST. |
4 | ||
| 42603-AC070 |
GSX30..XL *ALU,GRADE PACKAGE-SPORTS PACKAGE,TYPE B:REFER ILLUST. |
4 | ||

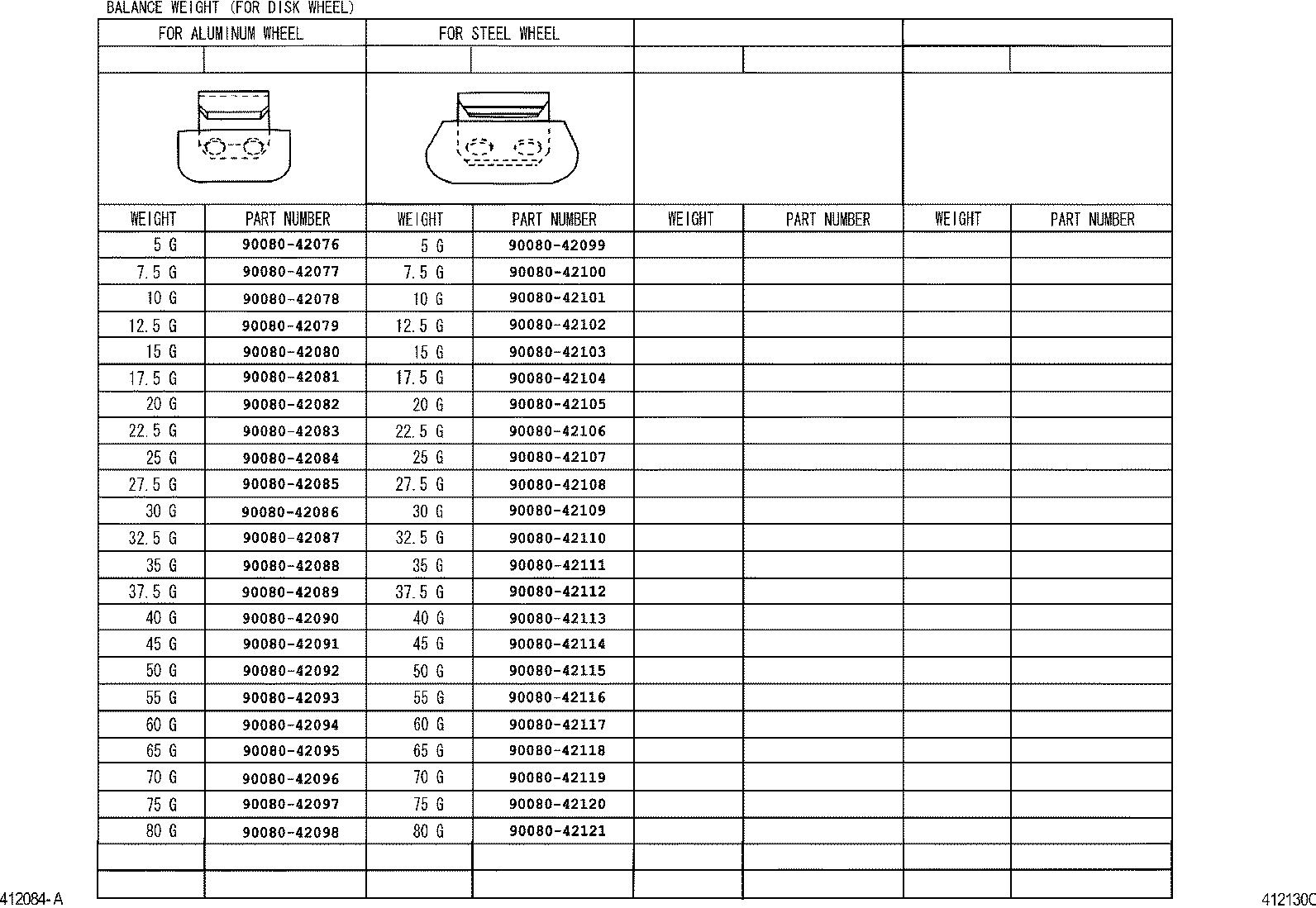

ILLUST NO. 3 OF 3(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-42076 | ||||
| 90080-42077 | ||||
| 90080-42078 | ||||
| 90080-42079 | ||||
| 90080-42080 | ||||
| 90080-42081 | ||||
| 90080-42082 | ||||
| 90080-42083 | ||||
| 90080-42084 | ||||
| 90080-42085 | ||||
| 90080-42086 | ||||
| 90080-42087 | ||||
| 90080-42088 | ||||
| 90080-42089 | ||||
| 90080-42090 | ||||
| 90080-42091 | ||||
| 90080-42092 | ||||
| 90080-42093 | ||||
| 90080-42094 | ||||
| 90080-42095 | ||||
| 90080-42096 | ||||
| 90080-42097 | ||||
| 90080-42098 | ||||
| 90080-42099 | ||||
| 90080-42100 | ||||
| 90080-42101 | ||||
| 90080-42102 | ||||
| 90080-42103 | ||||
| 90080-42104 | ||||
| 90080-42105 | ||||
| 90080-42106 | ||||
| 90080-42107 | ||||
| 90080-42108 | ||||
| 90080-42109 | ||||
| 90080-42110 | ||||
| 90080-42111 | ||||
| 90080-42112 | ||||
| 90080-42113 | ||||
| 90080-42114 | ||||
| 90080-42115 | ||||
| 90080-42116 | ||||
| 90080-42117 | ||||
| 90080-42118 | ||||
| 90080-42119 | ||||
| 90080-42120 | ||||
| 90080-42121 | ||||
