AXXH51L-AEXPBA (2020)

Toyota Avalon

Production Aug 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 7(2008- )

Click highlighted areas on diagram

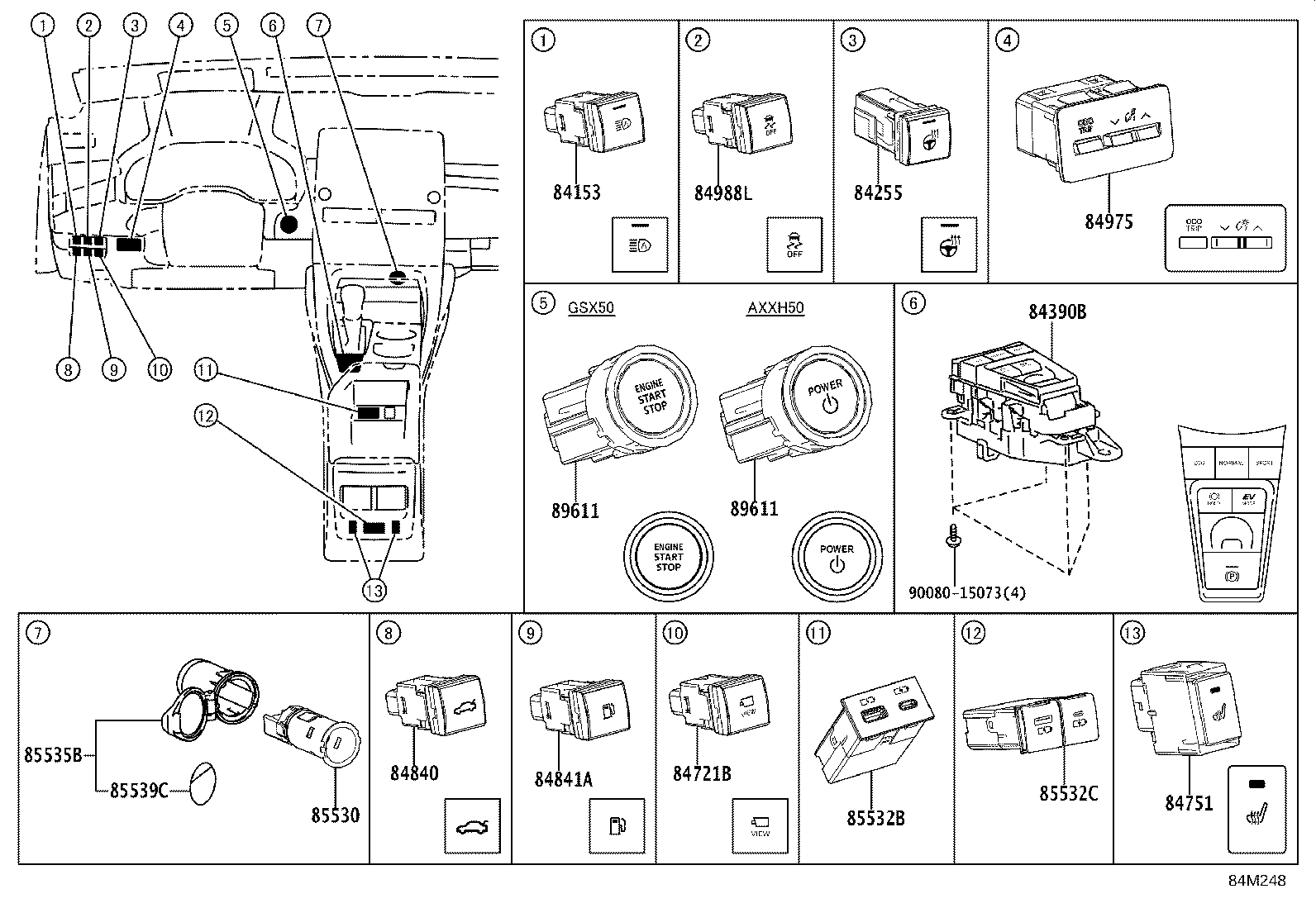

INSTRUMENT PANEL

diagram 84153 84255 84390B 84721B 84751 84840 84841A 84975 84988L 85530 85532B 85532C 85535B 85539C 89611 89611 9008015073
Part # Description Qty Price
84153 - SWITCH, AUTO HIGH BEAM
84153-06010

AXXA55,AXXH51,GSX50

 1
84255 - SWITCH, STEERING HEATER
84255-33010

AXXA55;AXXH51,GSX50..LIMD,TOU

 1
84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE
84390-07010

AXXH51

 1
84721B - SWITCH, PANORAMIC VIEW MONITOR
84721-06020

AXXA55,AXXH51,GSX50..LIMD,TOU

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)

 1
84751 - SWITCH, SEAT HEATER
84751-33090

AXXA55,AXXH51,GSX50..LIMD,TOU

 2
84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING
84840-06020

AXXA55,AXXH51,GSX50

 1
84841A - SWITCH, FUEL LID OPENER
84841-06020

AXXA55,AXXH51,GSX50

 1
84975 - SWITCH, TRIP
84975-41010

AXXA55,AXXH51,GSX50

 1
84988L - SWITCH, VSC OFF
84988-06090

AXXA55,AXXH51,GSX50

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-06030

AXXA55,AXXH51,GSX50

 1
85532B - SOCKET, USB CHARGER
85532-08050

AXXA55,AXXH51,GSX50

 1
85532C - SOCKET, USB CHARGER, NO.2
85532-08040

AXXA55,AXXH51,GSX50

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-0C020C1

AXXA55,AXXH51,GSX50..LIMD,XLE

BLACK,TRIM1#,2#,4#

 1
85539C - LABEL, POWER OUTLET NOTICE
85539-60020

AXXA55,AXXH51,GSX50

 1
89611 - SWITCH, PUSH START
89611-0E022

AXXH51

 1
89611 - SWITCH, PUSH START
89611-0E022

AXXH51

 1
Common parts
90080-15073
