AXXH51L-AEXGBA (2020)

Toyota Avalon

Production Aug 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )AXXH51

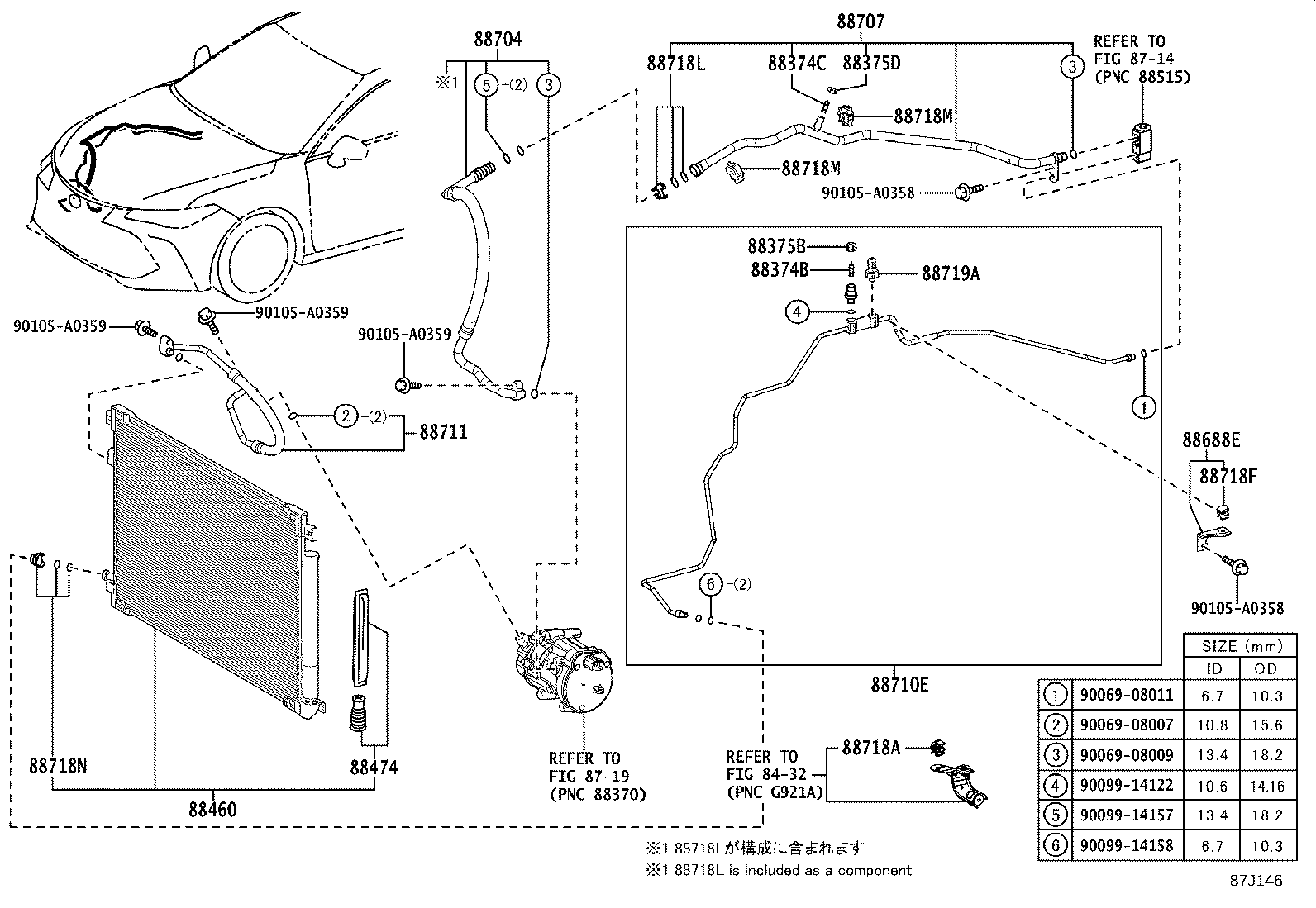

Click highlighted areas on diagram

diagram 8432 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88688E 88704 88707 88710E 88711 88718A 88718F 88718L 88718M 88718M 88718N 88719A 9006908007 9006908009 9006908011 9009914122 9009914157 9009914158 90105A0358 90105A0358 90105A0359 90105A0359 90105A0359
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AXXA55,AXXH51

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AXXA55,AXXH51,GSX50

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30320

AXXA55,AXXH51,GSX50

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30310

AXXA55,AXXH51,GSX50

 1
88460 - CONDENSER ASSY, COOLER
884A0-06030

AXXH51

 1
88474 - DRYER, COOLER
88474-06020

AXXA55,AXXH51,GSX50

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-06360

AXXH51

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-06270

AXXH51

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-06360

AXXH51

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-06640

AXXH51

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-06610

AXXH51

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-58050

AXXA55,AXXH51,GSX50

 1
88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718-58050

AXXH51

 1
88718L - CLAMP, PIPING
88718-52280

AXXA55,AXXH51,GSX50

 1
88718M - CLAMP, PIPING
88718-42110

AXXH51

 2
88718M - CLAMP, PIPING
88718-42110

AXXH51

 2
88718N - CLAMP, PIPING
88718-1E150

AXXA55,AXXH51,GSX50

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

AXXA55,AXXH51,GSX50

 1
Common parts
90069-08007
90069-08009
90069-08011
90099-14122
90099-14157
90099-14158
90105-A0358
90105-A0359
Linked diagrams
8432
8714
8719
