AXXH51L-AEXGBA (2020)

Toyota Avalon

Production Aug 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )AXXH51

Click highlighted areas on diagram

SENSOR

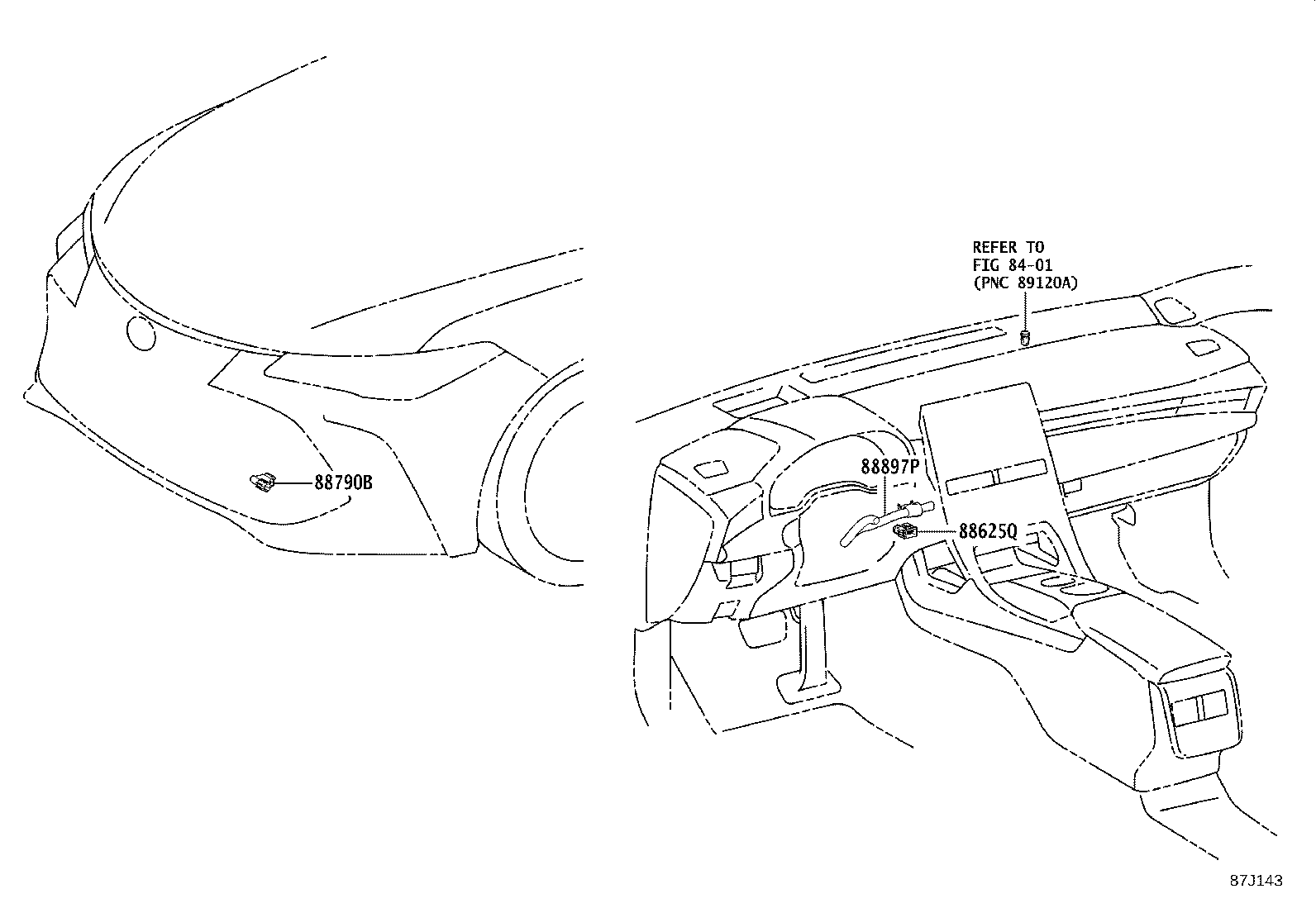

diagram 8401 88625Q 88790B 88897P
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-06040

AXXA55,AXXH51,GSX50

 1
88790B - THERMISTOR ASSY
88790-06020

AXXA55,AXXH51,GSX50

 1
88897P - ASPIRATOR
87201-06770

AXXA55,AXXH51,GSX50

 1
Linked diagrams
8401
